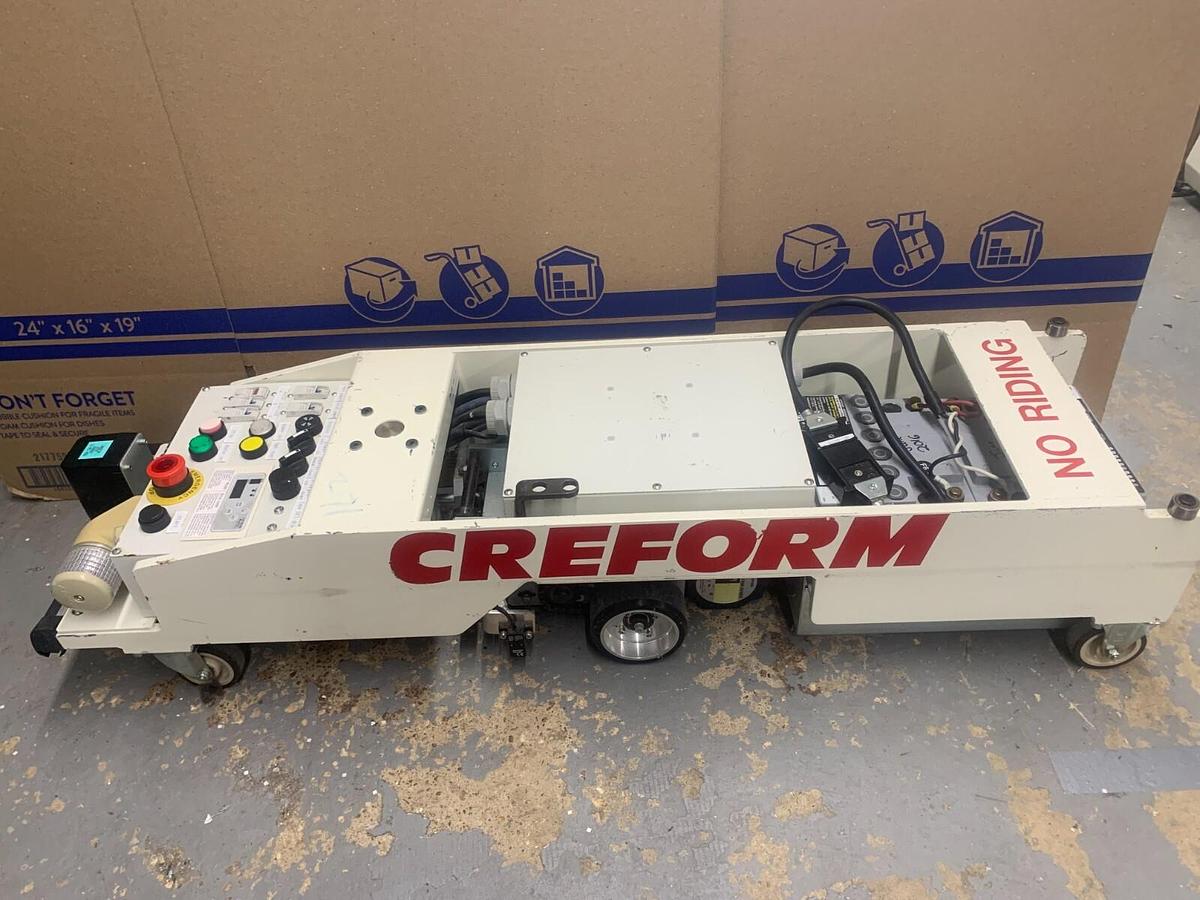

CREFORM BST AGV Tugger CA-A3800C w/Battery/Charger, & Accessory Handle (Tested)

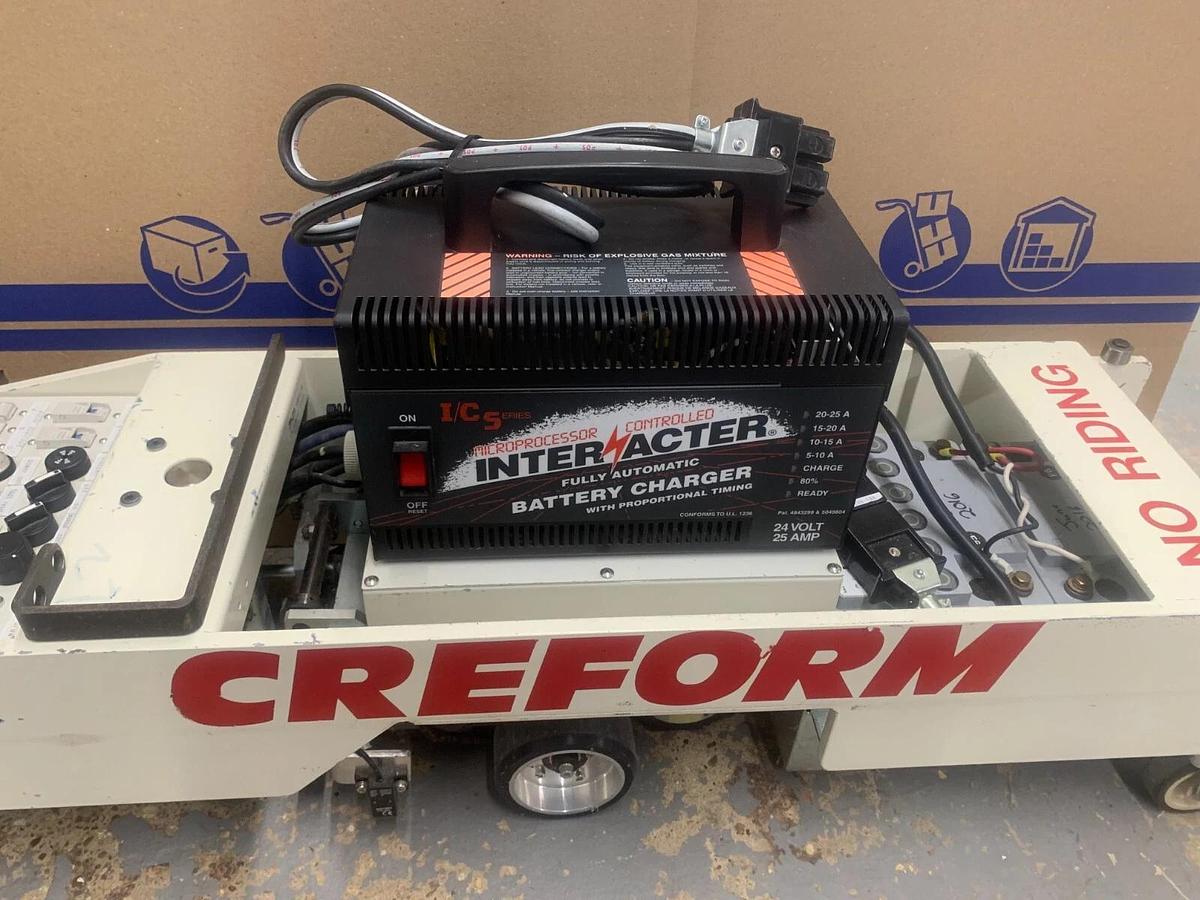

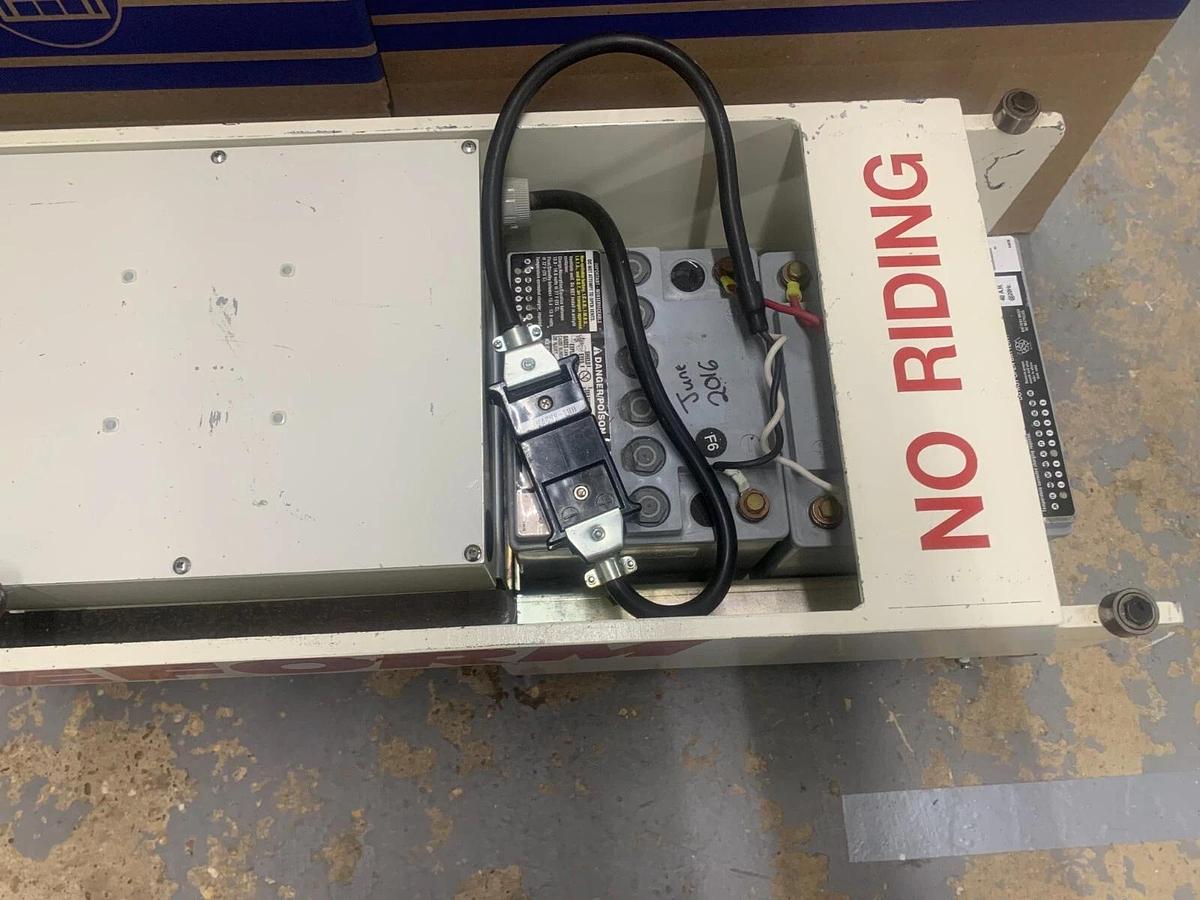

CREFORM  BST AGV Tugger CA-A3800C w/Battery/Charger/ & Accessory Handle (Tested) Comes with Magna Power Battery InterActer I/C S Series Commercial 24V Automatic Battery Charger Accessory Handle One of these comes with a binder with documentation and a CD with even more including the operation manual. We will provide a copy of the documentation from the CD to the buyer for the other AGV if requested. Mobilize multiple carts with a single BST AGV Tugger The Creform Standard BST AGV drive unit works as an automated tugger, eliminating the need for associate driven delivery vehicles. These vehicles was previously use by AIDT in a Training Cell. The BST travels along a magnetic tape guided path, then slips under a stationary cart and engages it by extending a tow pin into the cartâs frame. The BST unit then conveys the cart to a designated workstation or load/unload points along the pathway. To disengage from the cart, the tow pin is retracted, automatically freeing the BST to travel to the next station. A big advantage of the BST AGV is its ability to mobilize multiple carts with a single drive unit. This reduces the number of AGV units required to support your system. For larger operations a series of BST drive units can power an entire fleet of carts. ⢠Run-Ready with prompt shipment from stock. ⢠Safety â audible warning and flashing light, obstacle sensor, bumper switch and e-stop. ⢠24 Volt Power â full shift run under capacity load typical. ⢠Follows magnetic tape guided path. ⢠Embedded magnetic strips available for high-traffic areas. ⢠Command tapes initiate AGV functions such as speed changes, route selection and extend/retract tow pin. ⢠Options include; PLC, RF and RFID. ⢠Service & Support: Programming, plus cart/structure designs, kitting or assembly assistance along with route layout installation available from Creform. Part number CA-A3800C Guided path 50mm wide Creform magnetic tape (course search when AGV starts) Direction/speeds Forward only; 3-50m/min (10 to 164 ft/min) Braking system Electromagnetic, dynamic and parking brake Minimum turning radius 600mm R (24" R) - 180º turn Power supply 24V DC (two 12V batteries) Control method Magnetic command tapes Floor condition Surface roughness 10mm or less between min. & max. height slope 1% or less; step 2mm or less; trough 10mm or less Usage conditions Indoor only; 0-40ºC, 32-104ºF; 30 to 80% humidity - no dew formation Safety devices Audible warning, non-contact obstacle sensor, flashing light, e-stop and bumper Protective circuits Over current prevention on motor (protect with motor driver) Over current protection on power source (15A breaker) Draw bar/load capacity 26kg (57lb)/600kg (1320lb)* - includes cart plus AGV Tow pin 30mm shaft OD/approximately 50mm vertical stroke Unit weight/with batteries 74kg (164lb)/96kg (208lb)
