Grundfos Vertical Pump CRK2-180, 4 HP, 60 Hz, 3 Phase, 20 L/min

Grundfos Vertical Pump CRK2-180, 4 HP, 60 Hz, 3 Phase, 20 L/min

[Condition]

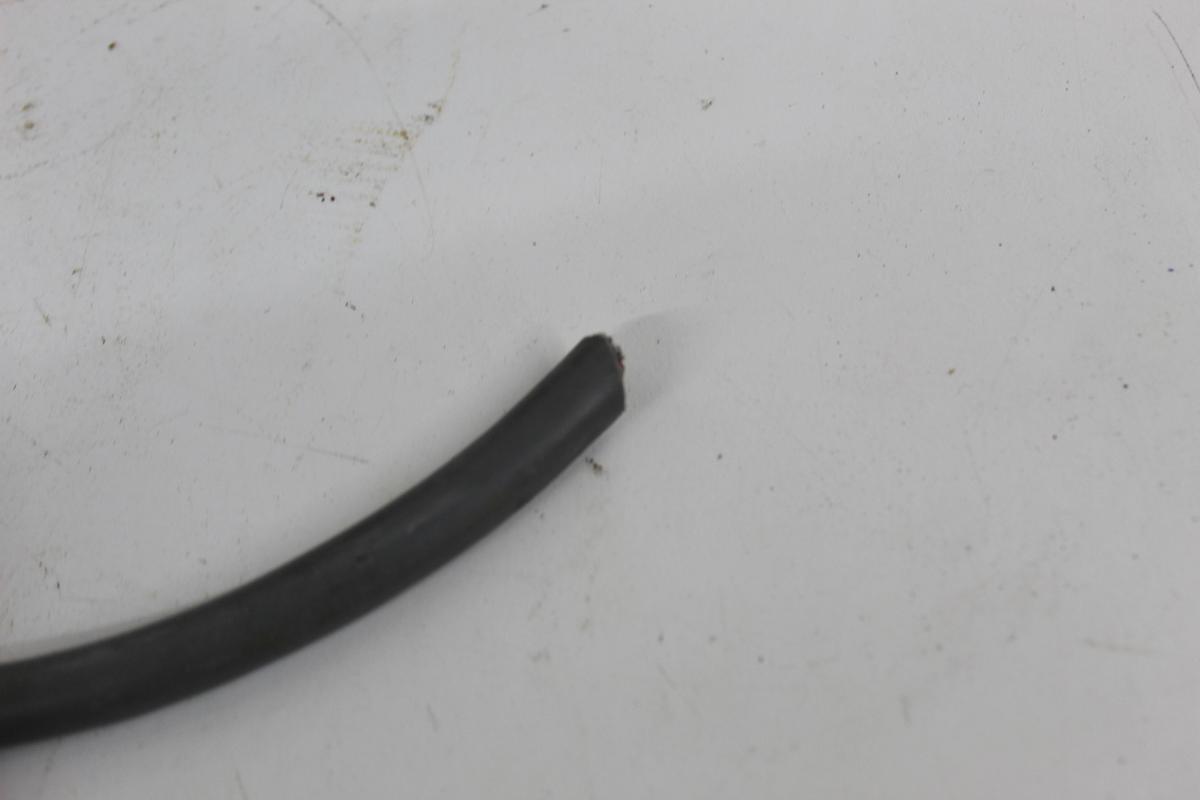

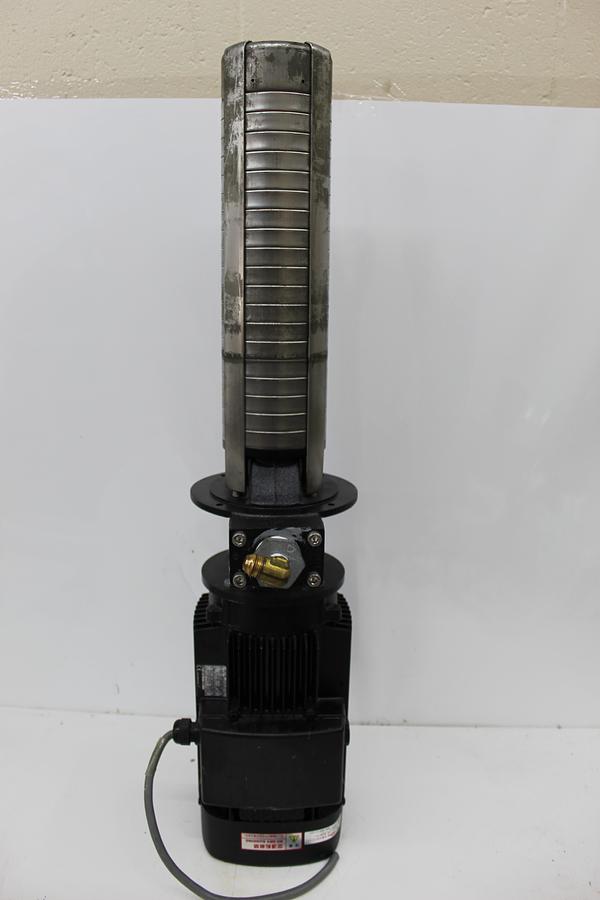

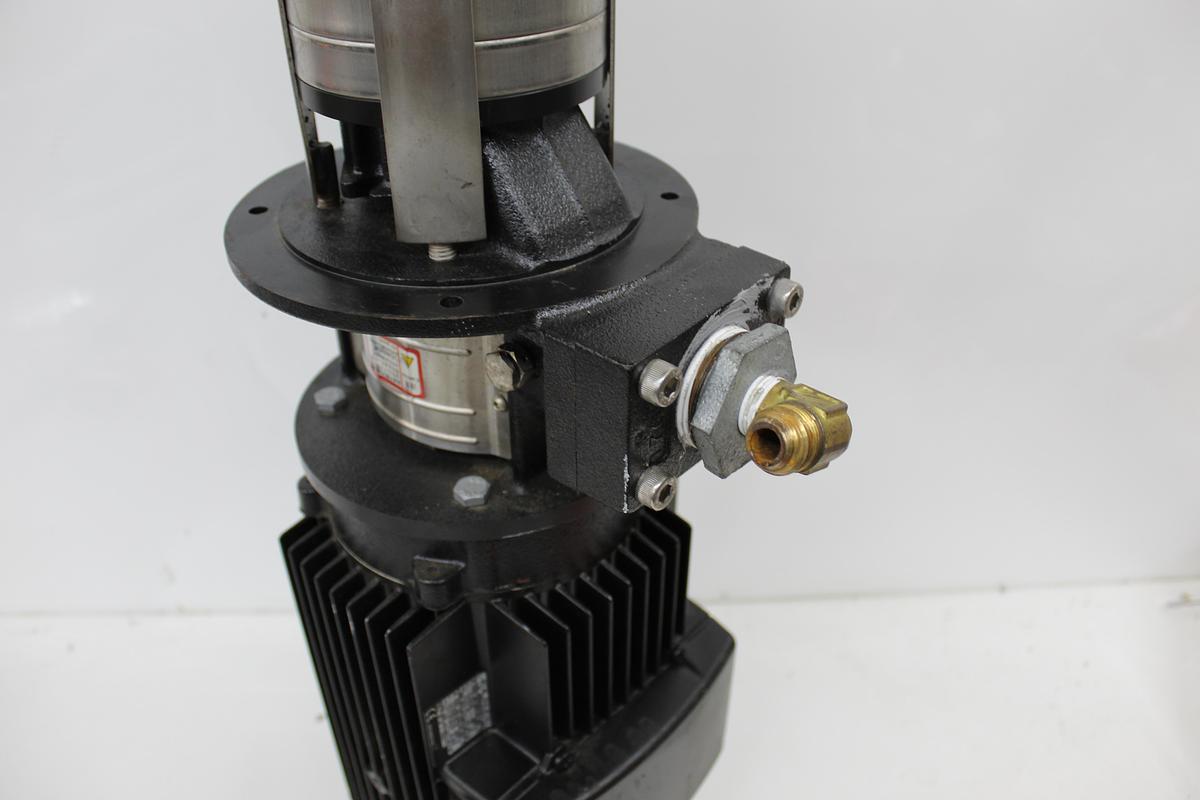

Unit is used, in great conition, pulled from a working enviornment. Wires may need to be terminated for your use. See photos, item comes as shown.

[Info on Unit]

Manufacturer: Grundfos

Model: CRK2-180

Pump Type: Vertical Multistage Immersion Centrifugal Pump

Motor Type: Three-Phase AC

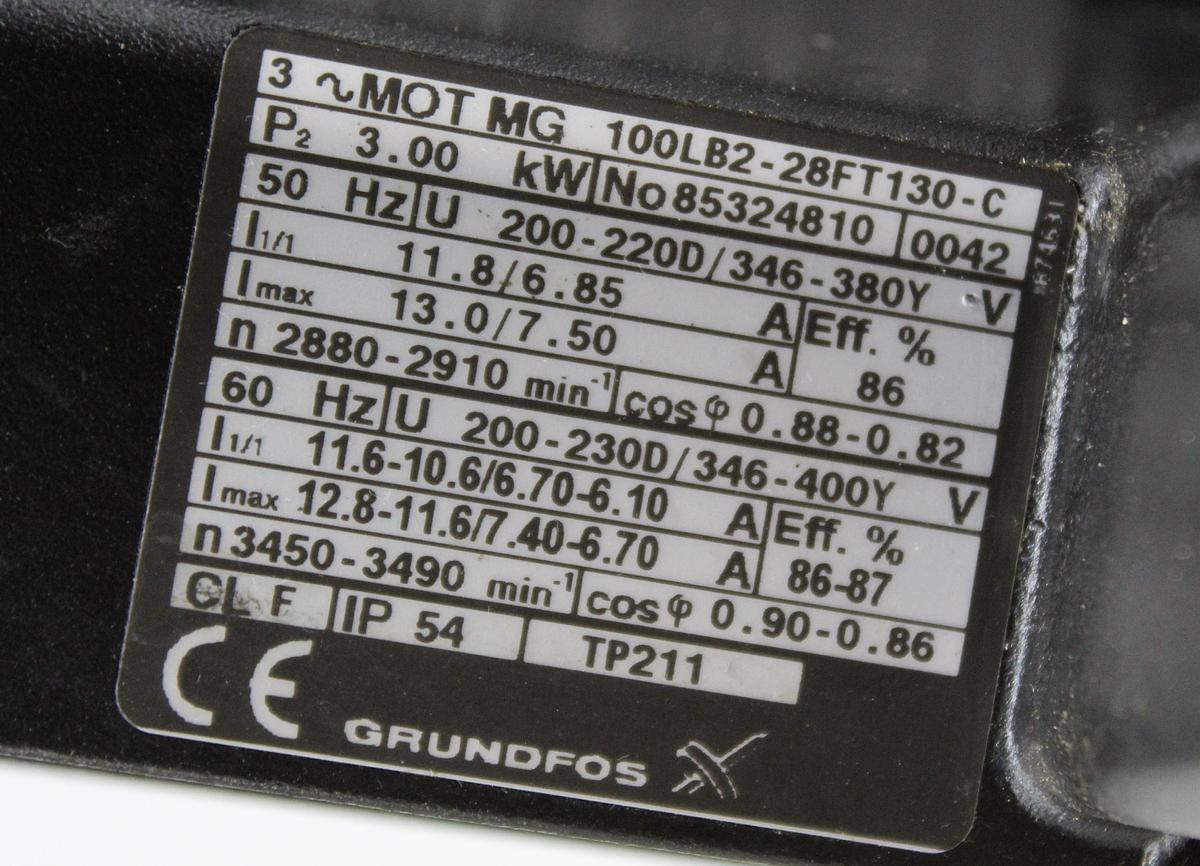

Motor Model: MG 100LB2-28FT130-C

Motor Rated Output: 3.0 kW (approximately 4 HP)

Frequency: 50/60 Hz

Voltage at 60 Hz: 200-230 V Delta / 346-400 V Star

Voltage at 50 Hz: 200-220 V Delta / 346-380 V Star

Rated Speed at 60 Hz: 3450-3490 RPM

Rated Speed at 50 Hz: 2880-2910 RPM

Rated Current at 60 Hz: 11.6-10.6 A Delta / 6.70-6.10 A Star

Rated Current at 50 Hz: 11.8 A Delta / 6.85 A Star

Rated Pump Flow: 20 L/min (approximately 5.28 US GPM)

Rated Pump Head: 220 m (approximately 722 ft)

Motor Protection: IP54

Motor Insulation Class: F

Motor Efficiency: 86-87% at 60 Hz

Pump Frequency: 60 Hz

Pump Power: 3.0 kW

[Description]

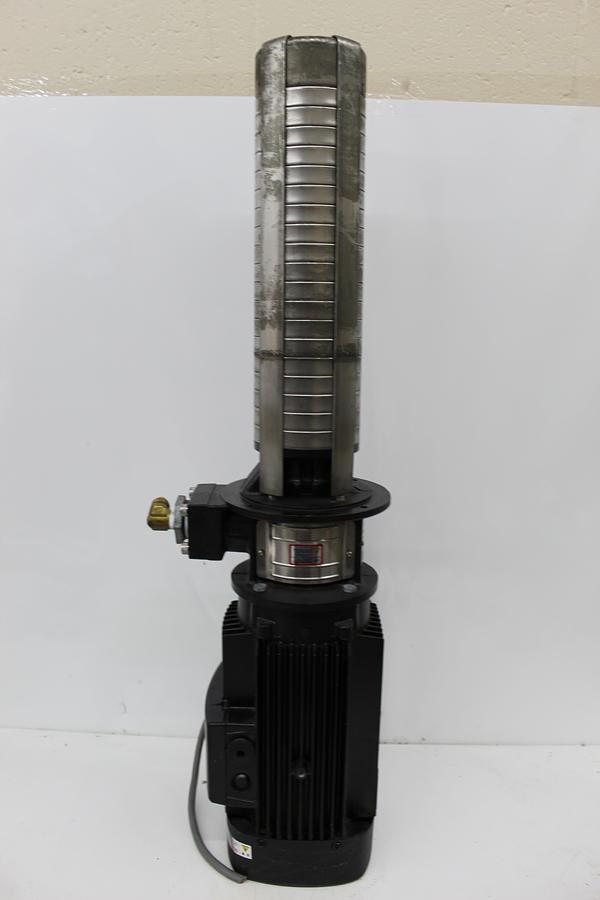

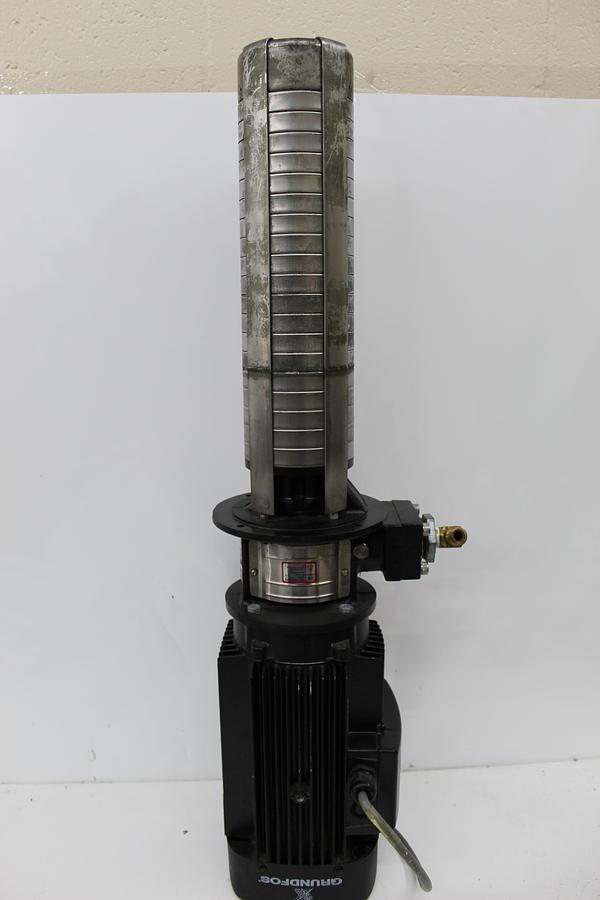

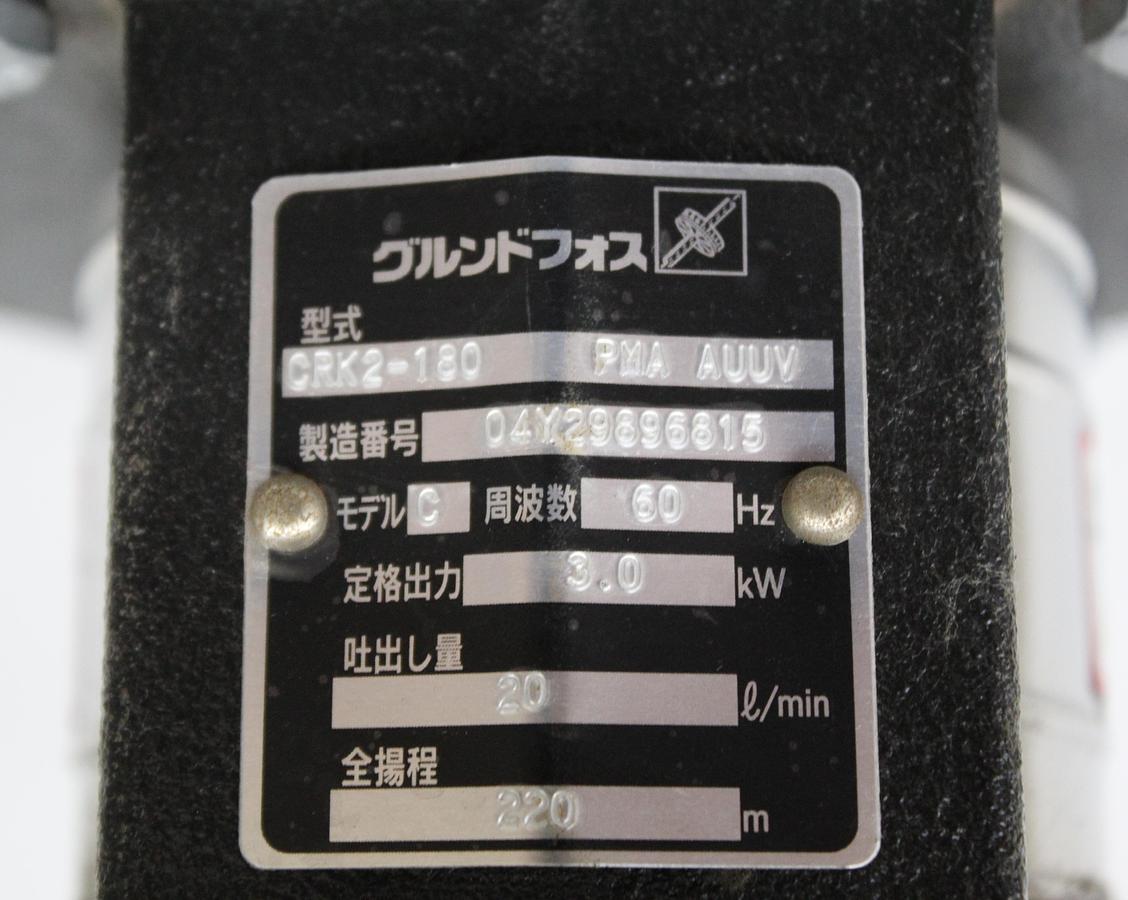

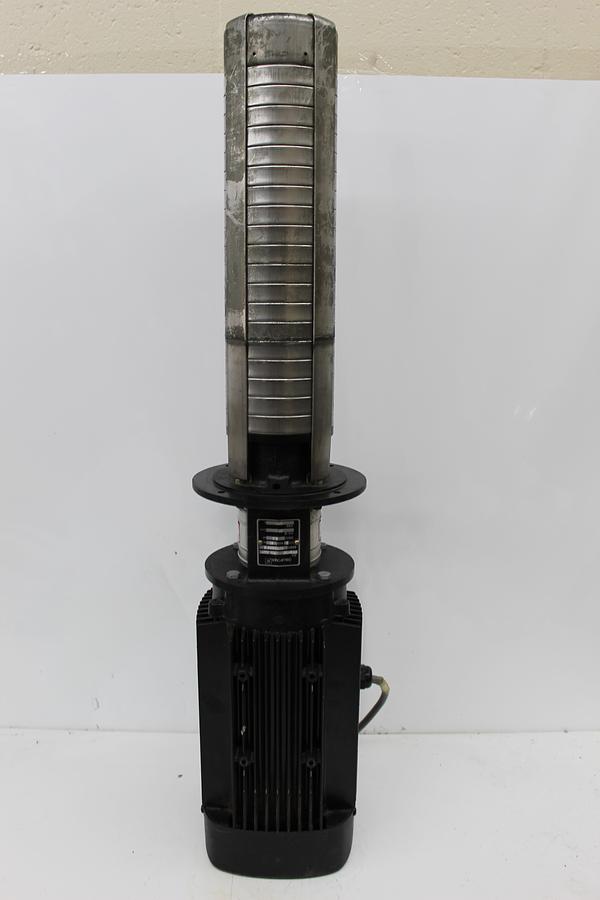

The Grundfos CRK2-180 is a vertical multistage immersion centrifugal pump designed for industrial coolant circulation, machine-tool applications, and high-pressure liquid transfer. The pump is equipped with a 3.0 kW (approximately 4 HP) three-phase Grundfos MG motor rated for 60 Hz operation, with a nominal operating speed of approximately 3,450–3,490 RPM. Its nameplate specifies a flow rate of 20 L/min (5.28 GPM) and a total head of 220 meters (722 feet). The motor supports 200–230V delta or 346–400V star electrical connections at 60 Hz and features IP54 enclosure protection with Class F insulation. The vertical multistage hydraulic arrangement is designed to generate elevated discharge pressure within a compact tank-mounted pump assembly.
