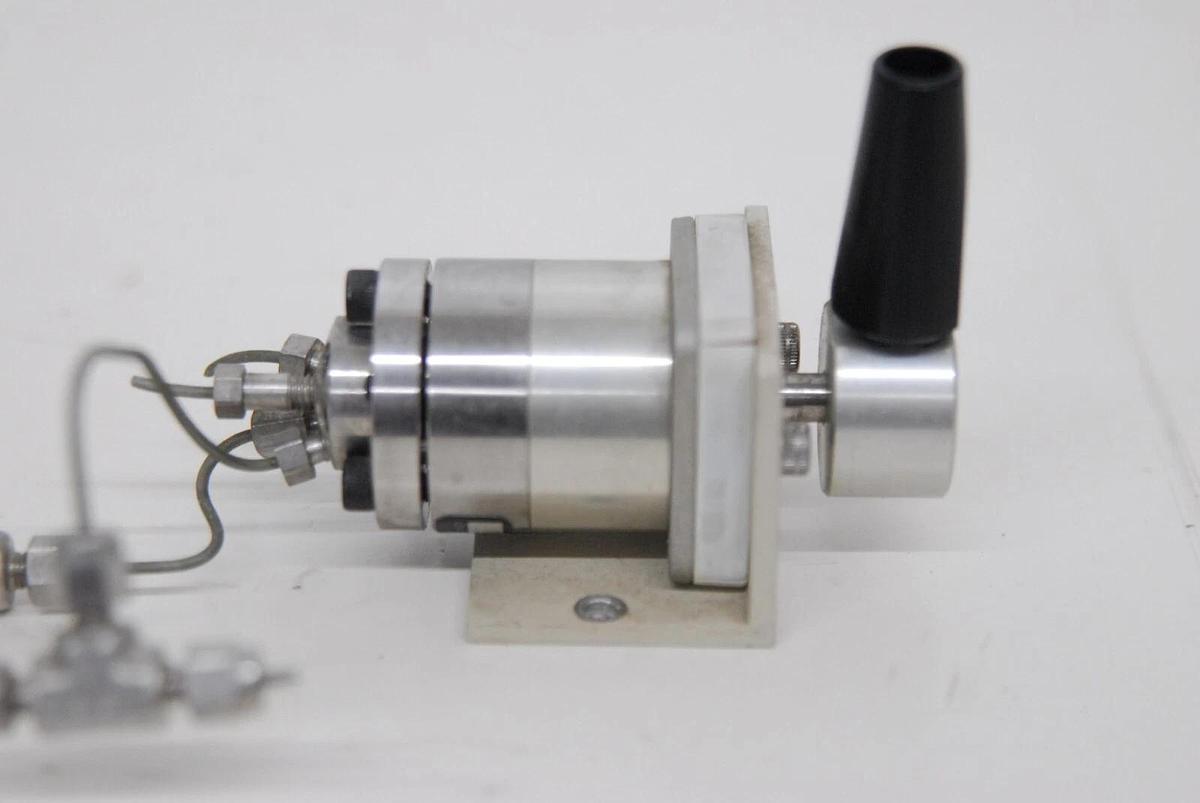

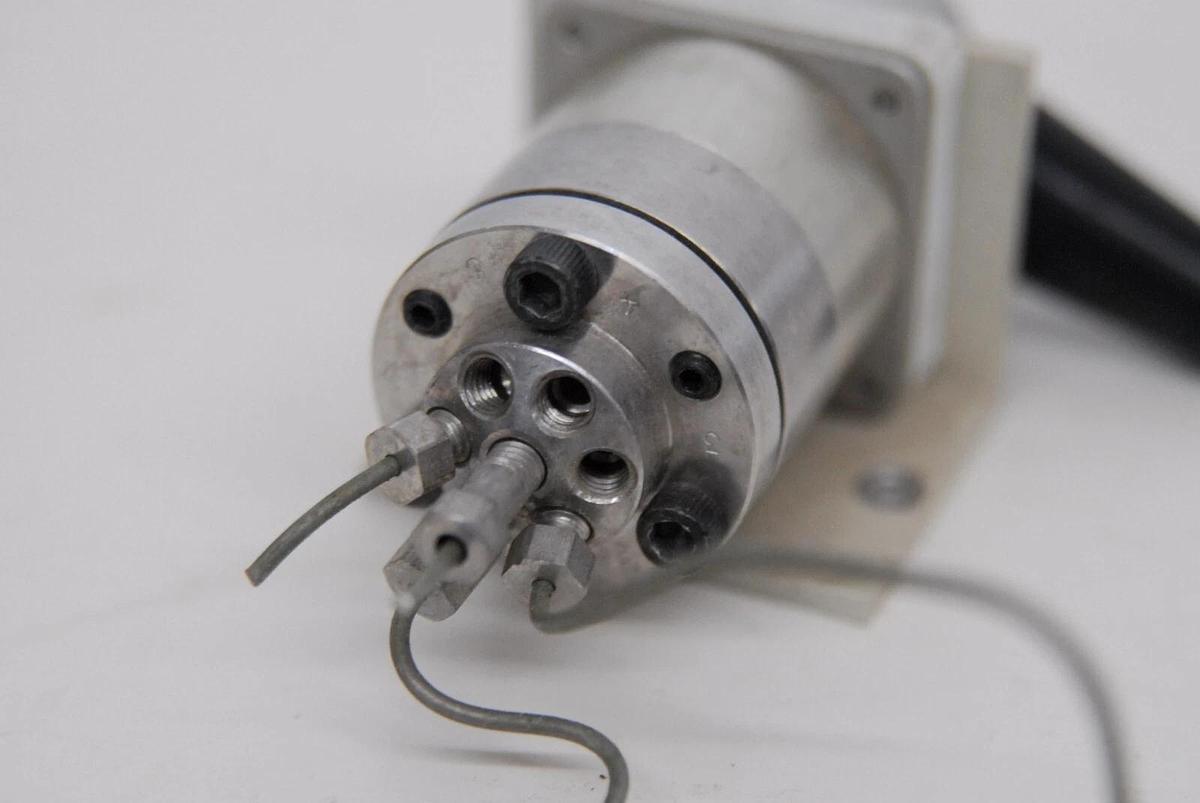

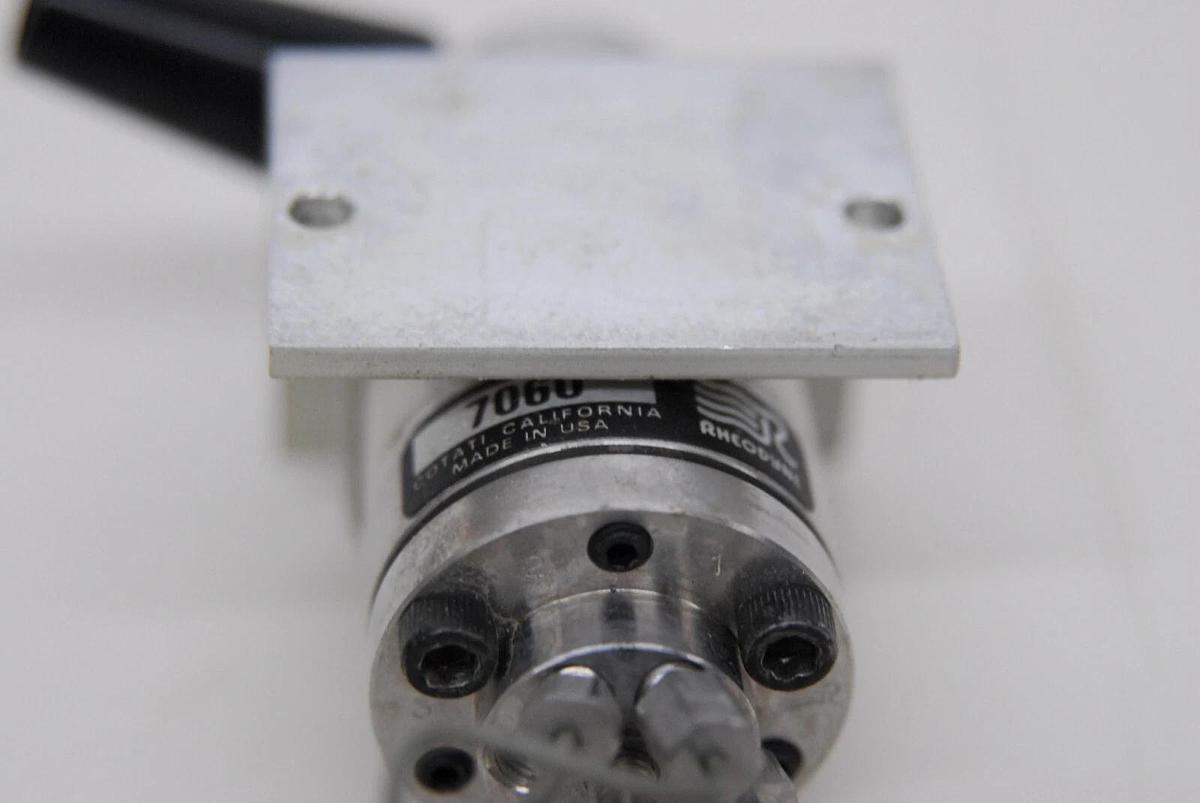

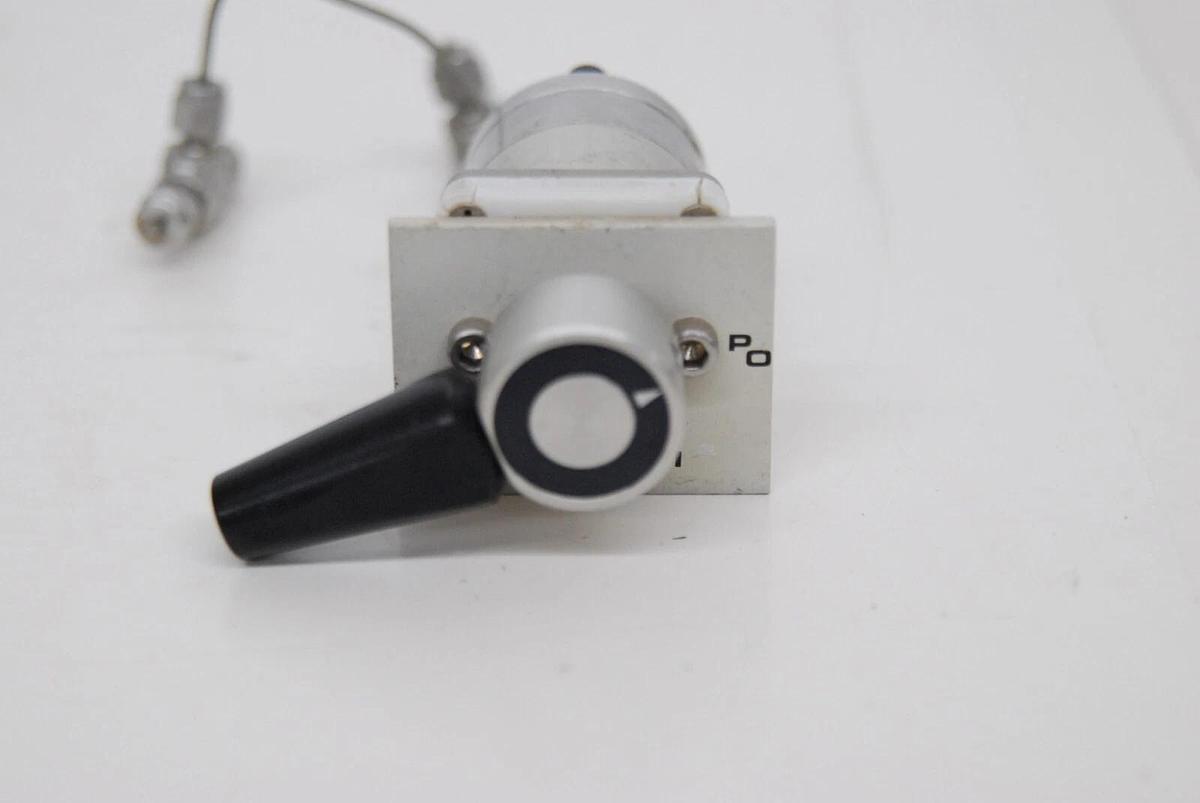

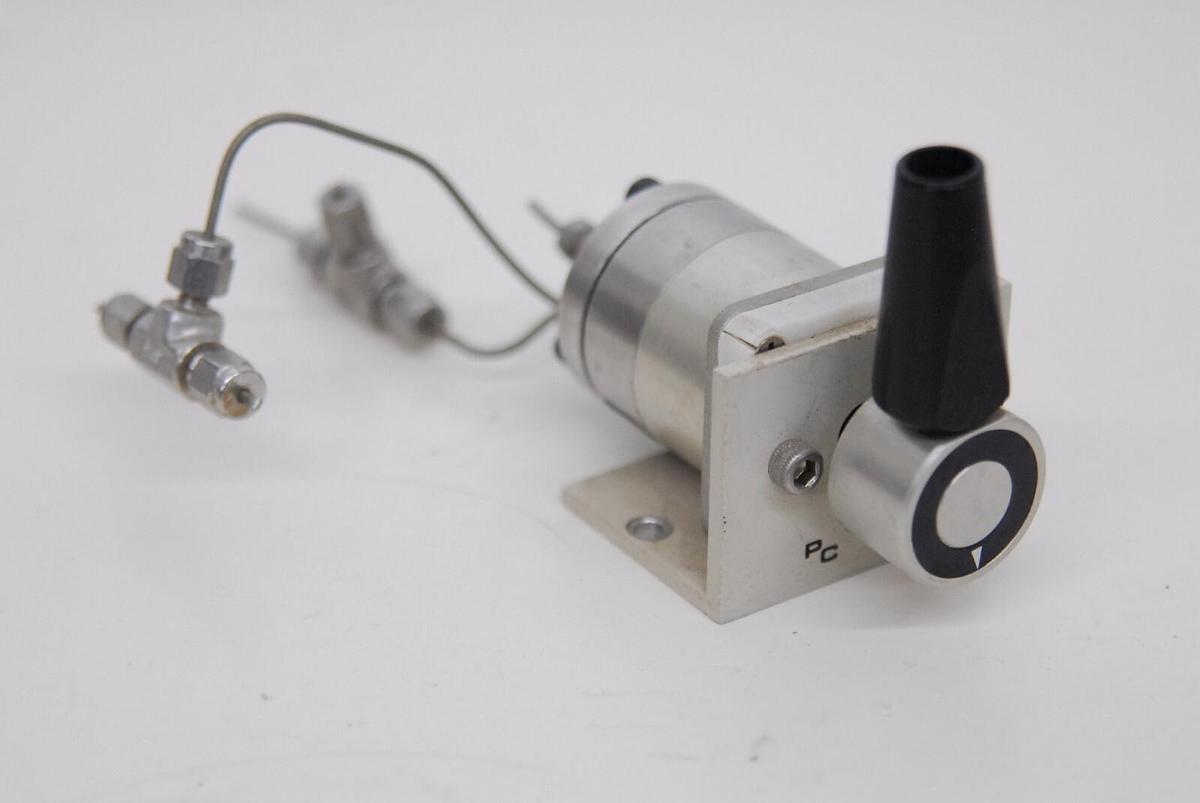

Rheodyne 7060 7-Port 6-Position Selection Valve W/ Mount

Rheodyne 7060 7-Port 6-Position Selection Valve. Unit was pulled from a working decommissioned system. Valve rotates smoothly. Comes as shown. Info on Valve: Rheodyne 7060 Manufacturer's Description: The Model 7060 is a manually operated selector valve. This sevenport valve has a common (center) port that connects with one of six positions. A spring loaded detent mechanism allows continuous rotation in either direction and insures that the shaft âfalls intoâ each position at the precise 60° spacing. For column selection, an injector outlet is connected to the common port of the 7060 which directs the flow to one of up to six columns. However, it is useful to use the sixth port for a bypass/flush-out tube. A second 7060 is placed at the column outlets to direct the effluent to the detector. Note that two separate 7060 valves are required. The internal passages of the 7060 are 0.41mm I.D., with a total internal volume less than 2µL. ALL QUESTIONS AND OFFERS WELCOME
