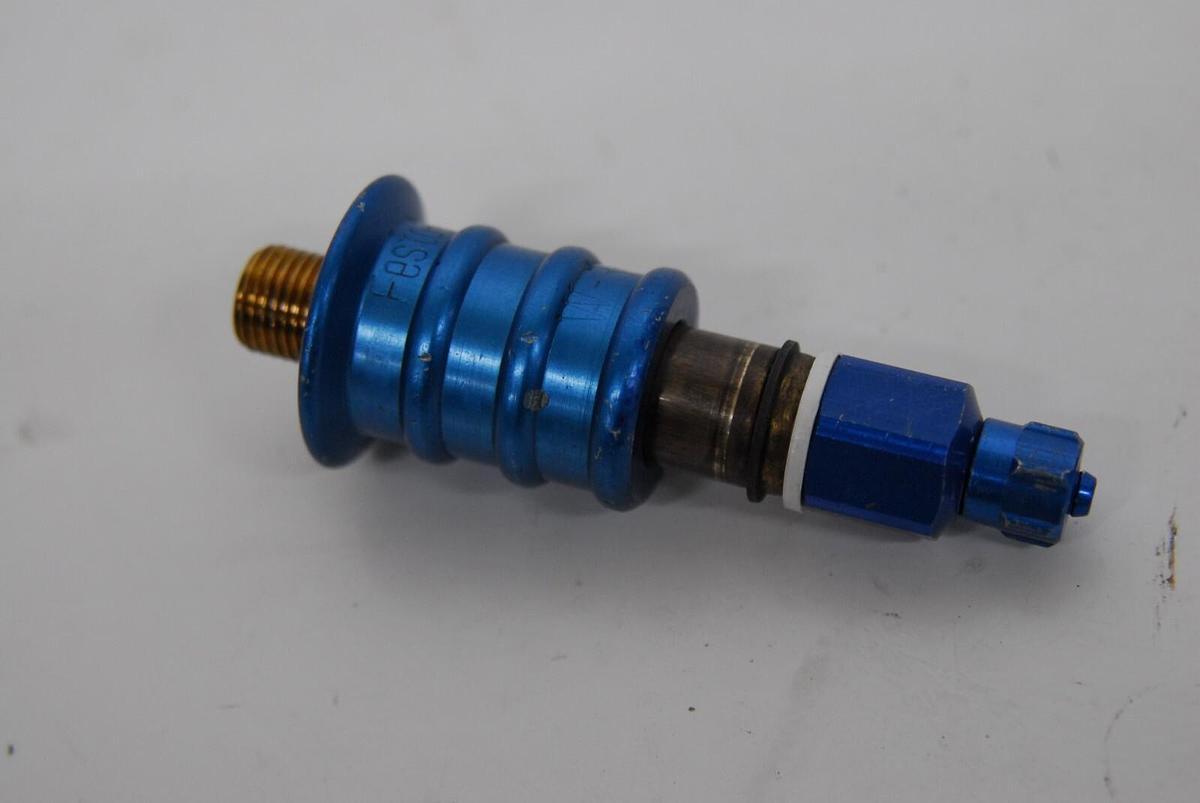

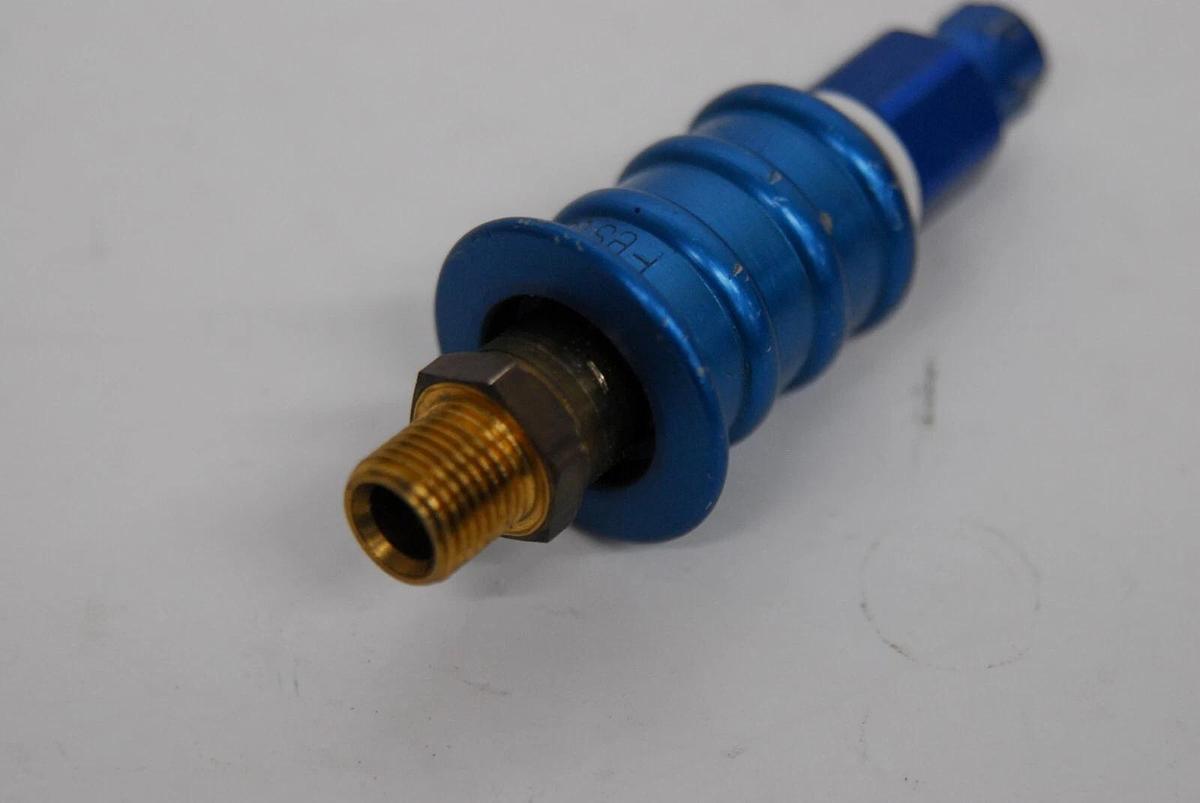

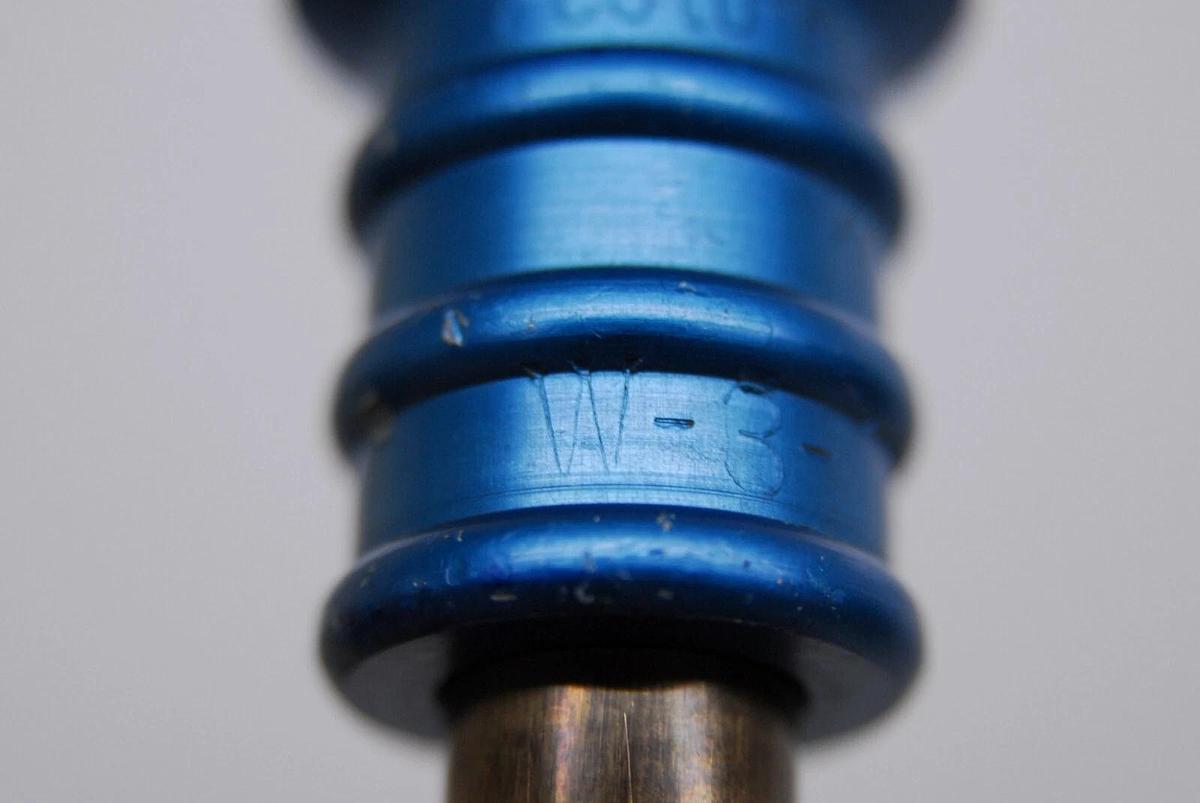

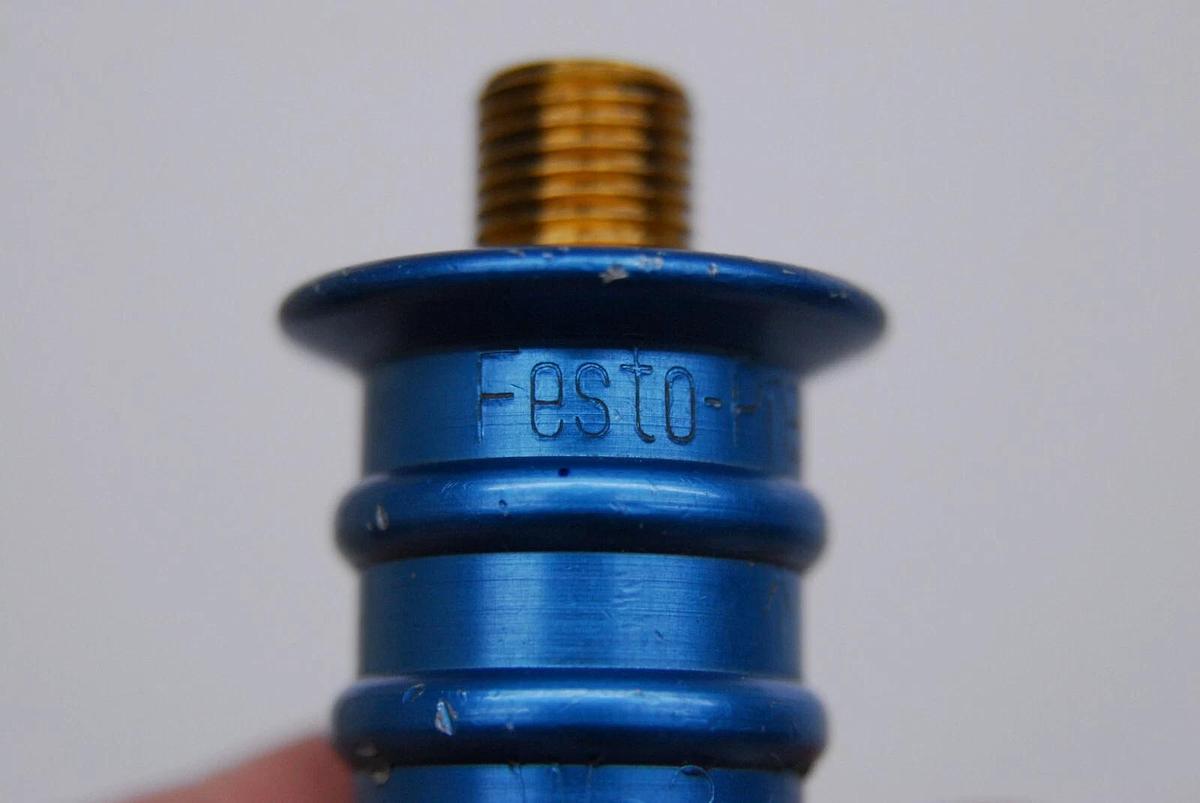

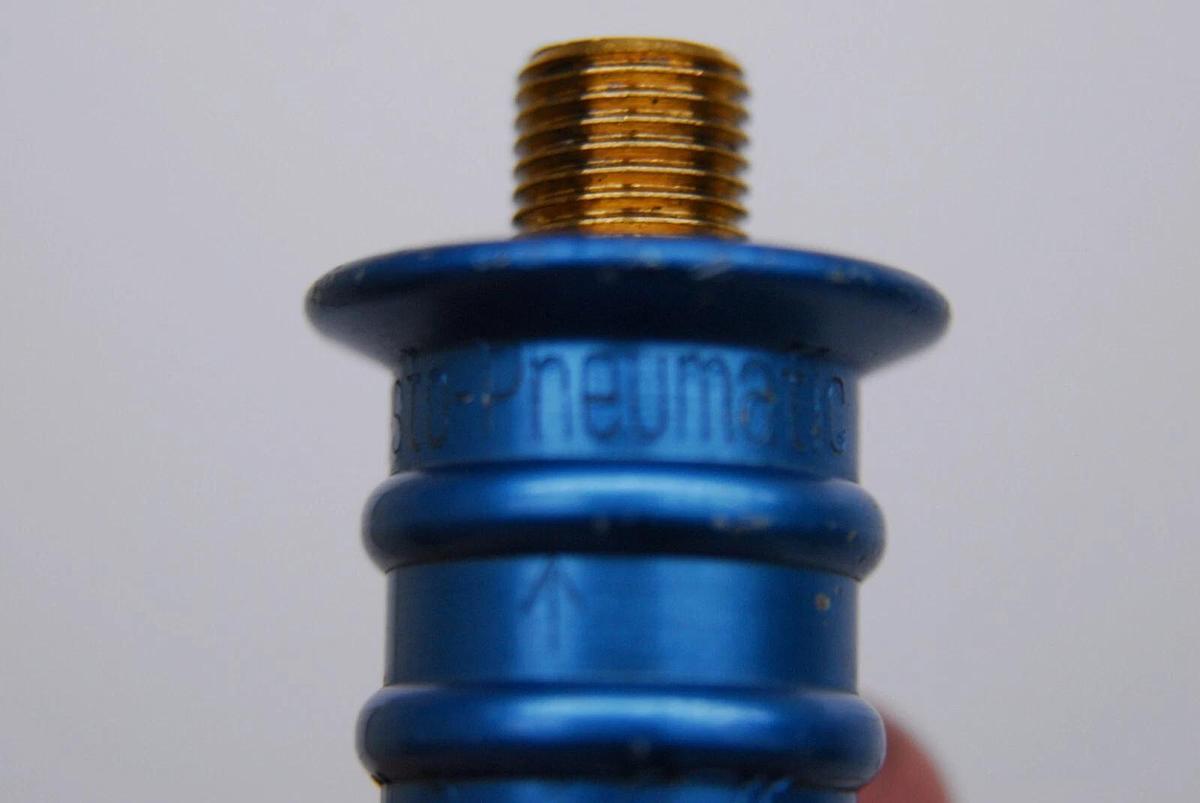

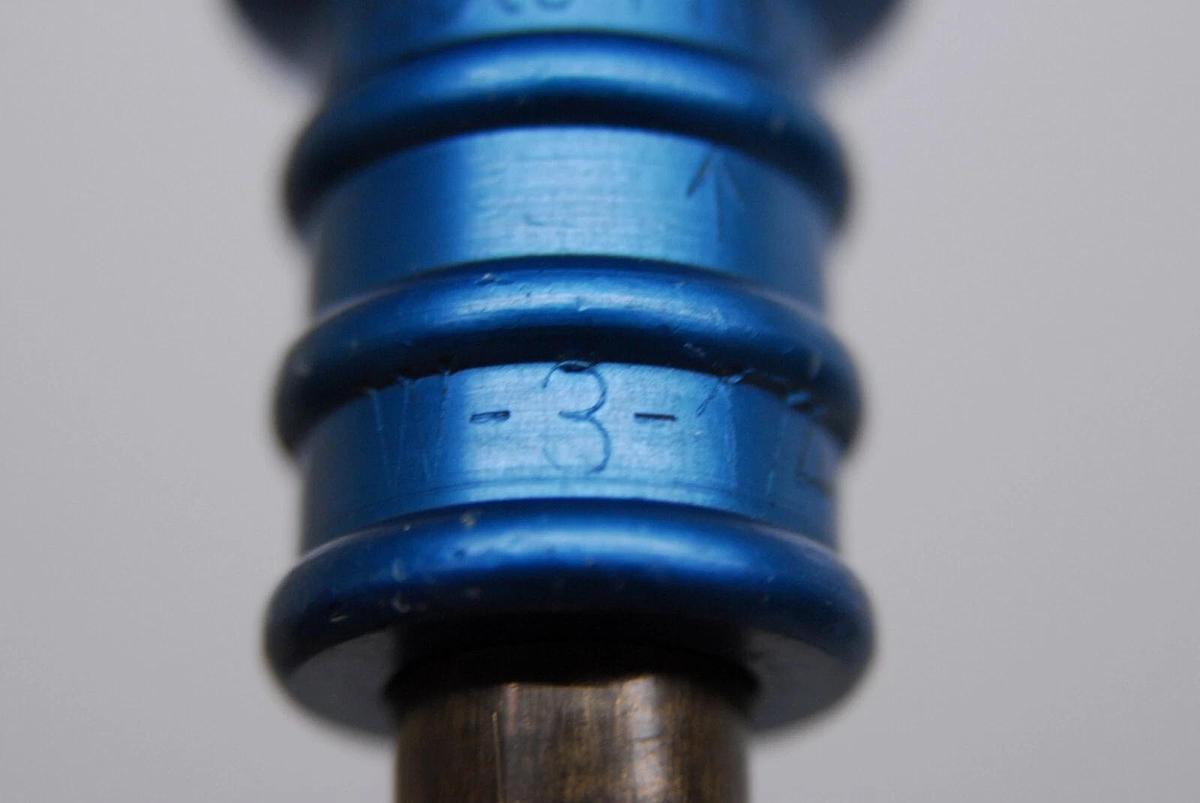

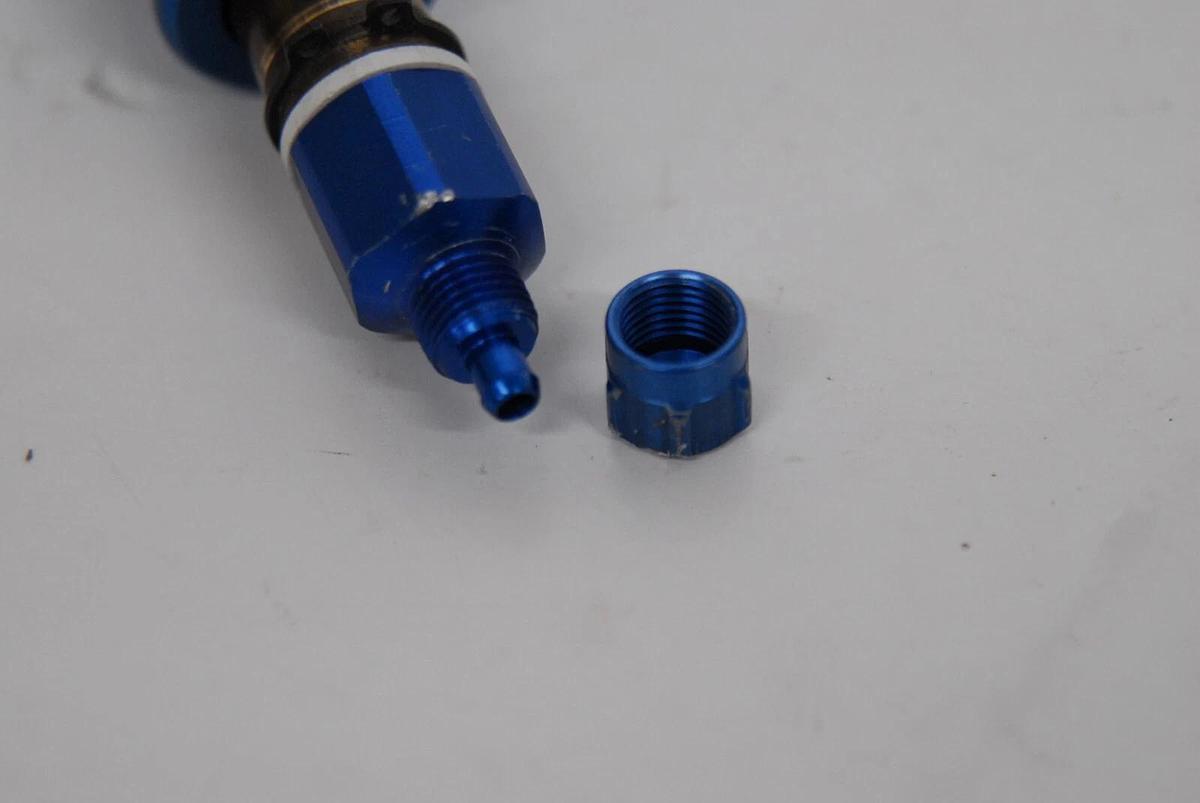

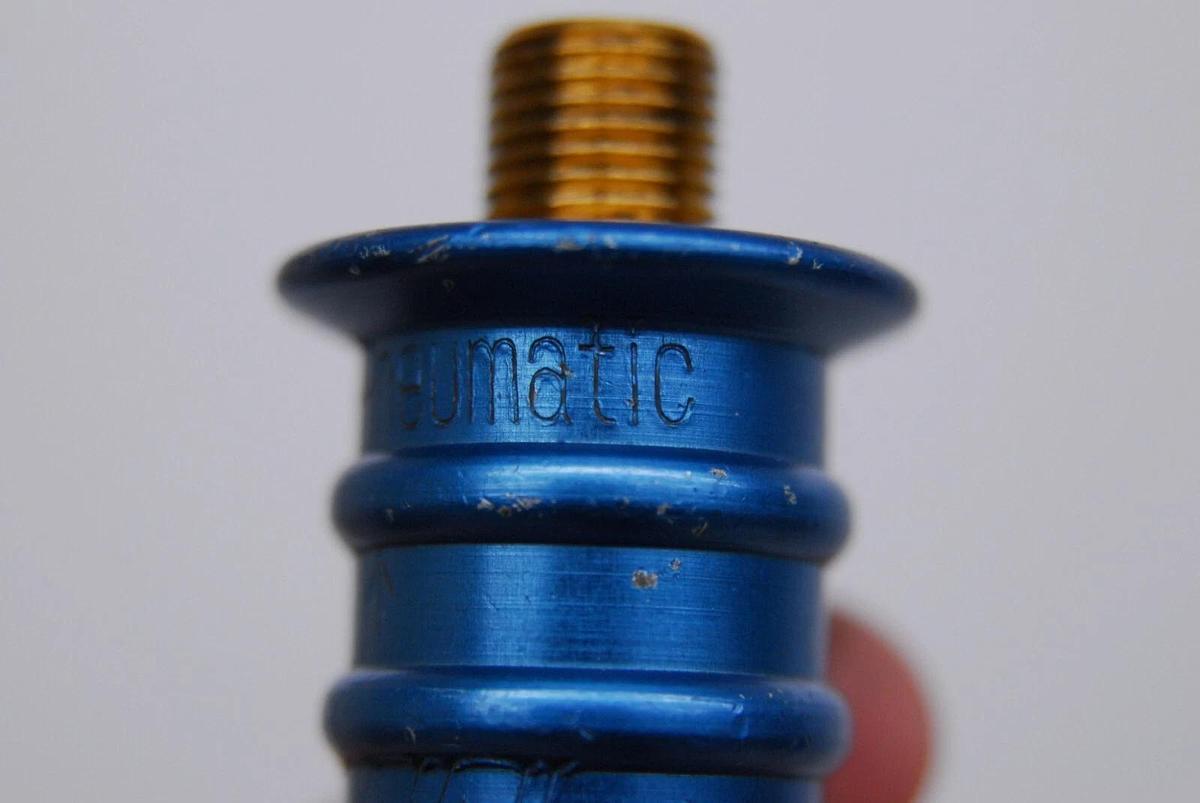

Festo W-3-1/4 Hand Slide Valve (2340)

Festo W-3-1/4 Hand Slide Valve (2340). Unit has some scuffs and scratches, still functions perfectly. Manufacturer's Info: Feature : Value Valve function: 3/2 bistable Pneumatic connection, port 1: G1/4 Pneumatic connection, port 2: G1/4 Type of actuation: manual Mounting type: Line installation Threaded Standard nominal flow rate: 1,000 l/min Nominal size: 7 mm Operating pressure: -0.95 ... 10 bar Ambient temperature: -10 ... 60 °C Materials information, housing: Brass Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4] Sealing principle: soft Assembly position: Any Design structure: Sleeve slide Type of piloting: direct Flow direction: reversible Note on operating and pilot medium: Lubricated operation possible (subsequently required for further operation) Medium temperature: -10 ... 60 °C Actuating force: 20 N Product weight: 110 g Materials information for screw-in stud: Wrought Aluminum alloy Anodized Materials note: Conforms to RoHS Materials information for seals: NBR ALL QUESTIONS AND OFFERS WELCOME
