Nidec KH56JM2-951 2-Phase Hybrid Stepping Motor W/ Attached Hardware

$199

Description

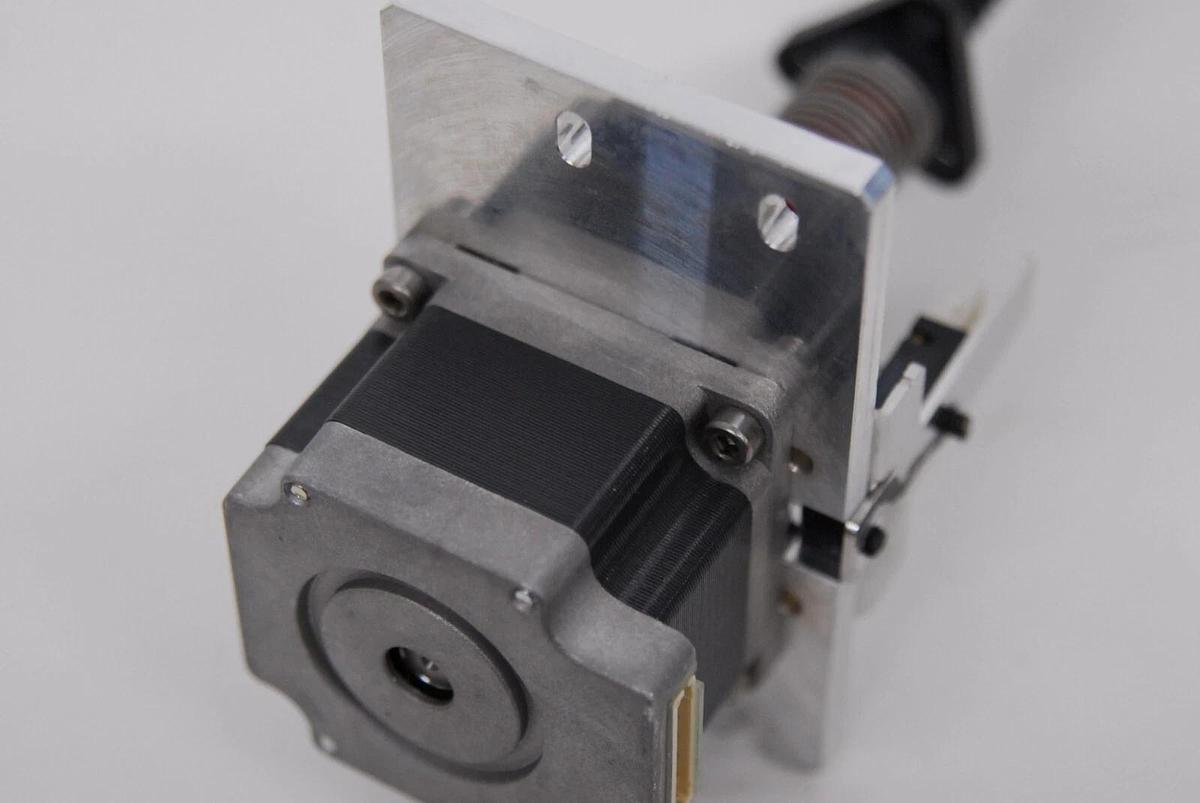

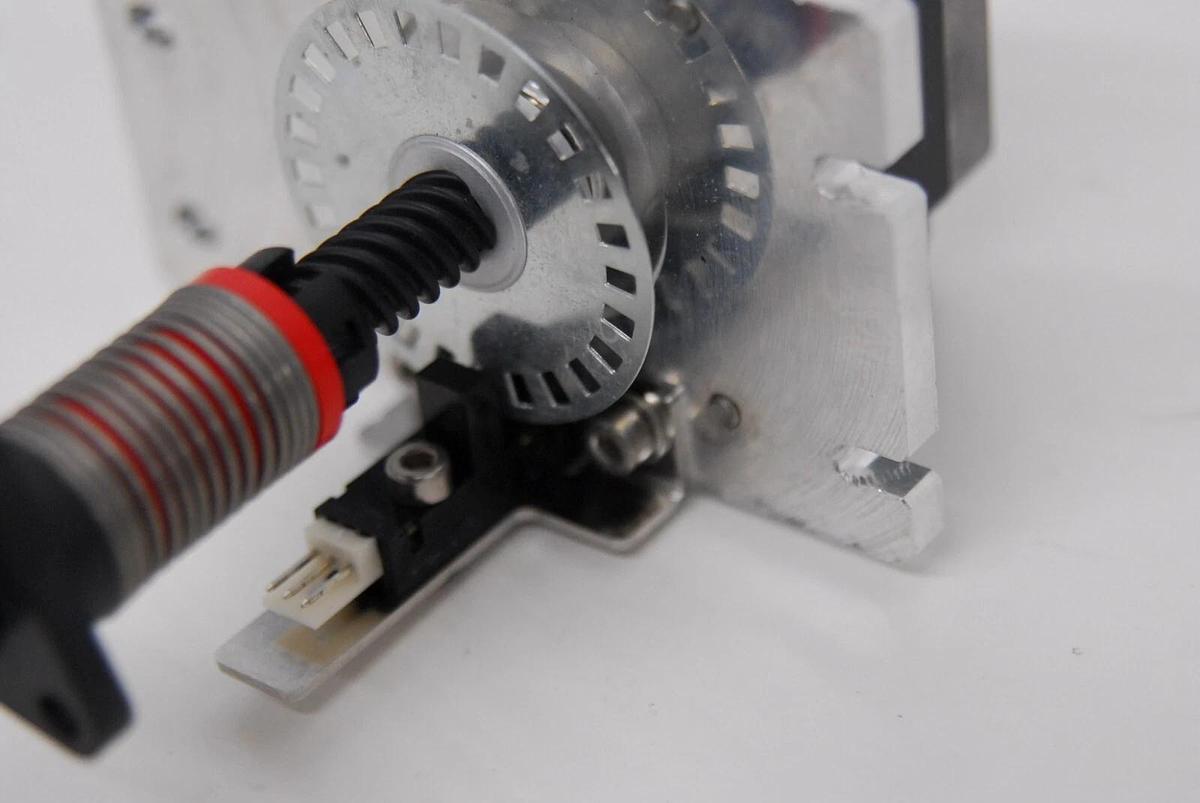

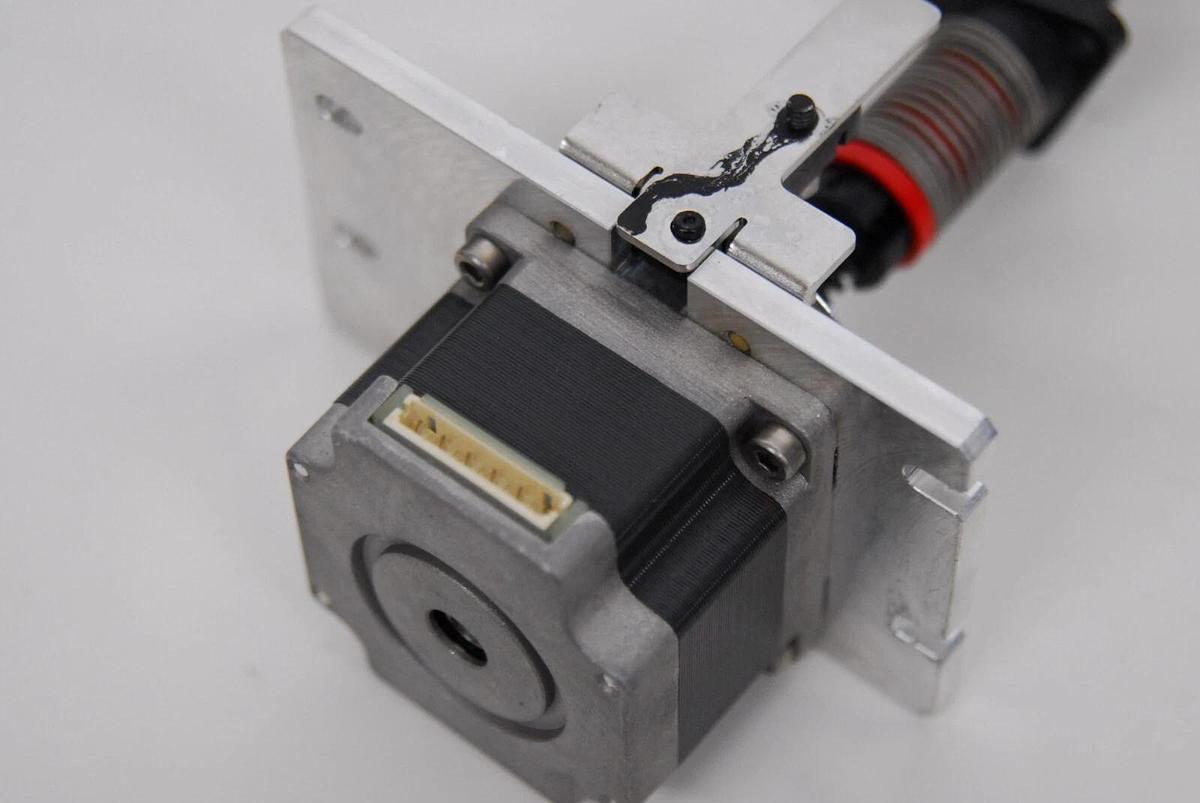

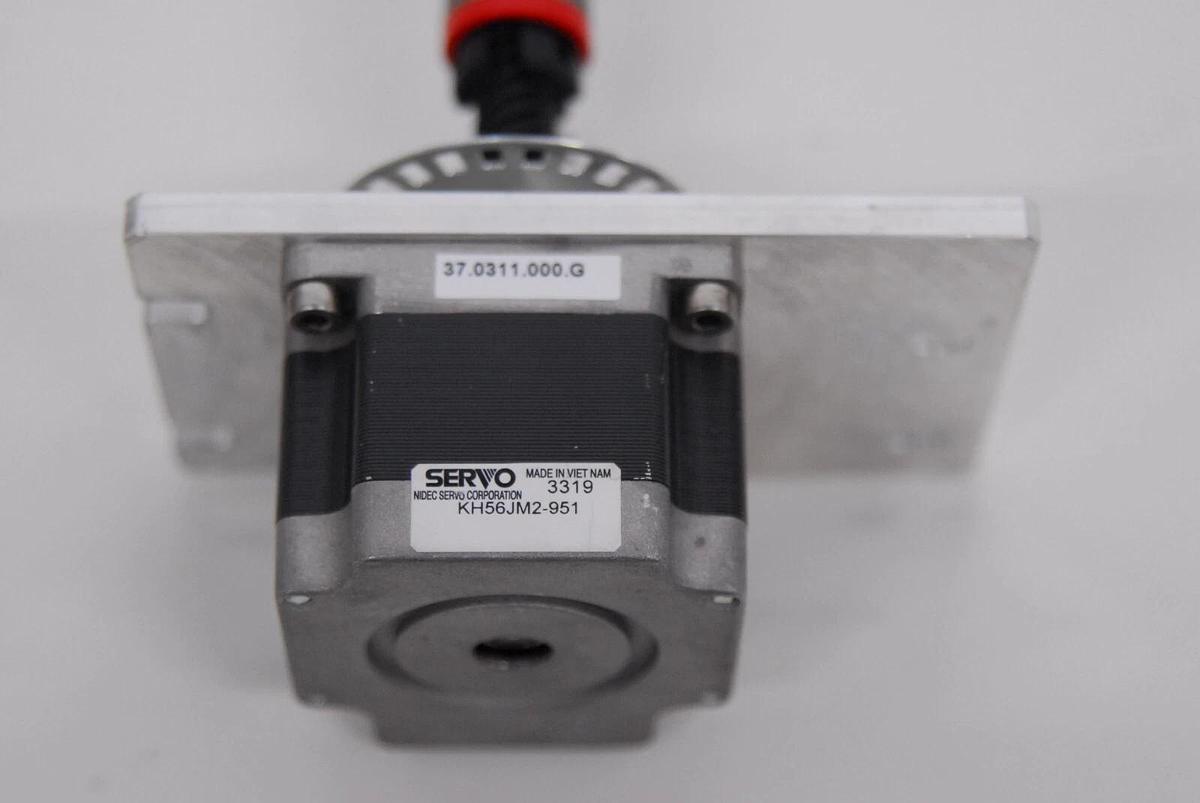

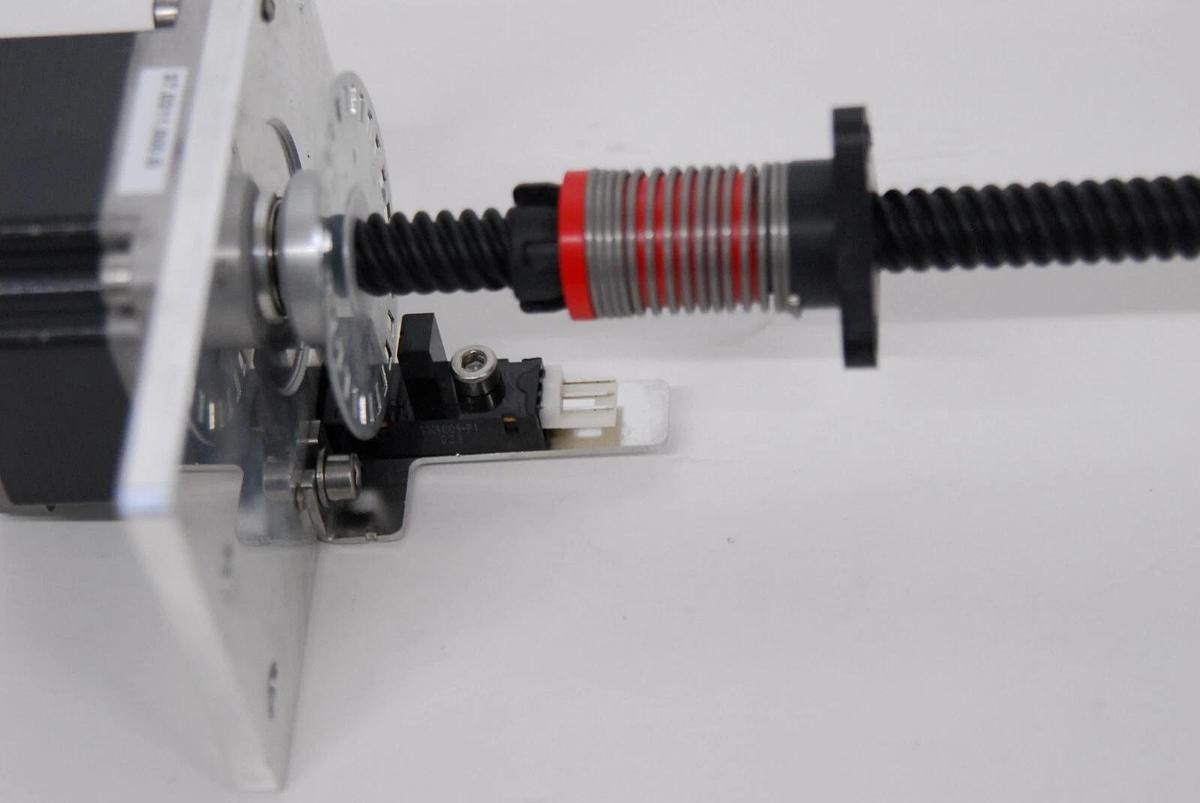

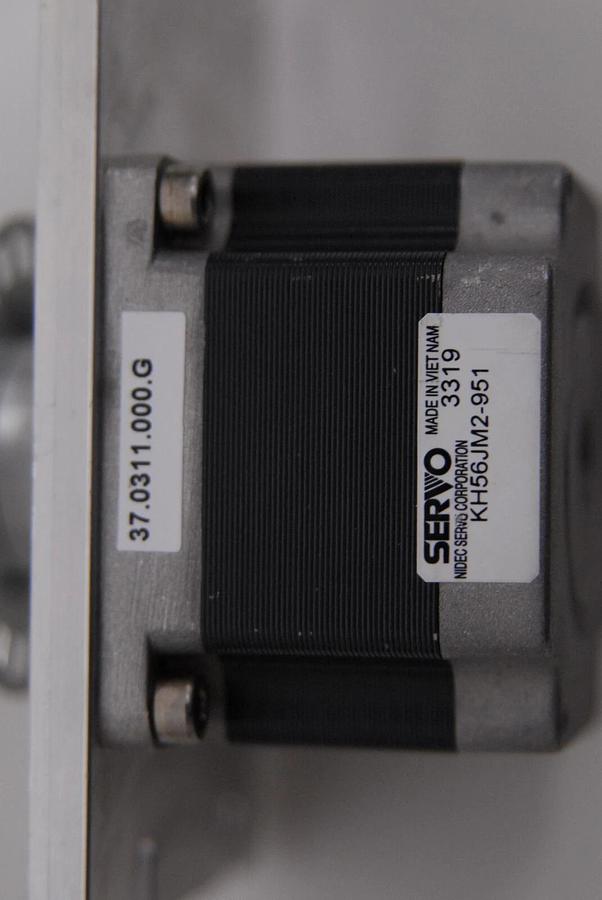

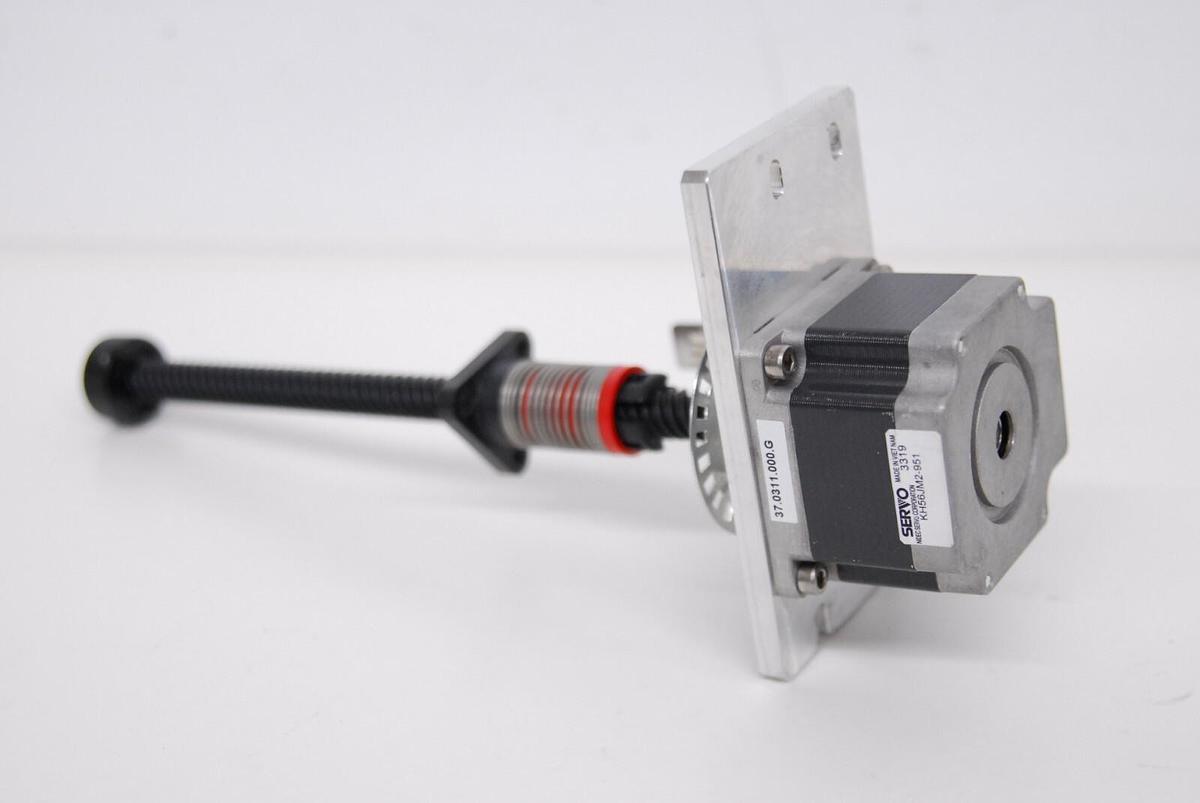

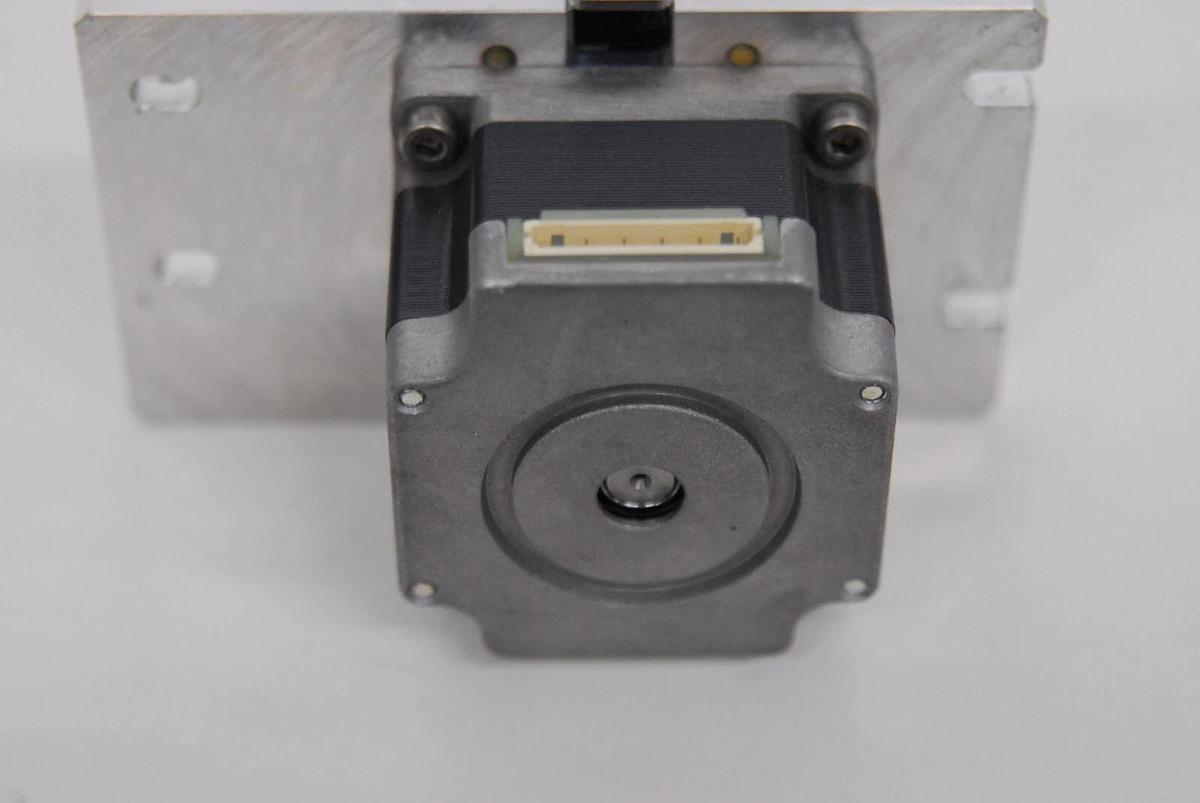

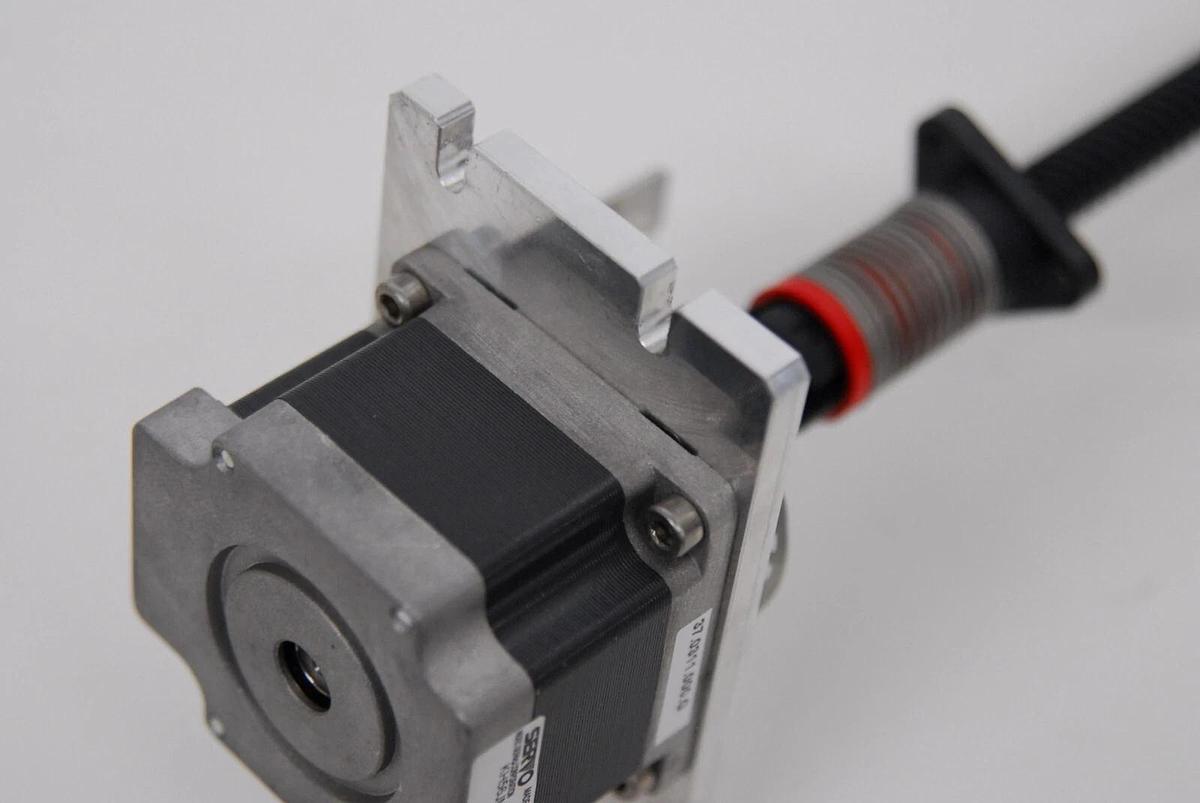

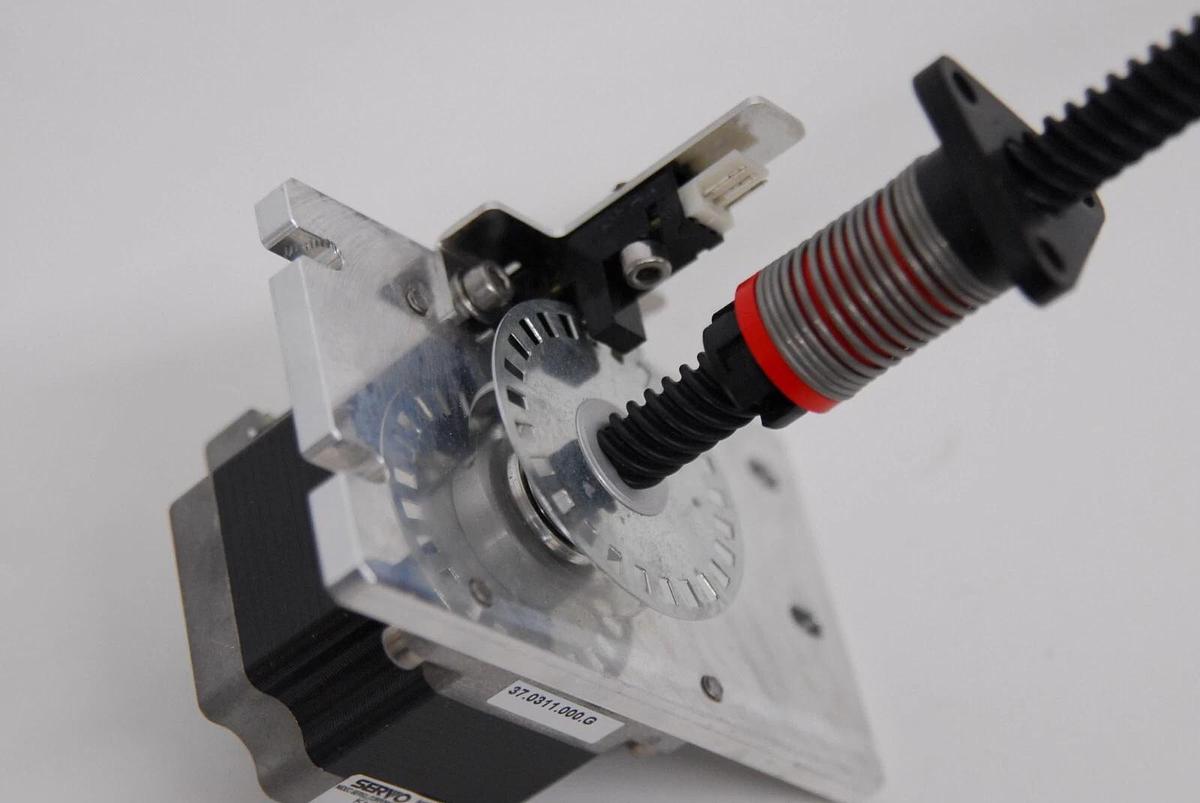

Nidec KH56JM2-951 2-Phase Hybrid Stepping Motor with Attached Hardware. Motor was pulled from a decommissioned system in working order (see pictures, comes as shown). Info on Stepper Motor: SERVO Nidec Servo Corp. 37.0311.000.G KH56JM2-951 | 3319 Product Type: Hybrid Stepping Motor Series: 2 Phase Square KH Motor Frame Size: NEMA 23 Drive Method: Bipolar Step Angle:1.8 deg./step Shaft Specification: Single Shaft No. of Phases: 2 Voltage: 1.96 V Current per Phase: 2.0 A Winding Resistance per Phase: 0.98 Ω Inductance per Phase: 2.27 mH Holding Torque: 69 oz·in/490 mN·m Detent Torque: 3.5 oz·in/25 mN·m Rotor Inertia: 0.62 oz·in²/115 g·cm² Weight: 400 g/0.88 lb Insulation Class: JIS Class E (120ºC/248ºF)/UL Value : Class B (130ºC/266ºF) Insulation Resistance: 500 VDC, 100 MO min. Dielectric Strength: 500 VAC, 50 HZ, 1 min. Operating Temperature Range: 0 to 50 ºC Allowable Temperature Range: 70 ºK ALL QUESTIONS AND OFFERS WELCOME

Specifications

ManufacturerNidec
ModelKH56JM2-951
ConditionUsed
Full Step Angle1.8° (200 Steps)
Current TypeUniversal
Shaft TypeSolid Shaft
Nominal Rated Input Voltage1.96V
Shaft Diameter1/4 in
Wiring Configuration6-Wire Bipolar
Custom label (SKU)ICM460
