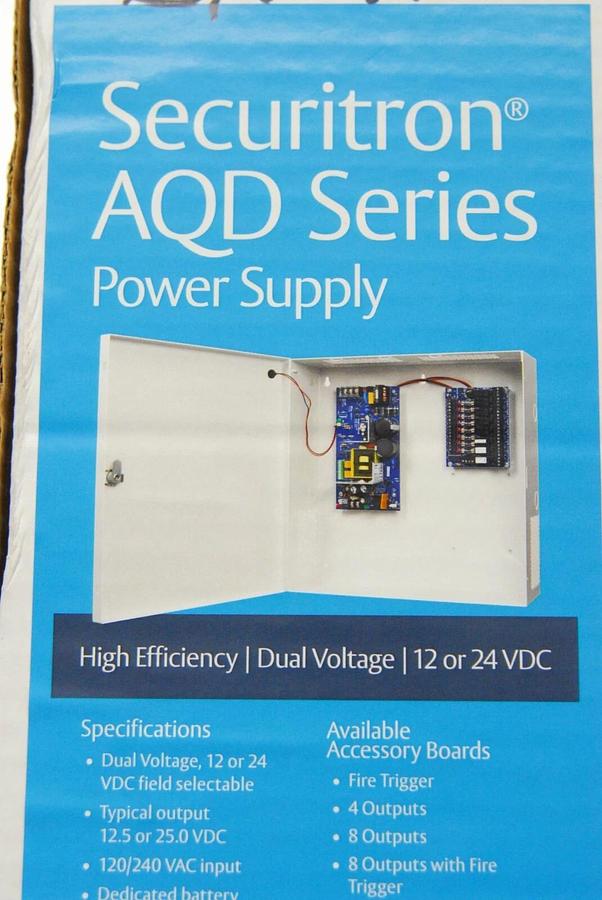

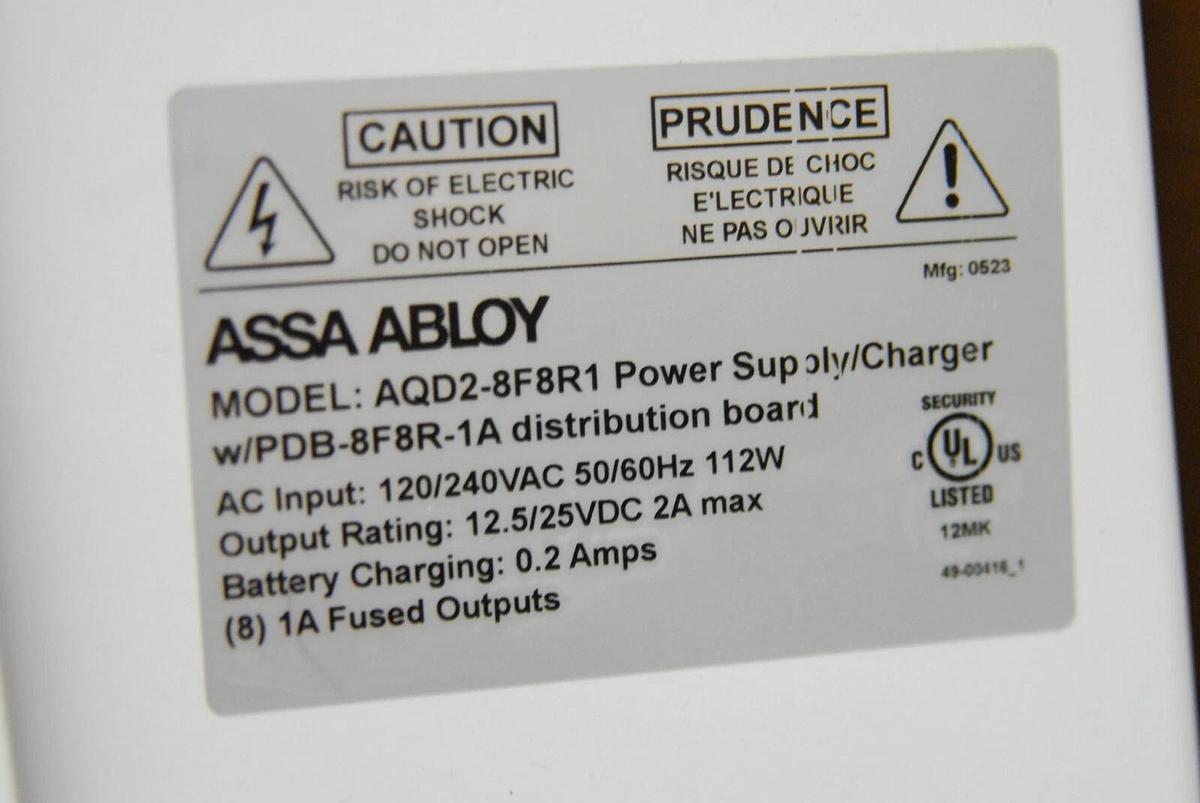

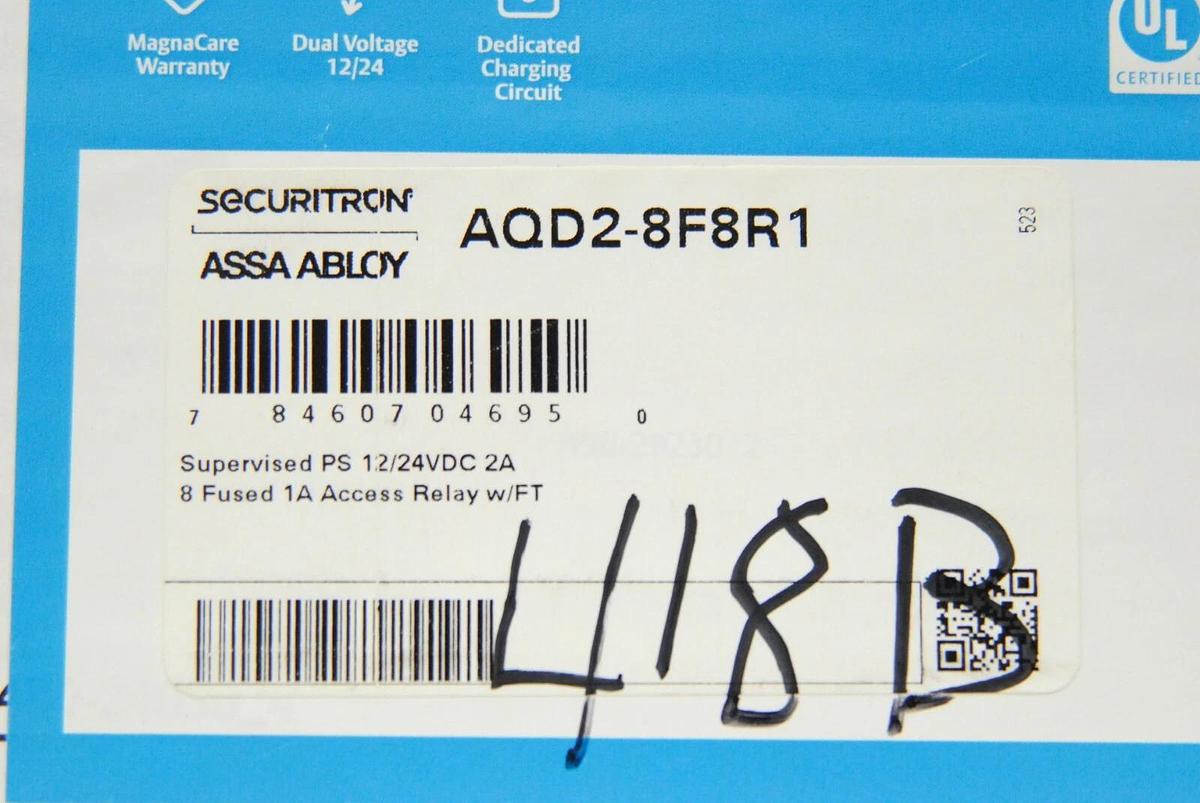

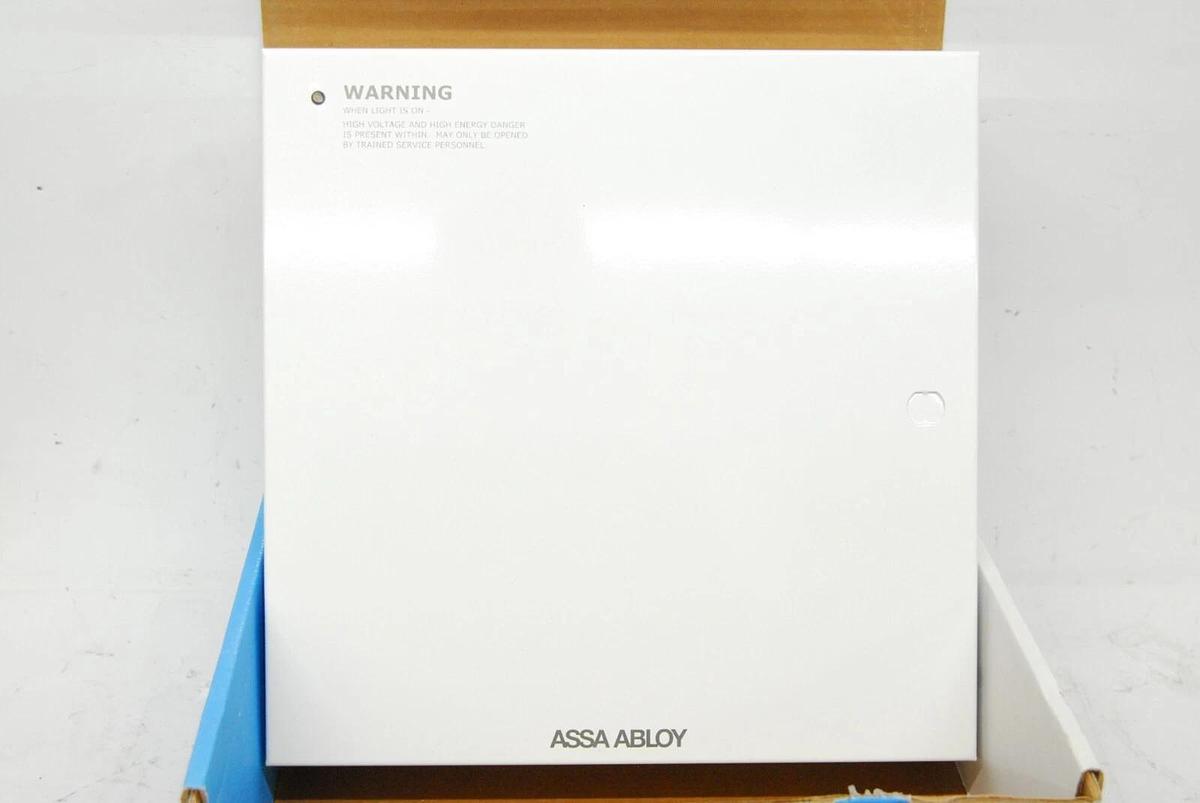

Securitron AQD2-8F8R1 Dual-voltage Switching Power Supply w/ Fire Trigger
$229
Description
Securitron AQD2-8F8R1 Dual-voltage Switching Power Supply with Fire Trigger. Unit is new in box.
Specs:
Output Voltage: Selectable between 12VDC and 24VDC continuous output.
Output Current: Provides a maximum of 2 Amps at 12VDC or 1.5 Amps at 24VDC.

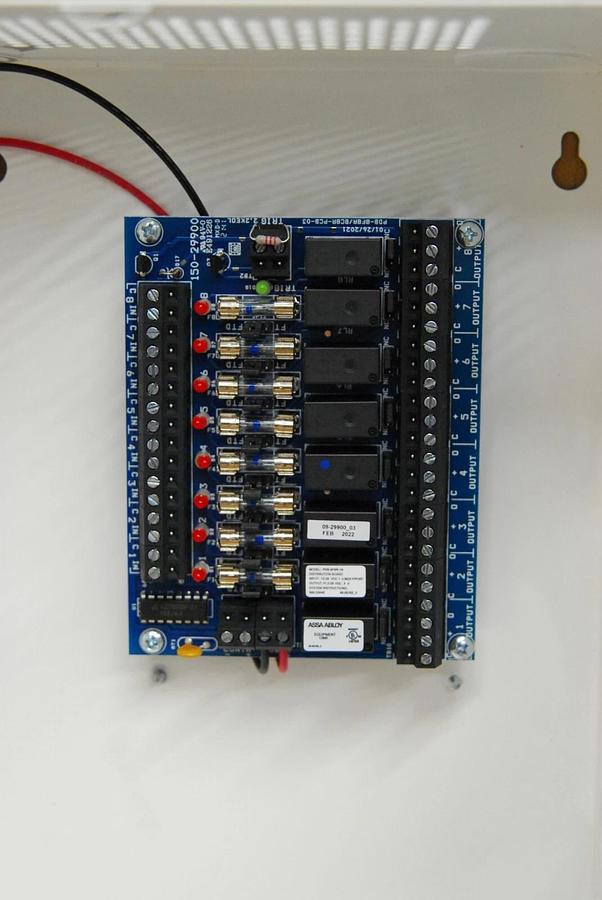

Outputs: Features eight fused protected outputs, each with an associated relay.
Input Voltage: Tolerates 115 or 230 VAC input with a ±15% tolerance for brownout or overvoltage conditions.
Efficiency: Offers high efficiency, up to 85%.
Battery Charging: Includes an integrated battery charging circuit for sealed lead acid or gel batteries.
Protection: Features thermal shutdown protection with auto-restart and a circuit breaker for overcurrent and reverse battery faults.
Fire Alarm Interface: Includes a fire trigger and individually triggered relayed outputs.
Supervision: Provides LED indicators and form "C" contacts for supervision.
Buy with confidence, we have a 100% satisfaction guarantee.
ALL QUESTIONS AND OFFERS WELCOME
Specifications
| Manufacturer | Securitron |
| Model | AQD2-8F8R1 |
| Condition | Used |
| Type | Dual-voltage Switching Power Supply w/ Fire Trigger |
| Voltage | 12/24 V |
| Custom label (SKU) | ICM884 |
