Power-One HTAA-16W-A Triple-Output Linear DC Power Supply (+5V, +/-12V)
$54.95
Description
Power-One HTAA-16W-A Triple-Output Linear DC Power Supply. Unit is used. Pulled working from a decommissioned Bio-Rad CHEF MAPPER system.

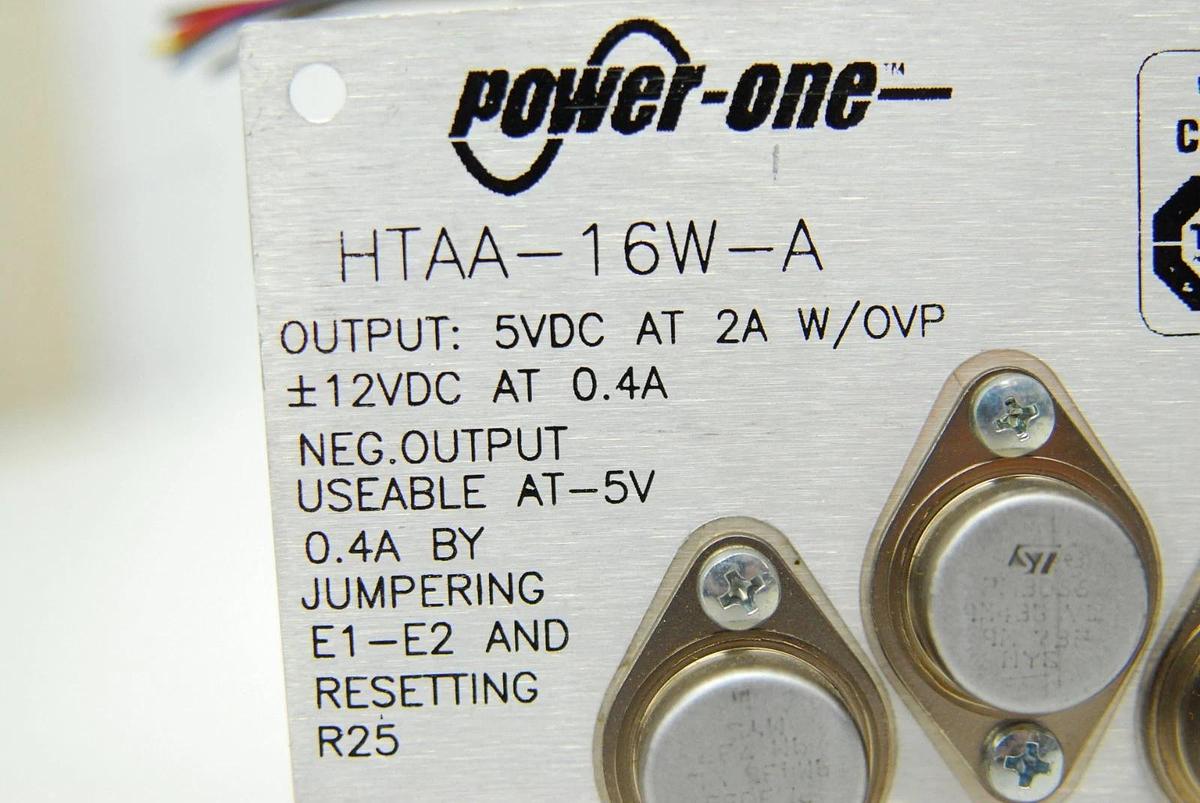

Info on power supply:
Power-One
HTAA-16W-A
Output: 5 VDC at 2A W/ OVP | +/-12 VDC at 0.4A
Neg. Output useable at -5V 0.4A by jumping E1-E2 and Resetting R25

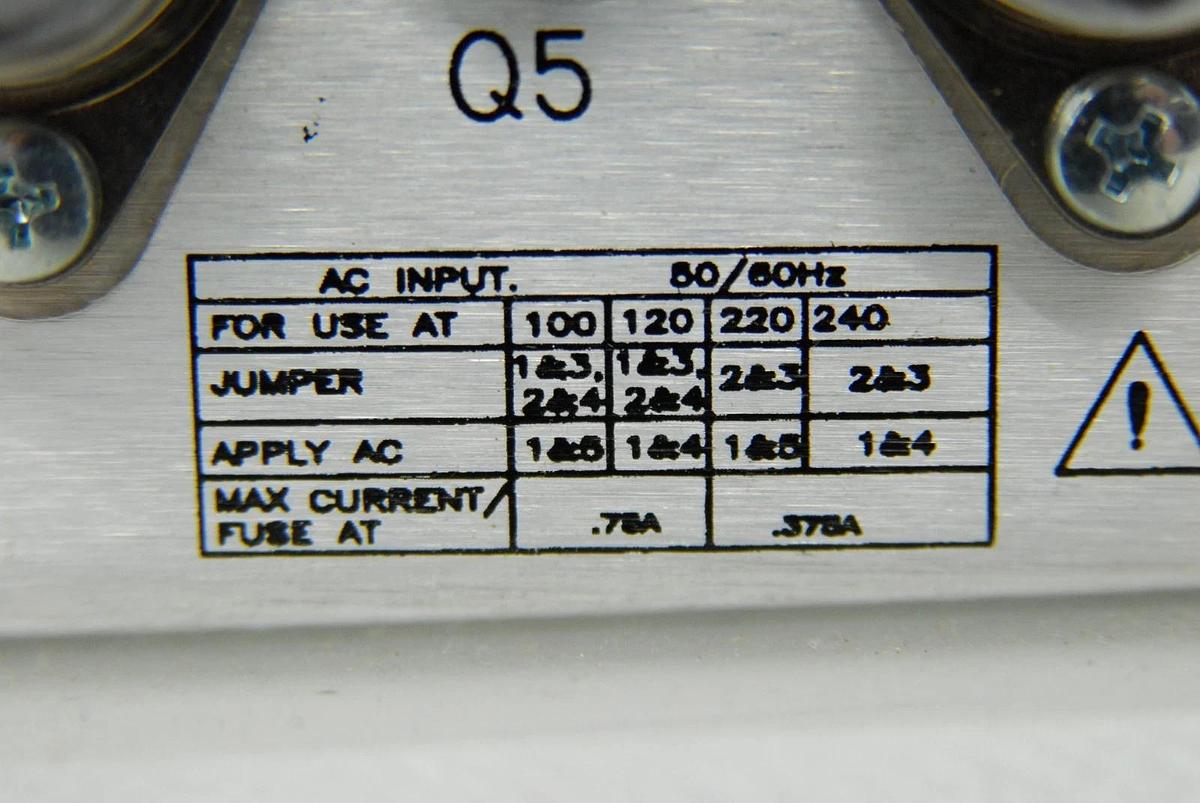

AC Input: 100, 0.75A/120, 0.75A/220, 0.375A/240, 0.375A
ALL QUESTIONS AND OFFERS WELCOME
Buy with confidence, we have a 100% satisfaction guarantee.
cyberjoes
220 2nd St NW
Fayette, AL 35555
Specifications
| Manufacturer | Power-One |
| Model | HTAA-16W-A |
| Condition | Used |
| Mounting Style | Chassis Mount |
| Nominal Current Rating | 2A, 0.4A |
| Nominal Voltage Rating (AC) | 100/120/220/230/240 VAC |
| Ripple & Noise | 3 mV |
| Color | Silver |
| Nominal Power Rating | 16w |
| Installation Area | Indoor |
| Series | HTAA |
| Efficiency | 45% |
| Output Voltage Rating (DC) | 5V, +12V, -12V |
| Inrush Current Rating | 2A |
| Custom label (SKU) | ICM1079 |
