Würth Elektronik 750103 Evaluation Kit LT3573 Isolated Flyback Converter Board

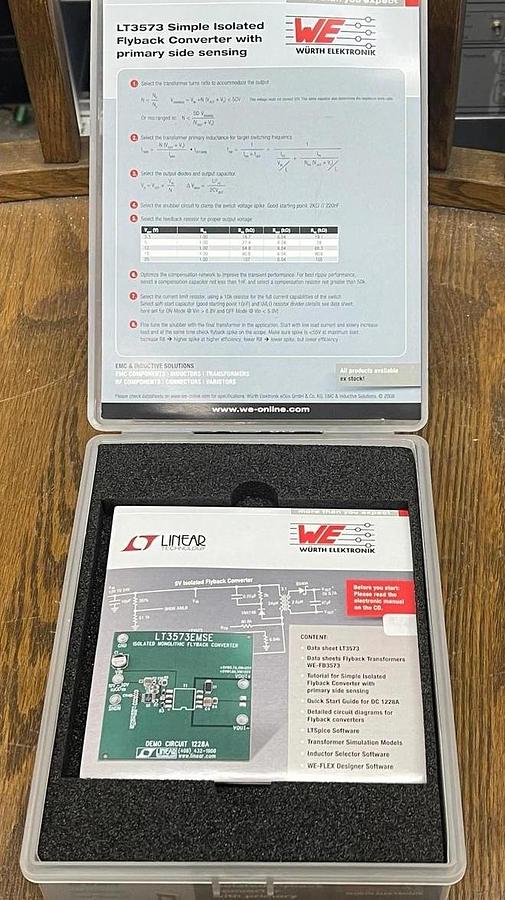

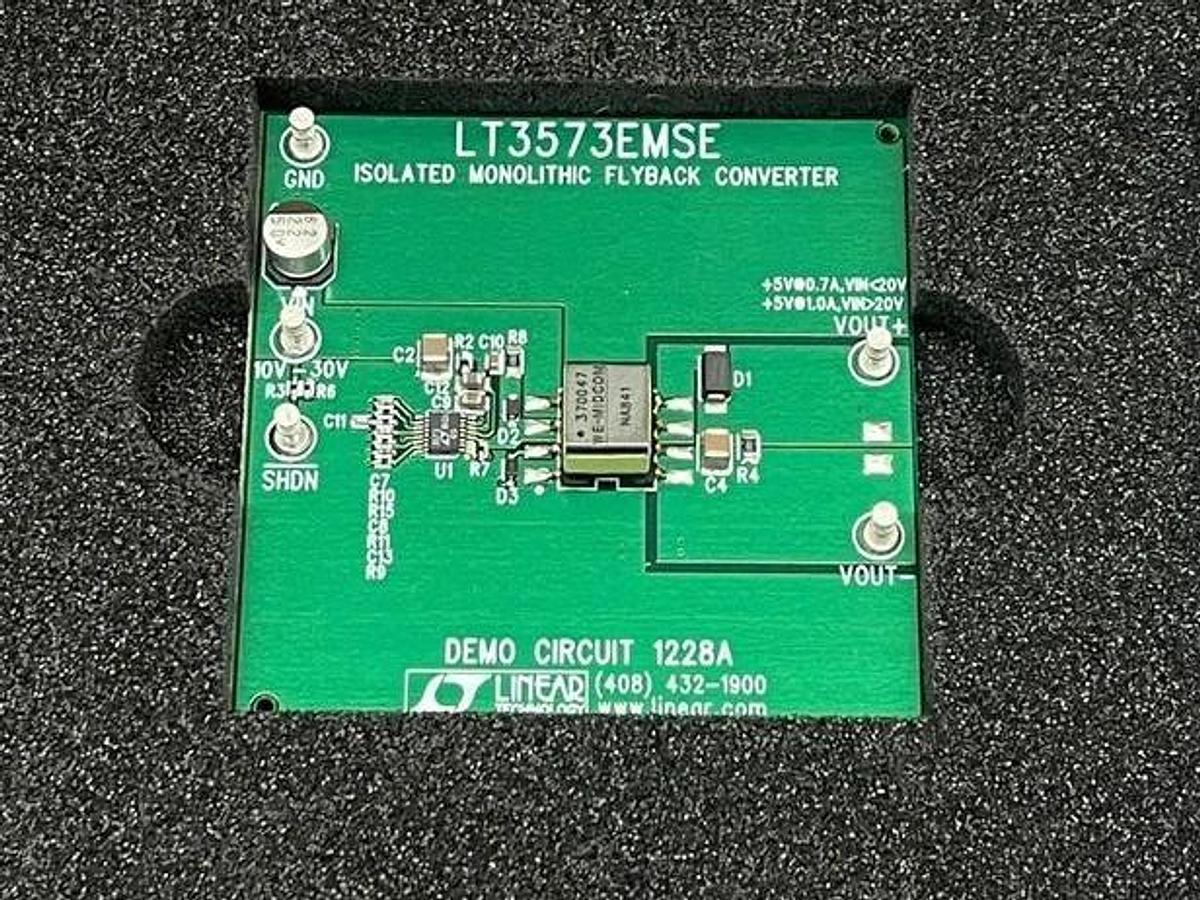

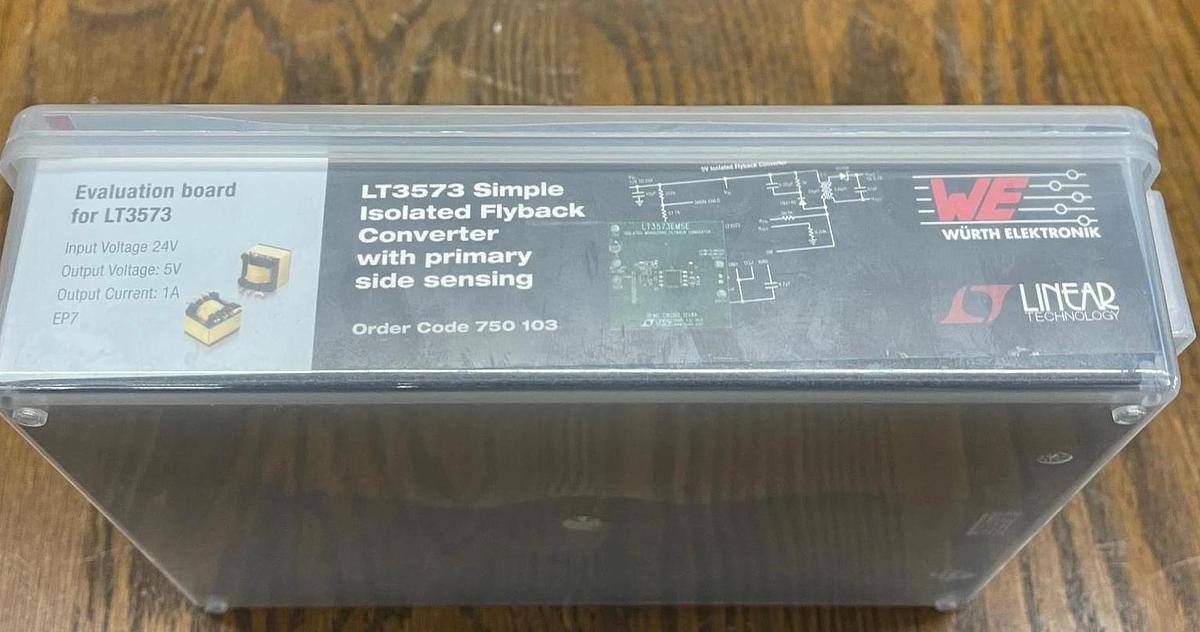

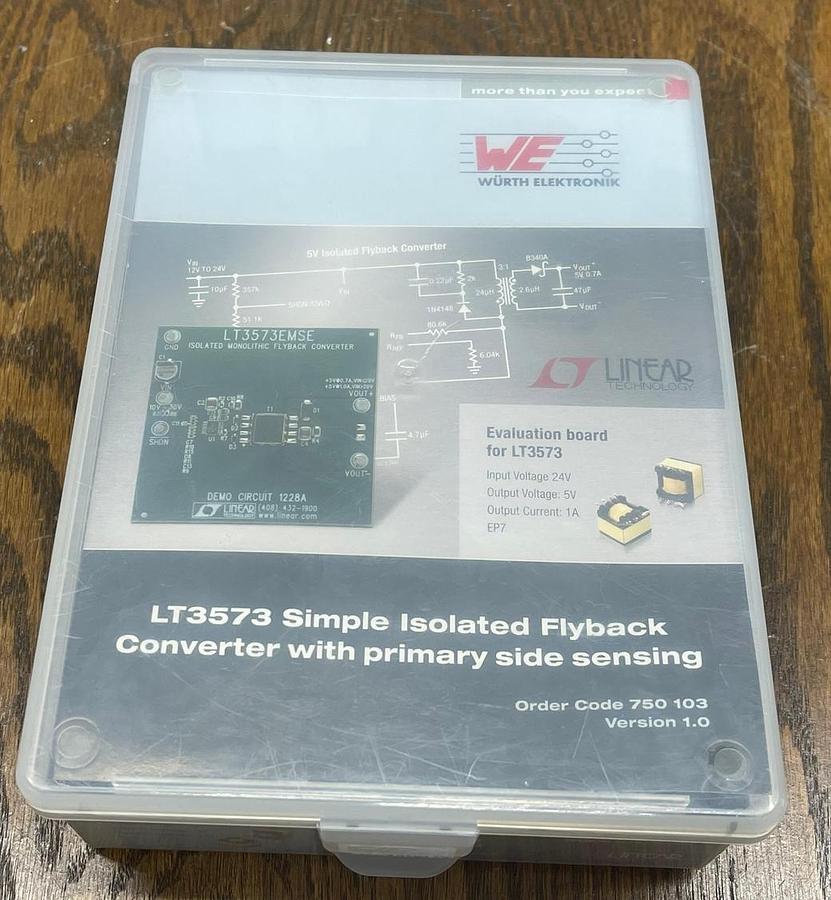

Würth Elektronik 750103 Evaluation Kit LT3573 Isolated Flyback Converter Board. Unit is open box. See pictures, comes as shown. Comes with Box, Disc(unopened), and Data sheet for WE-FB3573.

BOARD ORDER CODE: 750103 (750 103)

MANUFACTURER: Würth Elektronik

BASE DESIGNATION: Demo Circuit 1228A (DC1228A)

CONTROLLER IC: Analog Devices LT3573EMSE

NUMERICAL RATINGS & CONFIGURATION SPECS:

[FACTORY OUTPUT SETUP]

Default Output Voltage:     5.0 V DC

Default Continuous Current:   1.0 A

Maximum Output Power:      5.0 W

[INPUT SUPPLY RANGE]

Nominal Input Operating Range:  10.0 V to 30.0 V DC

Absolute Maximum Input Voltage: 40.0 V DC

[REGULATION PERFORMANCE]

Total Regulation Accuracy Band: ±5.0%

Target Switching Frequency:    200 kHz

Integrated Switch Current Limit: 1.25 A

[INSTALLED PASSIVE COMPONENTS]

Installed Transformer Series:  WE-FB Isolated Flyback

Transformer Turns Ratio:     1:1

Isolation Safety Voltage Rating: 1.5 kV to 2.5 kV AC

Feedback Resistor (RFB):     113 kΩ

Reference Resistor (RREF):    6.04 kΩ

[THERMAL & ENVIRONMENTAL]
Operating Temperature Range:   -40 °C to +125 °C
