Marathon Electric FQE 56C17F15524B P General Purpose Motor

Marathon Electric FQE 56C17F15524B P General Purpose Motor. Unit is used, tested working.

[Condition]

Item is in working condition. Item may some cosmetic imperfections that do not affect use. See pictures, unit comes as shown.

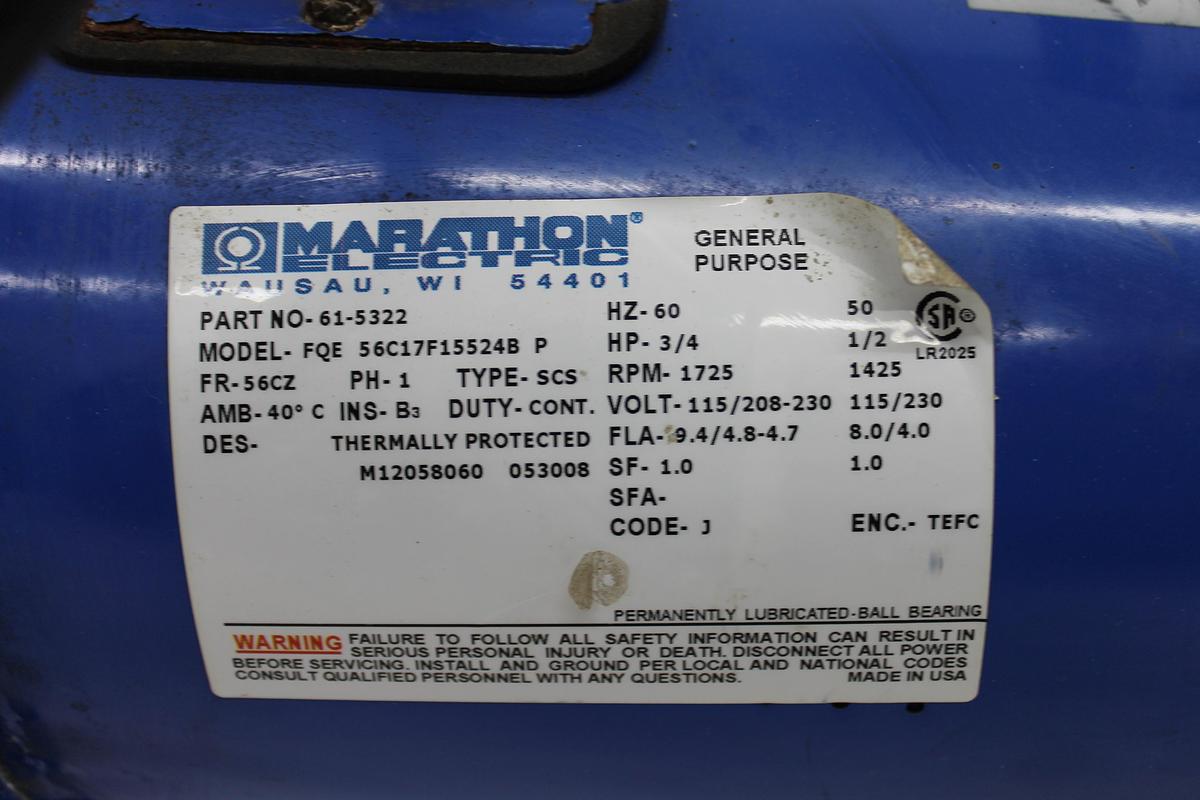

[INFO ON UNIT]

Brand: Marathon Electric

Part Number: 61-5322

Model: FQE 56C17F15524B P

Frame: 56CZ

Phase: 1 (Single-phase)

Type: SCS

Frequency: 60 Hz (also lists 50 Hz specs)

Horsepower:

• 3/4 HP @ 60 Hz
• 1/2 HP @ 50 Hz

RPM:

• 1725 RPM @ 60 Hz
• 1425 RPM @ 50 Hz

Voltage:

• 115 / 208–230 V (60 Hz)
• 115 / 230 V (50 Hz)

Full Load Amps (FLA):

• 9.4 / 4.8–4.7 A (60 Hz)
• 8.0 / 4.0 A (50 Hz)

Service Factor (SF): 1.0

Code: J

Enclosure: TEFC (Totally Enclosed Fan Cooled)

Insulation Class: B

Ambient Temp Rating: 40°C

Duty: Continuous

Protection: Thermally Protected

Bearings: Permanently Lubricated Ball Bearing

Certification: CSA (LR2025)

ALL QUESTIONS AND OFFERS WELCOME
