KNF PML17273-FF 20 Micro Diaphragm Liquid Pump

$99.95
or
Call 205.932.4678

Description

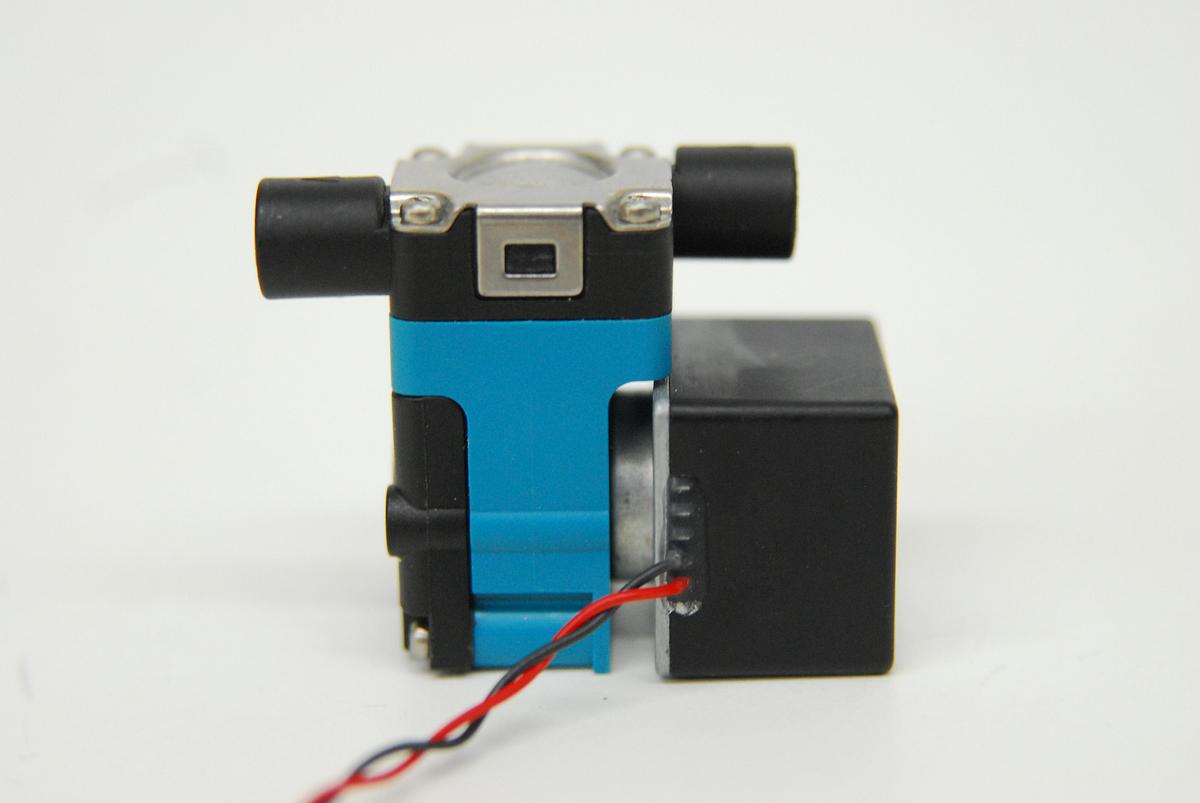

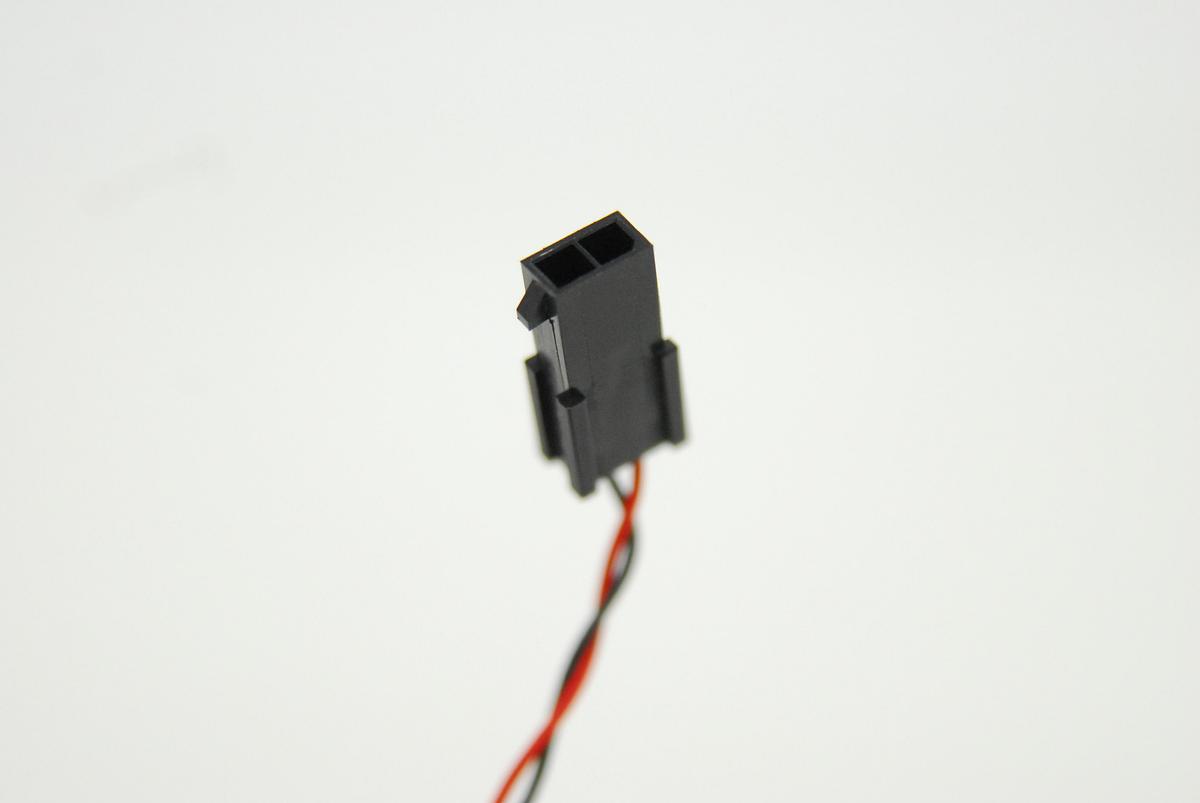

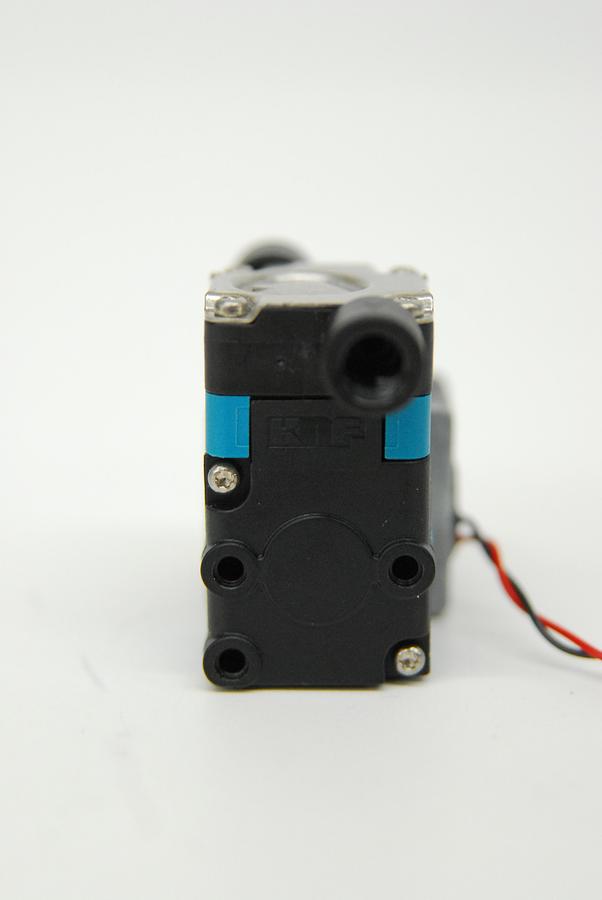

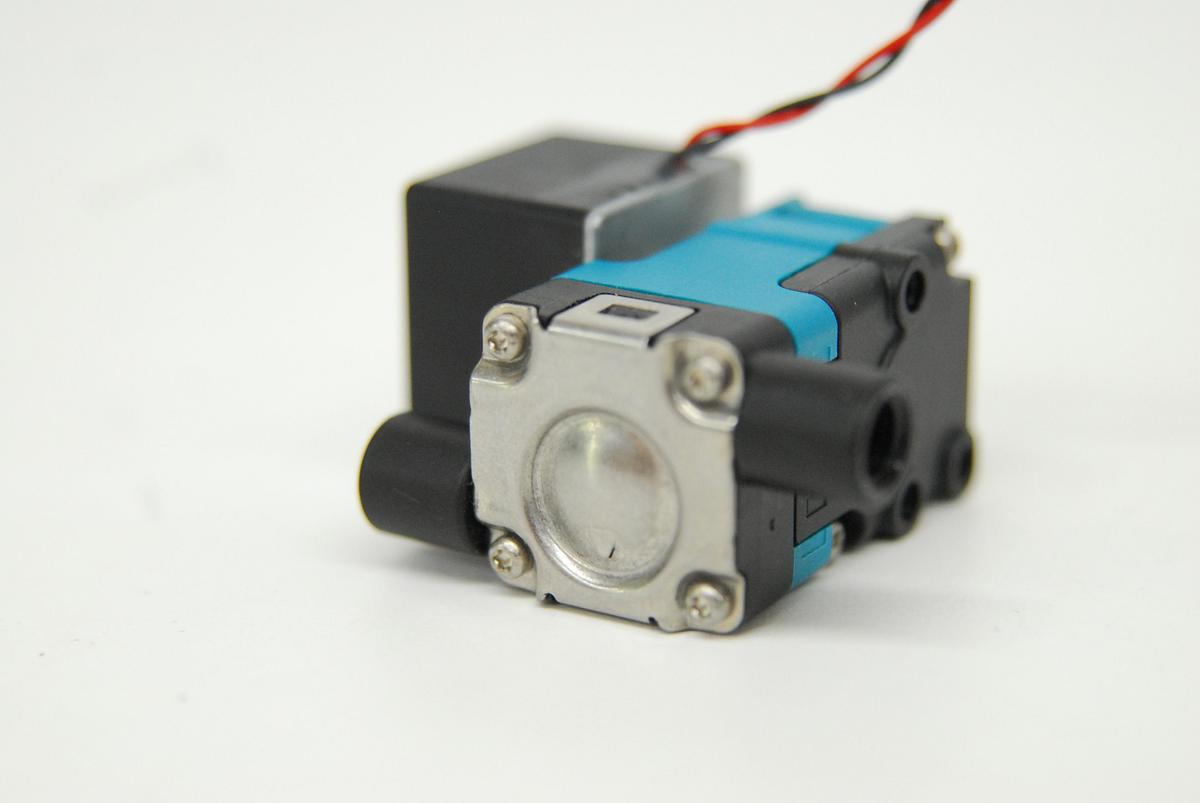

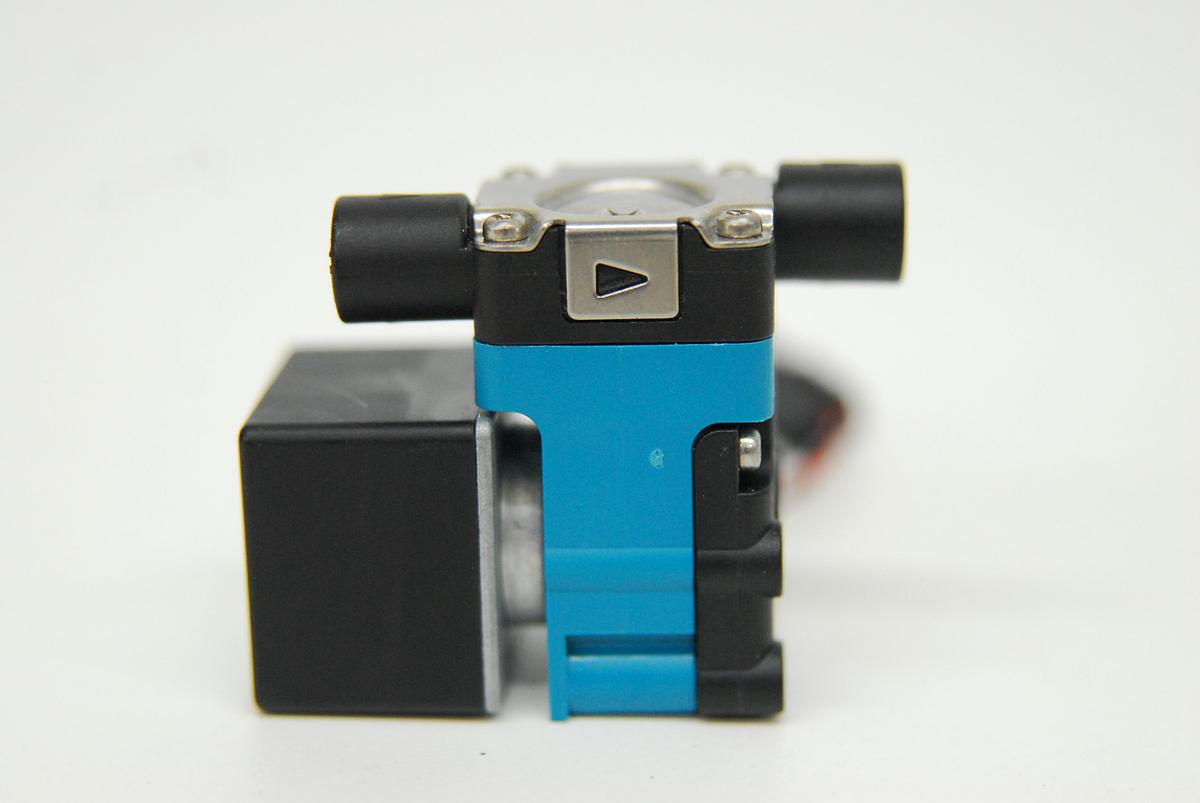

KNF PML17273-FF 20 Micro Diaphragm Liquid Pump. Pump is used. See pictures, comes as shown. Removed working from a decommissioned system.

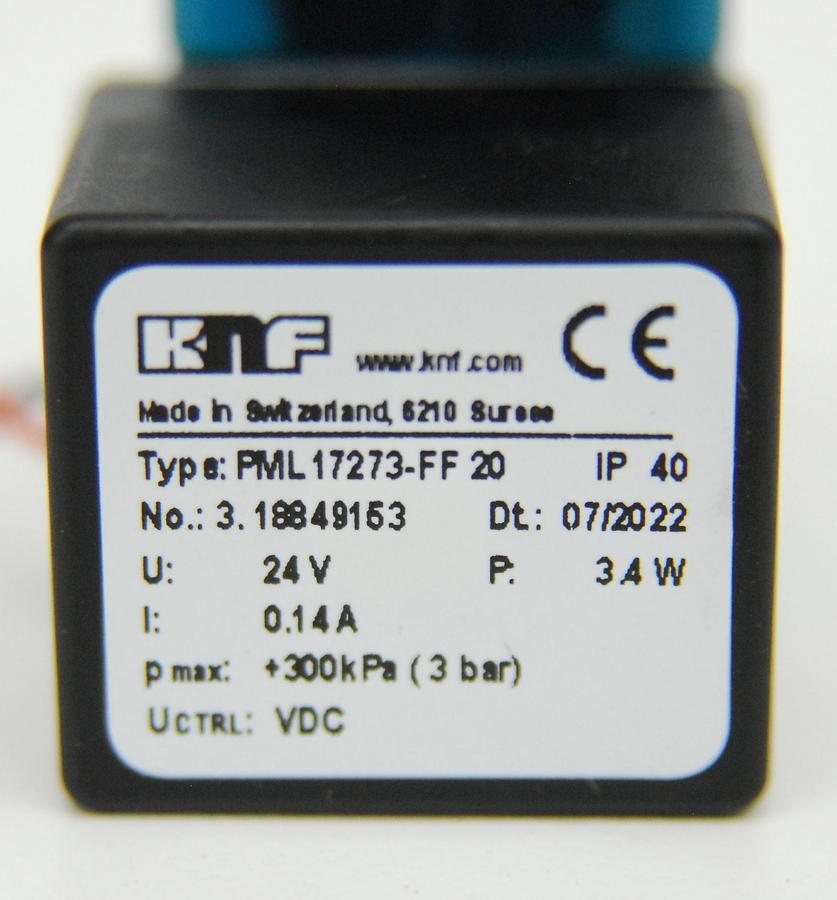

Info on Pump:

  • KNF
  • Type: PML17273-FF 20
  • U: 24v
  • IP 40
  • P: 3.4w
  • I: 0.14A
  • p Max: +300 kPa (3 bar)
  • Uctrl: VDC


Specs:

  • Flow Rate (max.): 0.23 l/min
  • Pressure (max.): 3 bar (rel.)
  • Suction Height (max.): 3.5 mH₂O
  • Valve Material Options: EPDM, FFKM
  • Diaphragm Material Options: EPDM, PTFE
  • Pump Head Material Options: PP
  • Motor Type Options: DC, Brushless DC




ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.


cyberjoes

220 2nd St NW

Fayette, AL 35555




Show All

Specifications

ManufacturerKNF
ModelPML17273-FF 20 Micro Diaphragm Liquid Pump
ConditionUsed
Stock NumberICM1125 C01
* TypePML17273-FF 20
* U24v
* P3.4w
* I0.14A
* p Max+300 kPa (3 bar)
* UctrlVDC
* Motor Type OptionsDC, Brushless DC
* Diaphragm Material OptionsEPDM, PTFE
* Suction Height (max.)3.5 mH₂O
* Pressure (max.)3 bar (rel.)
* Flow Rate (max.)0.23 l/min
* Valve Material OptionsEPDM, FFKM
