Mars Antennas MA-WE2458-3H Dual Band MIMO Antenna [2.3-2.7GHz, 4.9-6.1GHz]

Mars Antennas MA-WE2458-3H Dual Band MIMO Antenna [2.3-2.7GHz, 4.9-6.1GHz]

[Condition]

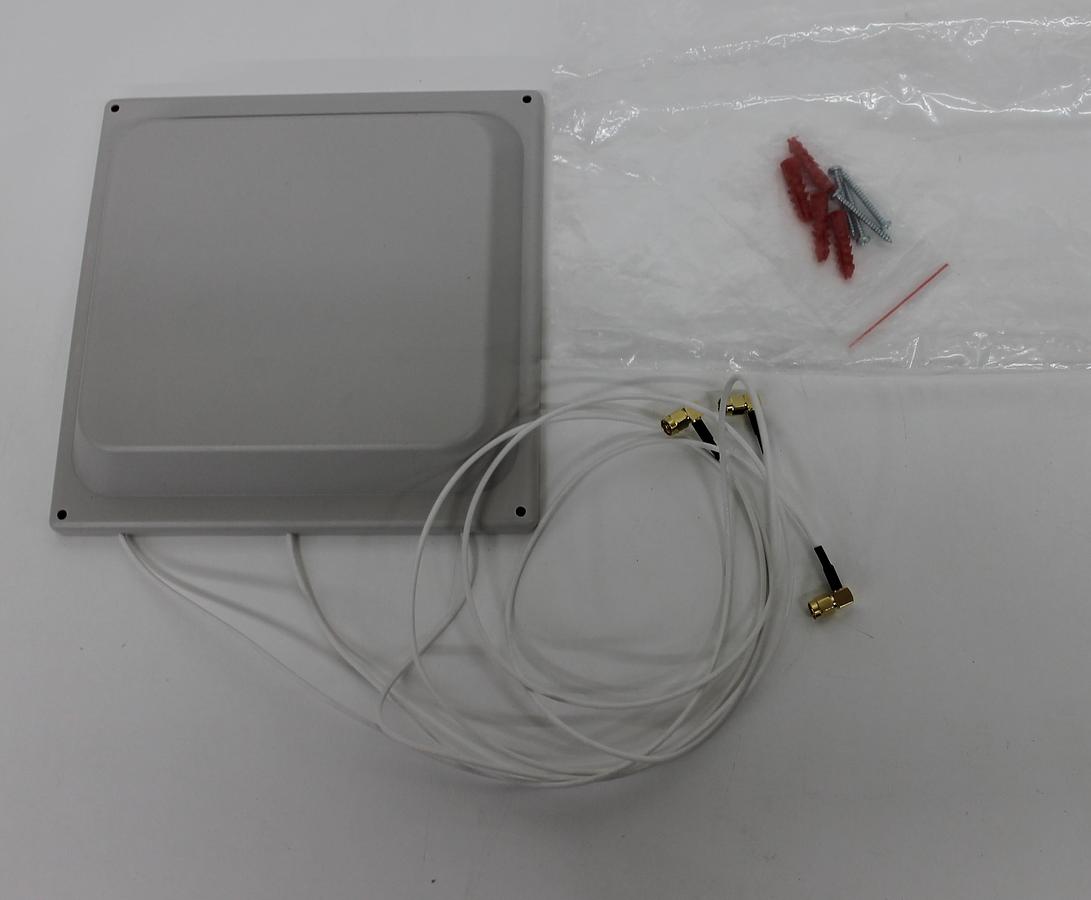

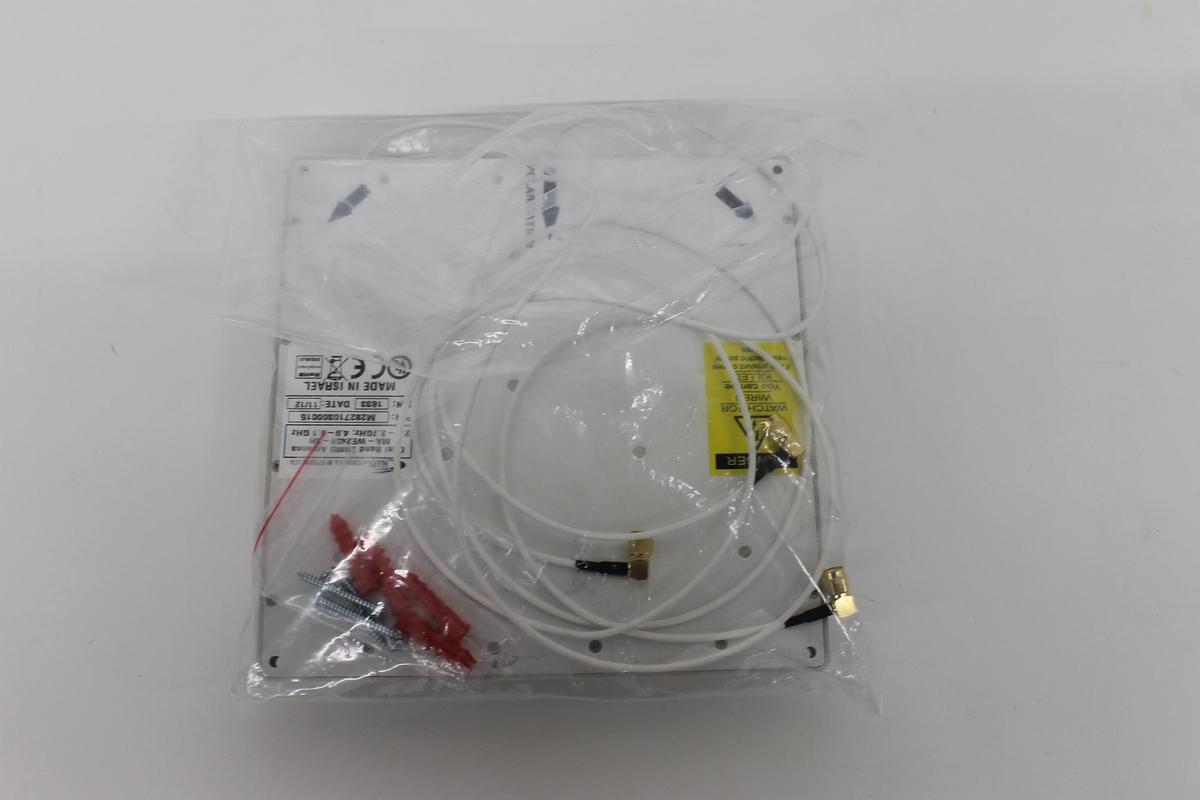

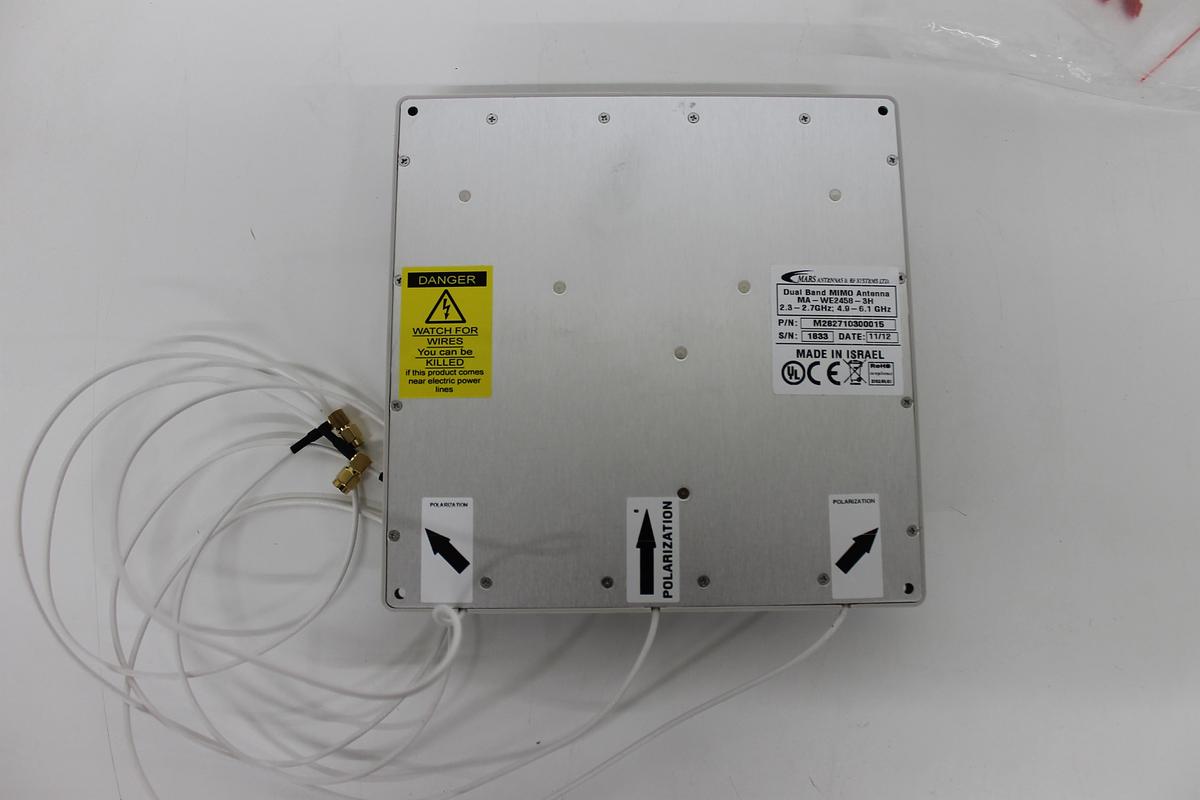

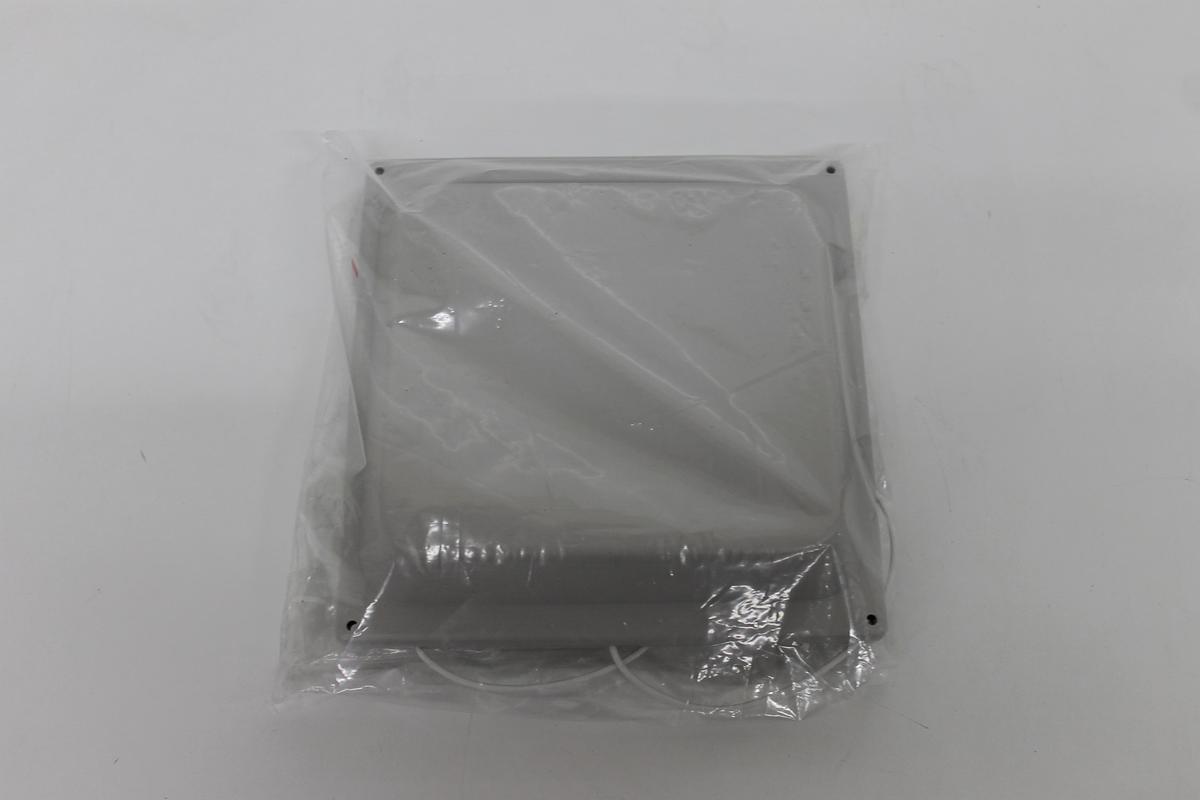

Antennas are brand new. See pictures, item comes as shown.

[Specs]

MARS Dual Band Sector antenna provides coverage of 2.3 to 2.7 GHz & 4.9 to 6.1 GHz in a single antenna radome.

Additional Features:

 Simultaneous coverage of LTE, 802.11 a, b, g, e, n, WiMAX & 4.9 GHz Public Safety Bands.

 Light weight and durable construction.

 UV protected radome made of polycarbonate.

Electrical

- Frequency range: 2.3–2.7 GHz & 4.9–6.1 GHz

- Gain (typ.): 3 x 5 dBi

- VSWR (max.): 2:1 (typ. 1.5:1)

- Polarization: Vertical & 2 Dual Slant ±45°

- 3 dB Beam-Width (H-Plane, typ.): 120°

- 3 dB Beam-Width (E-Plane, typ.): 70°

- Input power (max.): 20 W

- Input impedance: 50 Ohm

Mechanical

- Dimensions (W x L x H): 200 x 200 x 33 mm (7.9" x 7.9" x 1.25")

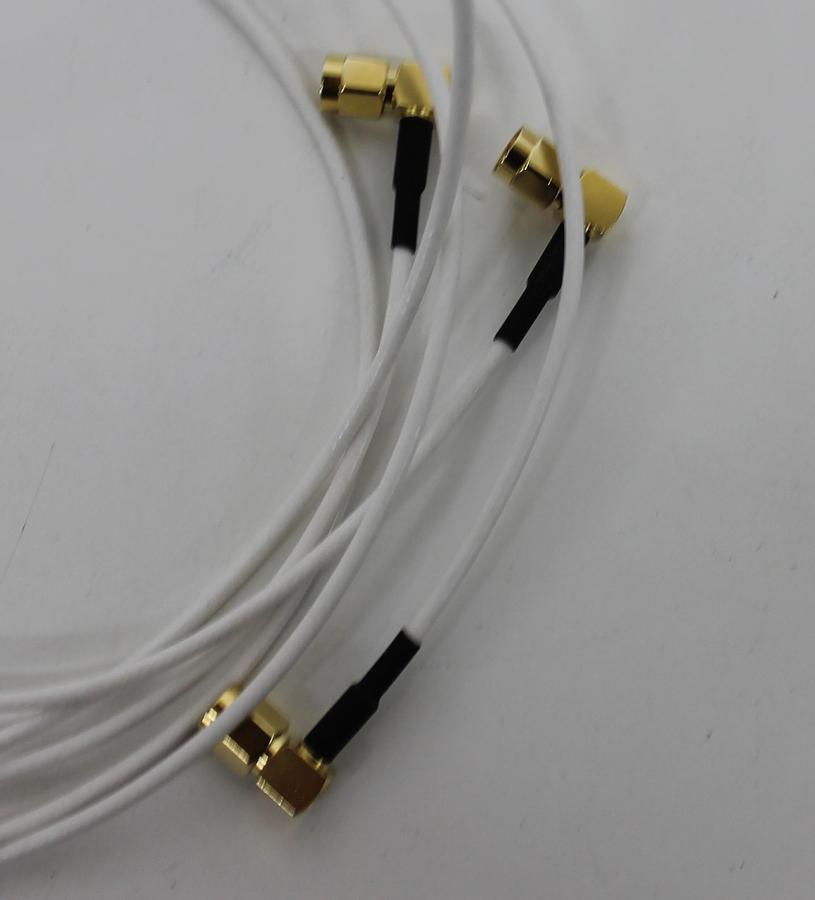

- Connector: See ordering options9

- Weight: 400 g

- Back plane: Aluminum (chemical passivation)

- Radome: UV-protected polycarbonate

- Mount: See ordering options

Environmental

- Operating temperature: -40°C to +70°C

- Vibration: IEC 60721-3-4

- Flammability: UL94

- Waterproofing: IP67

- Humidity: ETS 300 019-1-4, EN 302 085 (Annex A.1.1)

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
