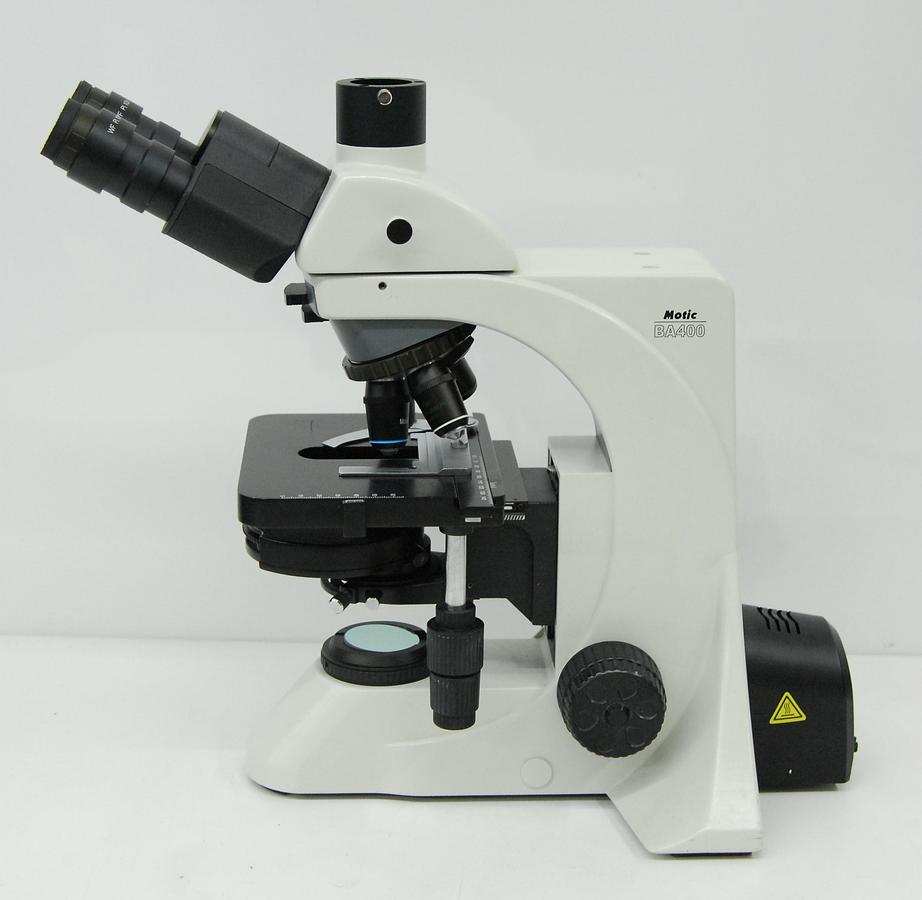

Motic BA400 Trinocular Phase Contrast Microscope W/ Plan 10/20/40/100 Objectives

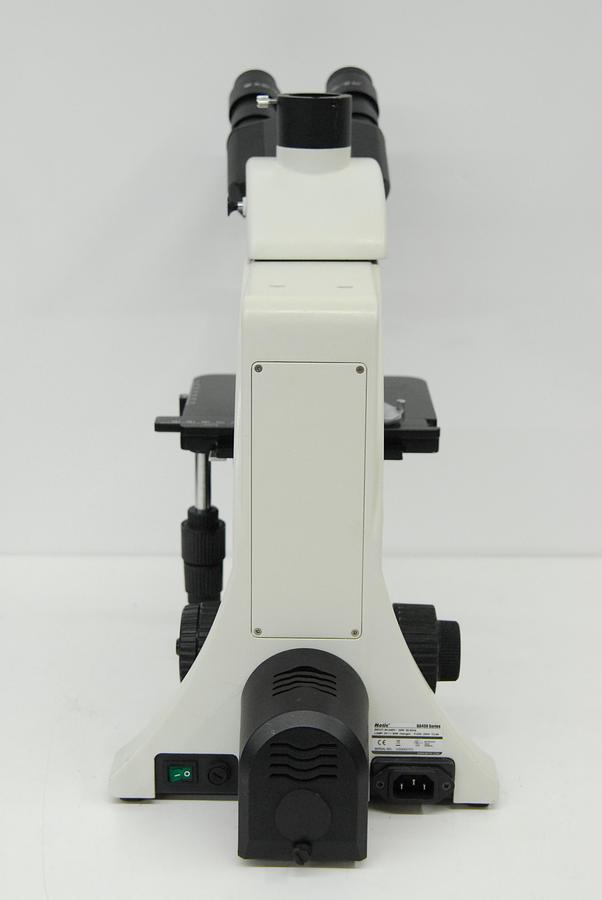

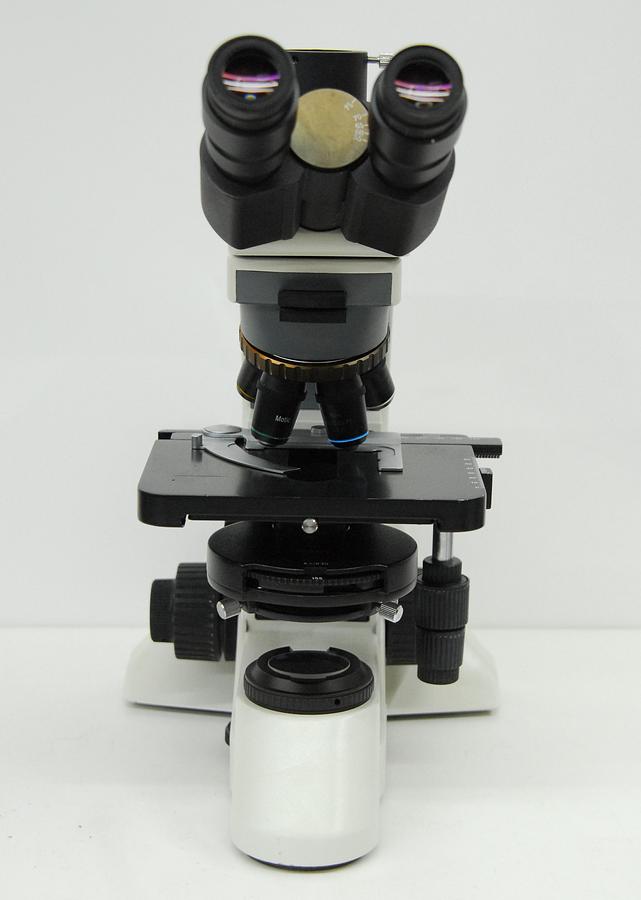

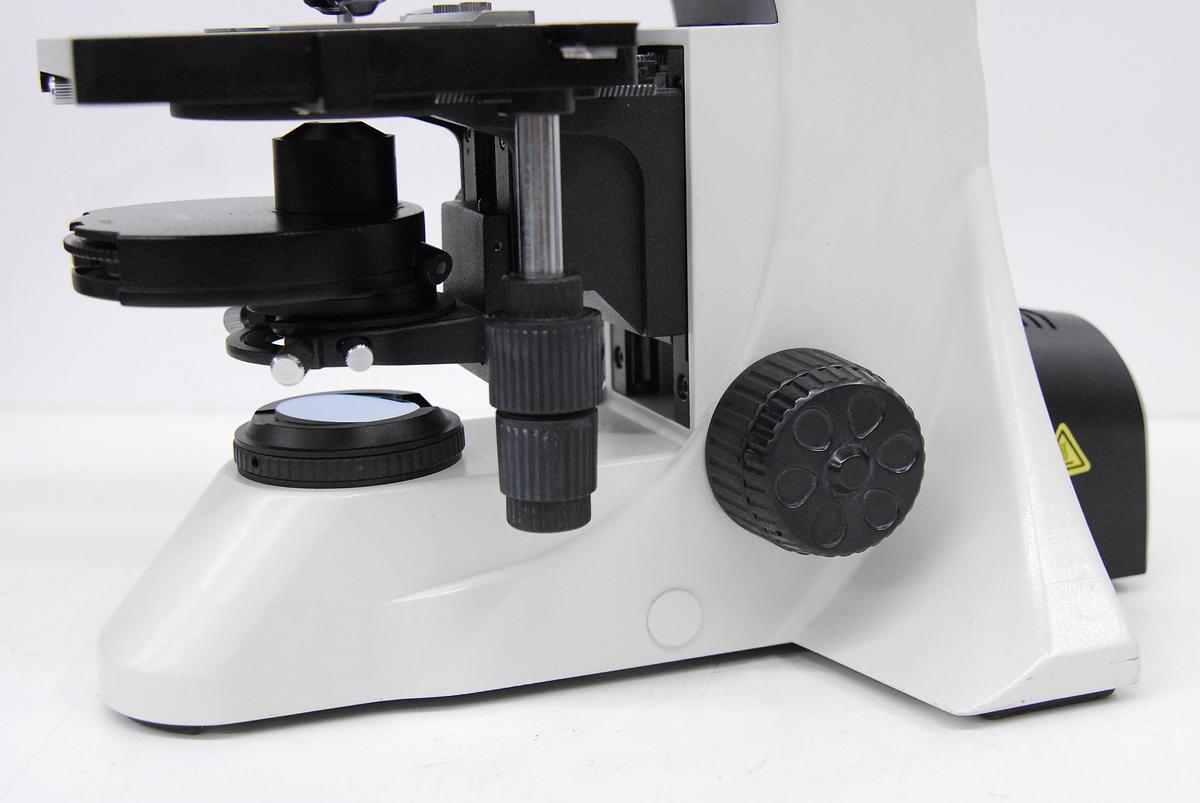

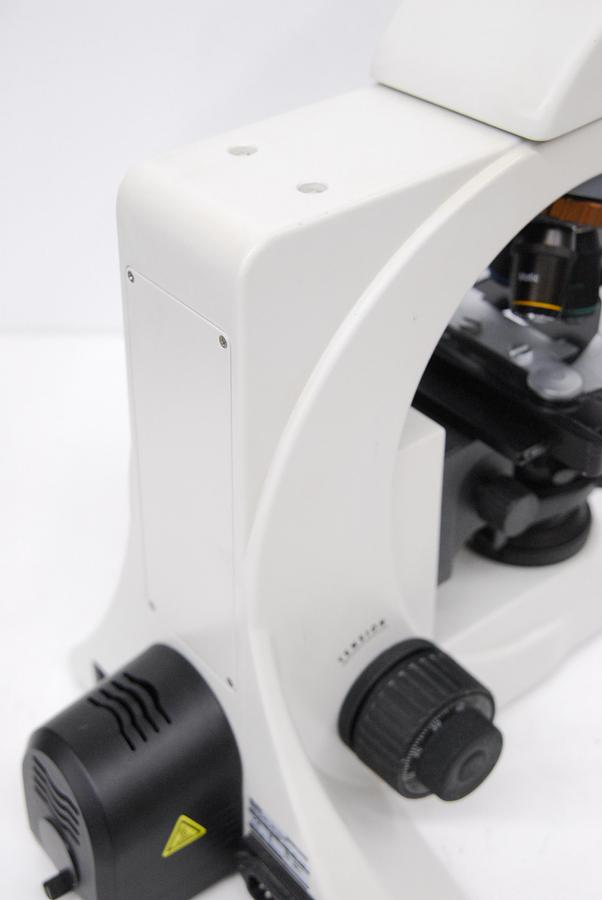

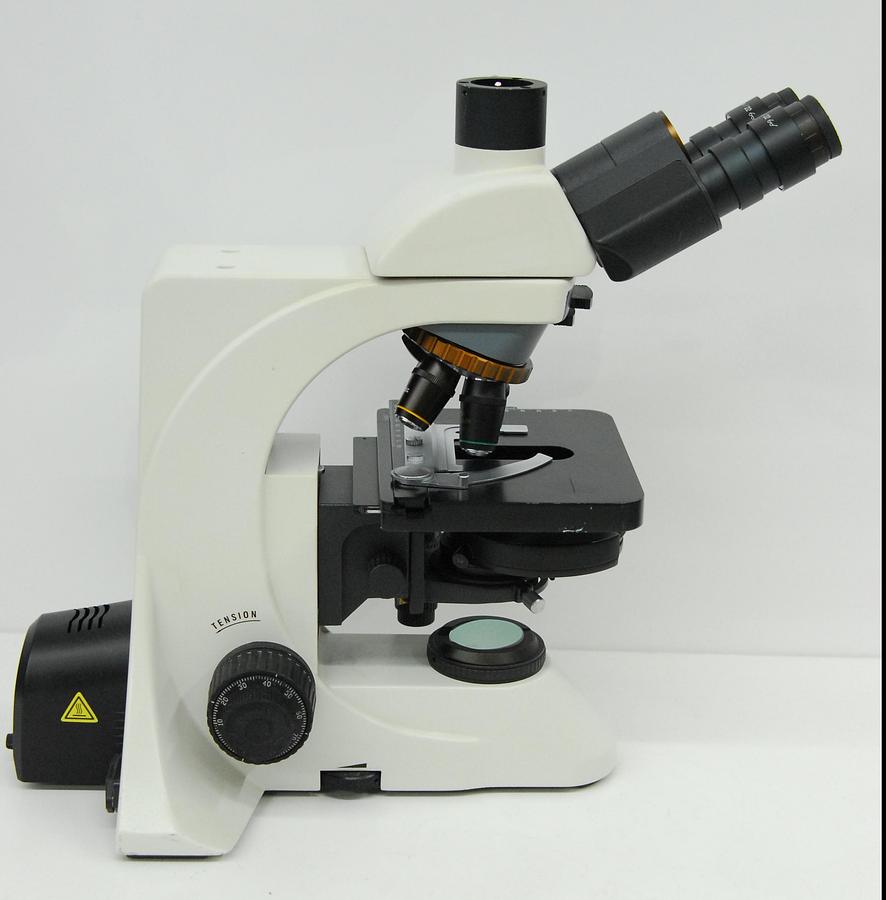

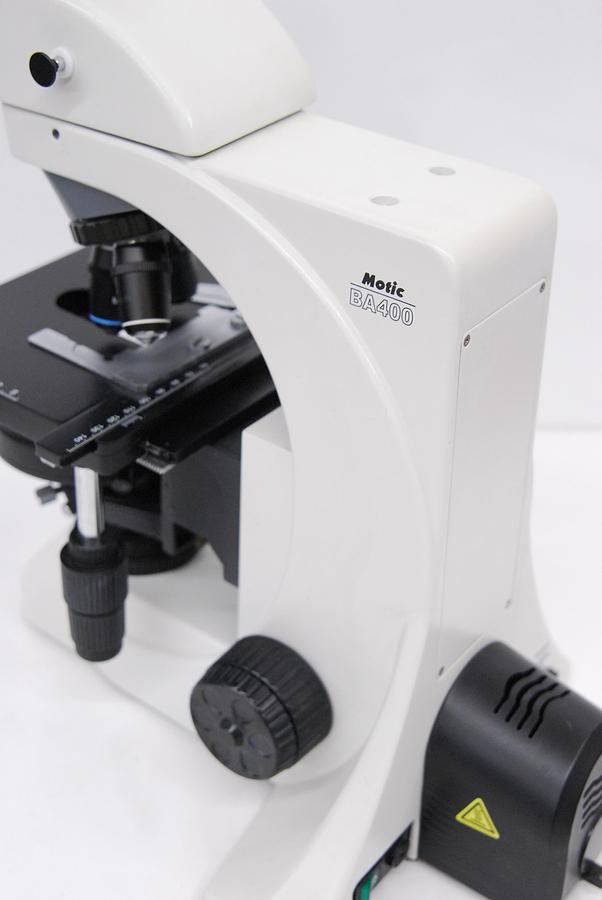

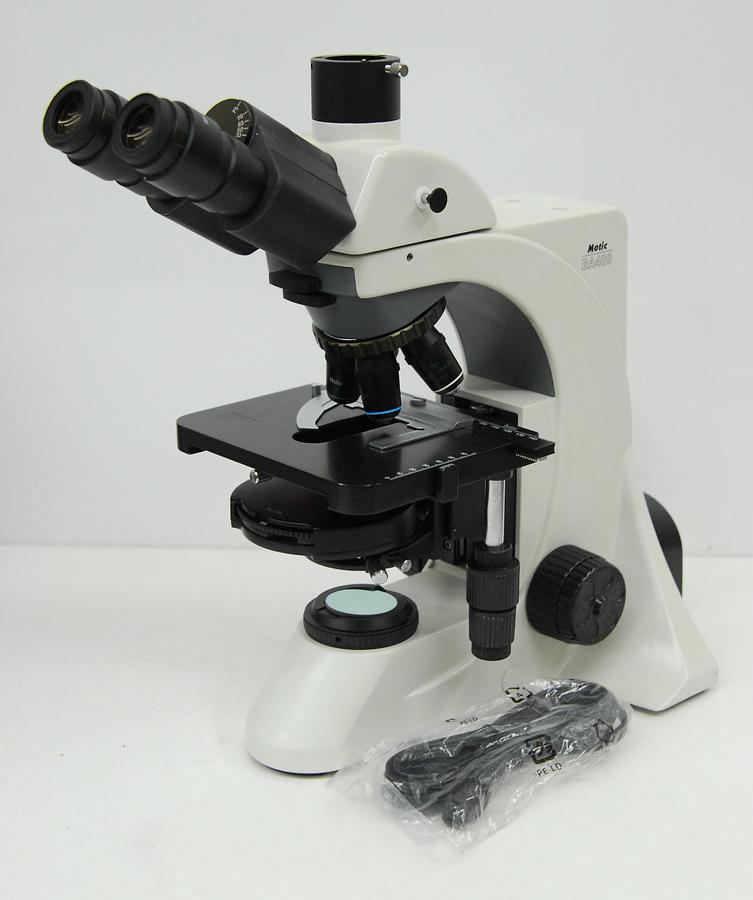

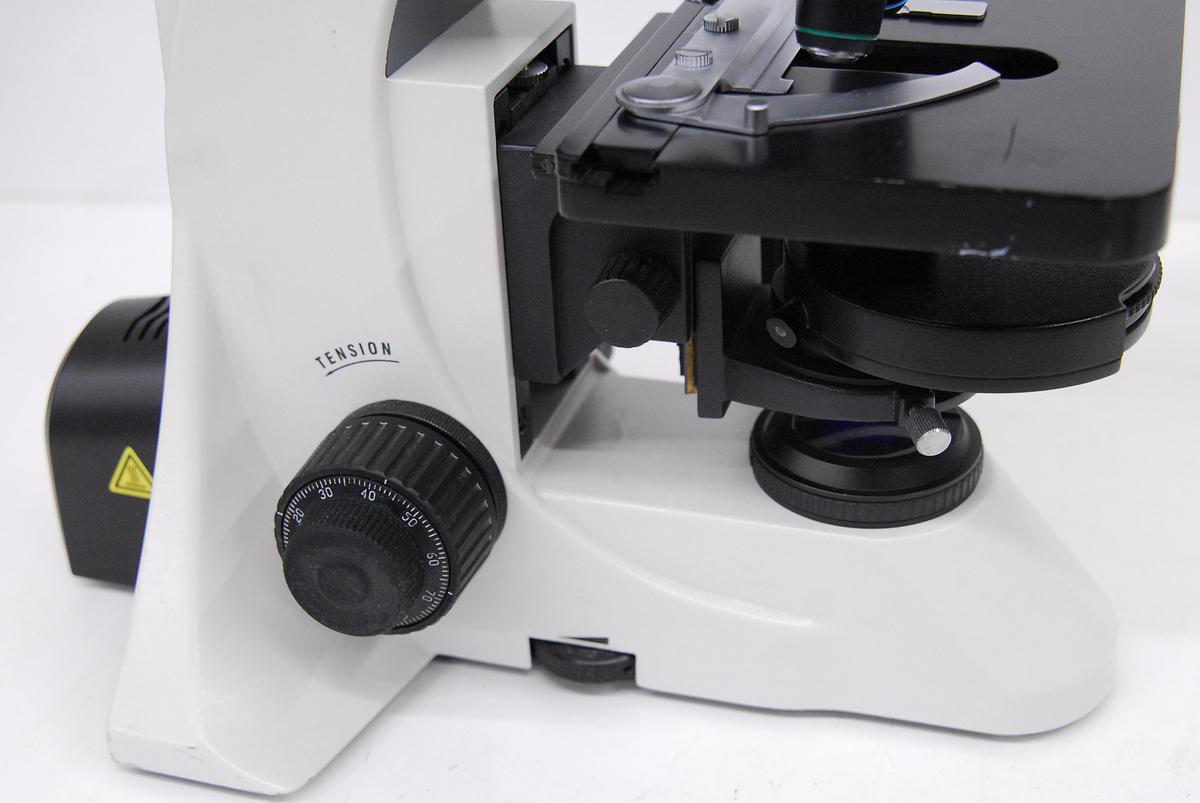

Motic BA400 Trinocular Phase Contrast Microscope. Microscope is used with a few cosmetic issues. See pictures, comes as shown. Optics are clean and clear, no mold or delamination. All objectives produce a clean image. Stage and condenser stage both move smoothly without binding, sticking, or backlash. Coarse and fine focus working without issue, along with coarse adjustment lock. Head Interpupillary Distance and Diopter Adjustment working no binding or sticking. Lower field stop iris opens and closes smoothly. Light path selector on head has no issues.

Specimen pictures taken through the Eyepiece with a phone and is of a prepared slide of a Helianthus Stem C.S. 100x objective was tested with Immersion Oil.

Only parts that are missing is the Phase Centering Telescope and the condenser centering screws. The condenser annuli can be centered with a 1.5mm Allen key.

Info on microscope:

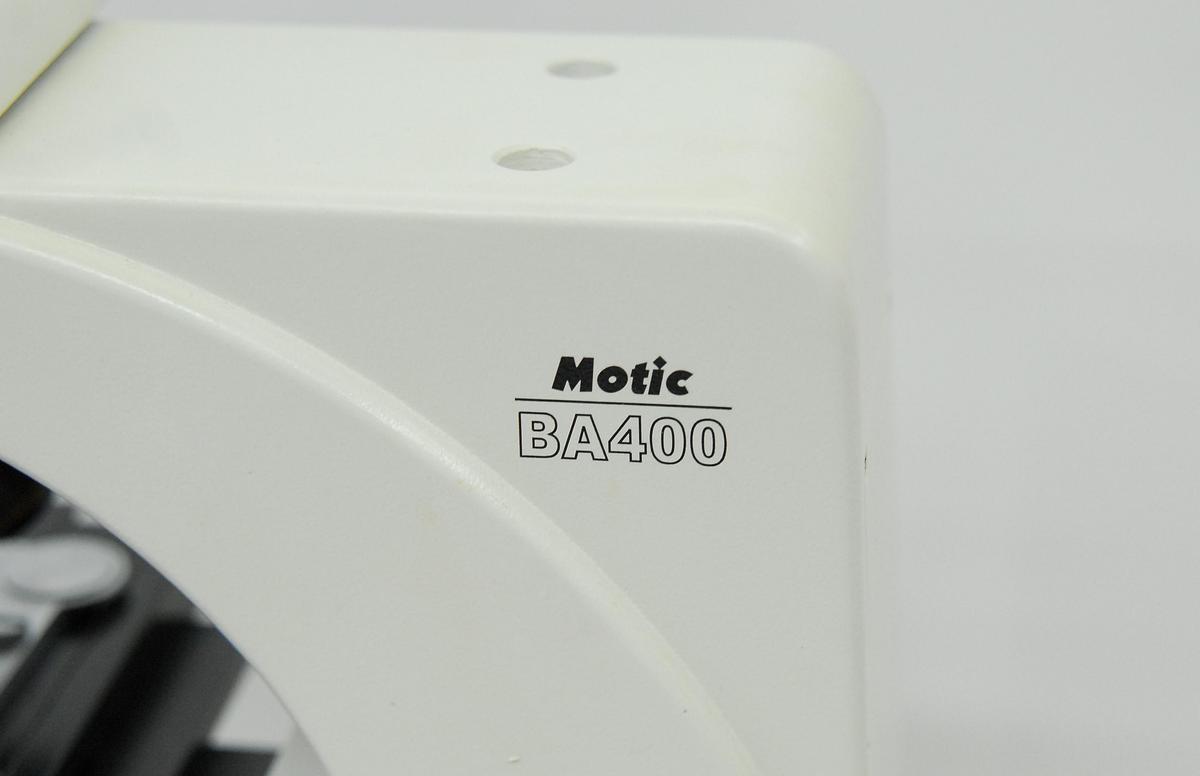

• Motic BA400 Microscope Body
• Motic Mechanical XY Stage

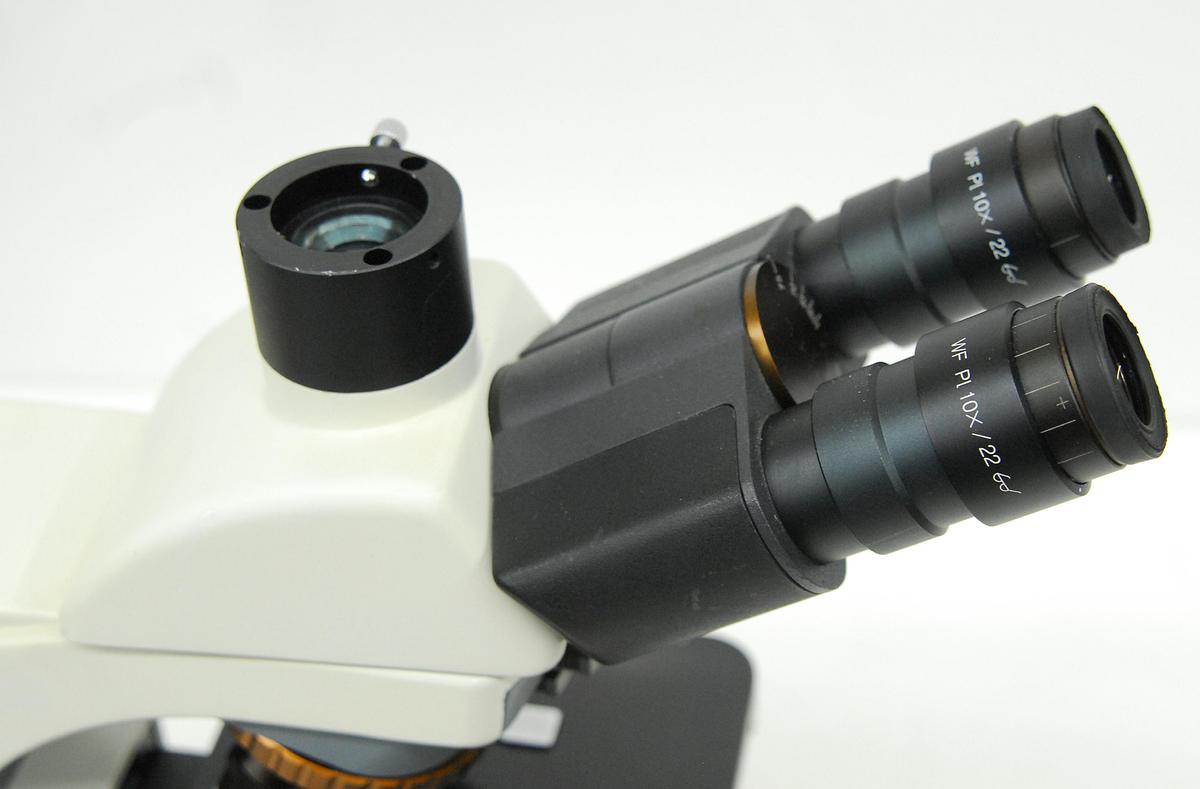

• Motic Trinocular Head
• Motic WF Pl 10x/22 Eyepiece Set

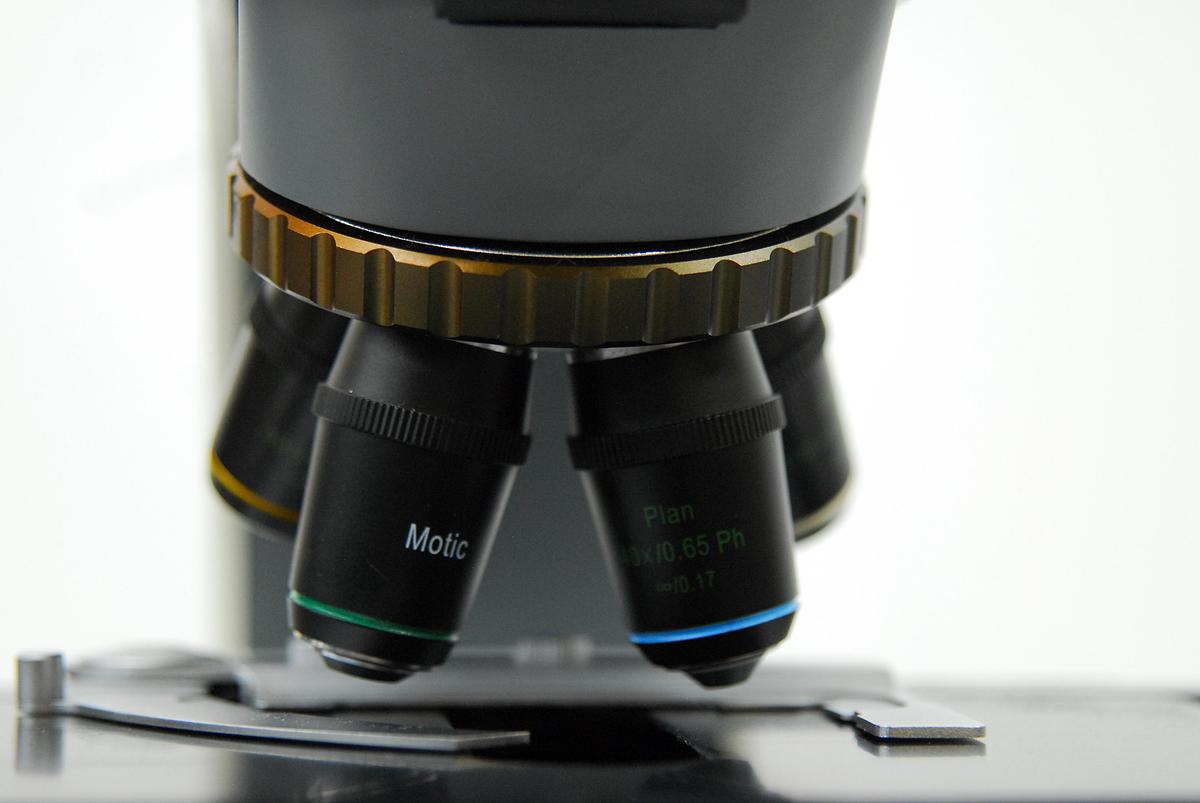

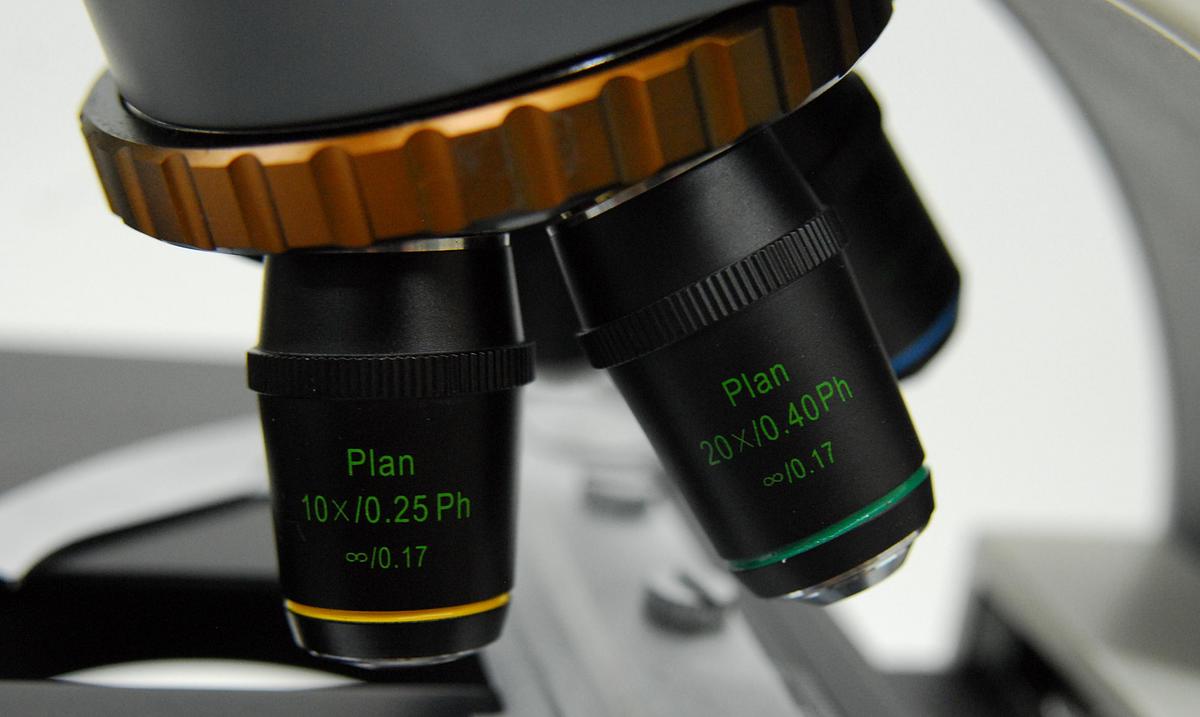

• Motic Plan 10x/0.25 Ph | ∞/0.17 Objective
• Motic Plan 20x/0.40 Ph | ∞/0.17 Objective

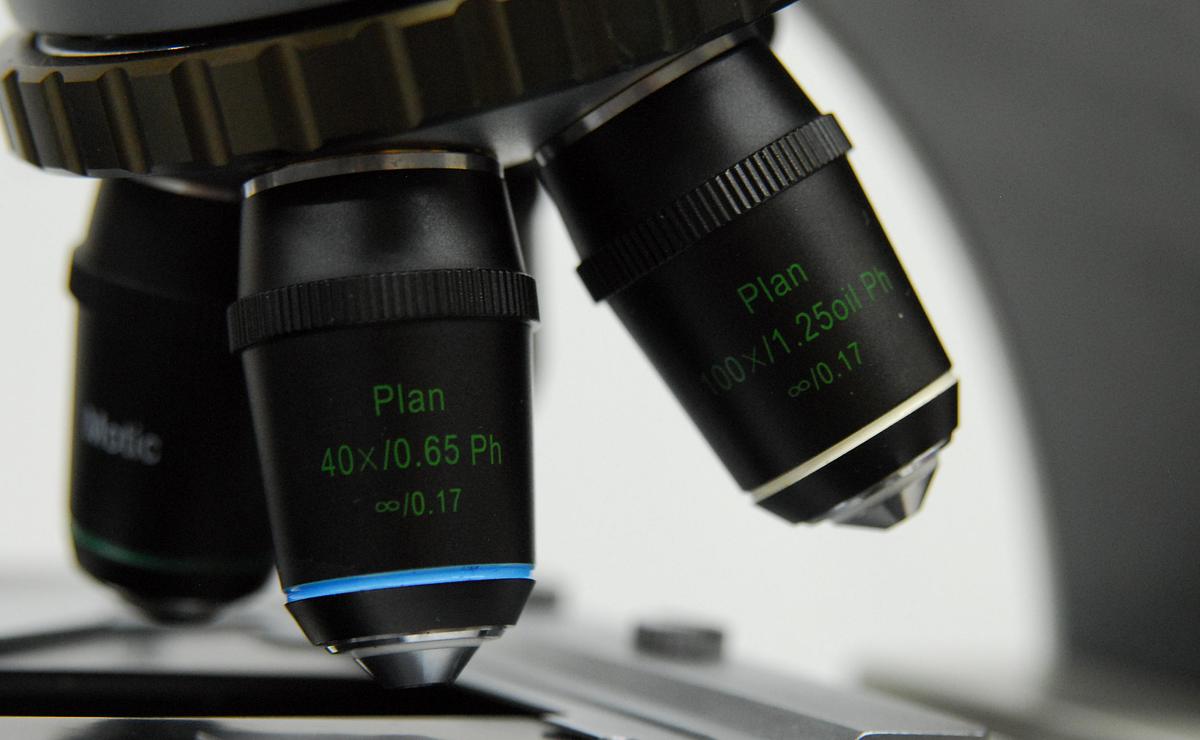

• Motic Plan 40x/0.65 Ph | ∞/0.17 Objective
• Motic Plan 100x/1.25oil Ph | ∞/0.17 Objective

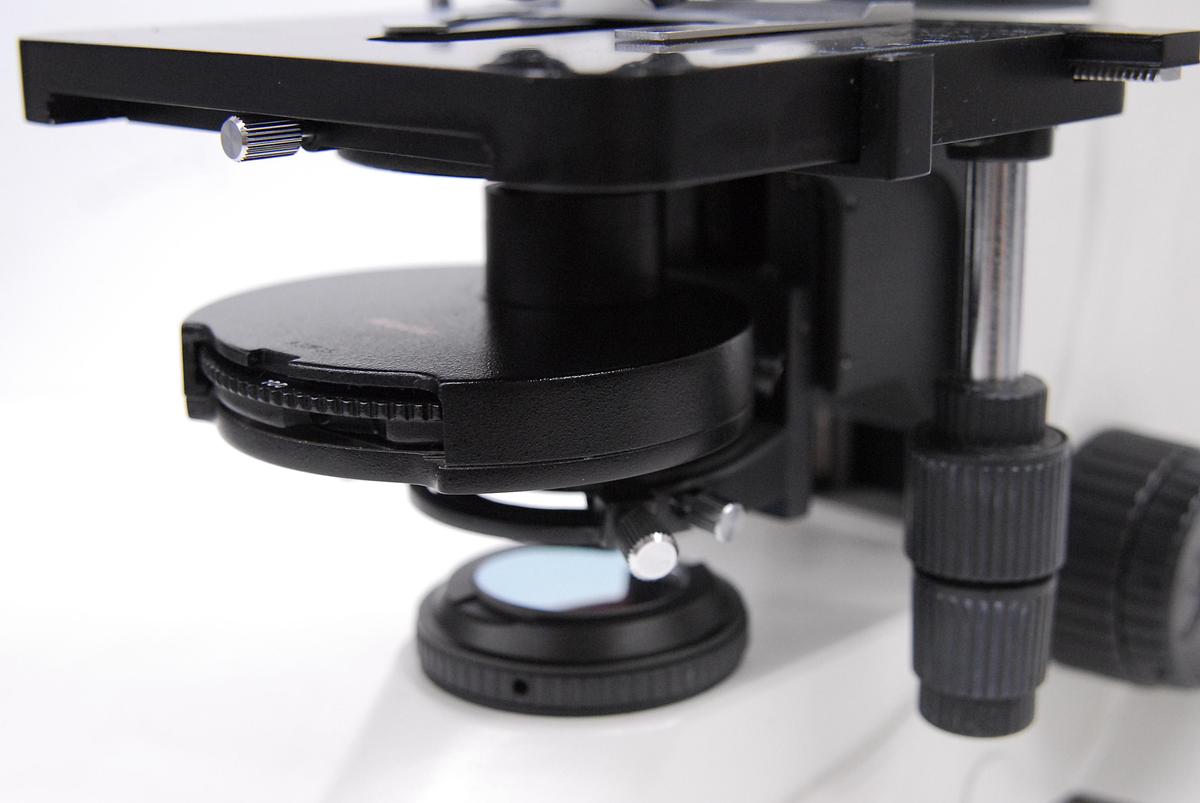

• Motic Phase and Dark field Contrast N.A. 1.25 Phase Contrast turret condenser [10x, 40x, 100x, and DF (10x-40x)]

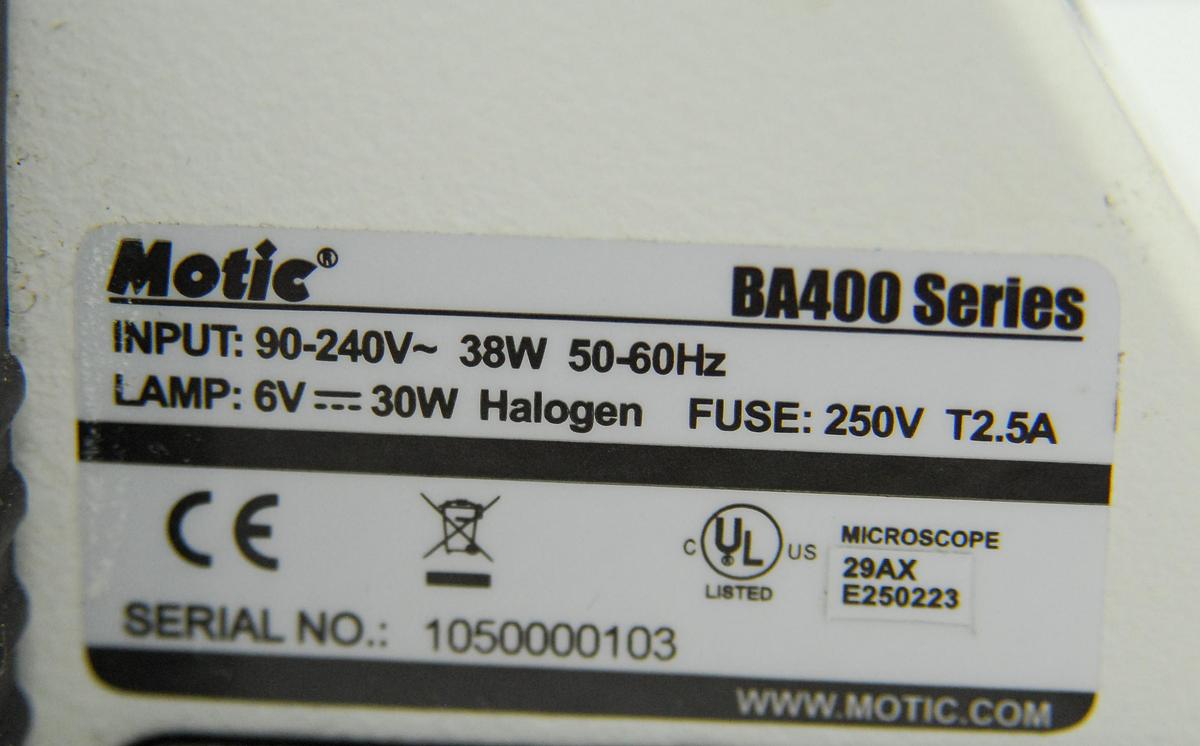

• Motic 30W 6V Lamp housing with Bulb
