Extron CrossPoint Ultra 88 Series Ultra-Wideband Matrix Switcher w/ADSP

Extron CrossPoint Ultra 88 Series Ultra-Wideband Matrix Switcher w/ADSP

[Condition]

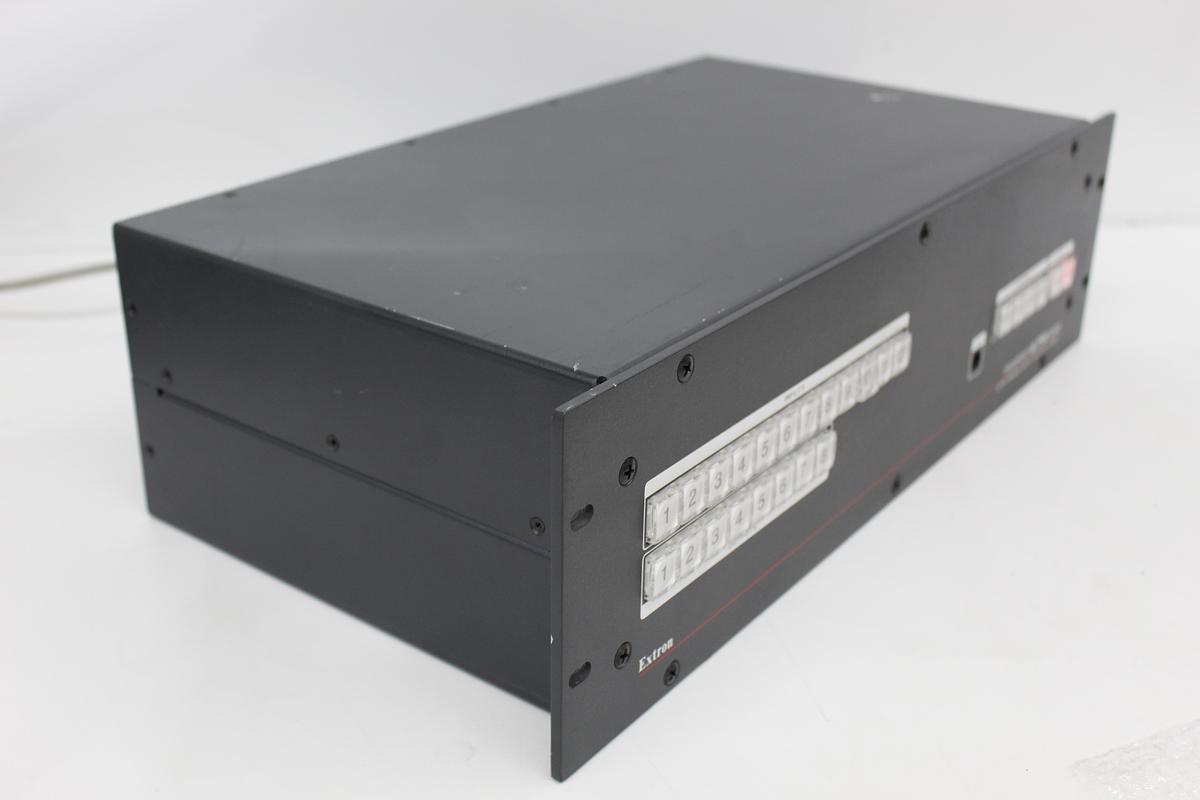

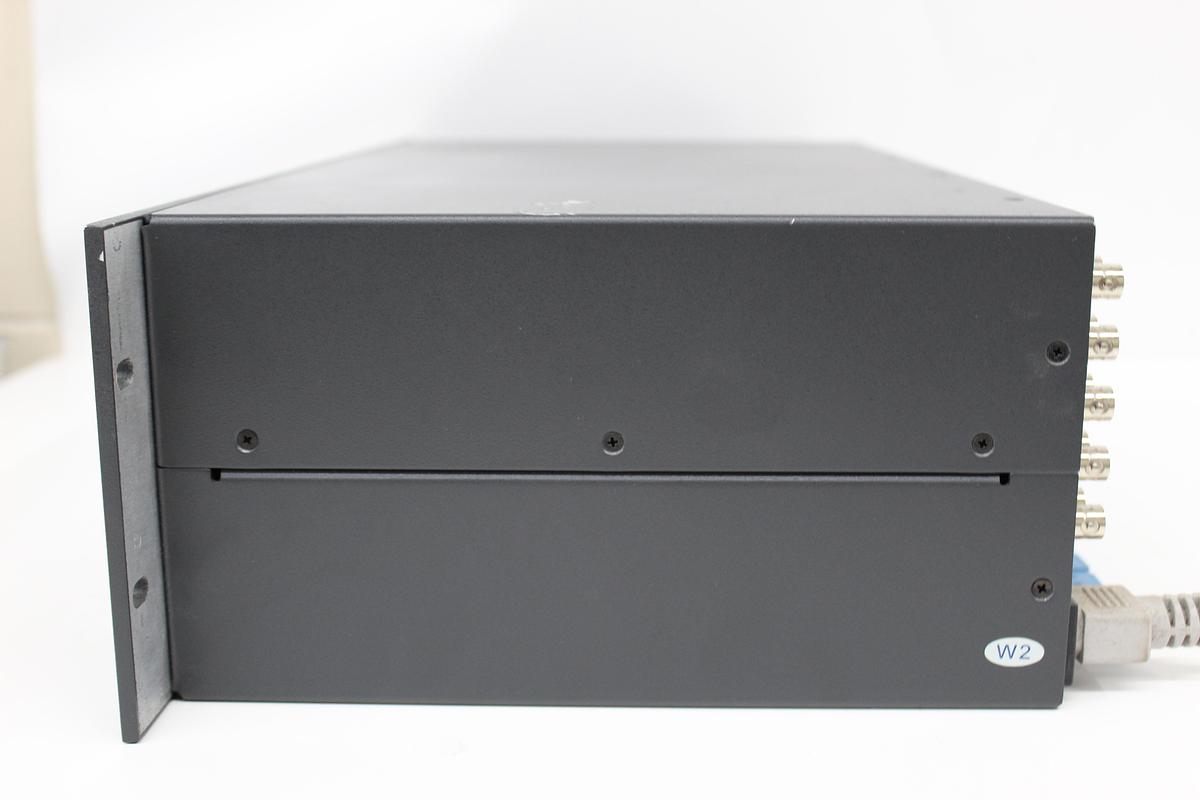

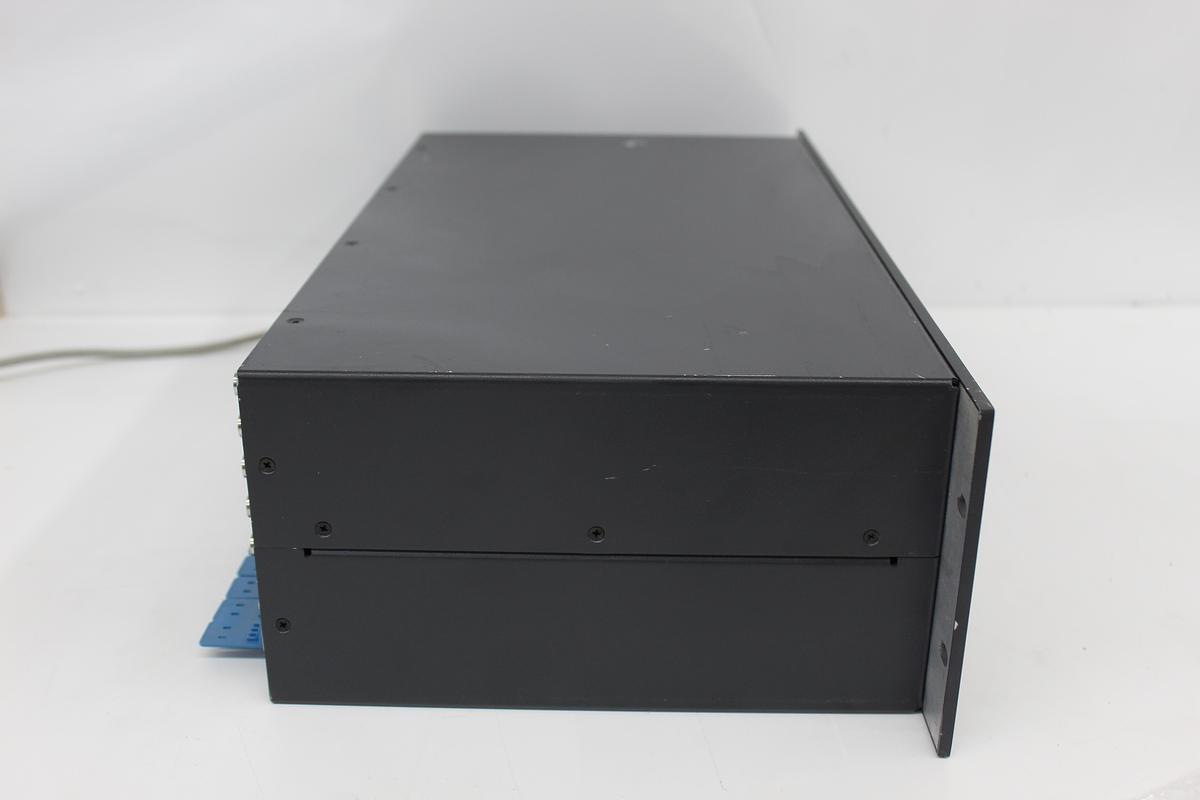

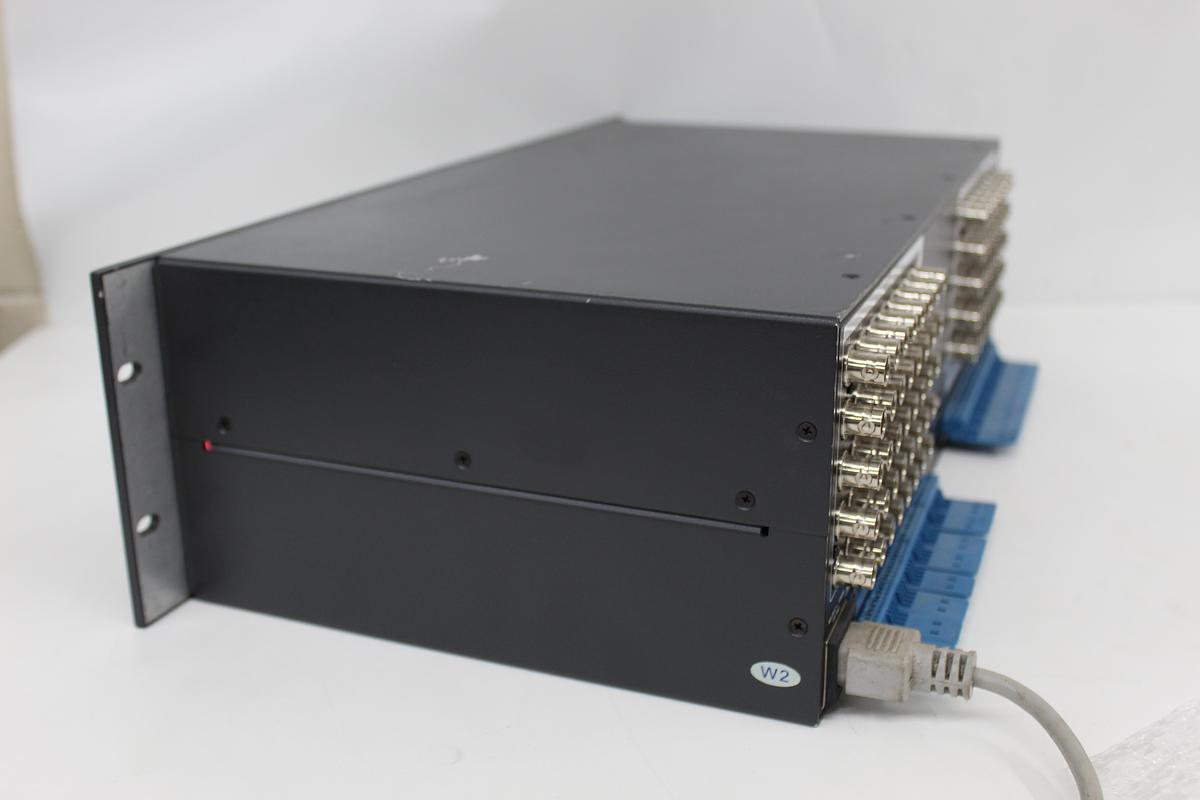

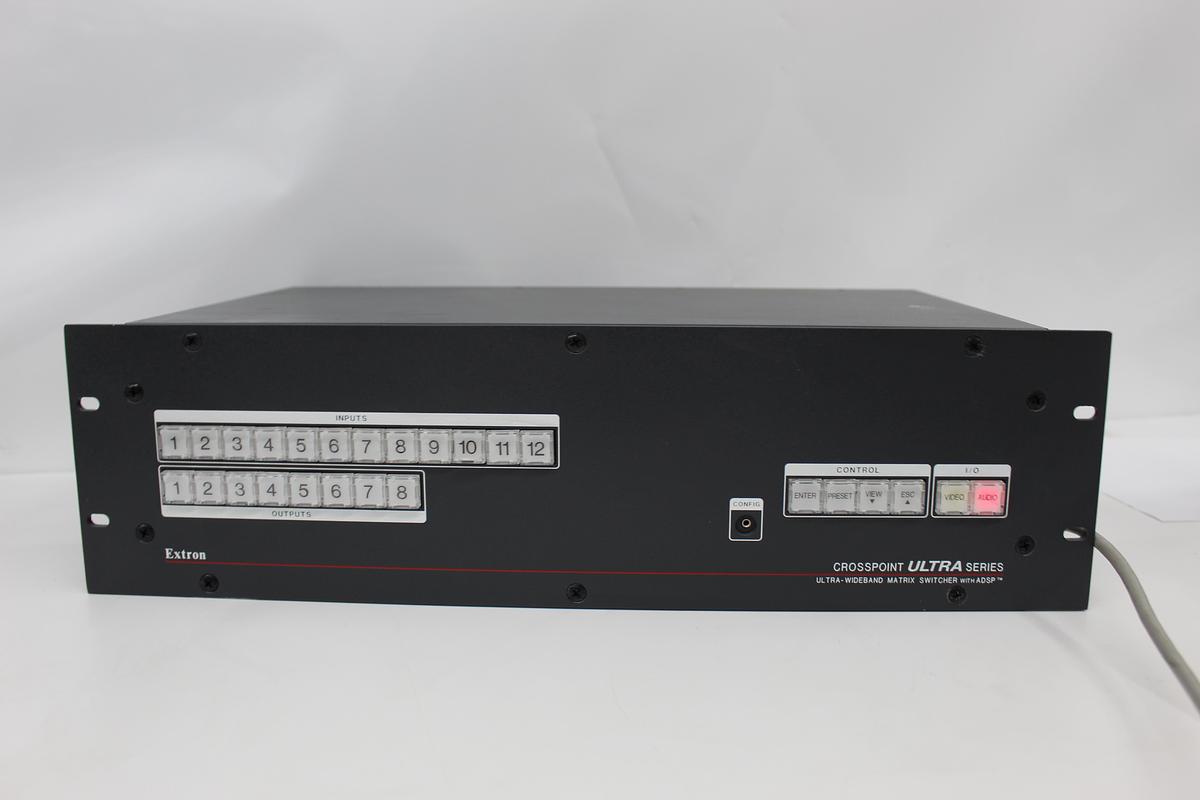

Unit is used, in good condition, fully tested working. Unit has some slight cosmetic scratches that do not affect functionaility. See photos, item comes as shown.

[Info on Unit]

> Extron

> CrossPoint

> Ultra 88 Series

> Ultra-Wideband Matrix Switcher

[Features]

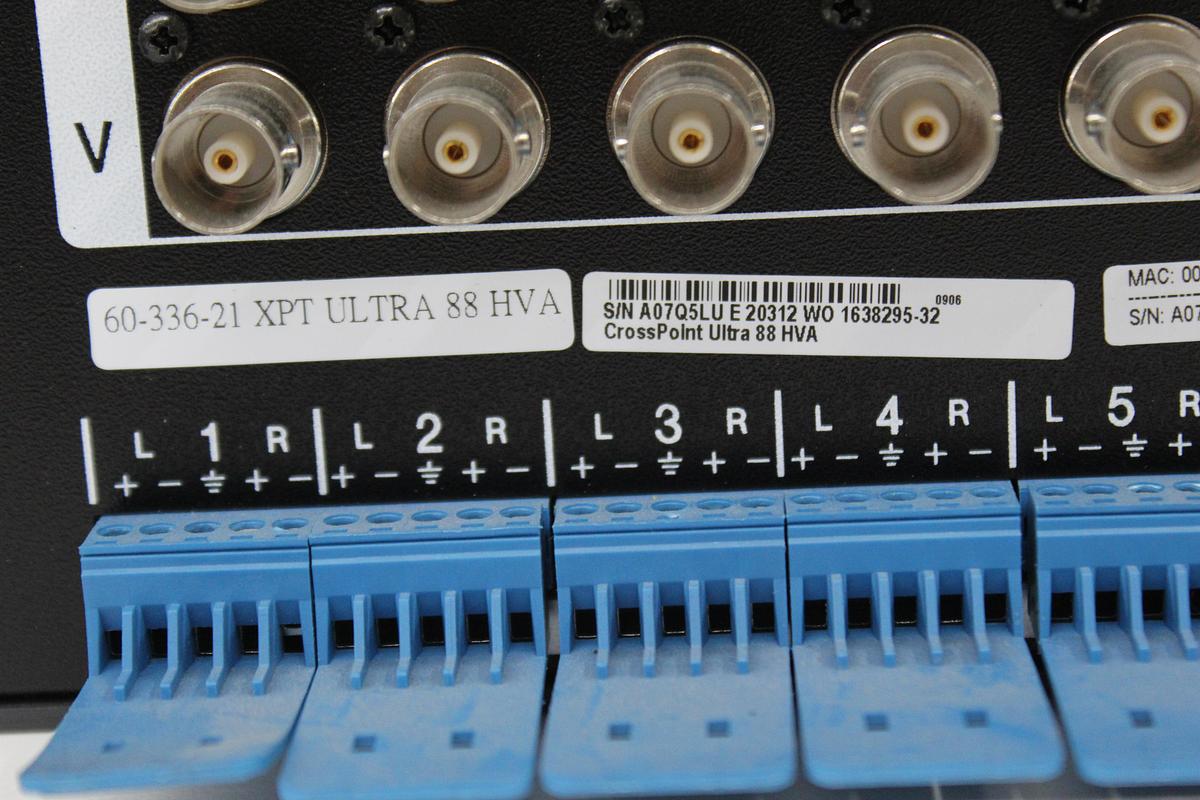

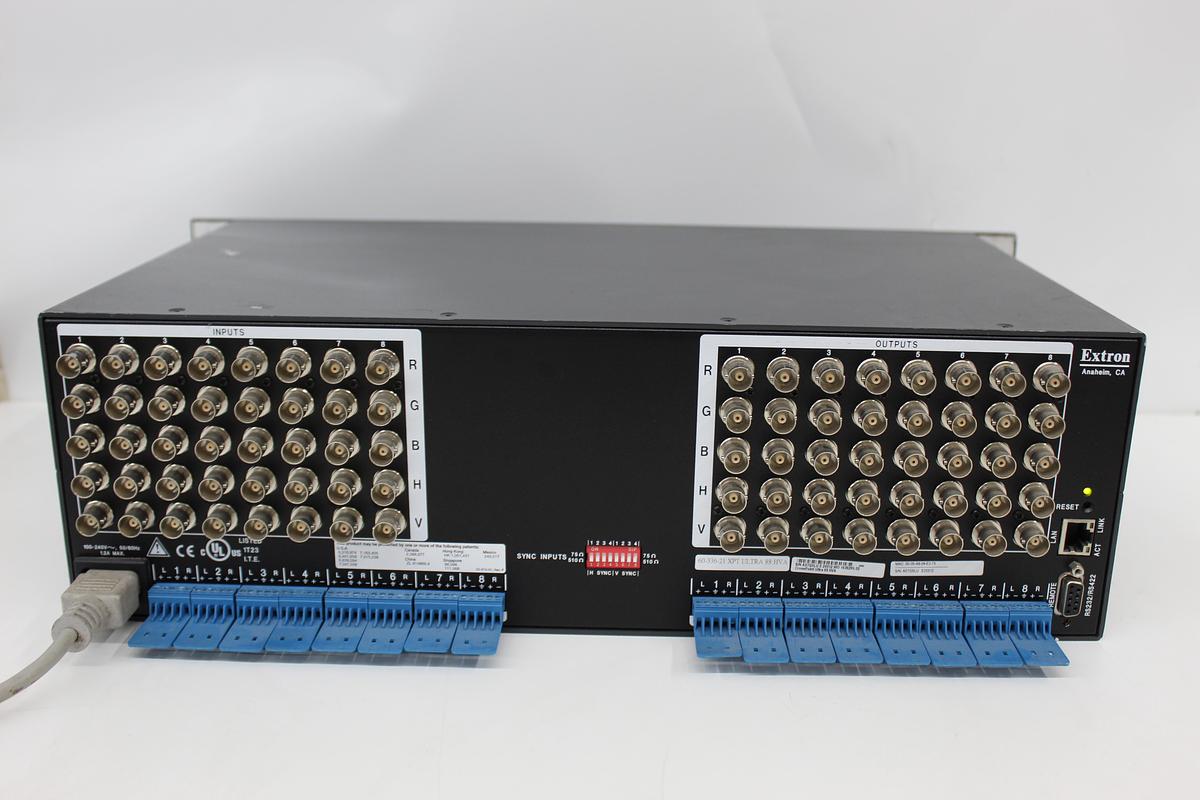

Inputs: Video on female BNC connectors; audio on captive screw connectors

Outputs: Video on female BNC connectors; audio on captive screw connectors

> Ultra-wideband performance - 525 MHz to 600 MHz (-3 dB), depending on model — CrossPoint Ultra models provide a minimum of 525 MHz (-3 dB) RGB video bandwidth, fully loaded, with many models providing 600 MHz (-3 dB) or more.

> Ultra-flat frequency response - ±0.5 dB from 0 to 130 MHz — CrossPoint Ultra provides an ultra-flat frequency response of ±0.5 dB or less, through the critical portion of the bandwidth curve, from 0 to 130 MHz. This means that the matrix switcher is virtually transparent to the AV signal path for the most demanding, high resolution system designs with multiple levels of signal processing.

> Ultra-low crosstalk – (-56) dB or better at 100 MHz — CrossPoint Ultra is engineered to achieve superb channel-to-channel isolation of -56 dB or better at 100 MHz.

> Ultra-low power consumption – Less than 40 watts at full load — Draws less than 40 watts under full load for increased product life with very low cost of operation.

> RGBHV switching — Switches separate horizontal and vertical sync to ensure proper sync polarity, providing a more stable image.

> ADSP™ - Advanced Digital Sync Processing technology — An exclusive, all-digital process that regenerates the sync signal waveform and restores sync level to 5.0 V p-p, TTL, specifications. This ensures a stable sync signal for improved signal compatibility with any LCD, DLP, plasma, or other digital display device.

> DSVP™ - Digital Sync Validation Processing — Verifies active sources by polling all inputs for valid sync signals. DSVP then transmits the horizontal and vertical sync information to the user through the serial or Ethernet ports.

> Compatible with RGBHV, RGBS, RGsB, HDTV, component video, S-video, composite video, and unbalanced/balanced stereo audio — Separate horizontal and vertical sync ensures proper sync polarity, providing a more stable image.

> Buffered I/O — Each input and output is individually buffered to provide maximum performance and virtually no crosstalk or signal interference between channels.

> Triple-Action Switching™ for RGB delay — Blanks the screen when switching to a new source. The new sync signals precede the RGB signals, so there is no glitch shown during the transition. The time delay between the RGB and sync signals is adjustable up to five seconds through front panel, Ethernet, or serial control.

> HVA models switch both balanced and unbalanced stereo audio

> Audio input gain and attenuation — Allows users to set the level of gain or attenuation for each audio input channel, eliminating noticeable volume differences when switching between sources.

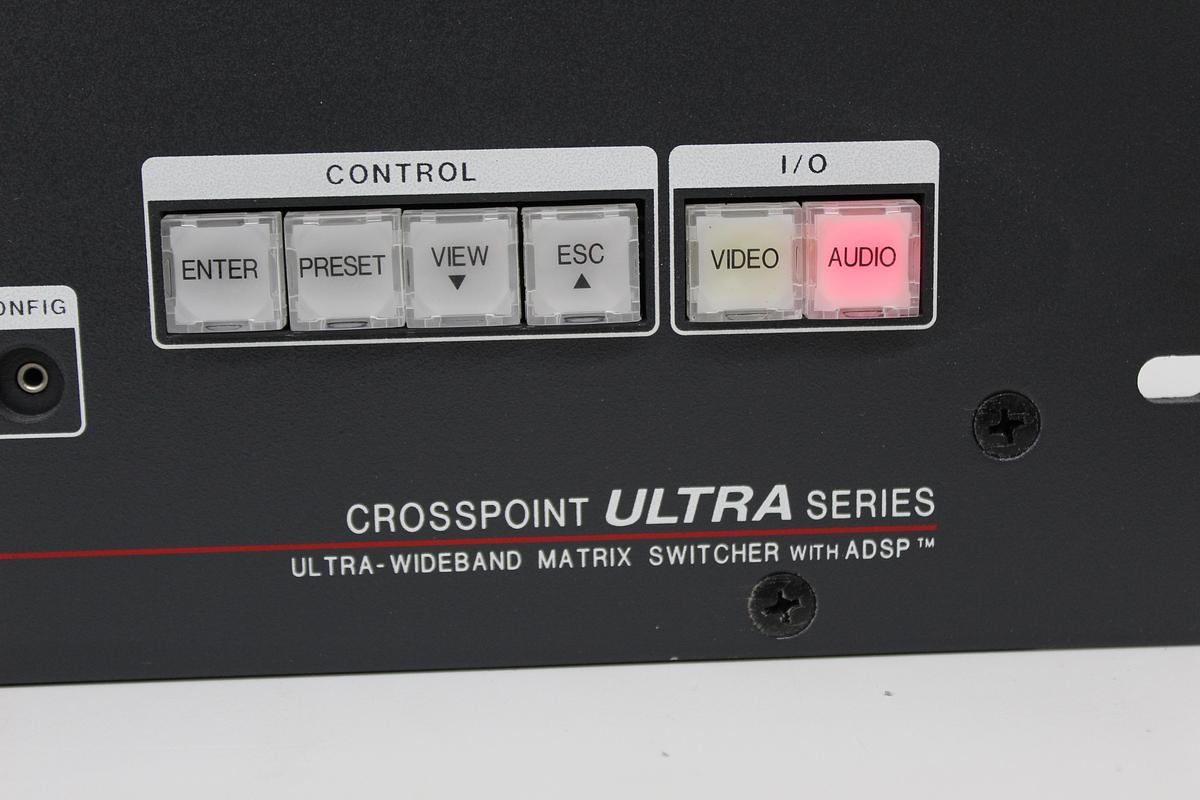

> Audio output volume adjustment and muting — Can be set dynamically for each channel through the front panel or serial control, eliminating the need for an audio preamplifier in many system designs.

> Audio breakaway — Provides the capability to break an audio signal away from its corresponding video signal, allowing the audio and video signals from one source to be switched to different destinations.

[Description]

The Extron CrossPoint Ultra 88 is an 8x8 ultra-wideband matrix switcher built to route high-resolution RGBHV and stereo audio signals. Part of a retired professional AV lineup, it is popular today in retro gaming and enthusiast setups for switching complex analog signals cleanly.

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
