VAT 10844-UE01-0004 DN160 6" CF UHV Ultra High Vacuum Manual Gate Valve

VAT 10844-UE01-0004 DN160 6" CF UHV Ultra High Vacuum Manual Gate Valve

[Condition]

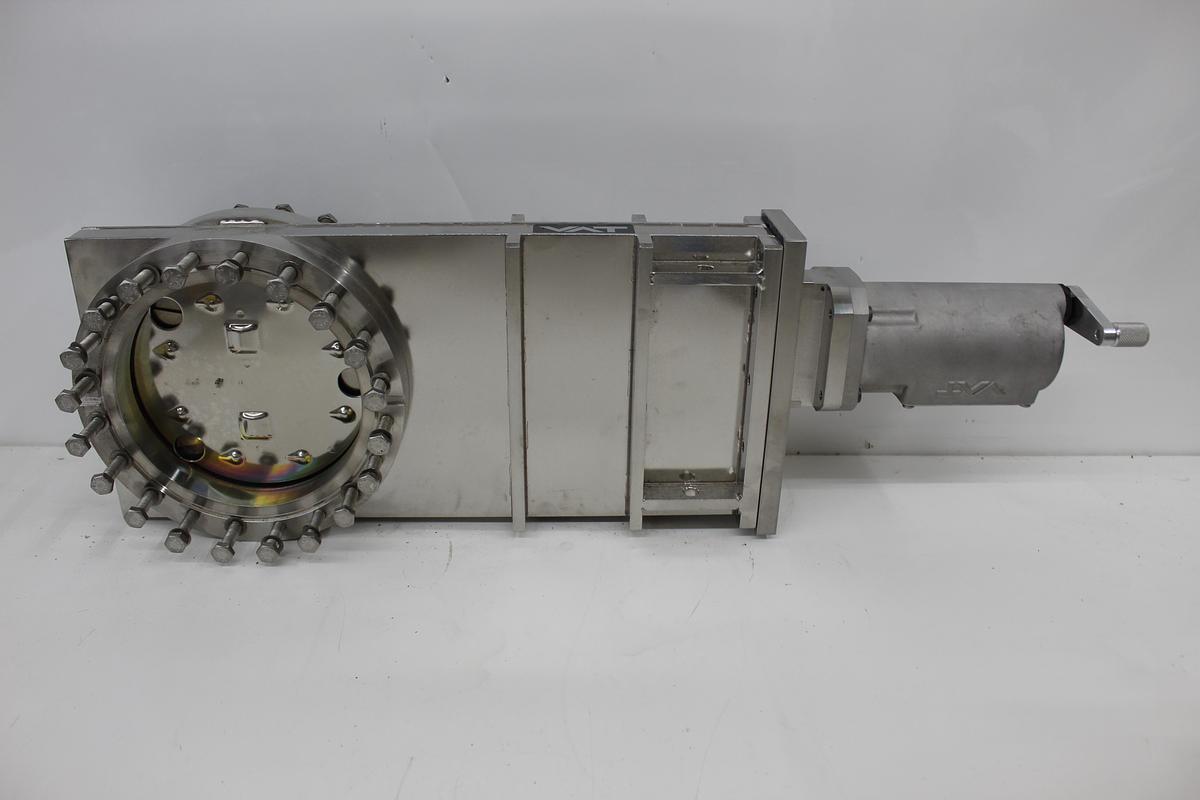

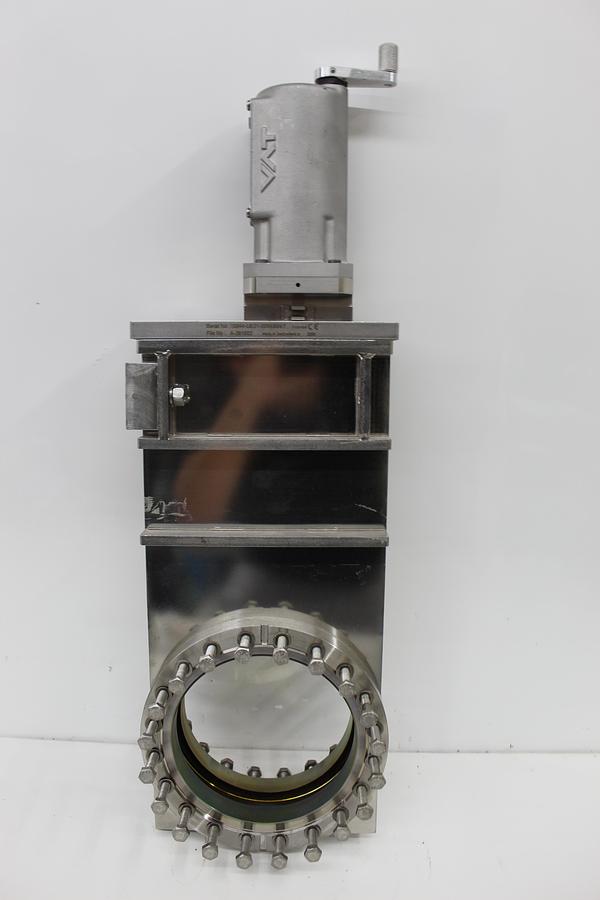

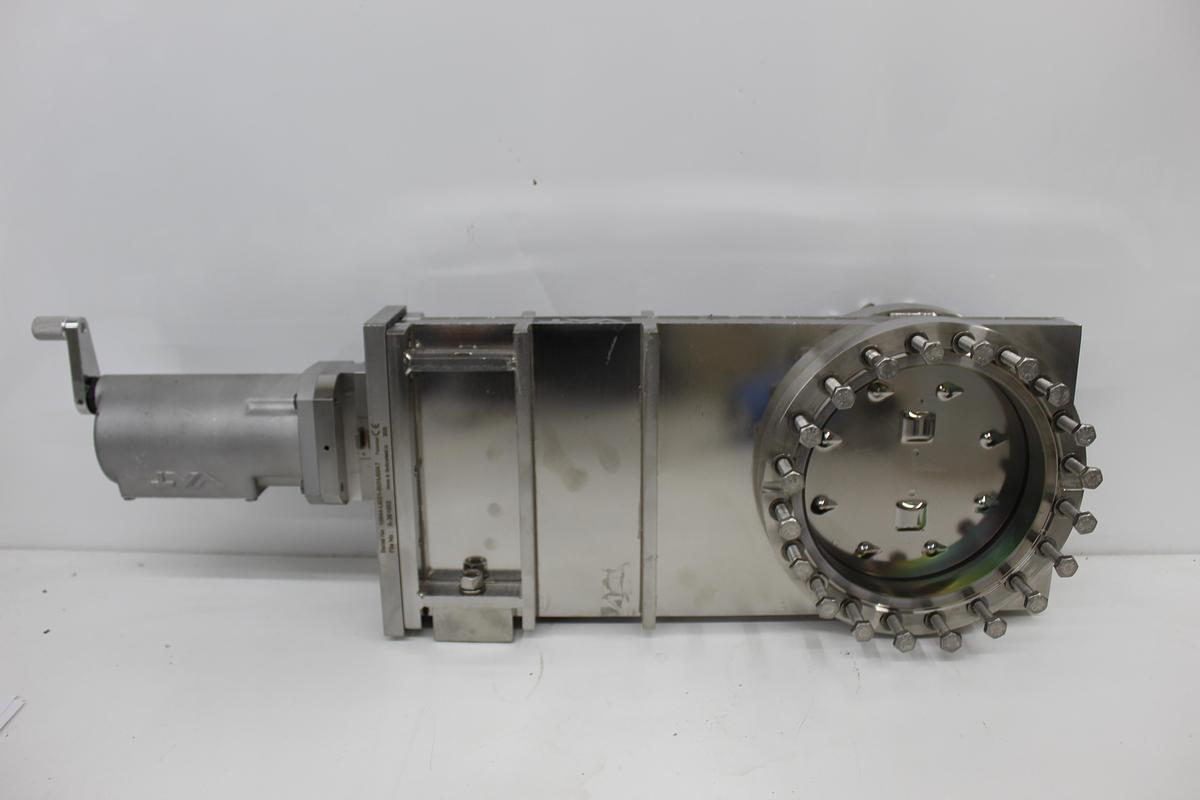

Unit is used, in great condition, pulled from a working decomissioned system. See photos, item comes as shown.

[Info on Unit]

Manufacturer: VAT Vakuumventile AG

Model / Part Number: 10844-UE01-0004

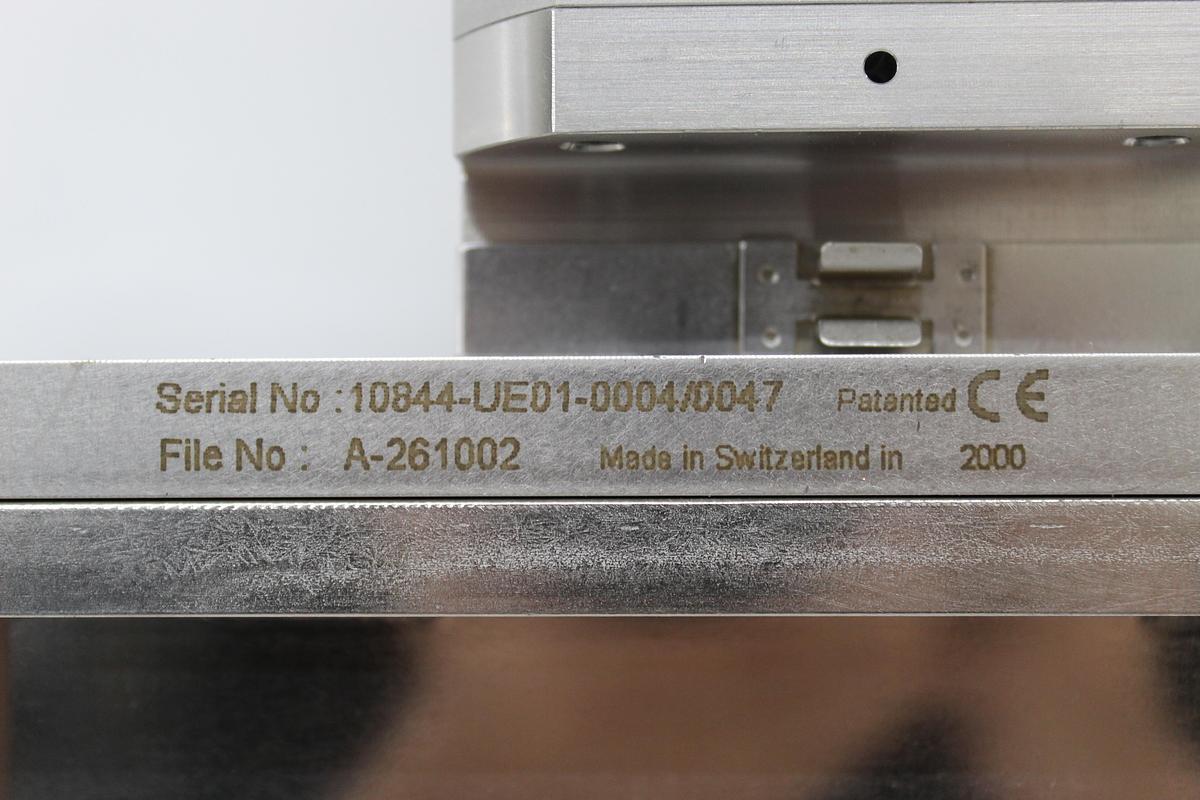

Serial Number: 10844-UE01-0004/0047

Type: Ultra-High Vacuum (UHV) Gate Valve

Nominal Diameter: DN160 / 6 in.

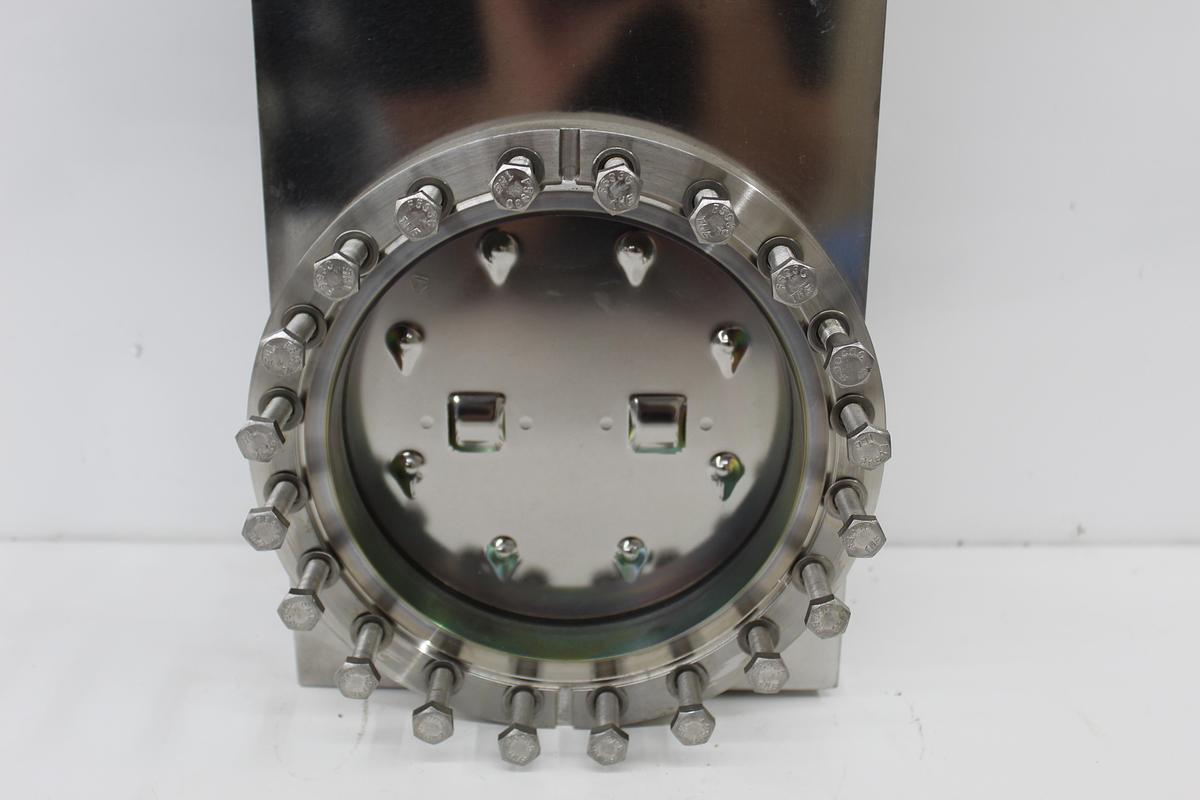

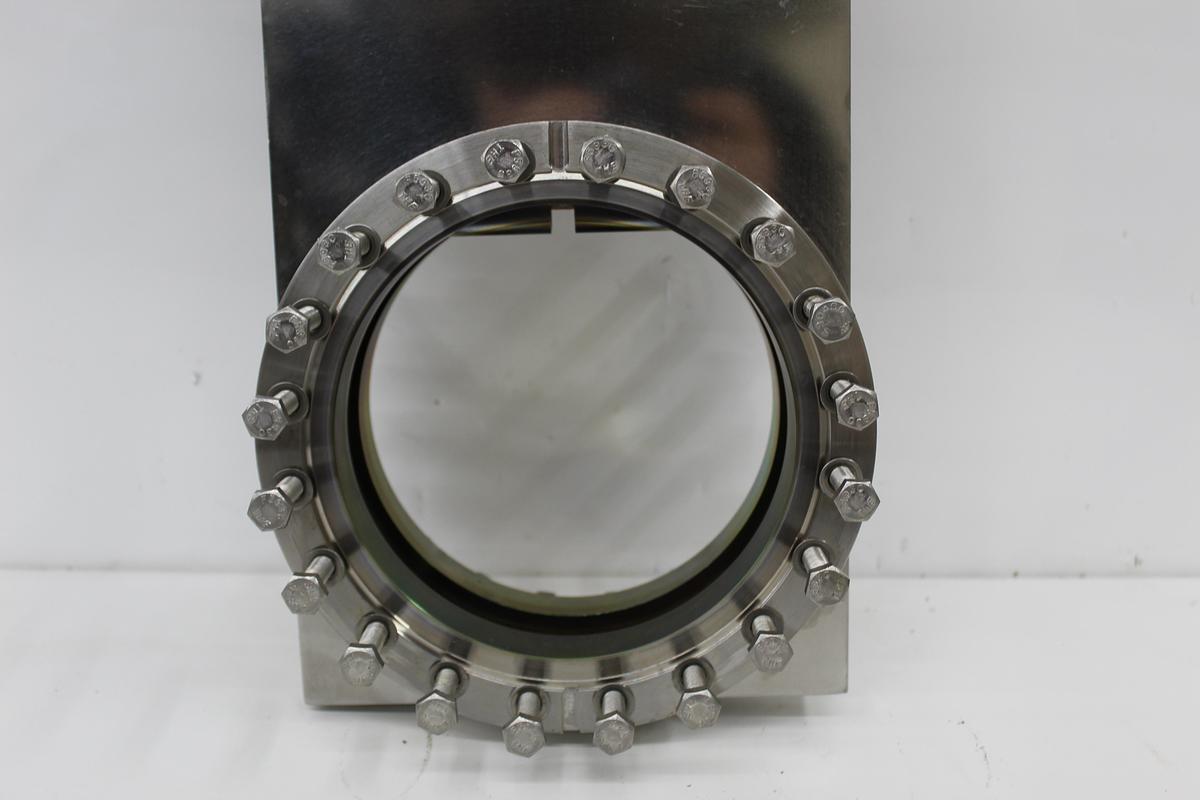

Flange Type: CF-F / CF800 ConFlat

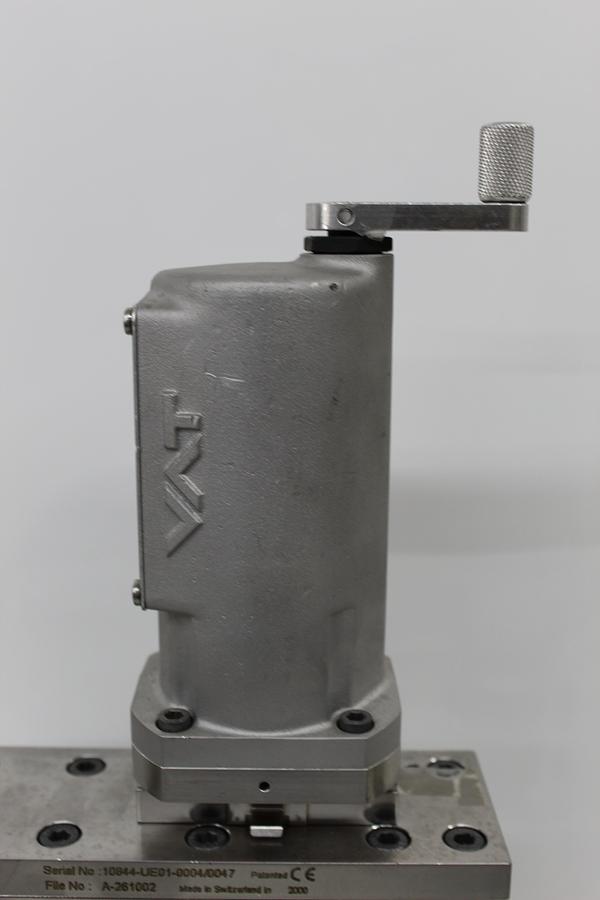

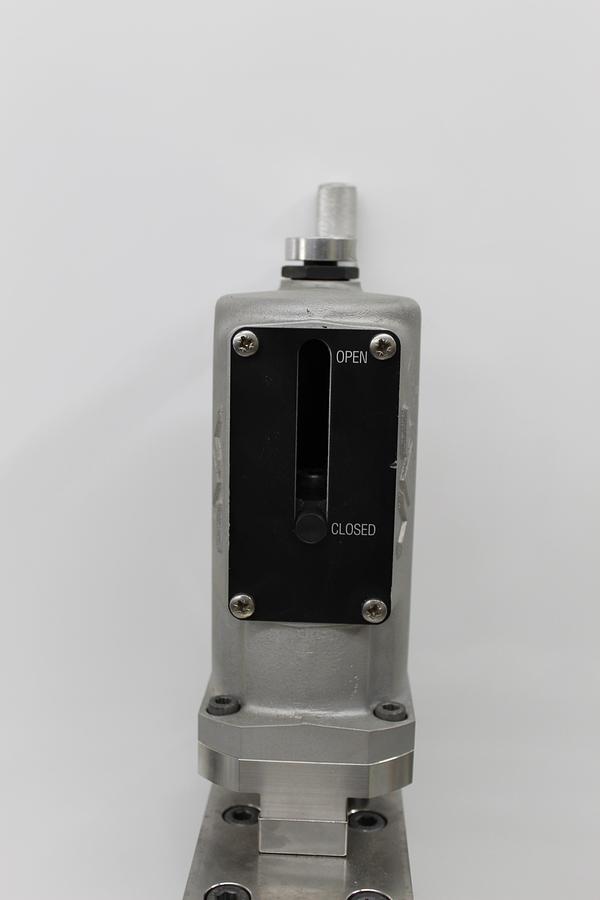

Actuation: Manual, bellows-sealed mechanism

Body Material: Stainless Steel

Pressure Range: 1 × 10⁻¹⁰ mbar to 1.6 bar absolute

Molecular Conductance: Approx. 5,880 L/s

Maximum Bakeout Temperature: Up to 250°C with valve open

[Description]

The VAT 10844-UE01-0004 is a DN160 ultra-high-vacuum gate valve designed for isolating sections of high-vacuum and UHV systems used in semiconductor processing, vacuum deposition, research, accelerator, and other vacuum applications. It features a stainless-steel body, approximately 160 mm (6-inch) nominal opening, CF-style vacuum connections, and a manually operated bellows-sealed gate mechanism. The Series 108 design is specified for pressures down to approximately 1 × 10⁻¹⁰ mbar and provides approximately 5,880 L/s molecular-flow conductance. The valve is designed for high-temperature vacuum-system bakeout, with the body capable of temperatures up to 250°C in the open position.

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
