Diavac DPF-4ZS High Vacuum Diffusion Pump w/ Valves [Hitachi SEM S-2460N]

Diavac DPF-4ZS High Vacuum Diffusion Pump w/ Valves [Hitachi SEM S-2460N]

[Condition]

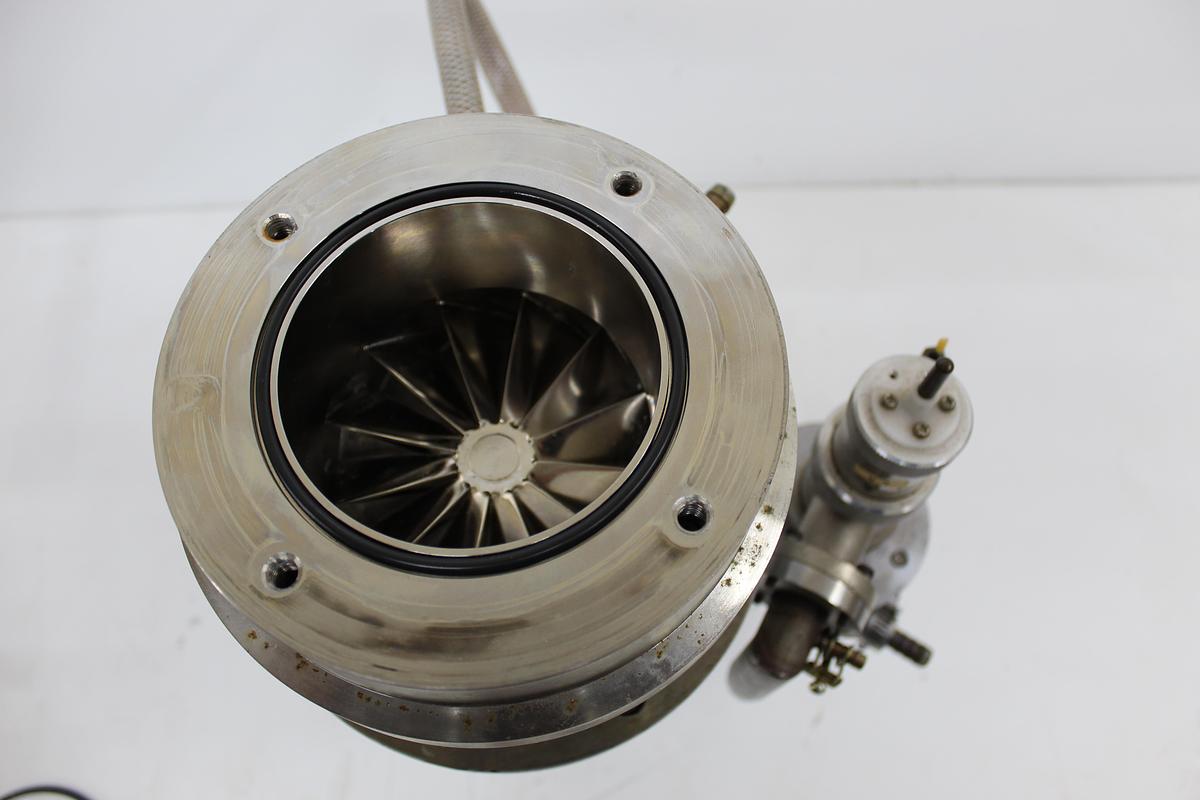

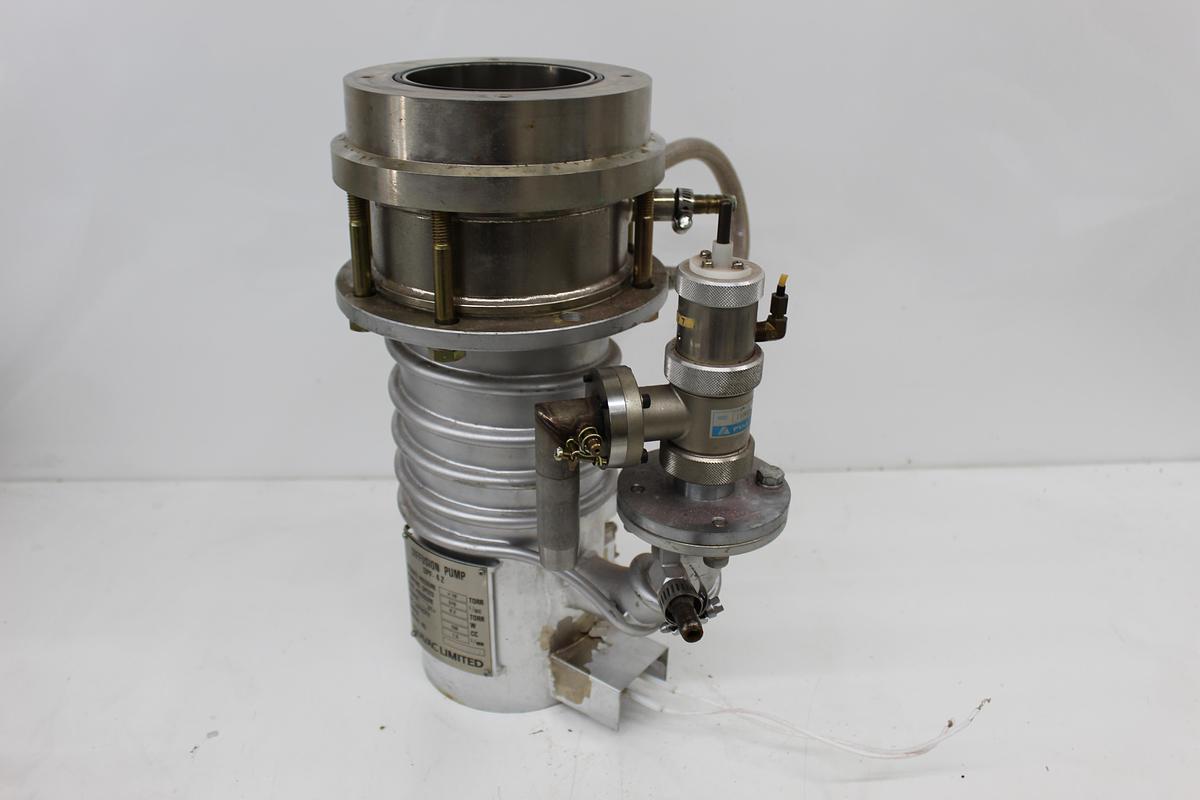

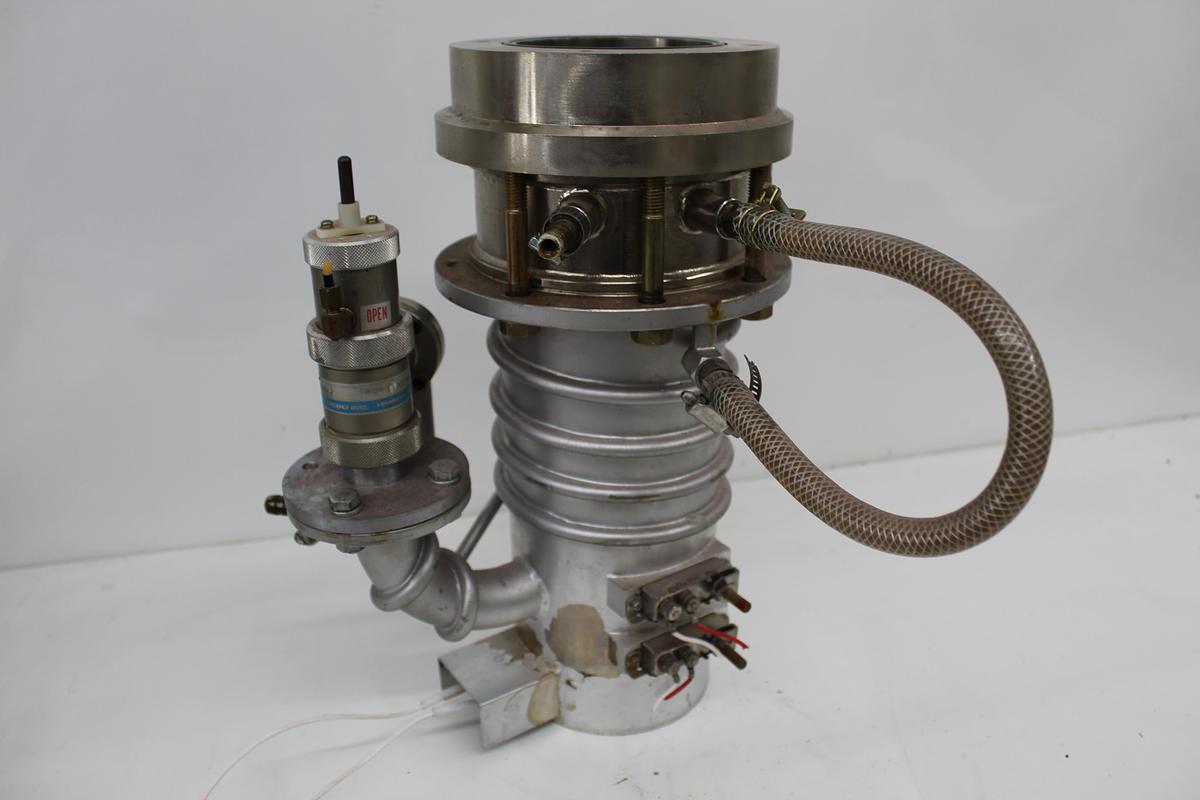

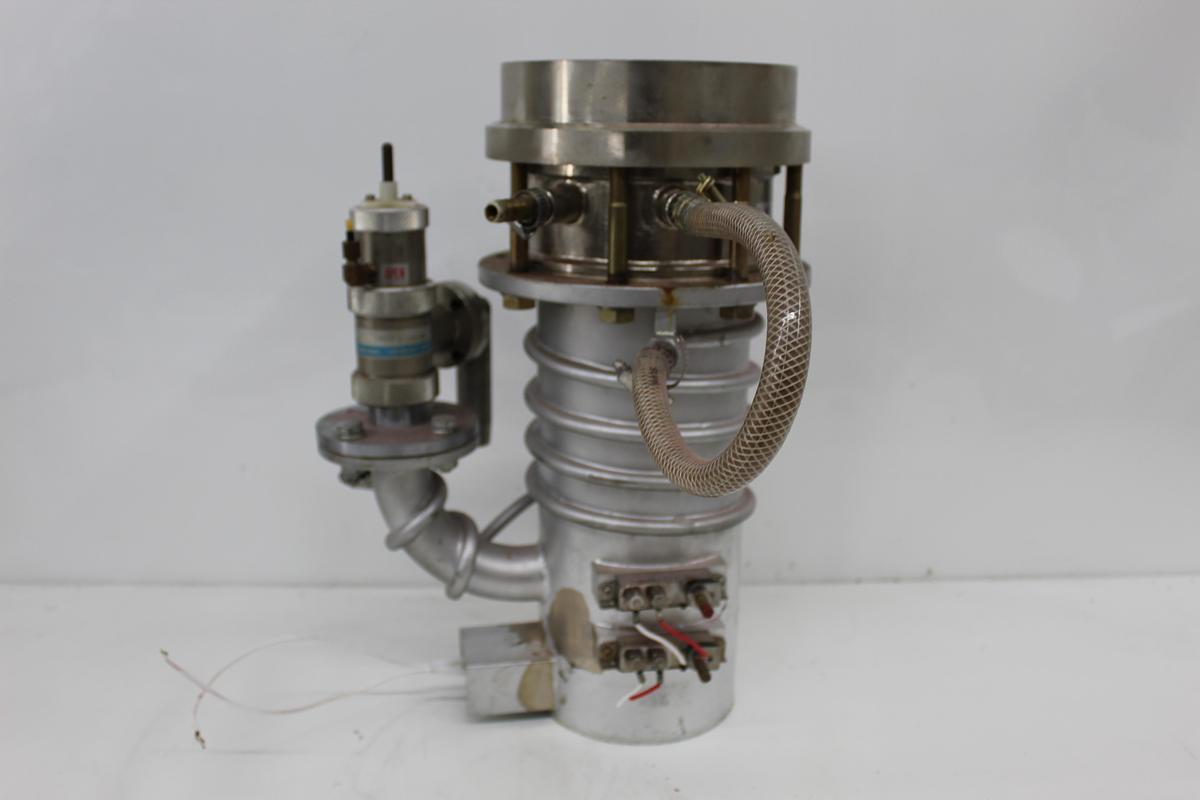

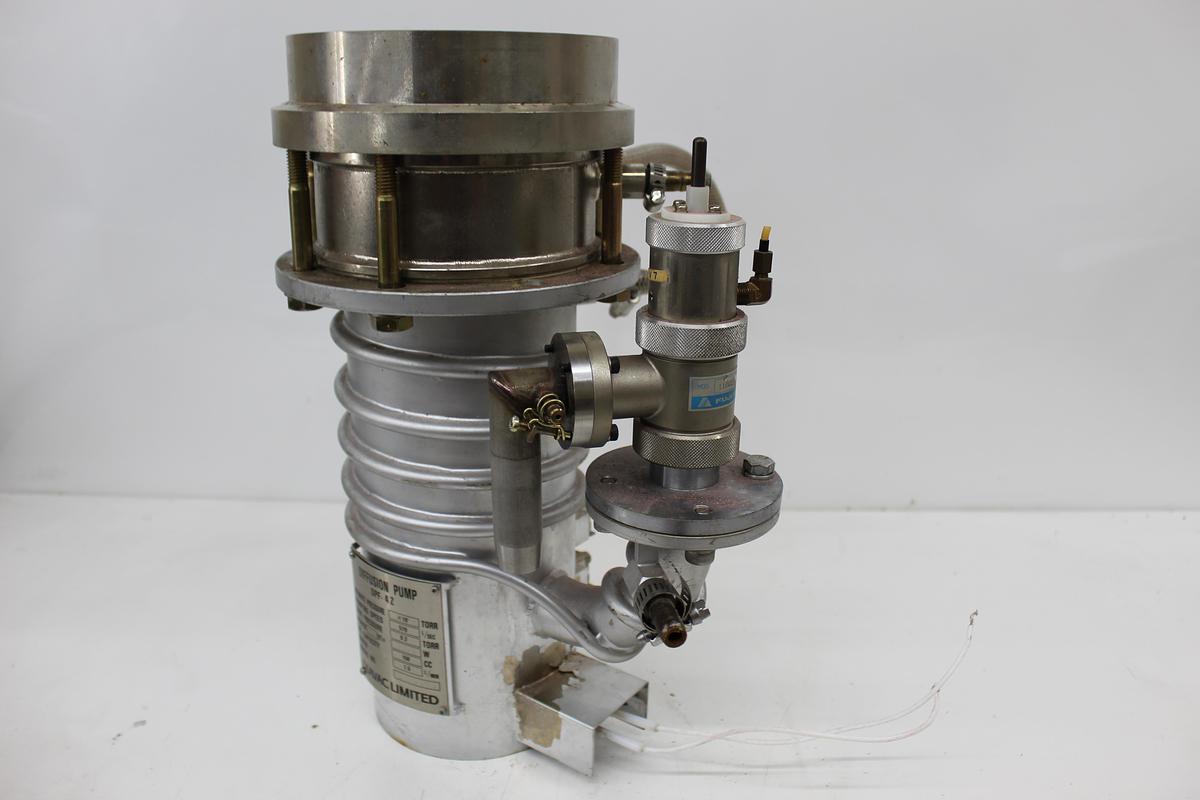

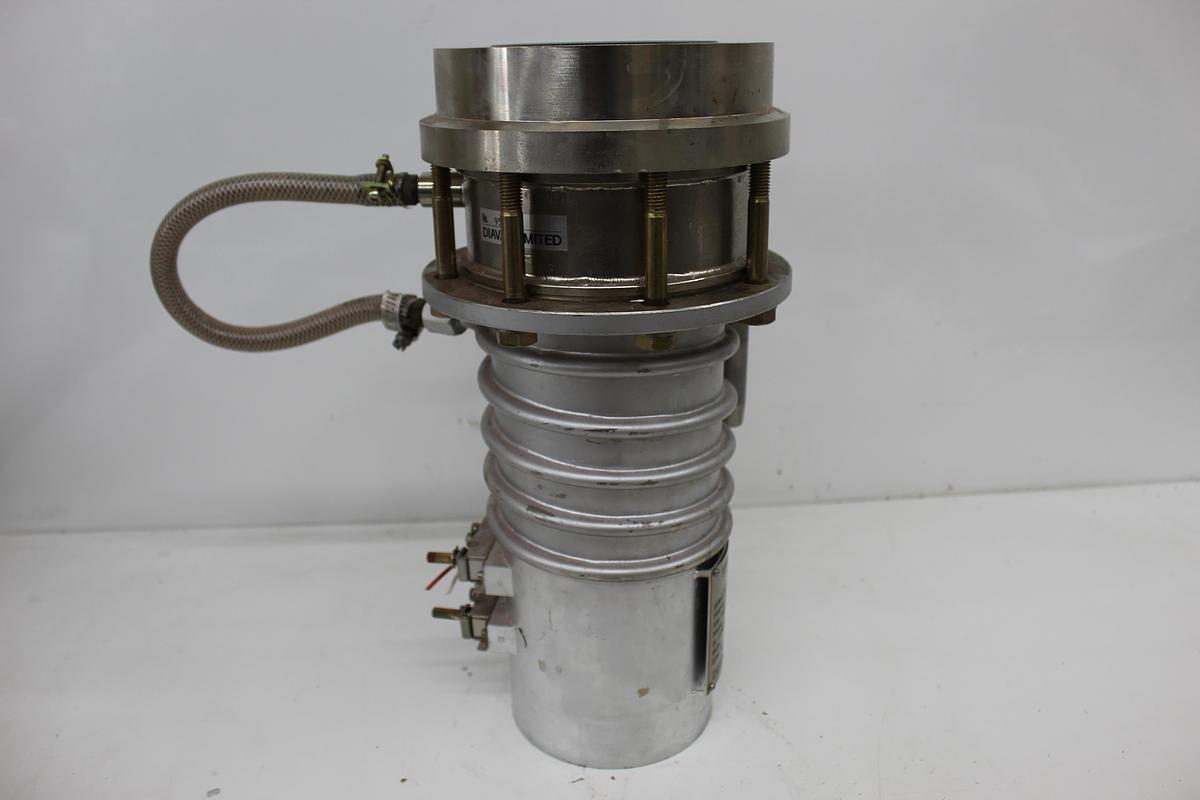

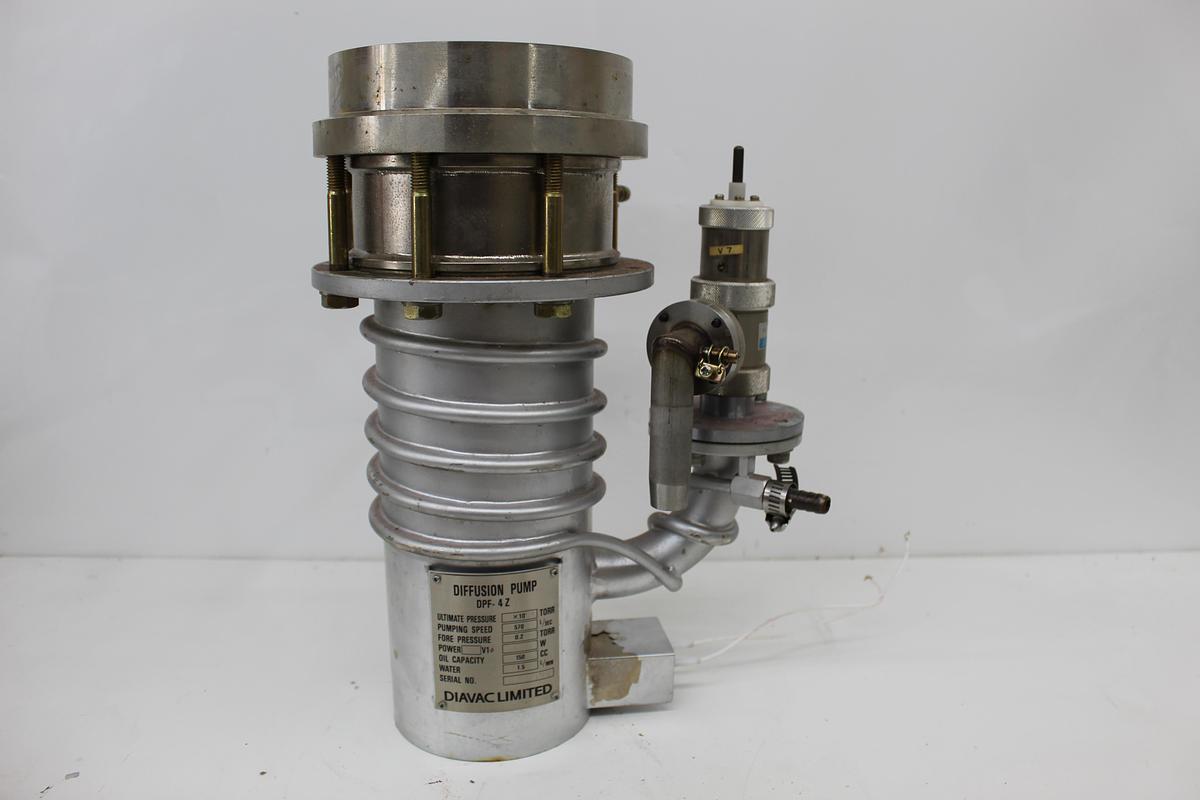

Unit is used, in great condition, pulled from a working Hitachi SEM S-2460N Electron Microscope. See photos, item comes as shown.

[Info on Unit]

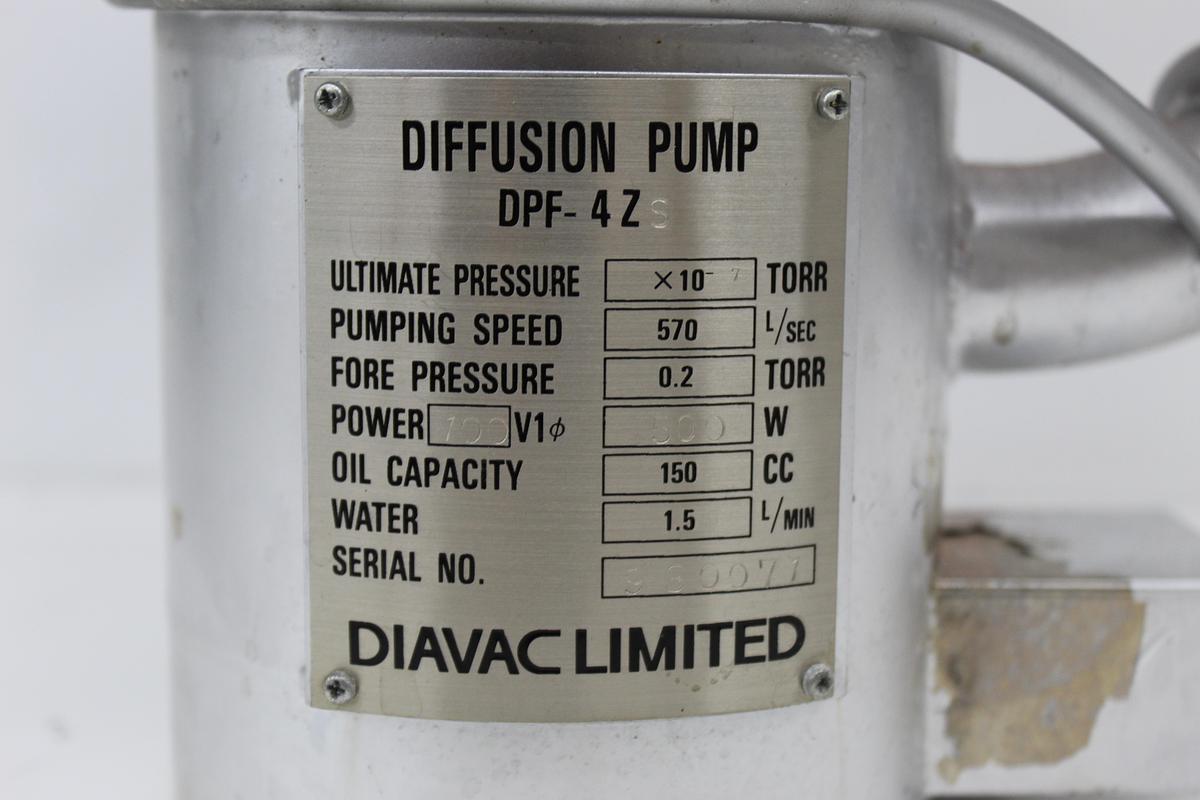

Manufacturer: Diavac Limited / Daia Vacuum

Model: DPF-4ZS

Type: Oil Diffusion Vacuum Pump

Cooling Method: Water-cooled

Pumping Speed: 380 L/s without baffle; 215 L/s with baffle

Oil Capacity: 150 mL

Operating Voltage: 100 VAC, single-phase

Heater Power: 700–900 W, depending on operating oil

Startup Time: Approximately 20 minutes

Cooling Water Requirement: Approximately 1.5 L/min at 20°C

Application: High-vacuum generation for electron microscopy and industrial vacuum systems

Associated Equipment: Hitachi S-2460N Scanning Electron Microscope

[Description]

The Diavac DPF-4ZS is a water-cooled oil diffusion vacuum pump designed for producing high-vacuum conditions in scientific, industrial, and electron microscopy equipment. This pump assembly is associated with the Hitachi S-2460N Scanning Electron Microscope and includes vacuum valves used to control and isolate sections of the vacuum system. The diffusion pump operates by heating specialized vacuum oil to produce high-velocity vapor jets that capture and direct gas molecules toward the backing pump, allowing the system to achieve pressures substantially below those attainable with mechanical roughing pumps alone. The DPF-4 series provides a nominal pumping speed of approximately 380 liters per second without a baffle and 215 liters per second with a baffle. Its water-cooled construction supports continuous high-vacuum operation in laboratory instrumentation, semiconductor processing, vacuum chambers, and related research applications.

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
