AA Opto-Electronic MOD.6C.10.10.RS232 Driver AA.AOTF.nC-TN 620 Modulator

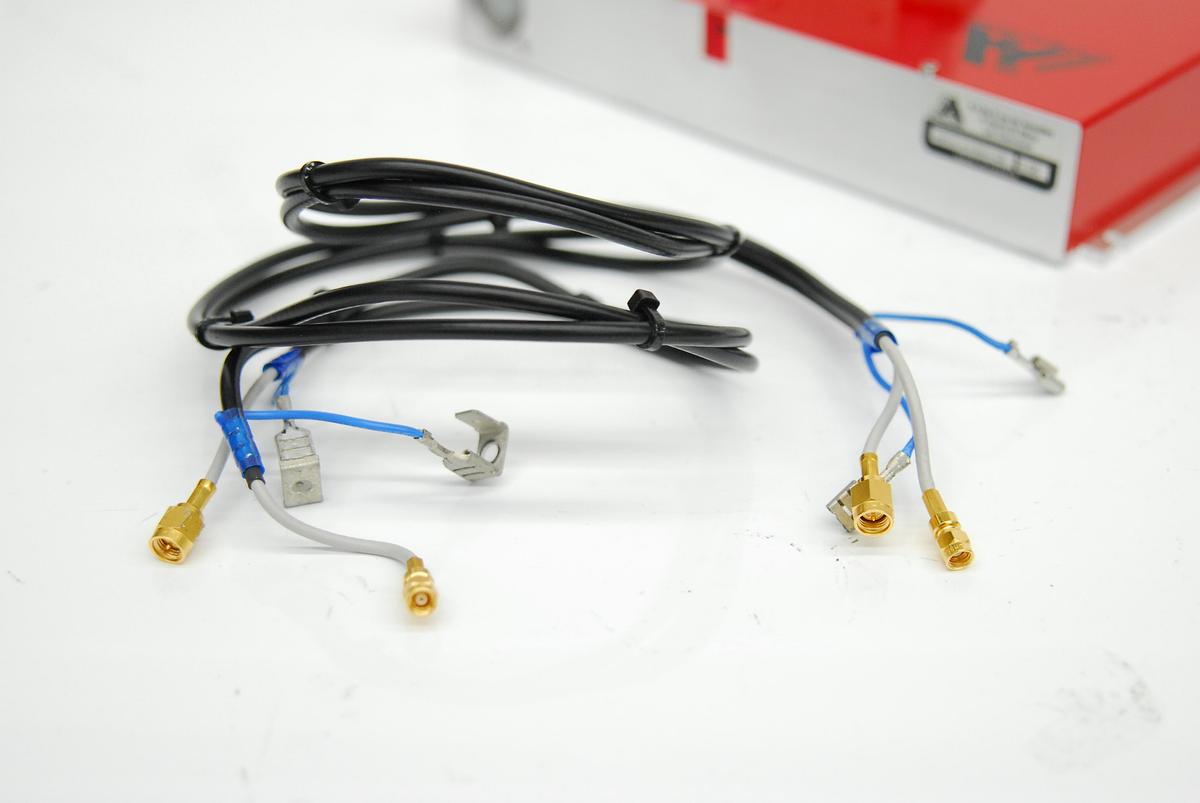

AA Opto-Electronic MOD.6C.10.10.RS232 Driver and AA.AOTF.nC-TN 620 Modulator. Unit is used in good condition. See pictures, comes as shown. Removed working from a decommissioned Zeiss LMS 510 confocal microscope laser table. Comes with shown cables.

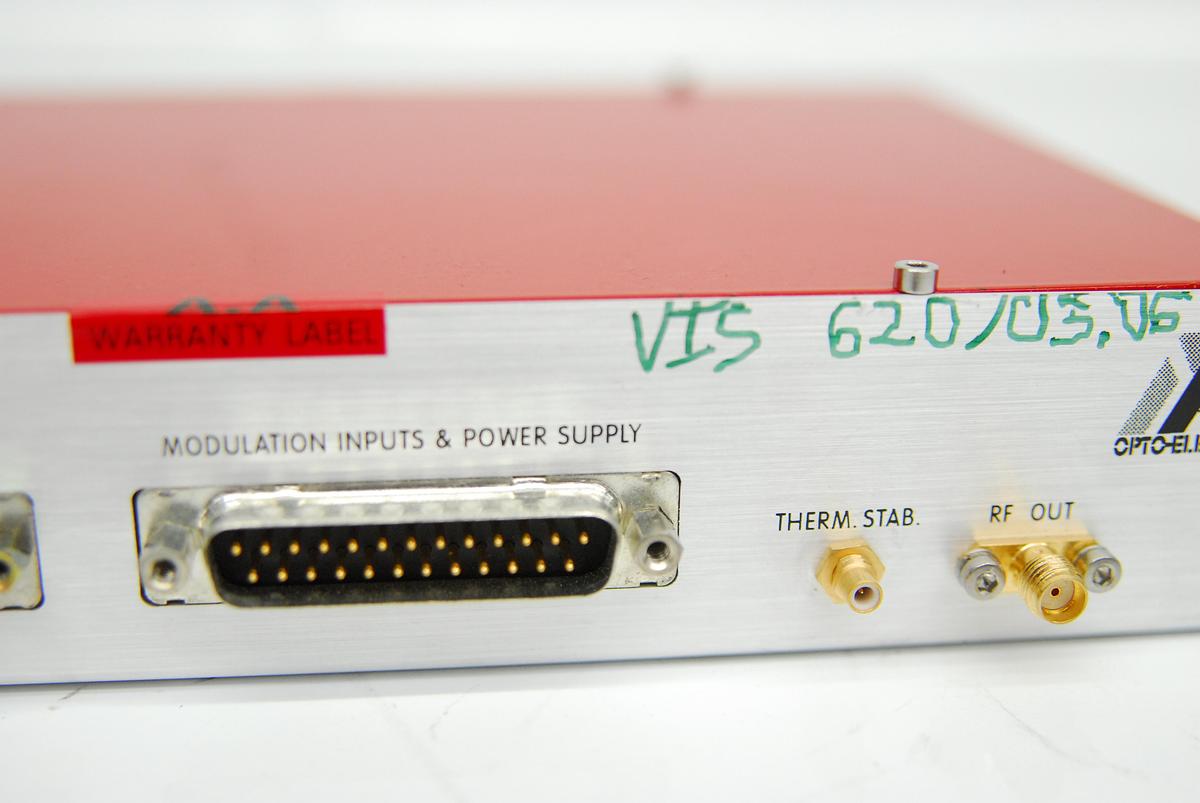

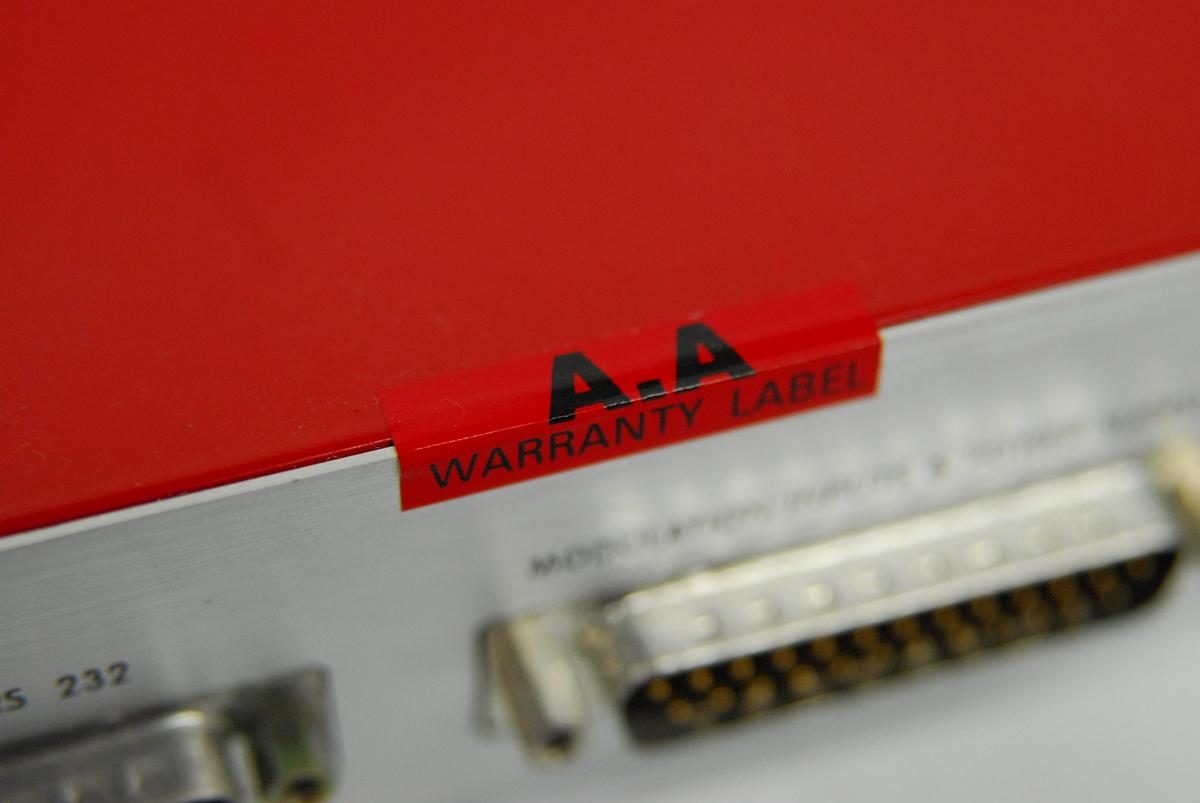

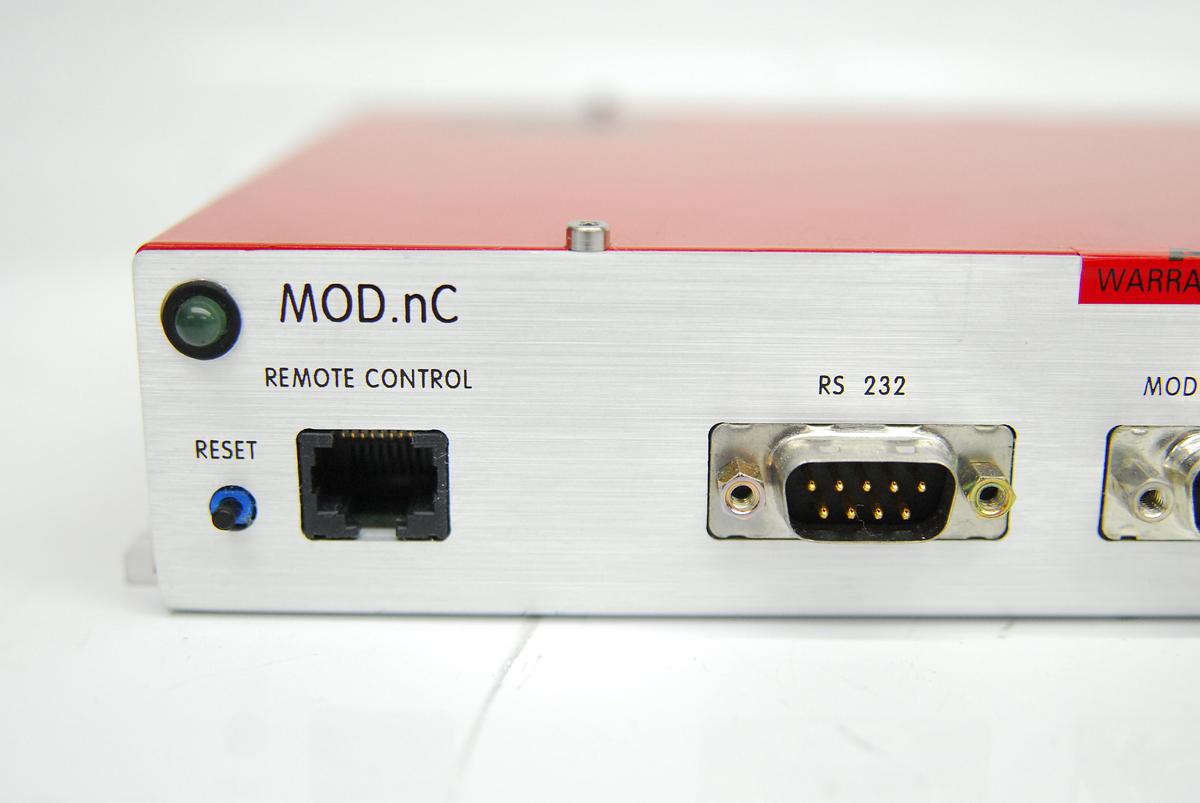

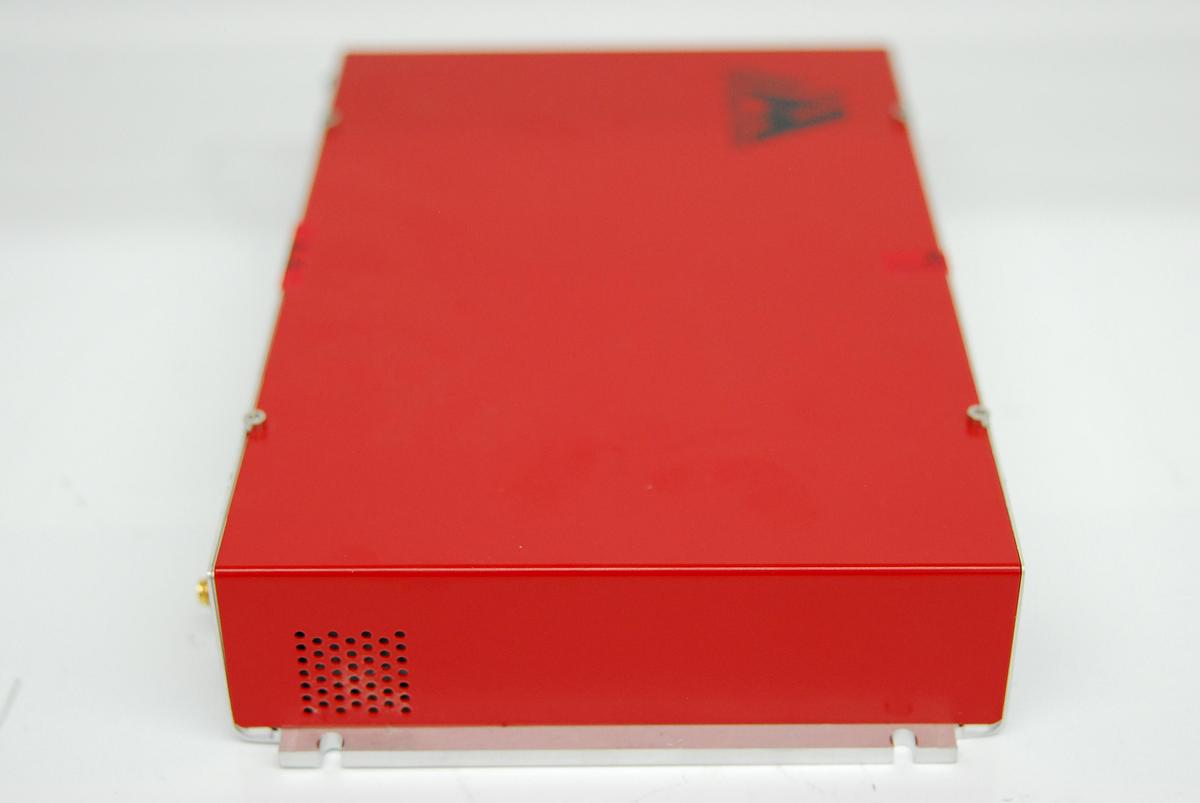

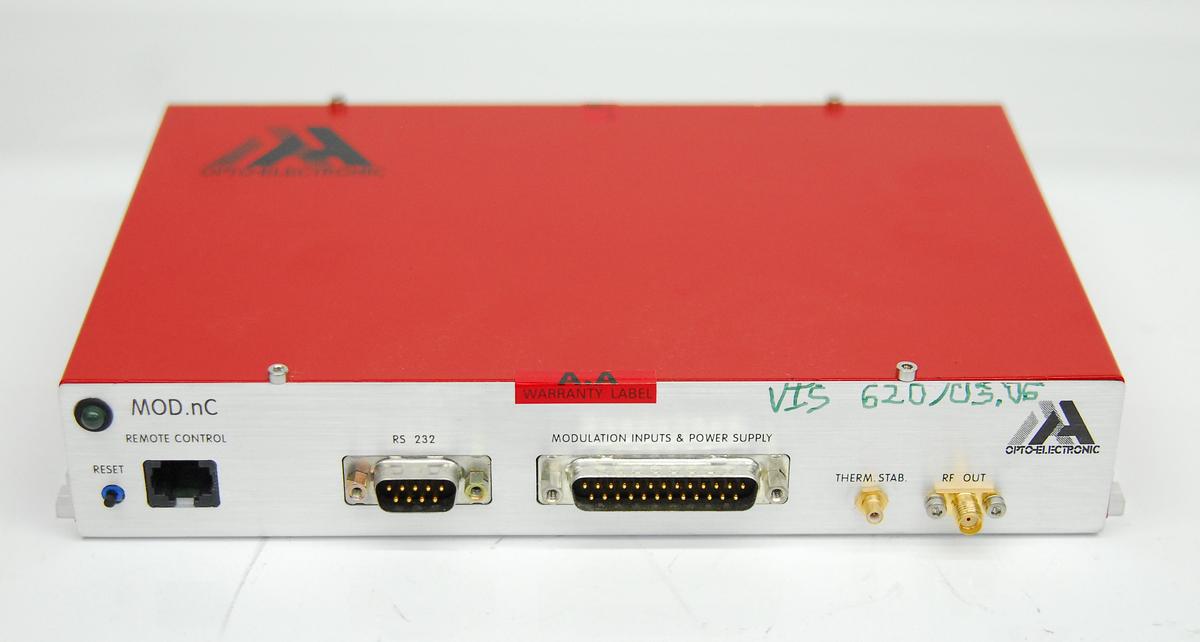

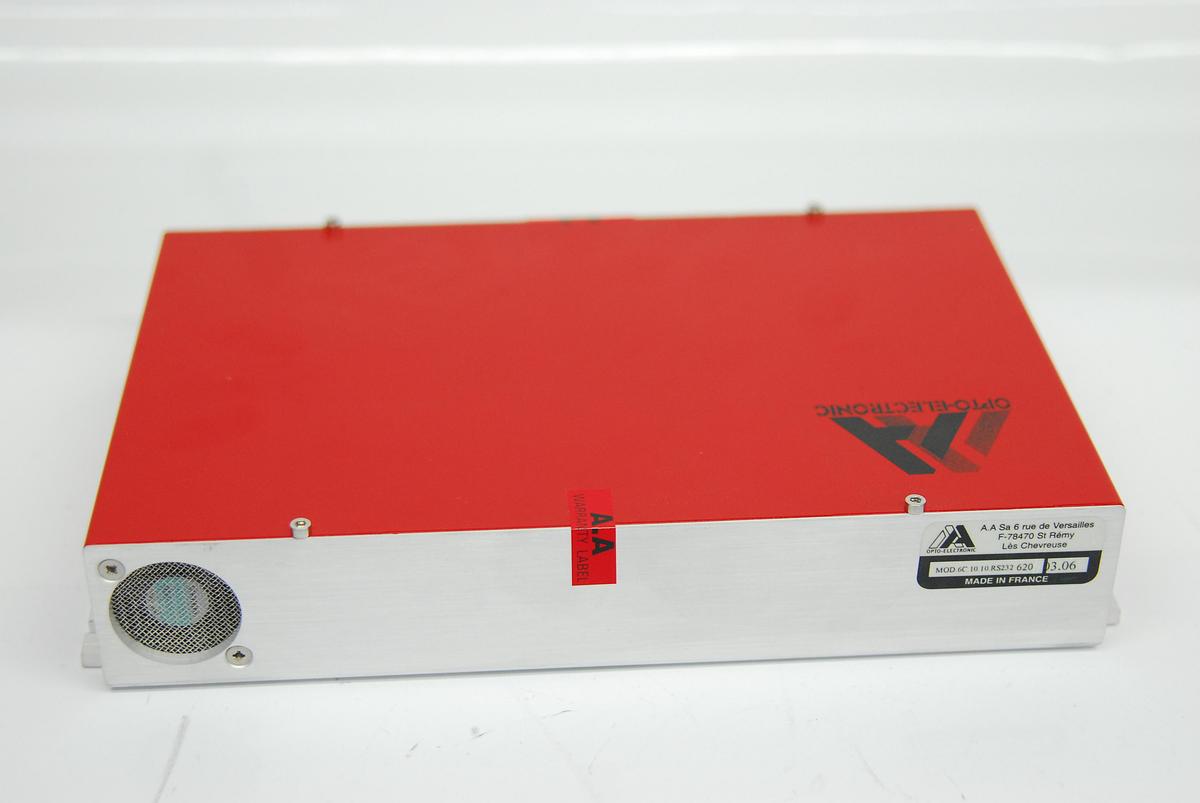

Info on driver:

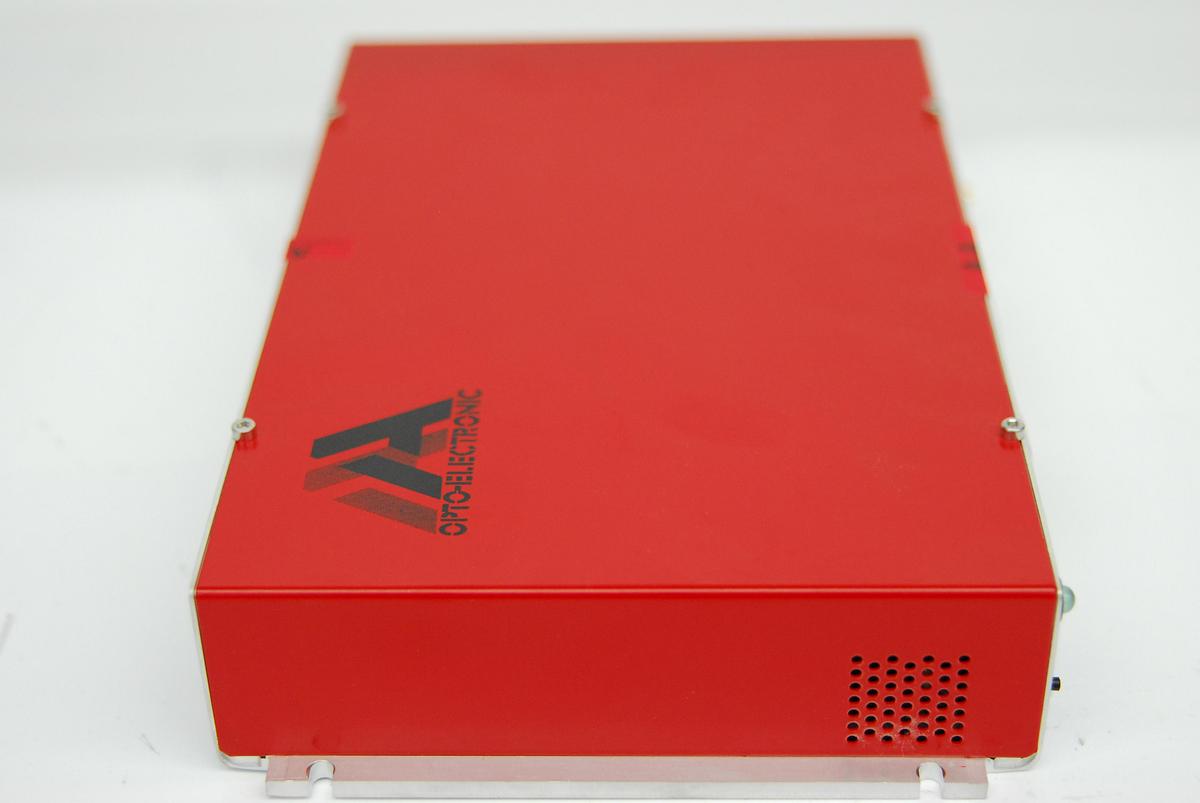

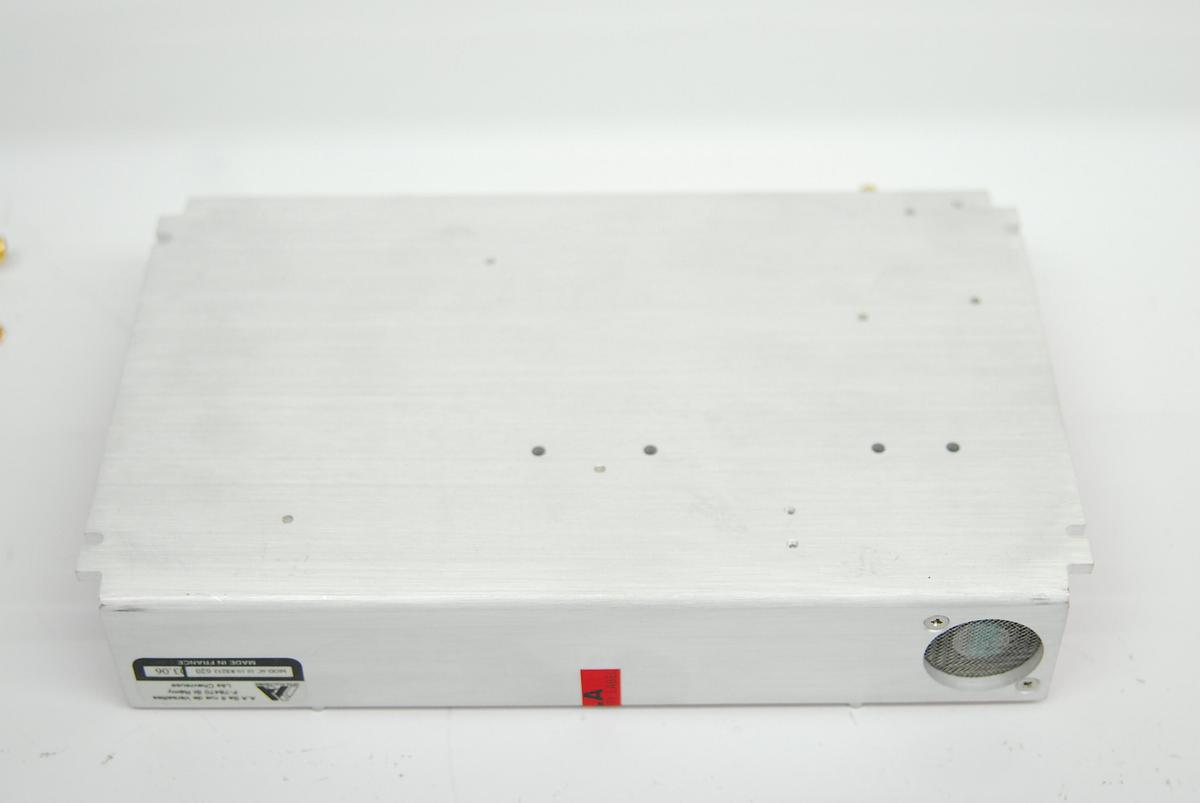

• Manufacturer: AA OPTO-ELECTRONIC

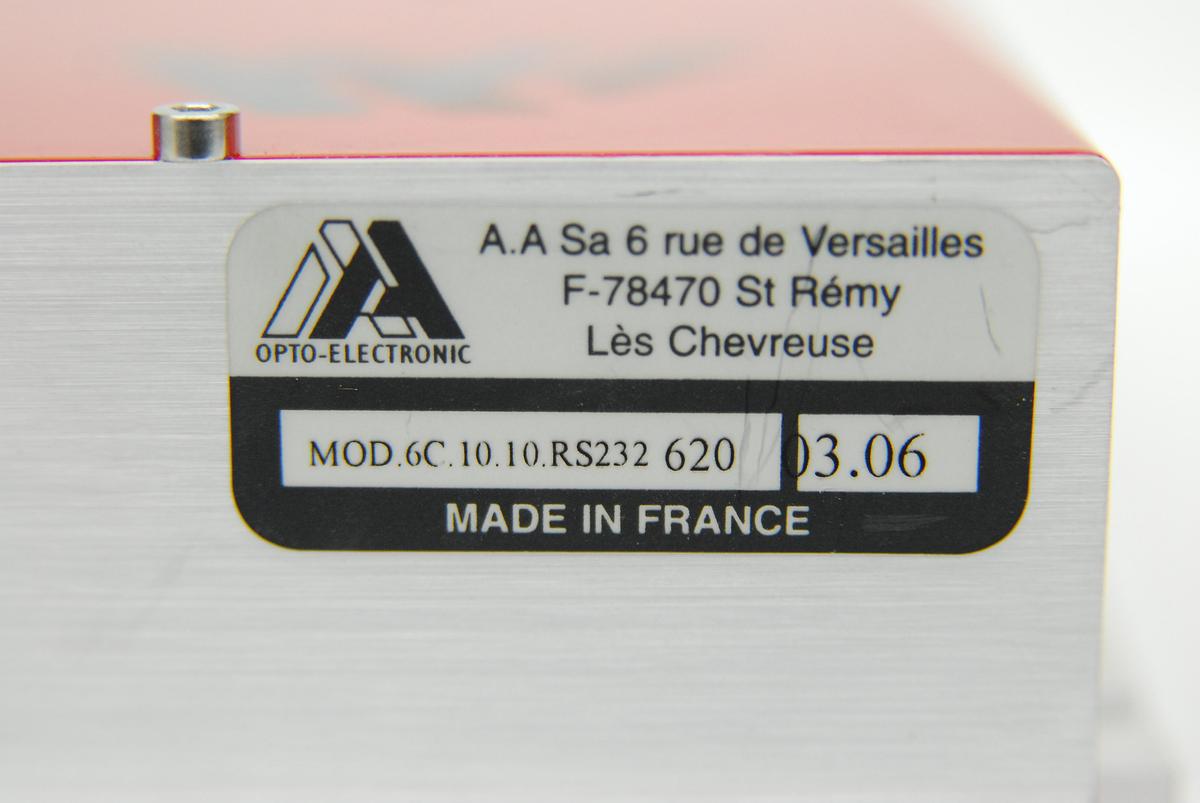

• Driver Model Number: MOD.6C.10.10.RS232
• Configuration Code: 620 (Custom factory-calibrated frequency profile matching its paired crystal head)
• Driver Type: Multi-channel programmable Radio Frequency (RF) PLL Synthesizer
• Number of Independent RF Channels: 6 Channels Primary Input Power Supply 24 VDC
• Output RF Power Capacity: 100mW to 250mW max per channel
• Nominal RF Frequency Range: 75MHz to 158MHz
• Output Impedance: 50 Ohms

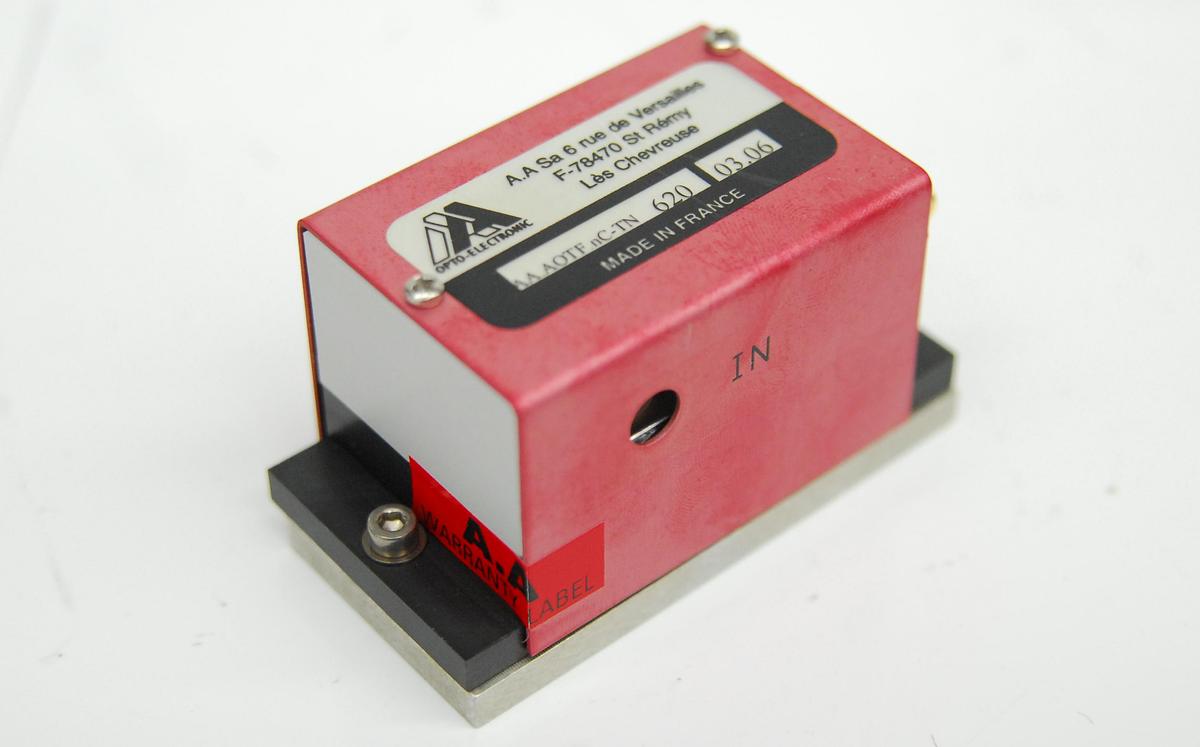

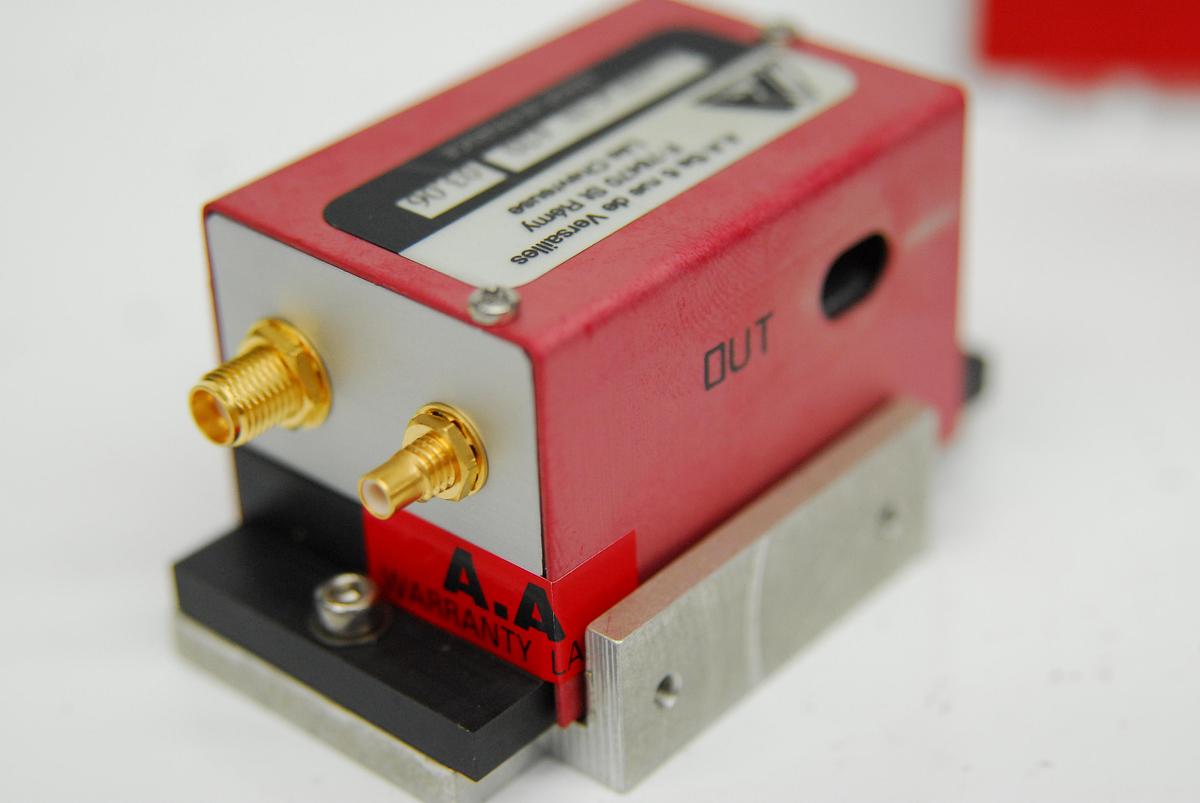

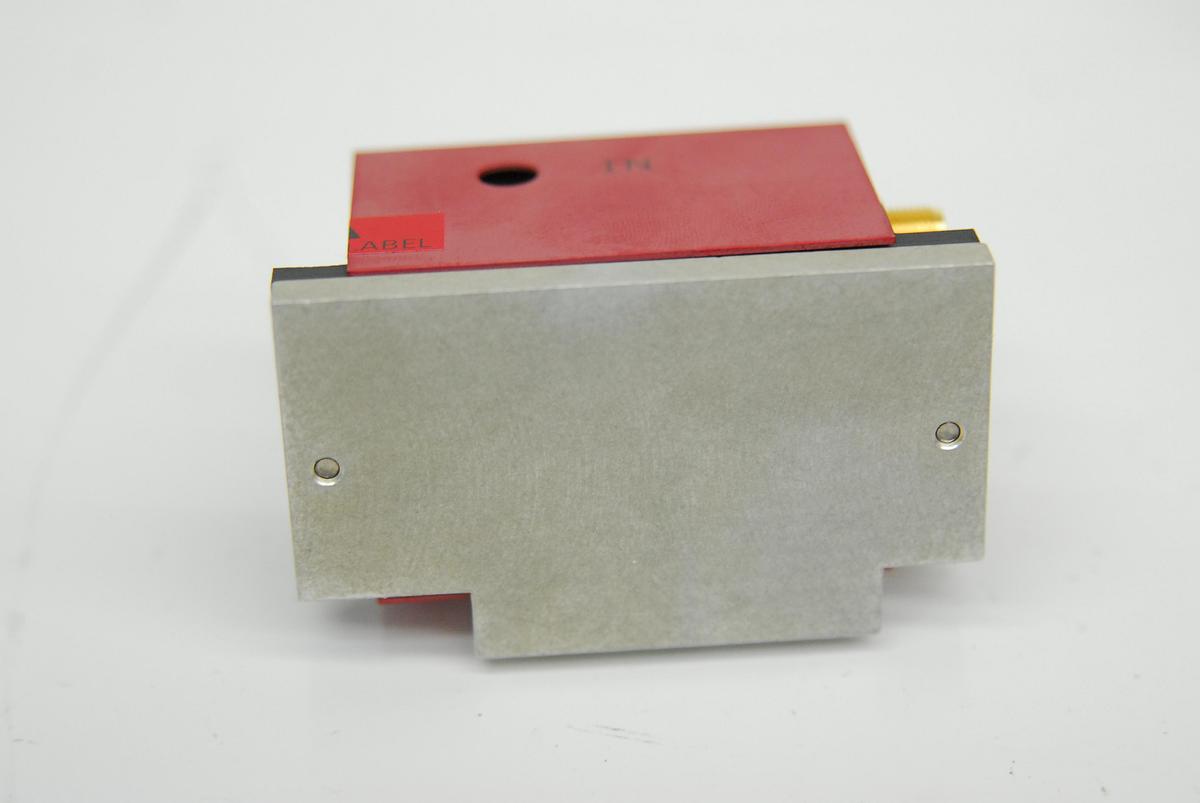

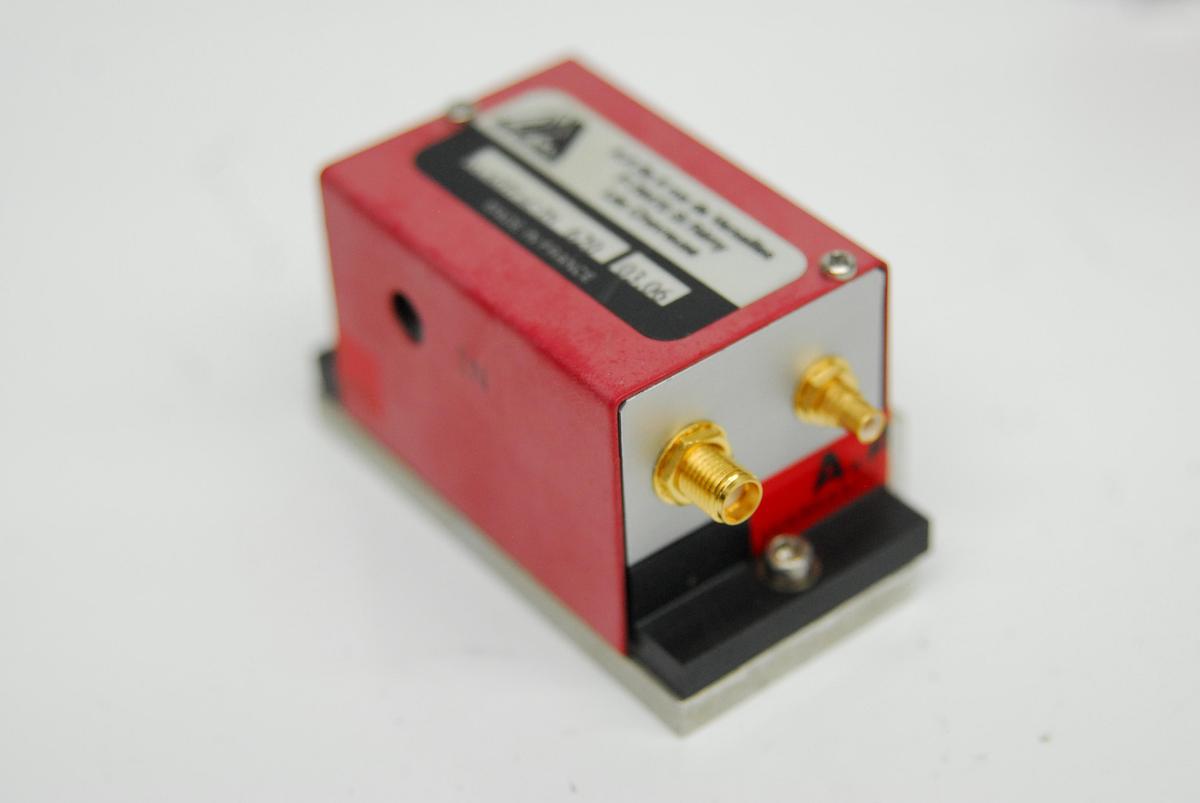

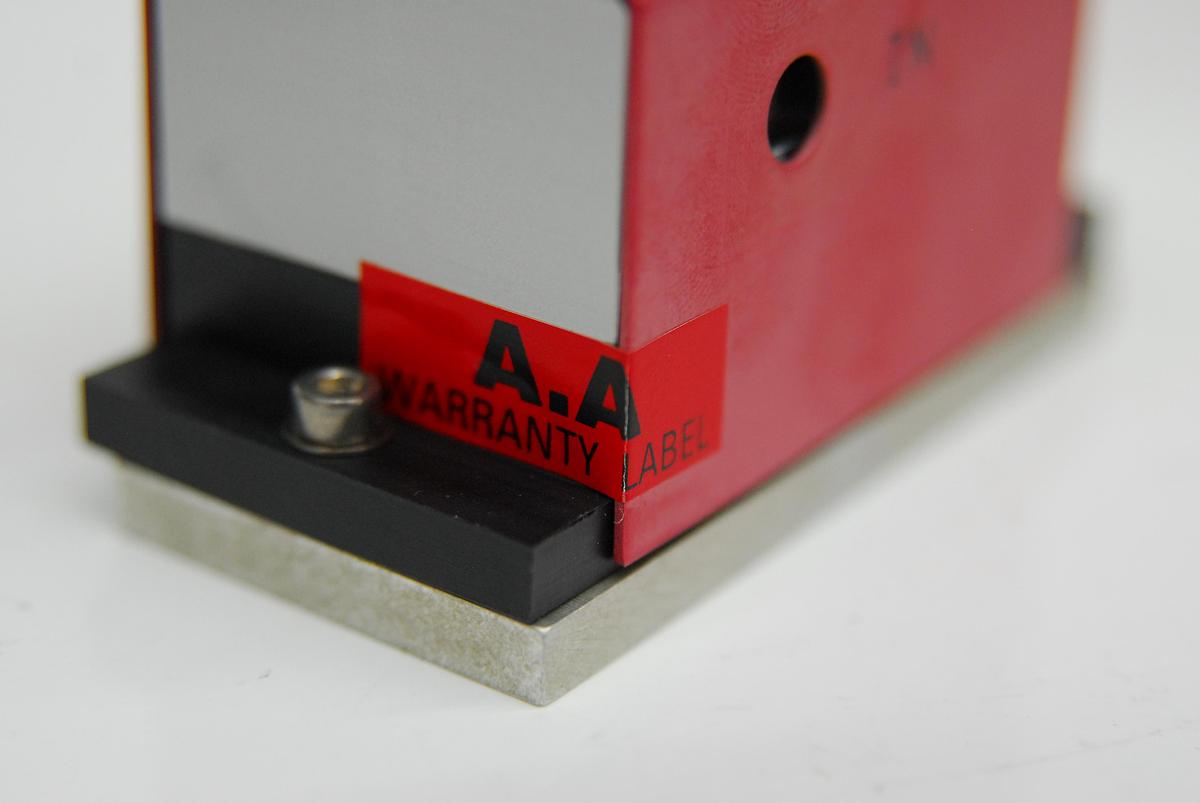

Info on modulator

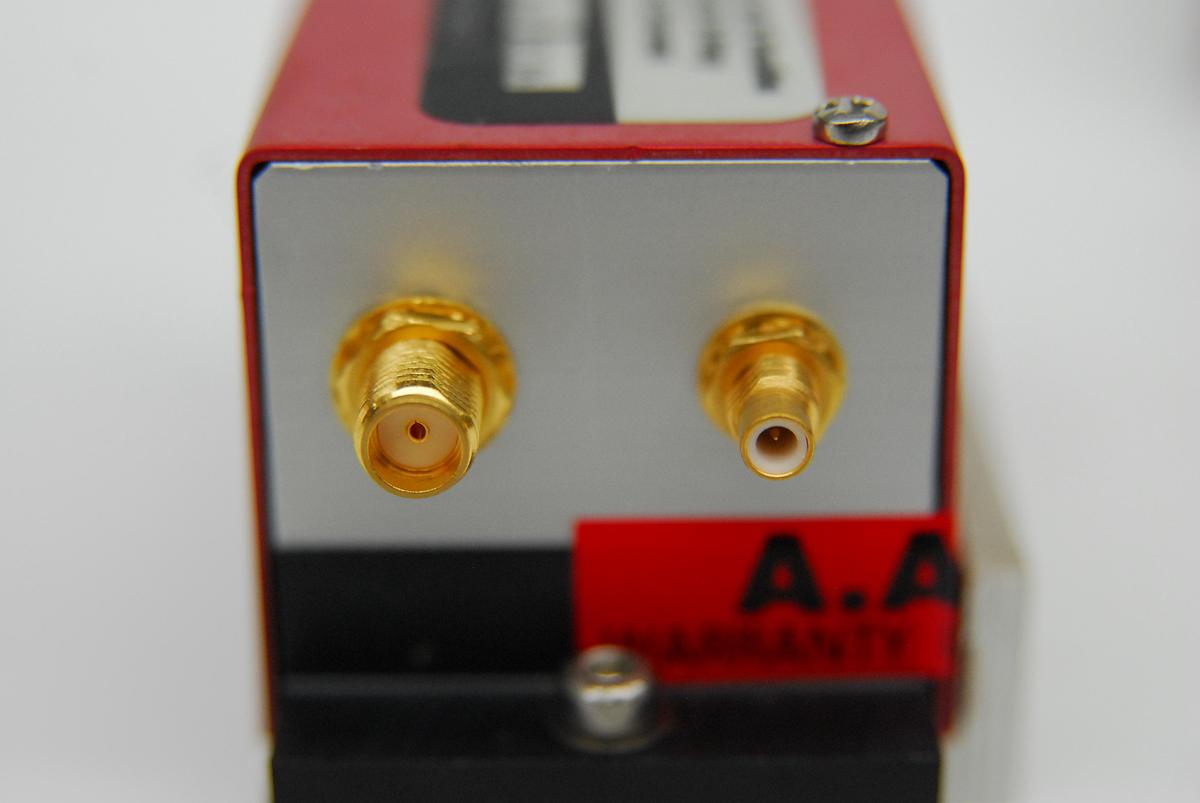

• Manufacturer: AA OPTO-ELECTRONIC

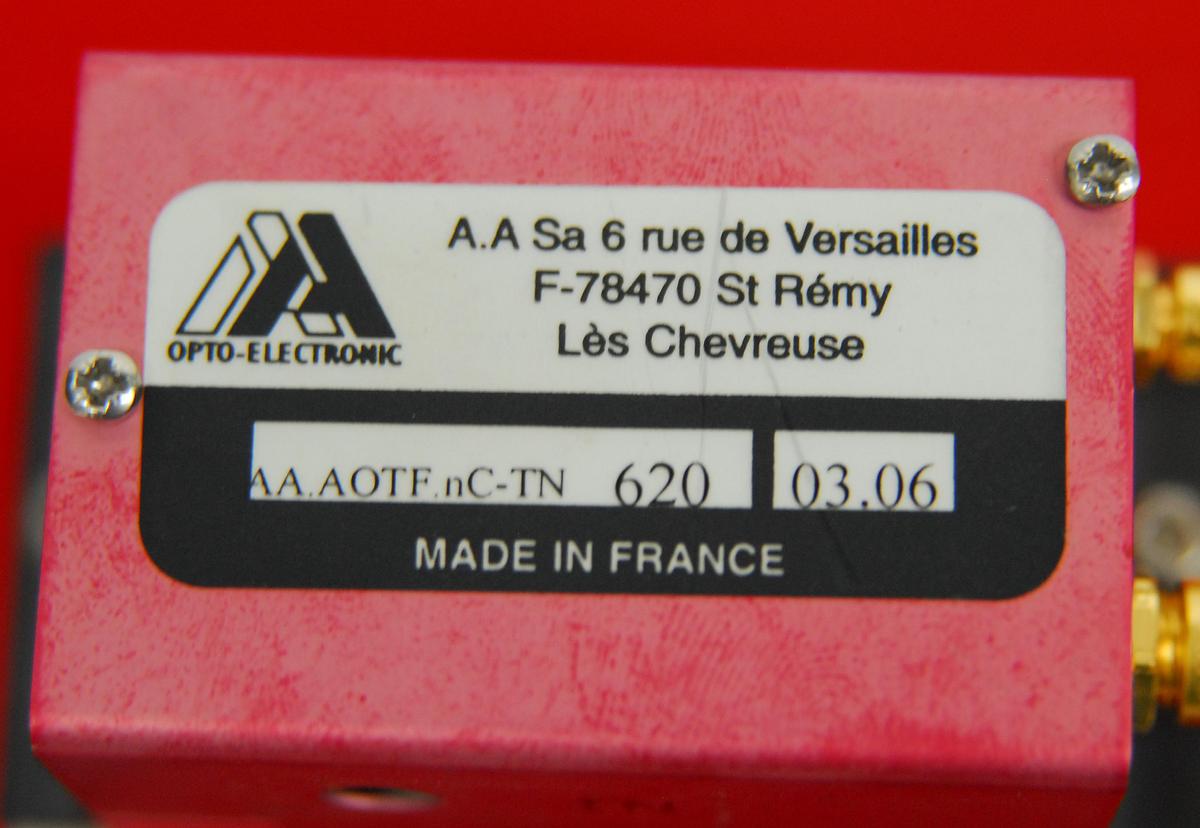

• Modulator Model Number: AA.AOTF.nC-TN
• Configuration Profile: 620
• Modulator Architecture: Solid-State Polychromatic Acousto-Optic Tunable Filter (AOTF)
• Optical Spectral Windows: Visible Spectrum (VIS) 400nm to 650nm
• Active Beam Aperture: 3mm x 3mm
• Acoustic Operating Frequency Range: 75MHz to 158MHz
• Absolute Max Aggregate RF Input Threshold: 1.0 Watt
• Spatial Deflection Angle: +/- 4.0 to 4.6 degrees
