SMC XLA-25 CH3791/4/00 High Vacuum Pneumatic Angle Valve

SMC XLA-25 CH3791/4/00 High Vacuum Pneumatic Angle Valve

[Condition]

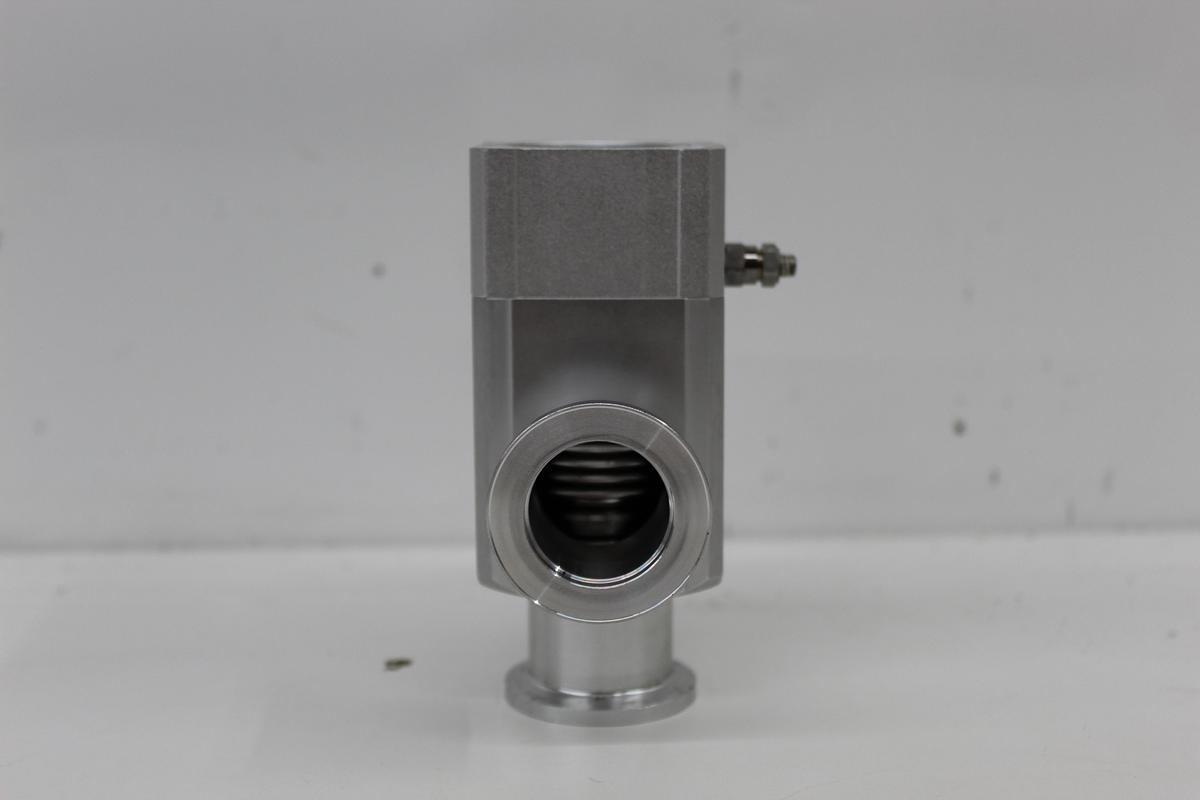

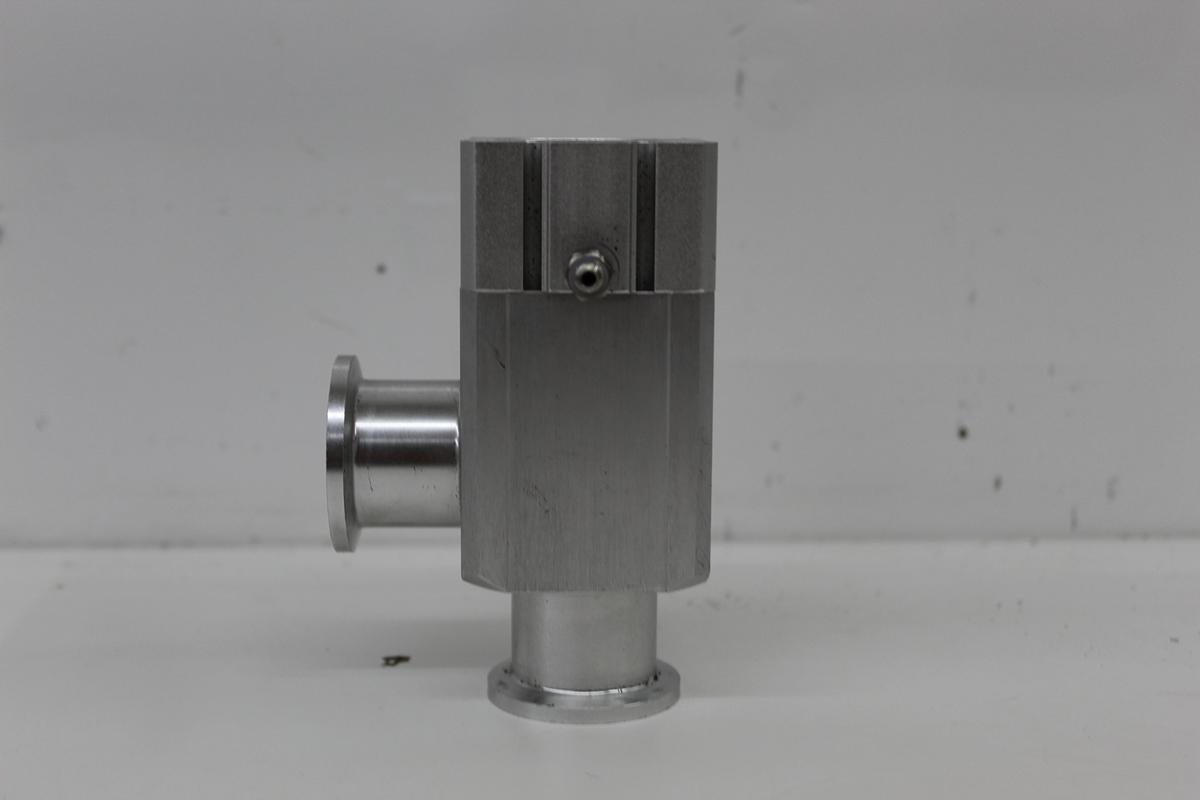

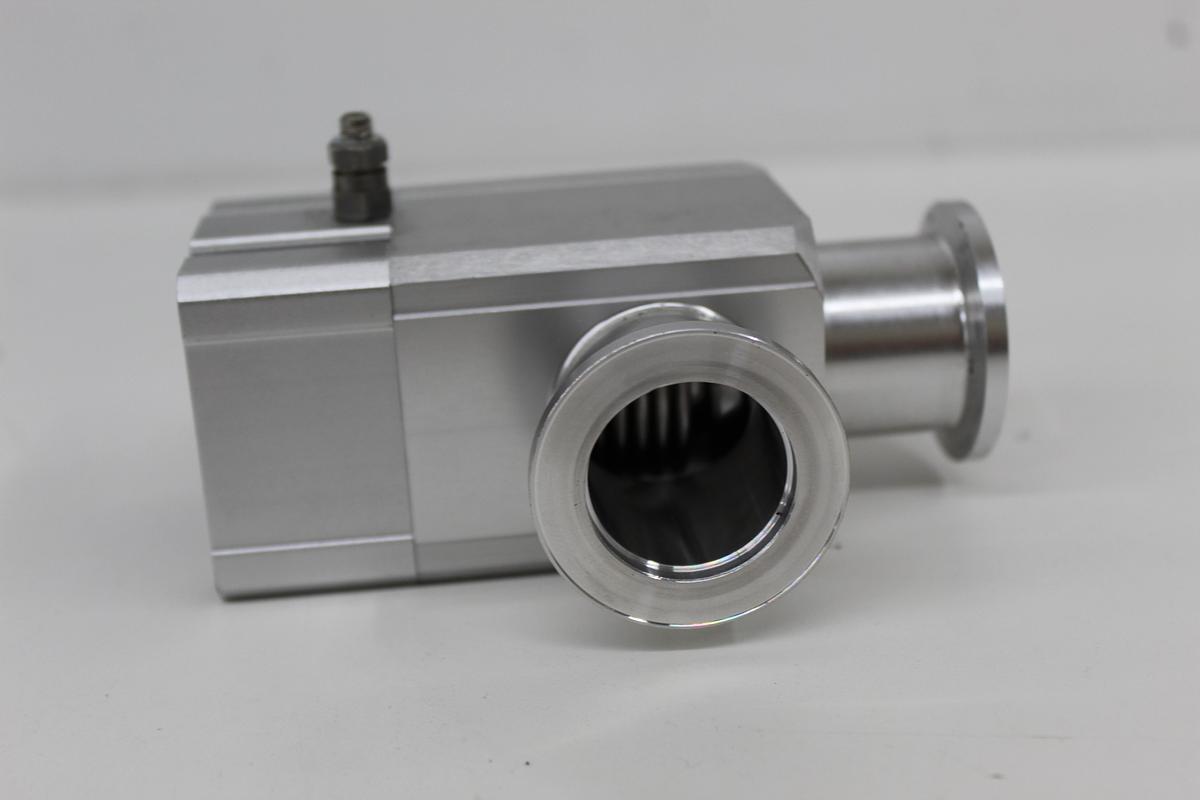

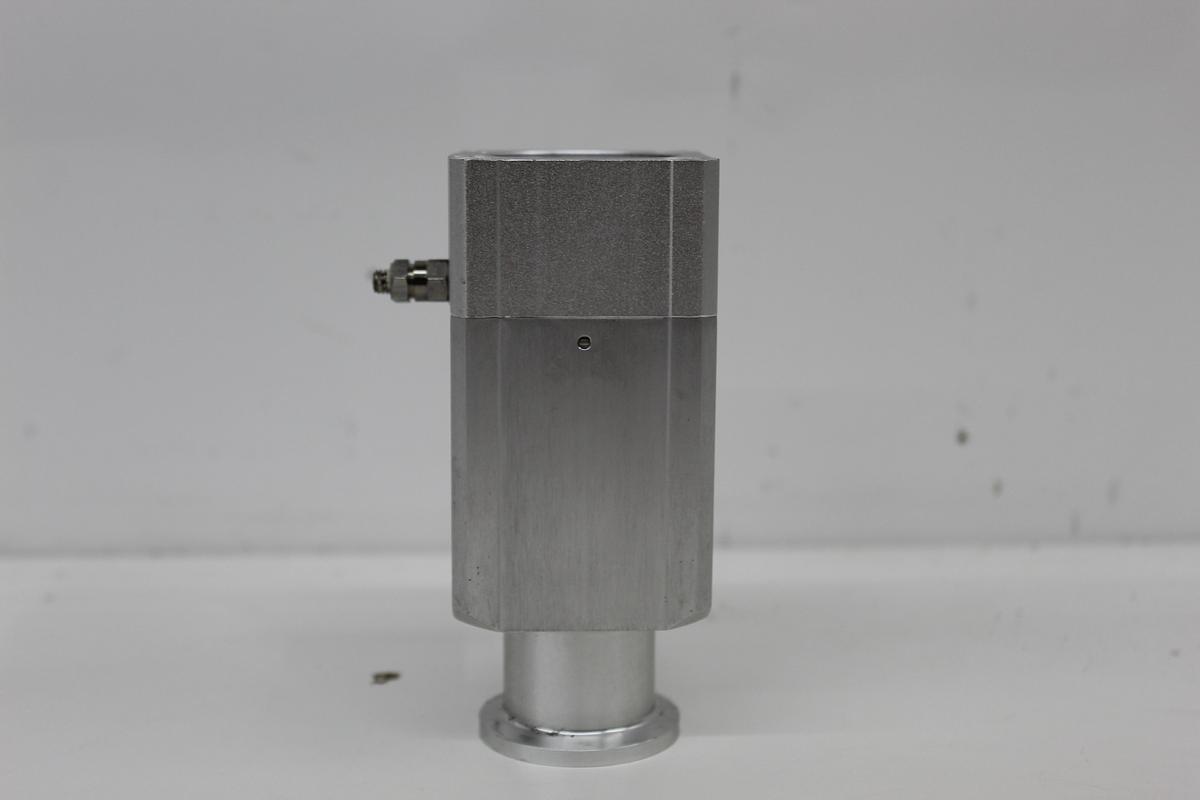

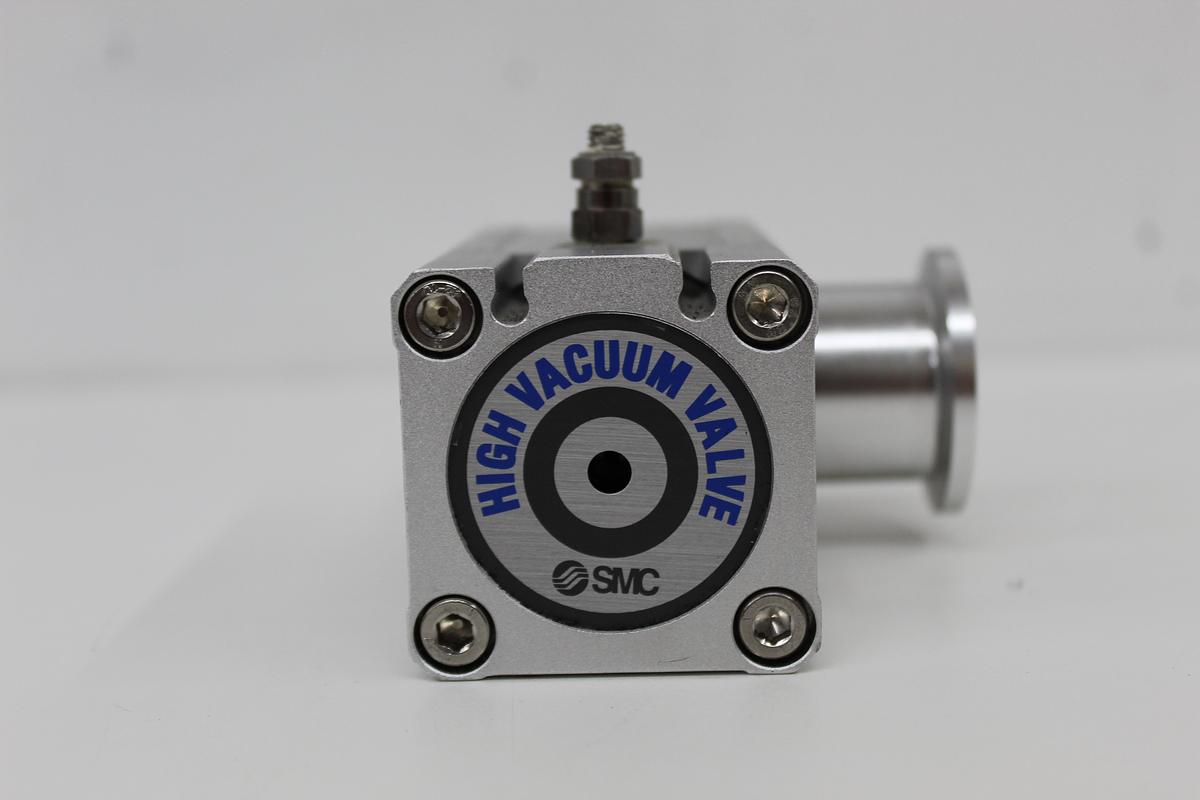

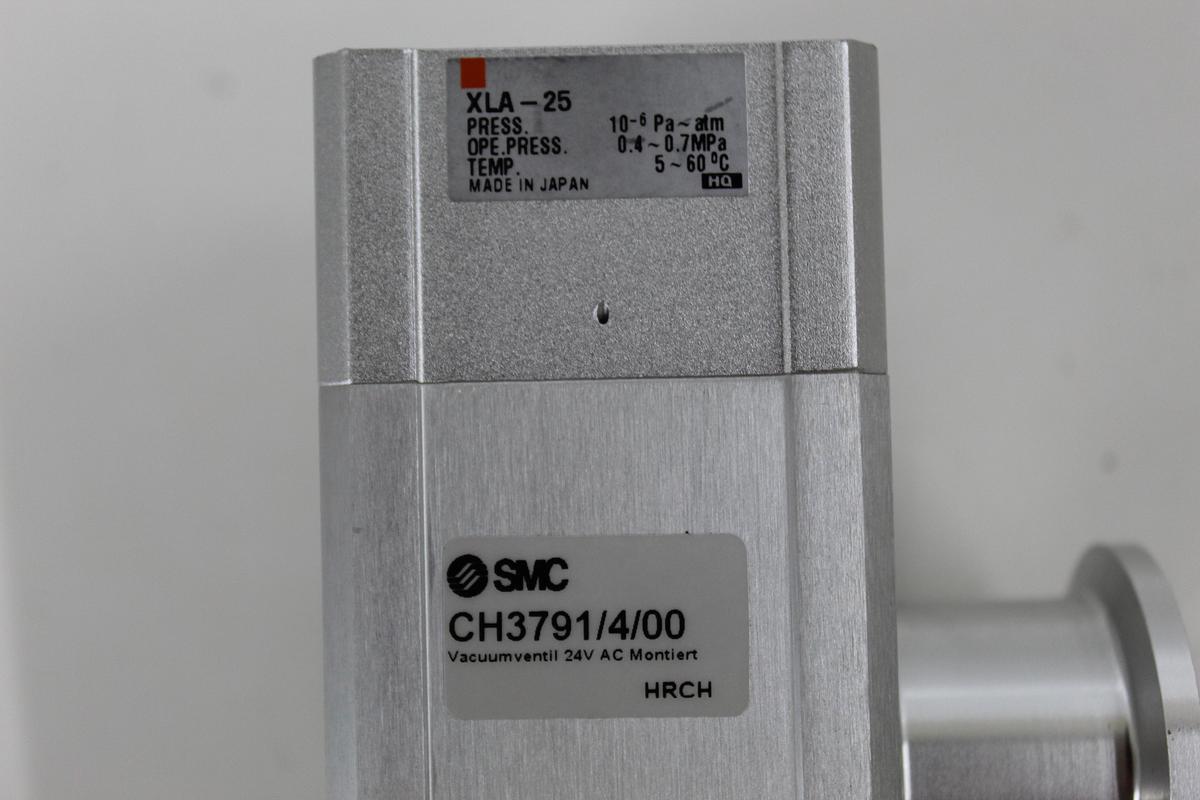

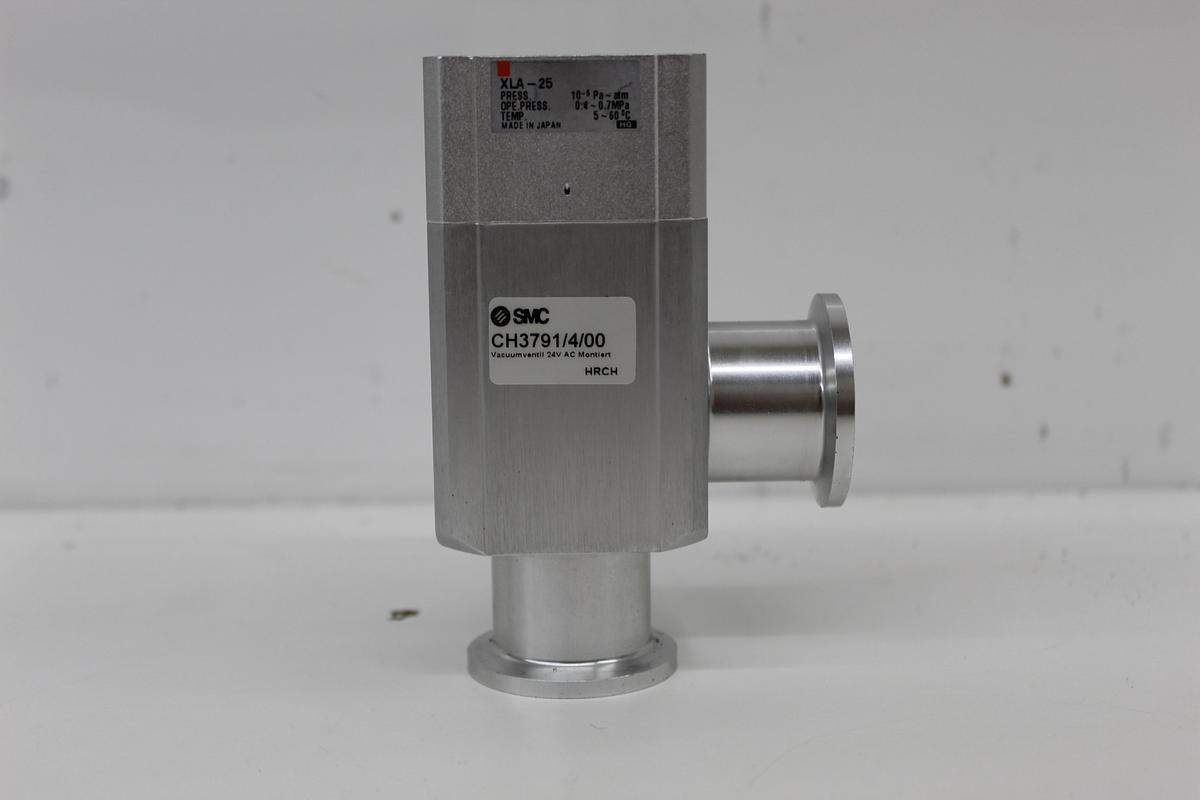

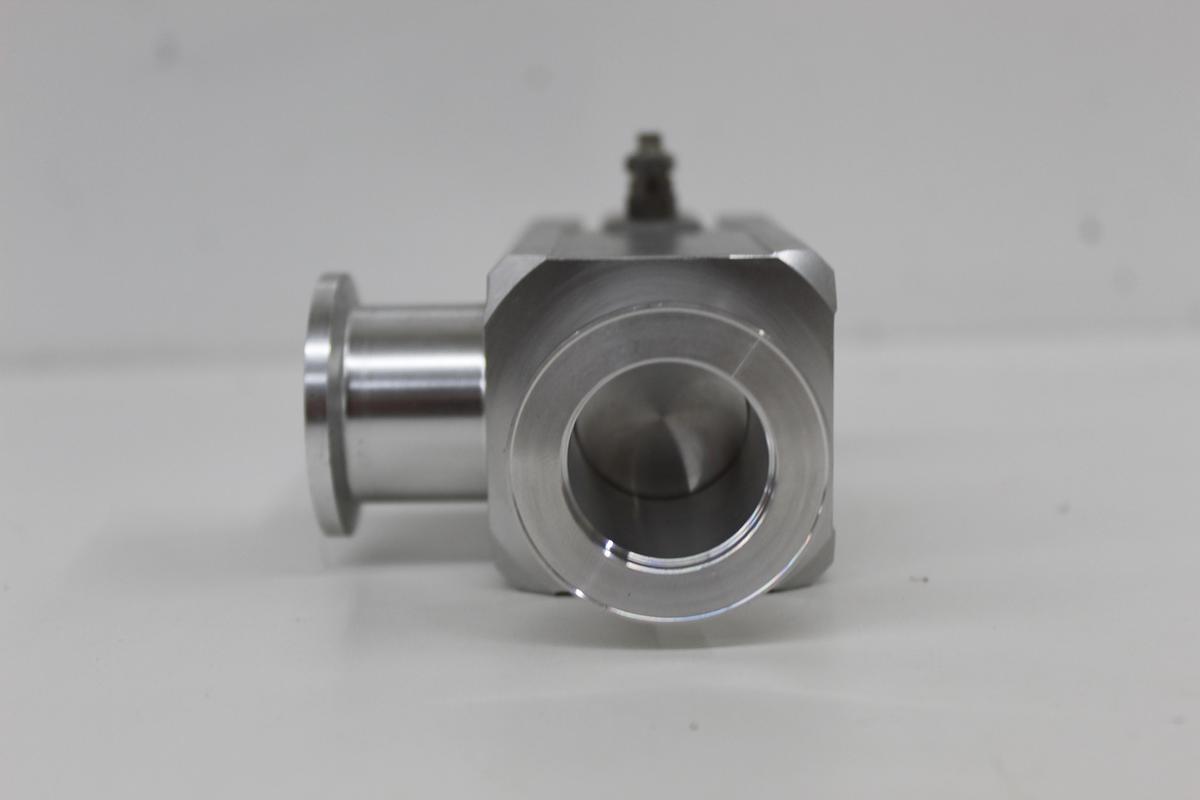

Unit is used, in great condition, pulled from a working system. See photos, item comes as shown.

[Info on Unit]

Manufacturer: SMC Corporation

Model: XLA-25

Assembly Part Number: CH3791/4/00

Type: High Vacuum Angle Valve

Valve Size: NW25 / KF25

Actuation: Pneumatic, solenoid-controlled

Solenoid Voltage: 24 VAC

Valve Configuration: Normally Closed

Operating Vacuum Range: Atmospheric pressure to 1 x 10^-6 Pa

Pilot Air Pressure: 0.4–0.7 MPa (58–102 PSI)

Conductance: 14 L/s

Operating Temperature: 5°C to 60°C

[Description]

The SMC XLA-25 CH3791/4/00 is a pneumatically actuated high-vacuum angle valve designed for vacuum isolation and gas-flow control in industrial vacuum systems, semiconductor manufacturing equipment, laboratory instrumentation, and vacuum processing applications. This assembly features a normally closed valve design with a 24 VAC solenoid control, allowing electrically controlled pneumatic operation. The NW25/KF25 vacuum connections provide compatibility with standard high-vacuum piping and equipment. Its aluminum alloy housing and stainless steel bellows construction provide durability and reliable vacuum sealing. The XLA-25 series is designed for vacuum pressures down to 1 × 10⁻⁶ Pa and offers a nominal conductance of 14 L/s, making it suitable for demanding high-vacuum system applications.

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
