TESCOM BB-13PH2KVA4-022 High Pressure Gas Pressure Reducing Regulator

TESCOM BB-13PH2KVA4-022 High Pressure Gas Pressure Reducing Regulator

[Condition]

Unit is used, in great condition, pulled from working system. See photos, item comes as shown.

[Info on Unit]

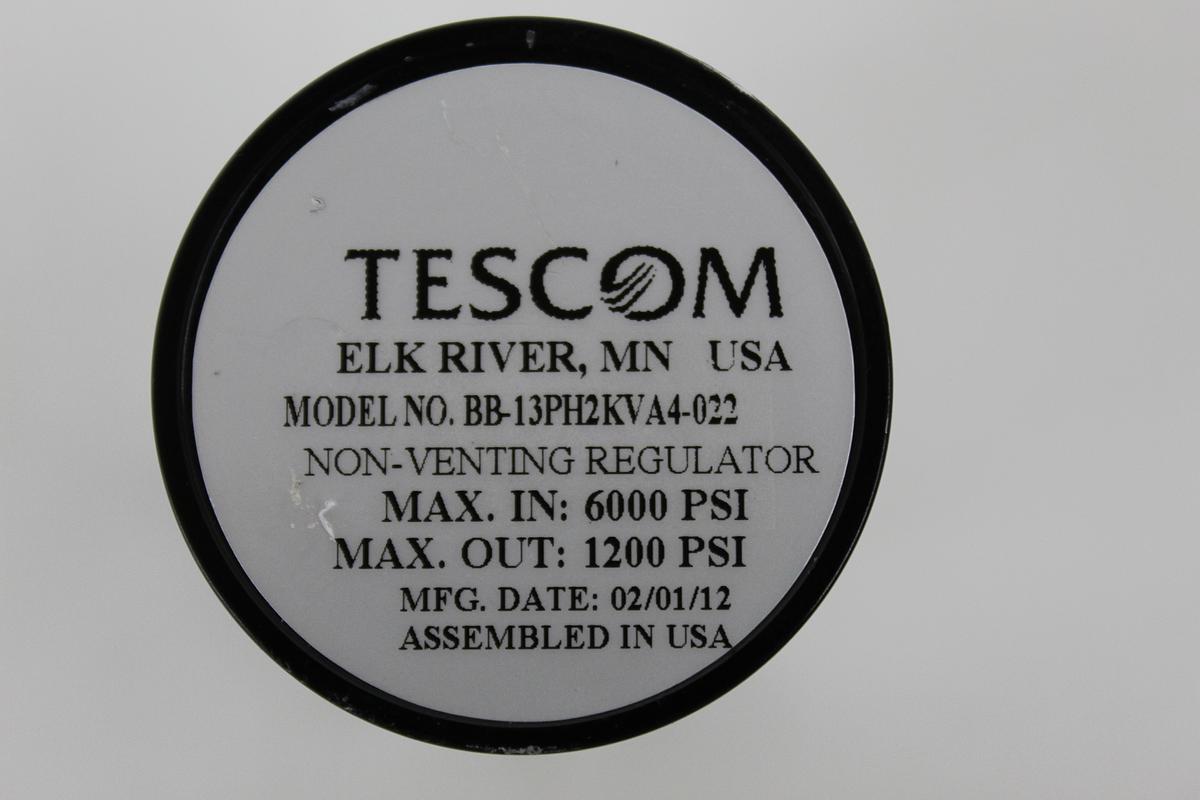

Manufacturer: TESCOM

Part Number: BB-13PH2KVA4-022

Series: BB-1

Type: High Pressure Reducing Regulator

Regulator Design: Piston-Sensed

Pressure Adjustment: Preset

Maximum Inlet Pressure: 6,000 PSIG (414 bar)

Preset Outlet Pressure Range: 700–1,200 PSIG (48.3–82.7 bar)

Maximum Outlet Pressure: 1,200 PSIG

Body Material: Nickel-Plated Aluminum 6061

Seat Material: CTFE (PCTFE)

O-Ring Material: Viton (FKM)

Port Configuration: Four 1/4-inch NPTF Ports

Flow Capacity: Cv 0.06

[Description]

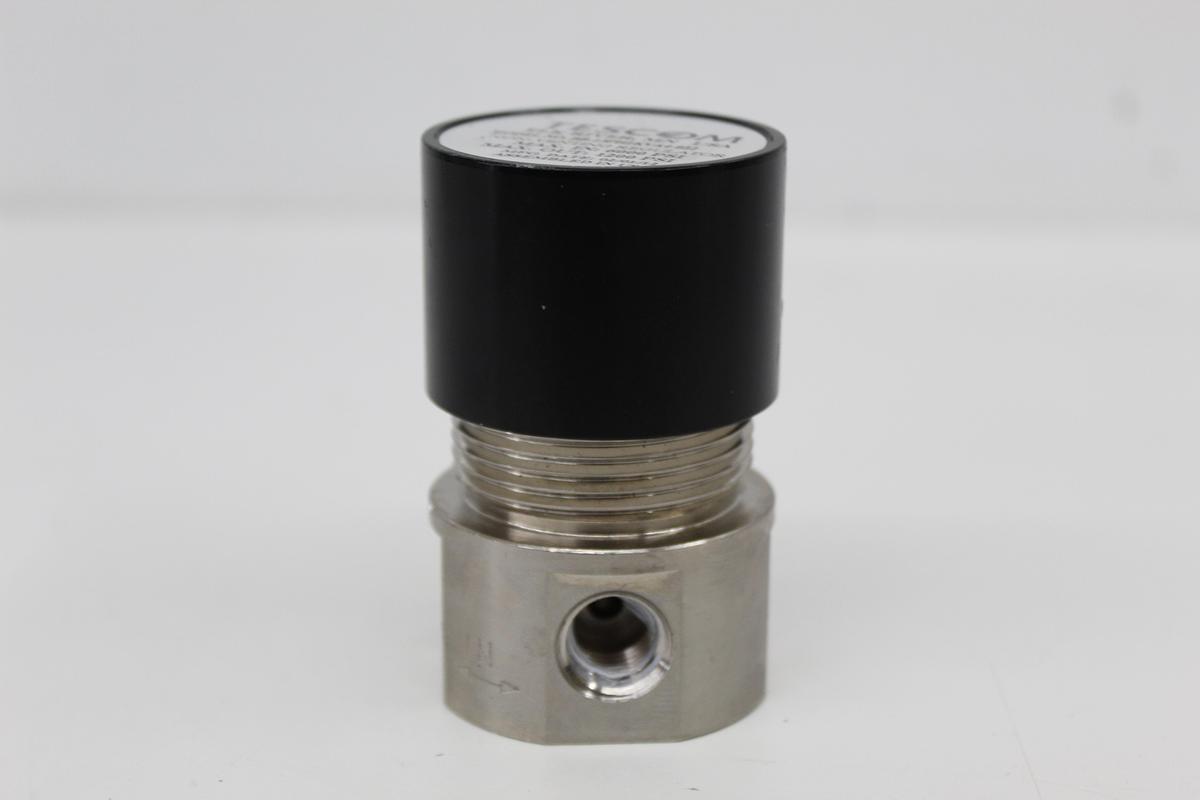

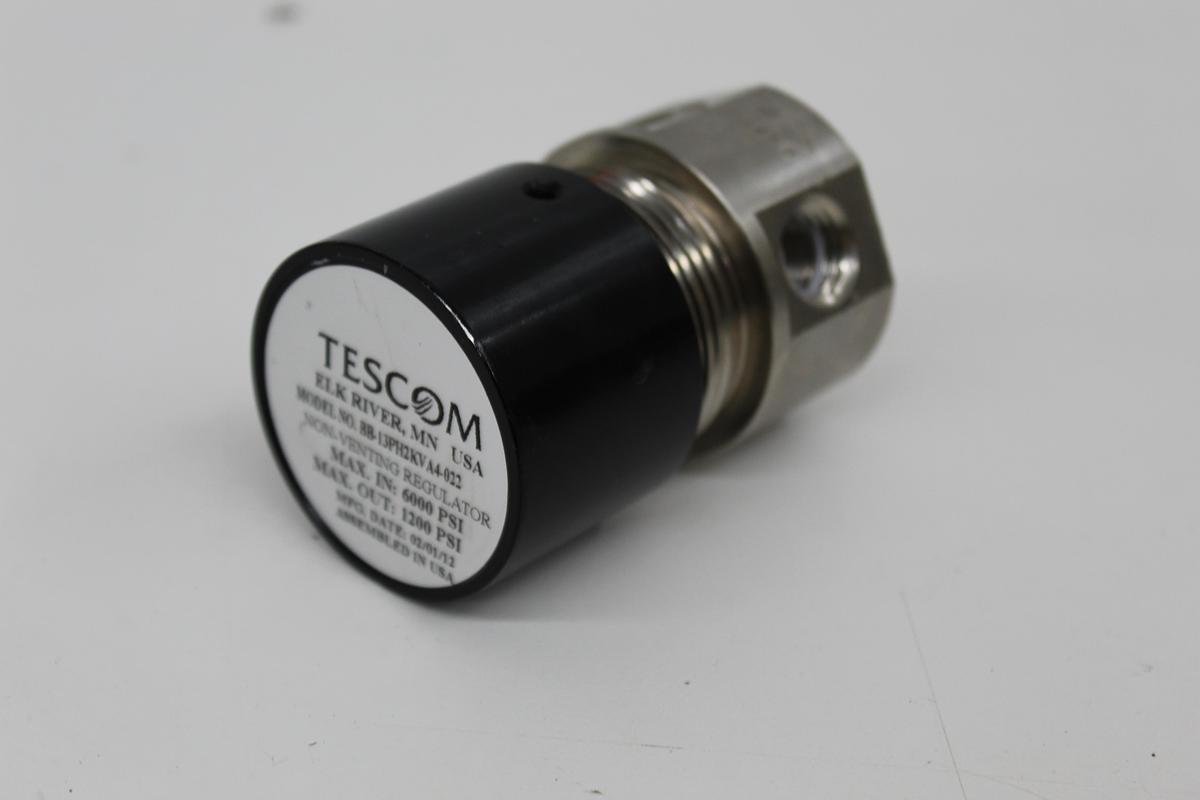

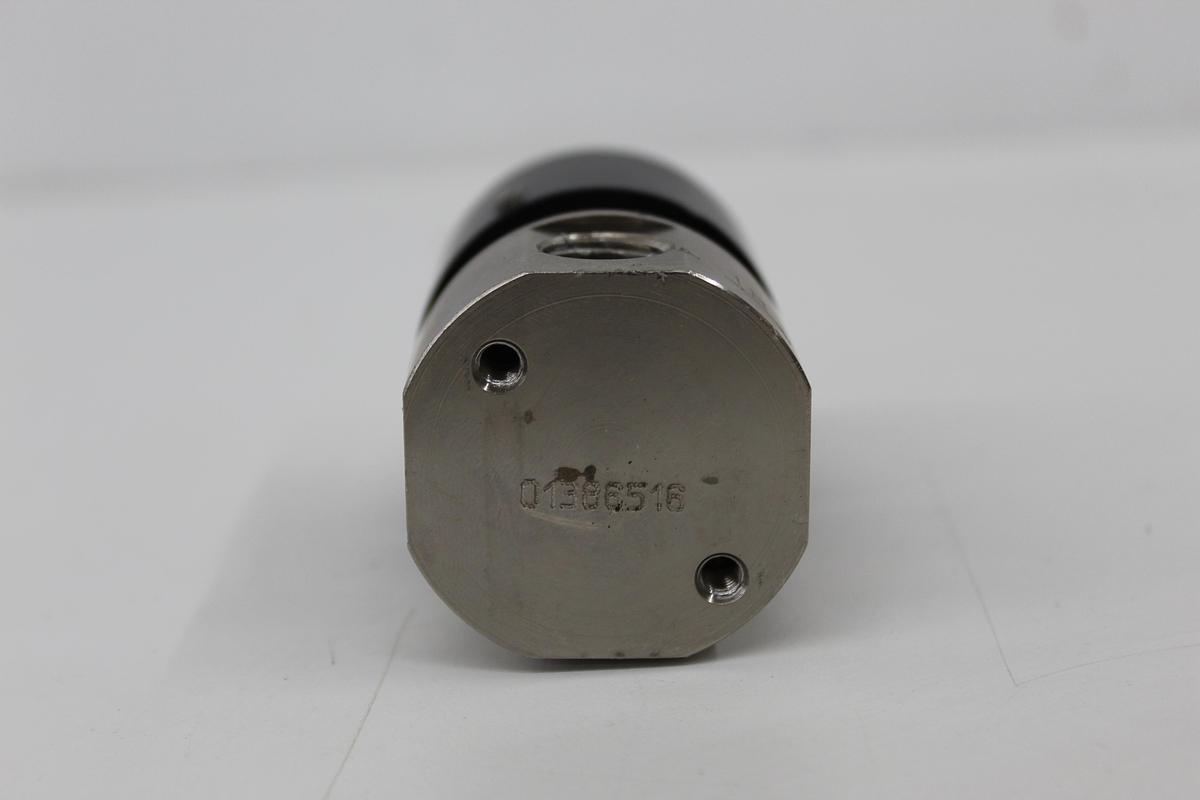

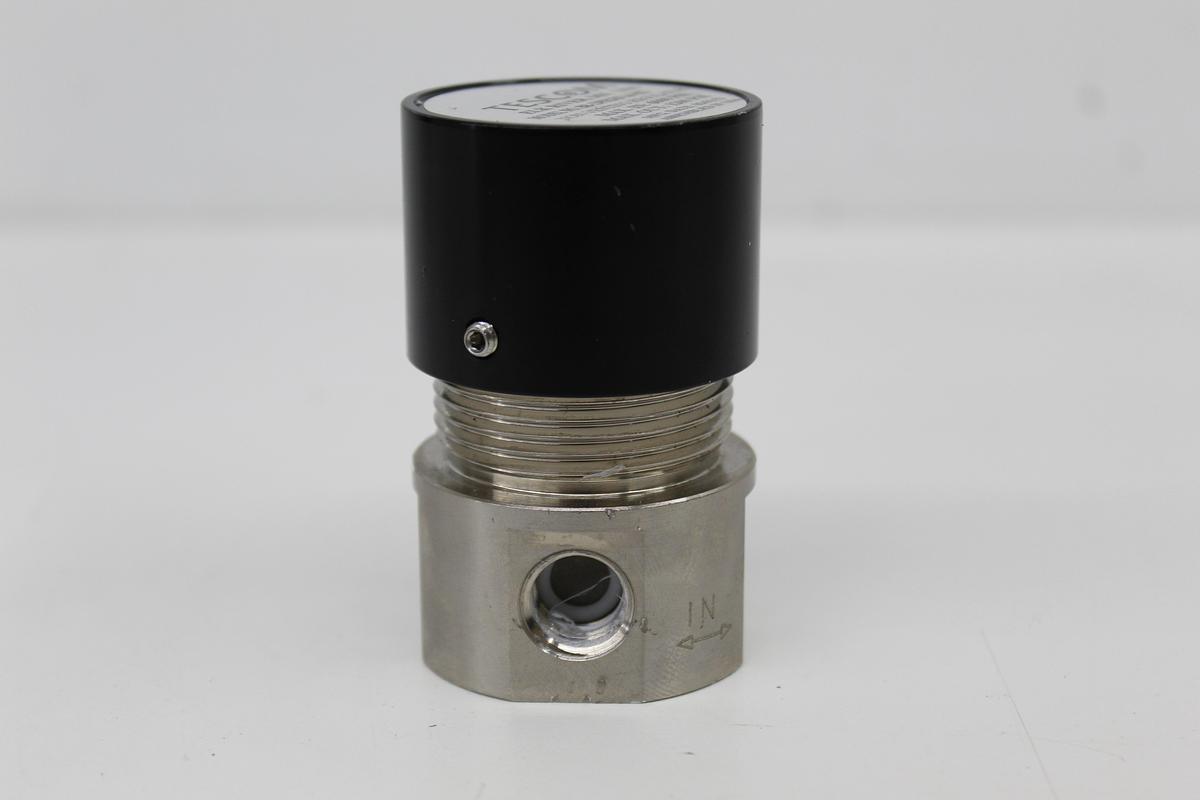

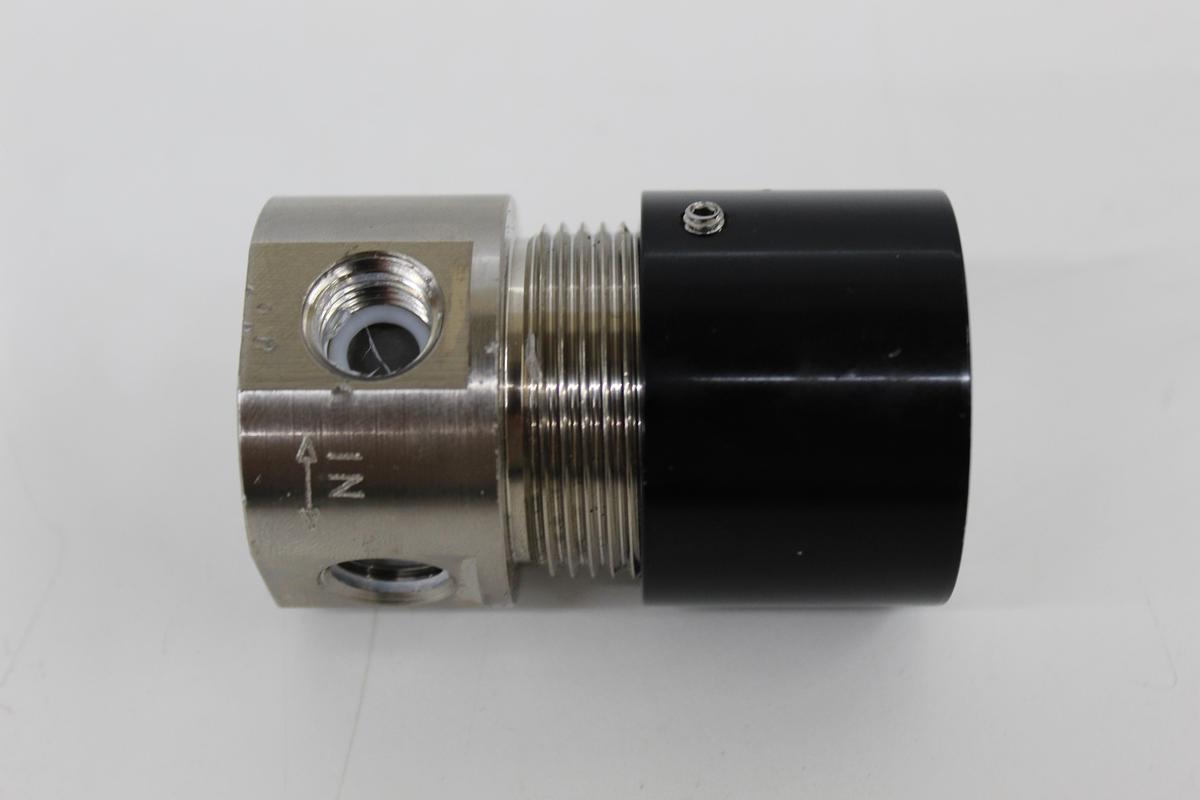

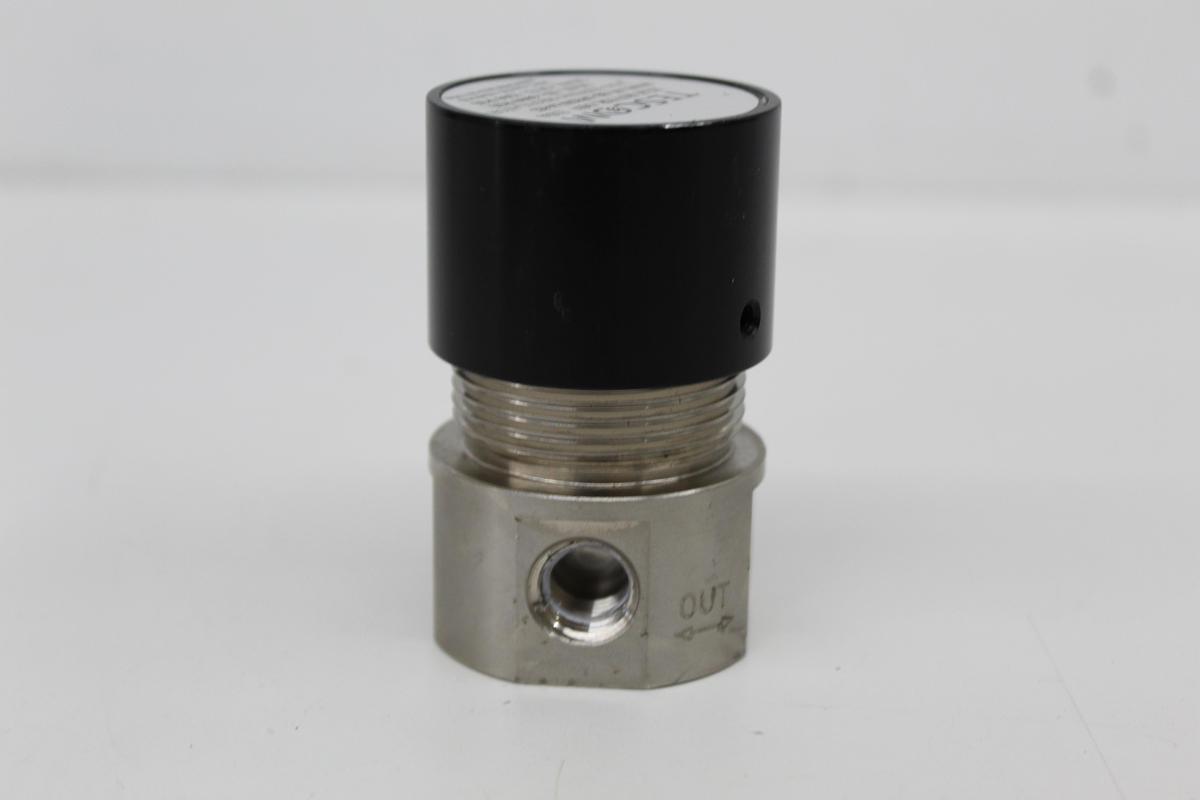

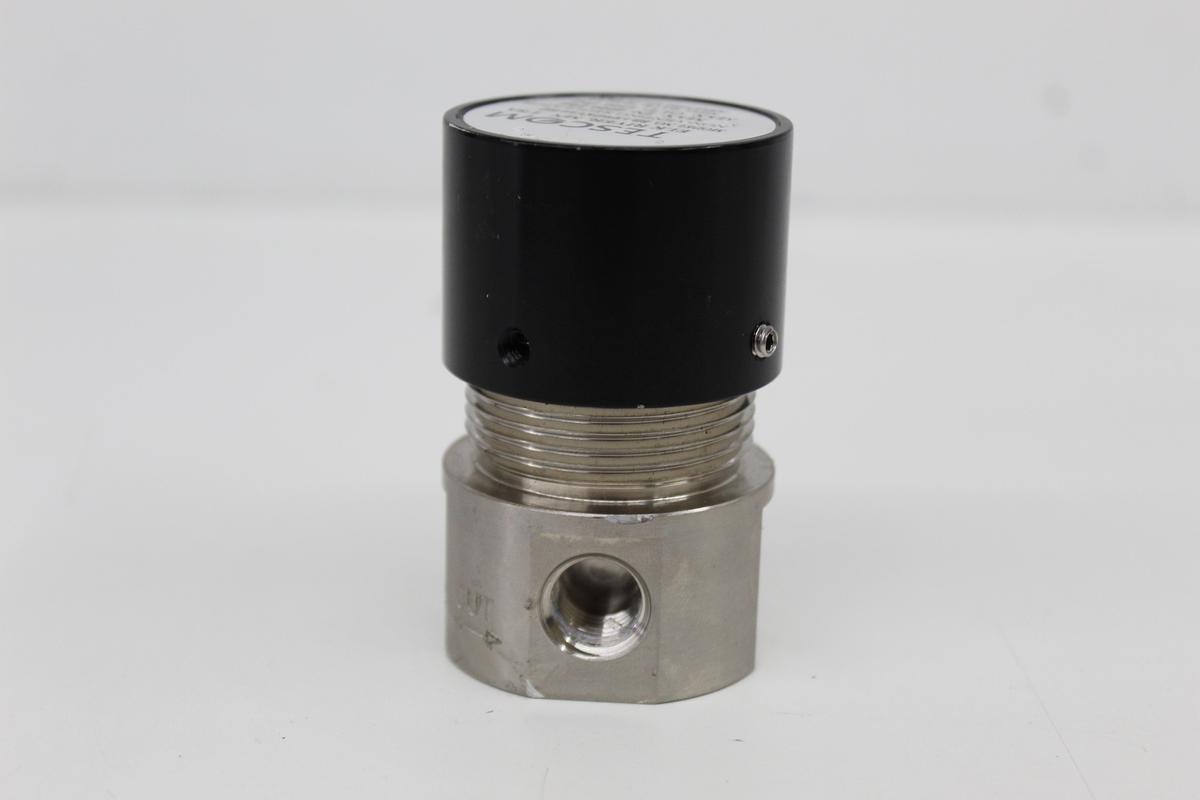

The TESCOM BB-13PH2KVA4-022 is a compact, high-pressure reducing regulator designed for precise pressure control in industrial gas and liquid handling systems. Part of the TESCOM BB-1 series, this piston-sensed regulator supports inlet pressures up to 6,000 PSIG and features a preset outlet pressure range of 700–1,200 PSIG. Its non-venting design provides controlled pressure reduction without intentionally releasing downstream pressure to the atmosphere. The regulator features a nickel-plated aluminum body, CTFE valve seat, Viton seals, and four 1/4-inch NPTF ports. With a flow coefficient of Cv 0.06, it is designed for low-flow, high-pressure applications involving laboratory instrumentation, industrial equipment, and specialized pressure regulation systems.
