Bruker GREAT 3/10 A Gradient Amplifier W1208498 [NMR Spectrometer]

Bruker GREAT 3/10 A Gradient Amplifier W1208498 [NMR Spectrometer]

[Condition]

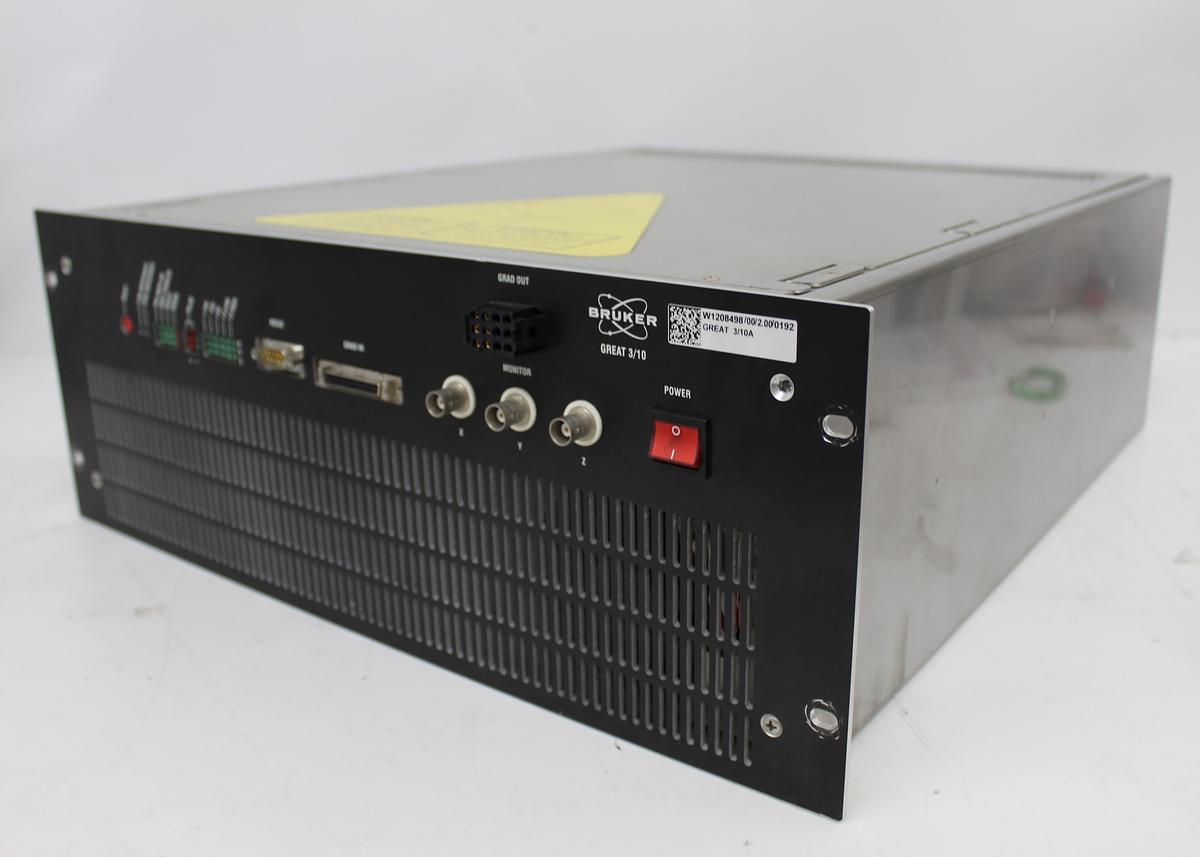

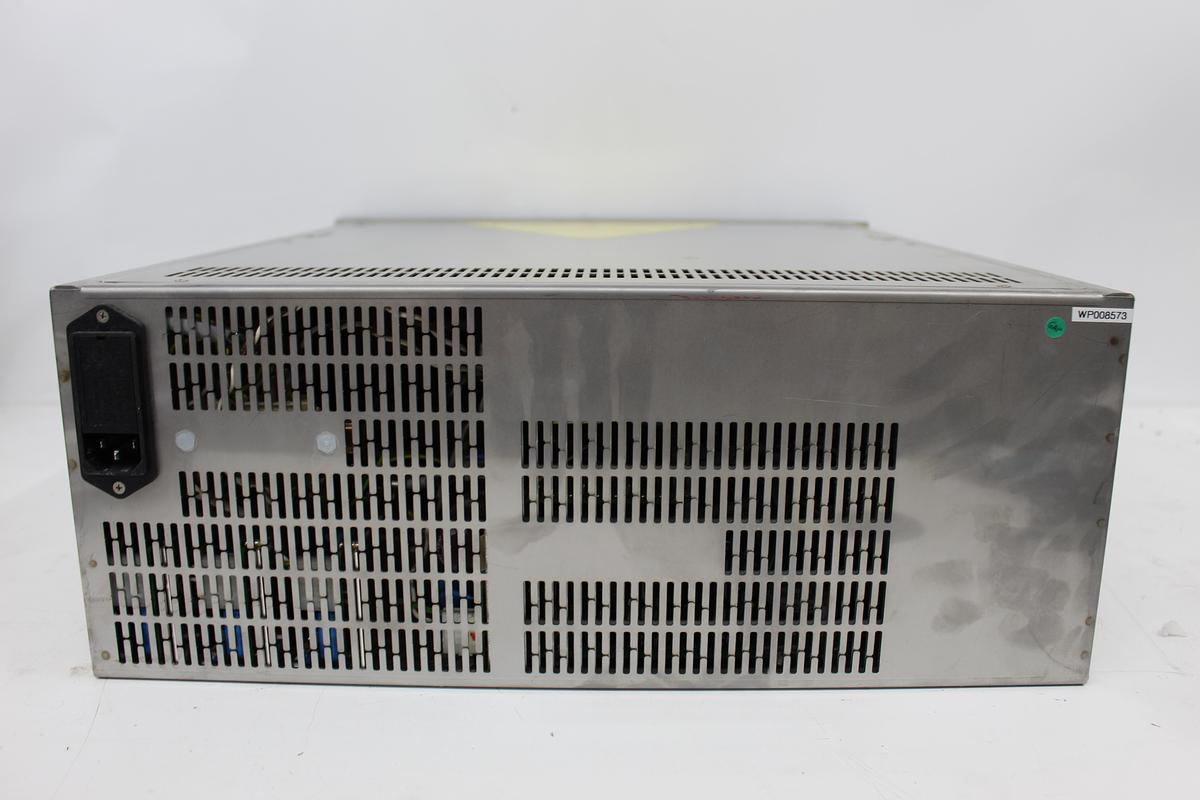

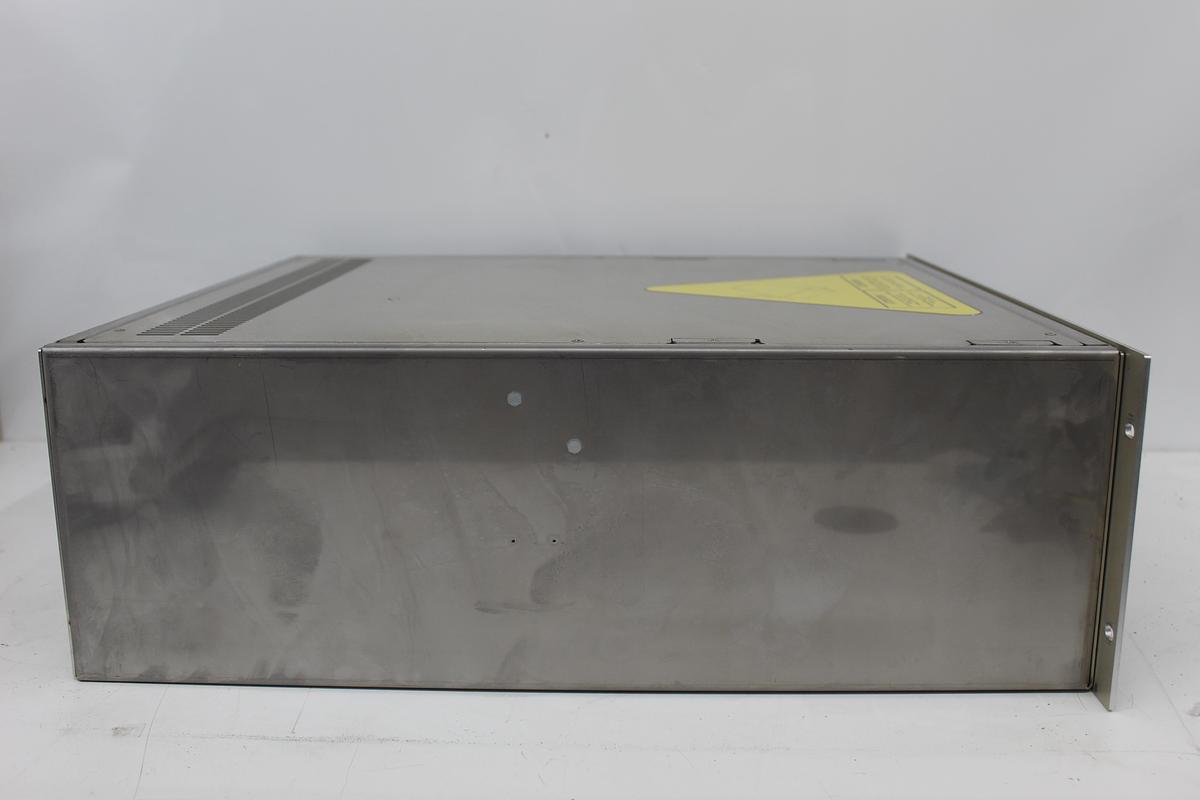

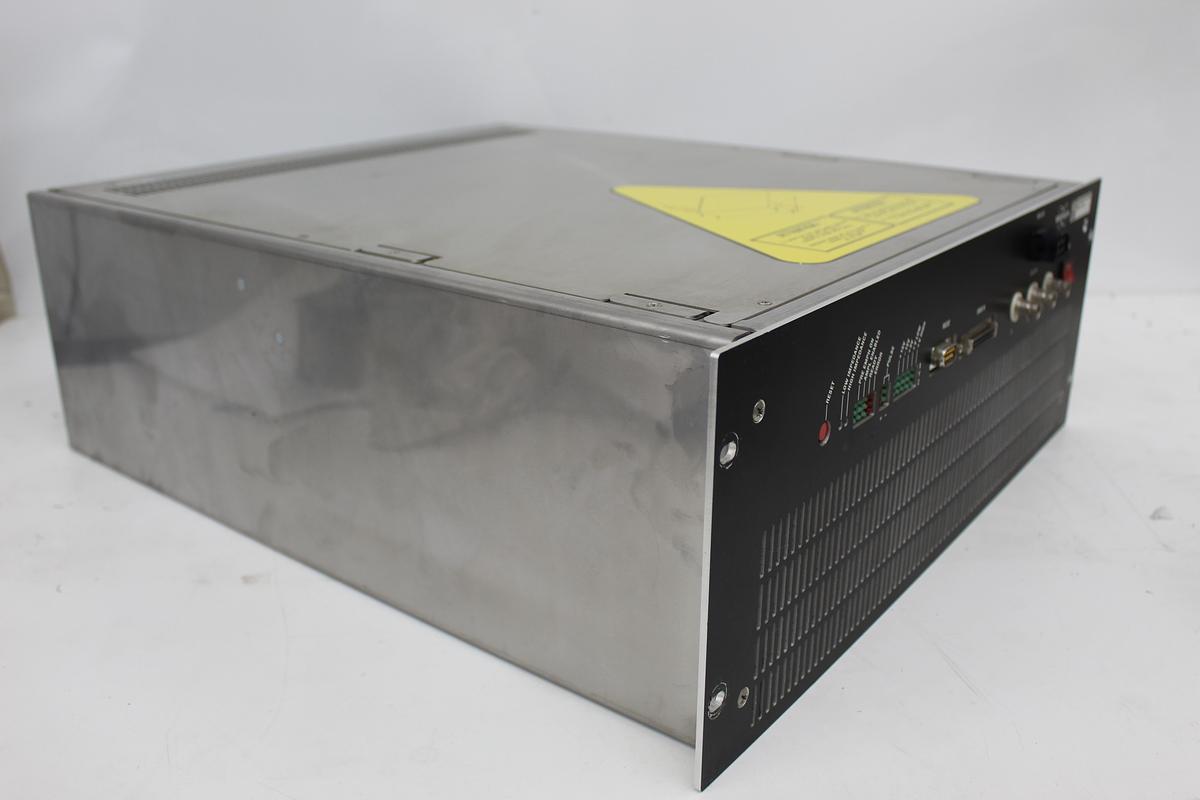

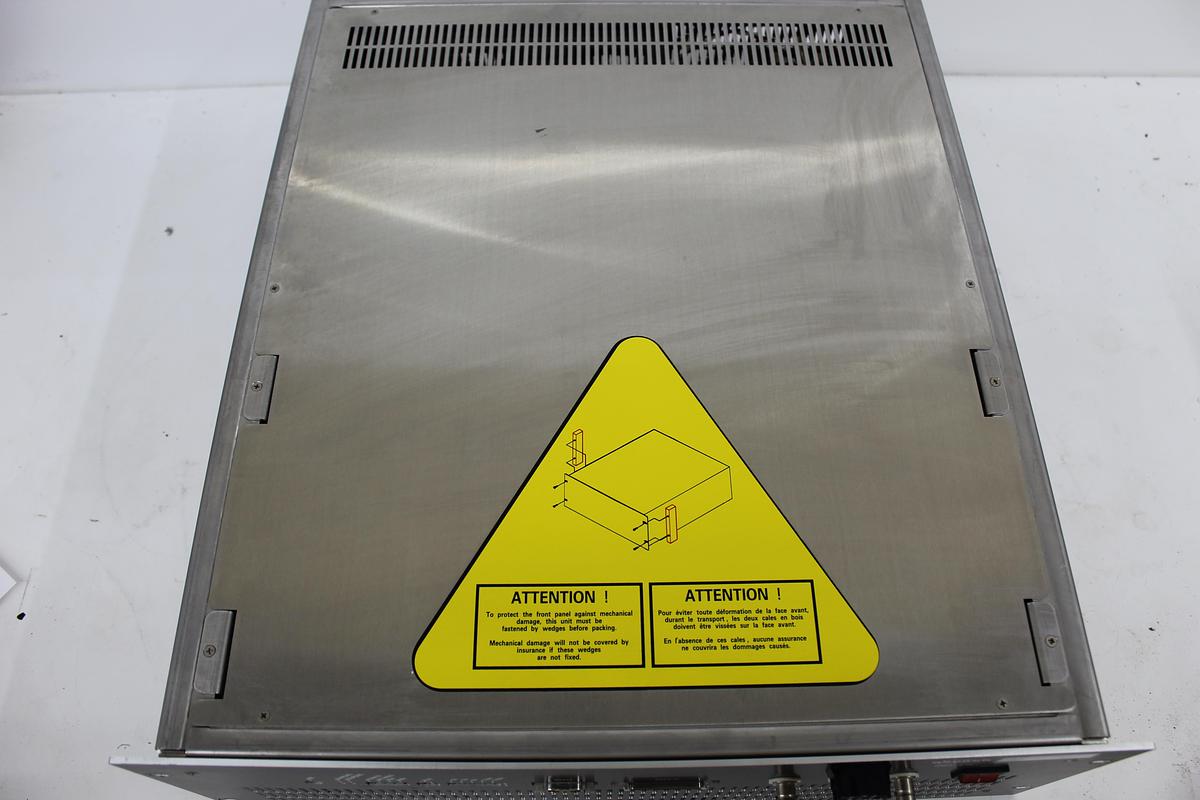

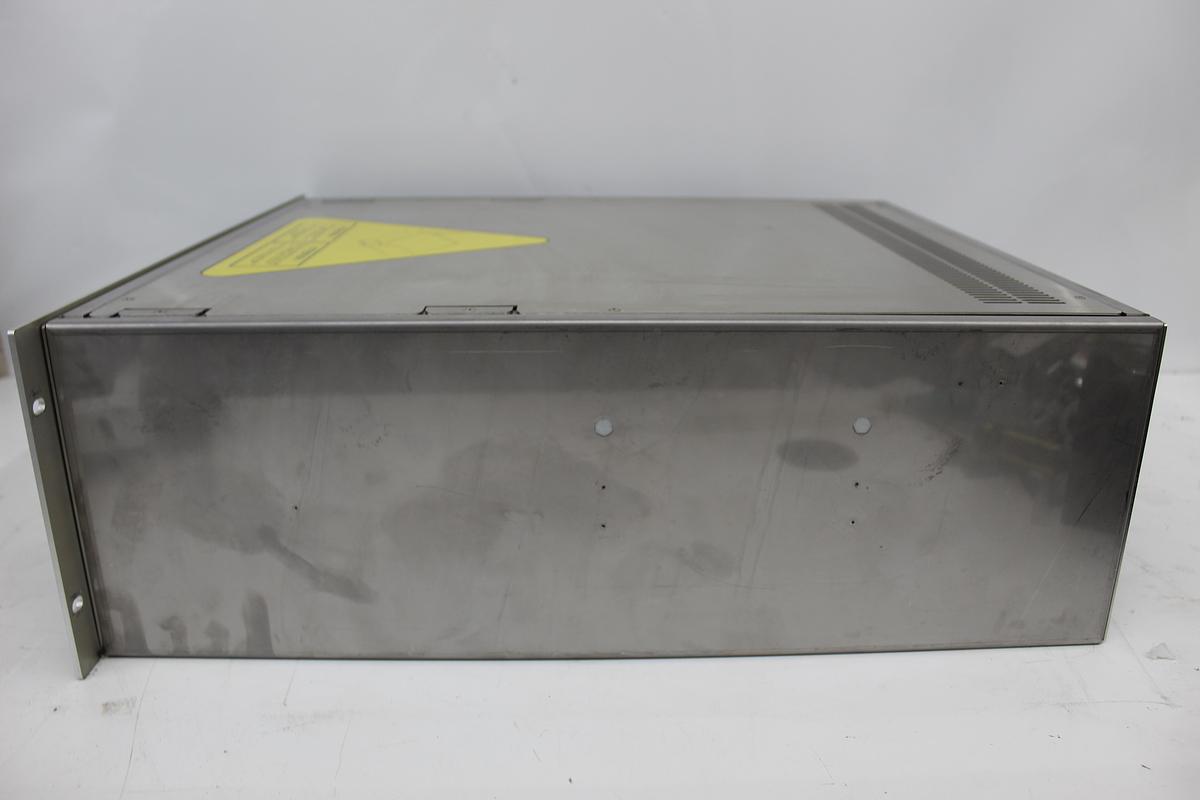

Unit is used, in great condition, pulled from a working decommissioned Bruker NMR Spectrometer. See photos, unit comes as shown.

[Info on Unit]

Manufacturer: Bruker

Model: GREAT 3/10 A

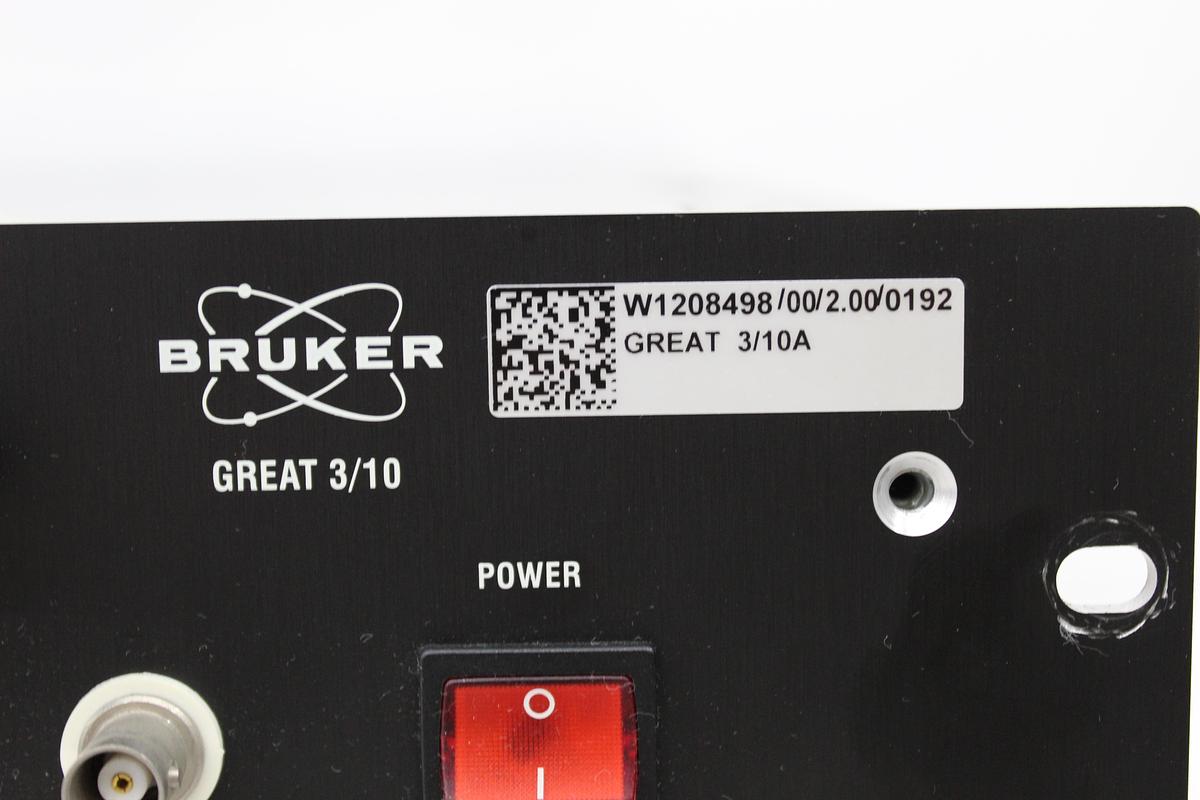

Part Number: W1208498/00/2.00/0192

Type: Three-Channel NMR Gradient Amplifier

Gradient Axes: X, Y, Z

Maximum Output Current: ±10 A

Maximum Output Voltage: ±33 V

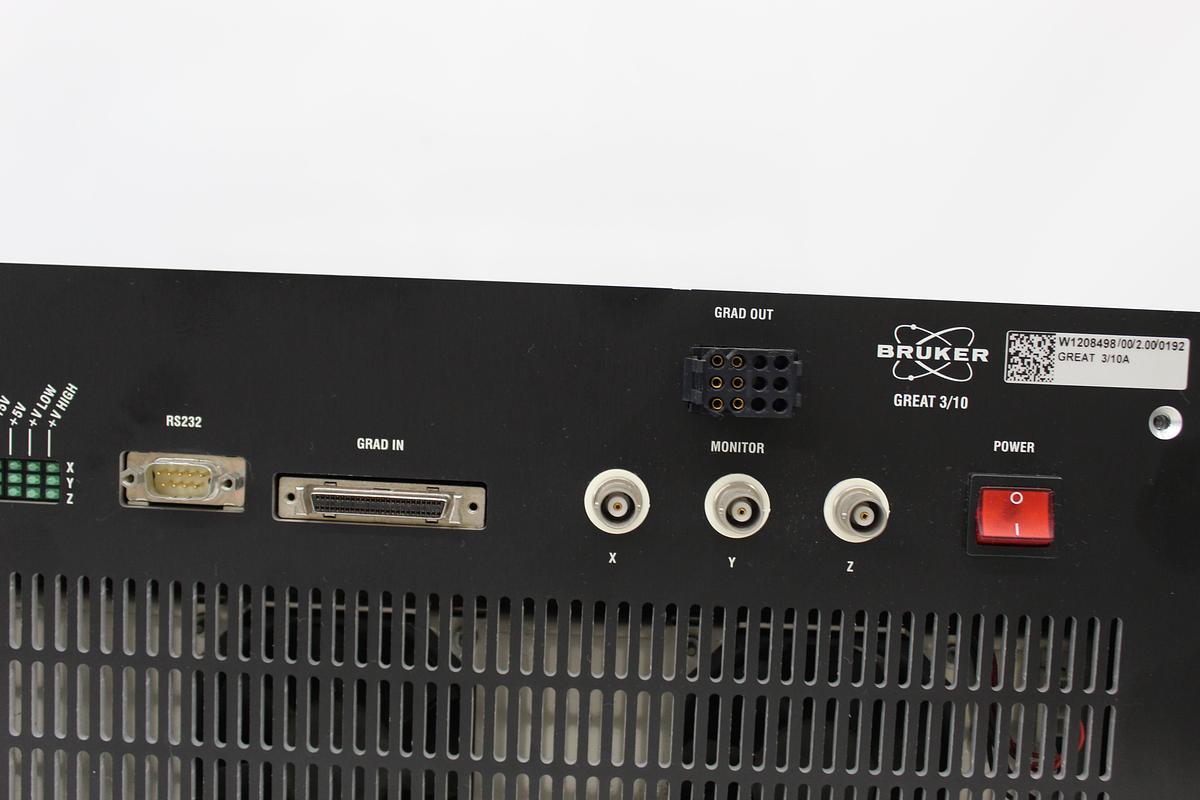

Communication Interface: RS232 Serial

Gradient Input: Multi-Pin Digital Connector

Gradient Output: Multi-Pin Connector

Monitoring Outputs: Three BNC Connectors (X, Y, Z)

[Description]

The Bruker GREAT 3/10 A is a three-channel gradient amplifier designed for gradient spectroscopy applications in Bruker NMR systems. It receives digital gradient instructions from the system G-Controller or DPP and converts them into precisely controlled analog current pulses for the X, Y, and Z gradient coils of a compatible NMR probe. The amplifier provides up to ±10 A of gradient current and ±33 V output with 20-bit resolution, supporting accurately shaped and rapidly switched gradient pulses. Its three independent gradient outputs enable XYZ gradient spectroscopy, while the integrated Ethernet interface provides system communication, configuration, and service access. GREAT 3/10 amplifiers are used with Bruker AVANCE-series NMR instrumentation for applications including pulsed-field-gradient experiments, diffusion measurements, gradient-assisted spectroscopy, and other NMR techniques requiring controlled magnetic-field gradients.

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
