Bruker BLAH300 W1345066 300W RF Power Amplifier 700-900MHz [NMR Spectrometer]

Bruker BLAH300 W1345066 300W RF Power Amplifier 700-900MHz [NMR Spectrometer]

[Condition]

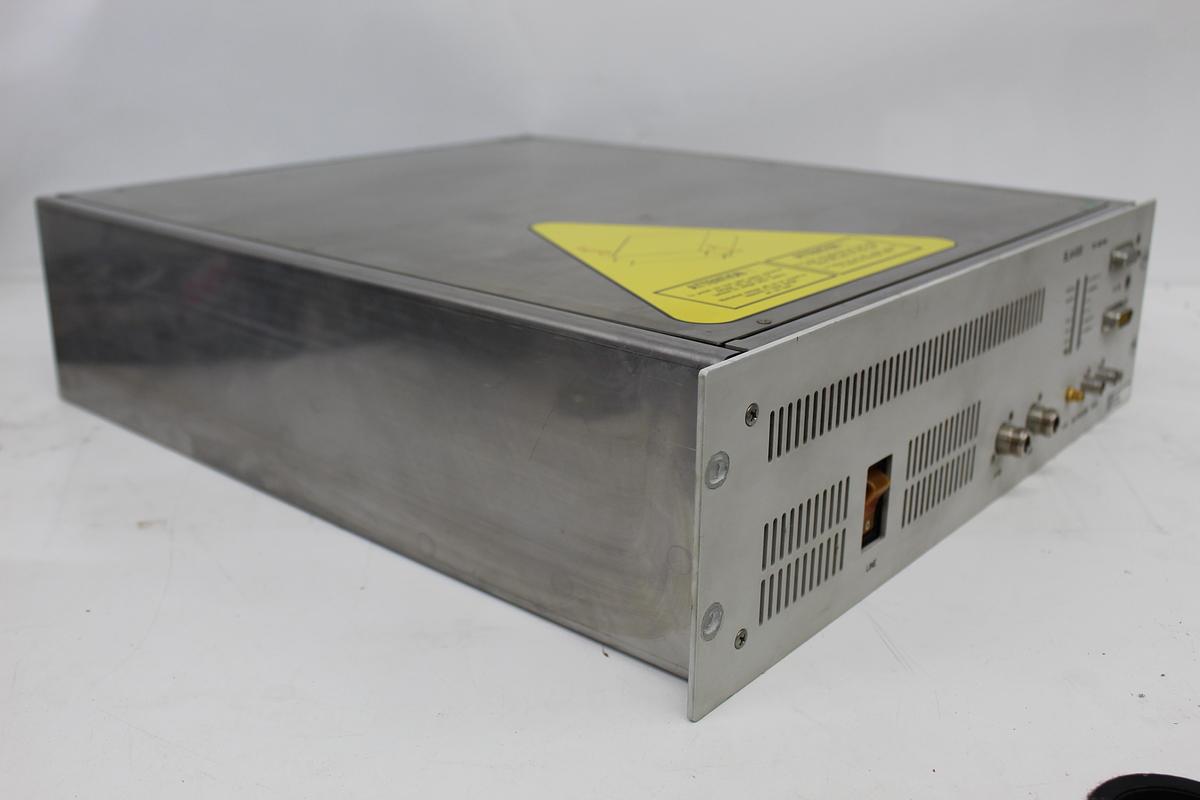

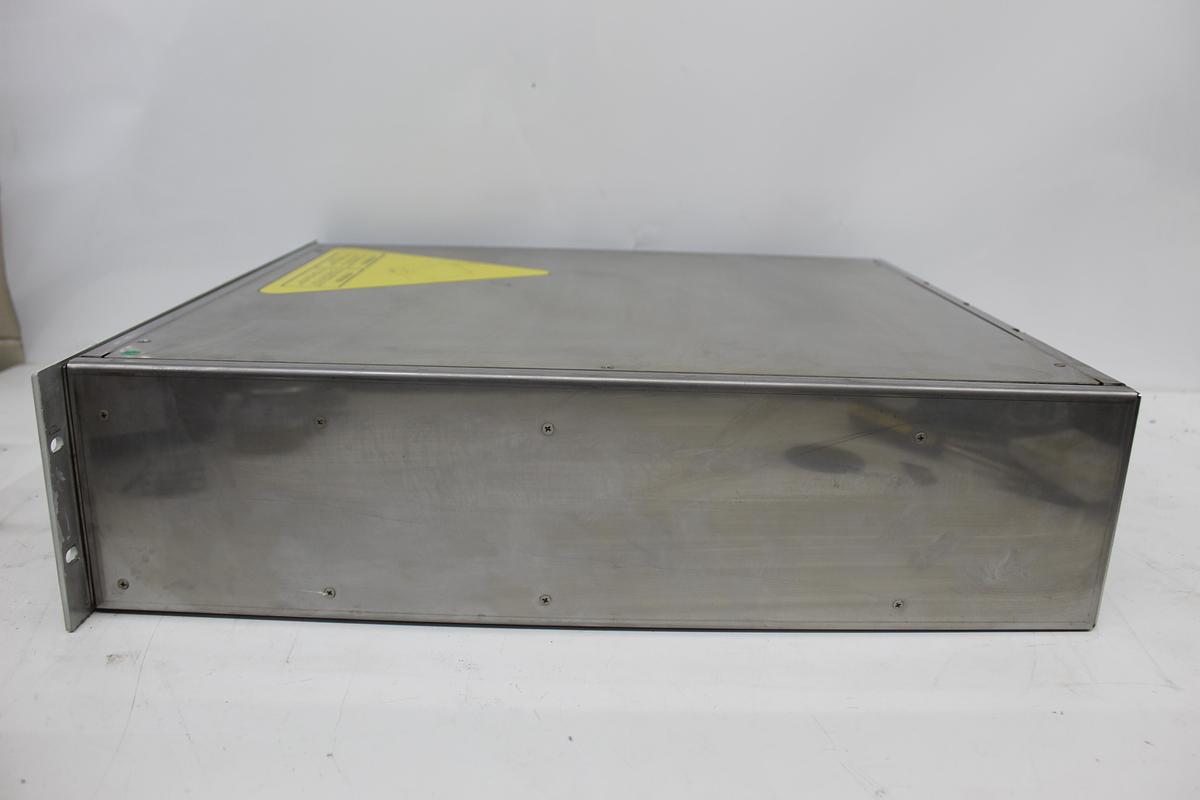

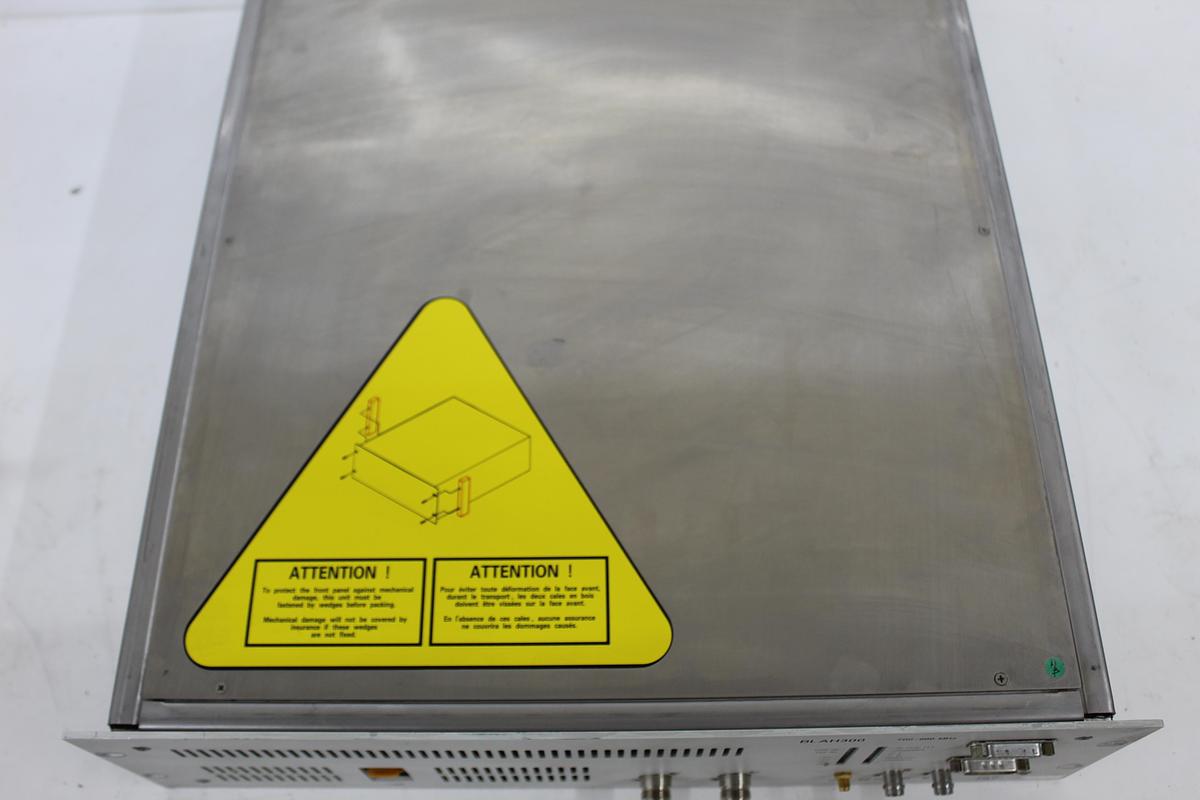

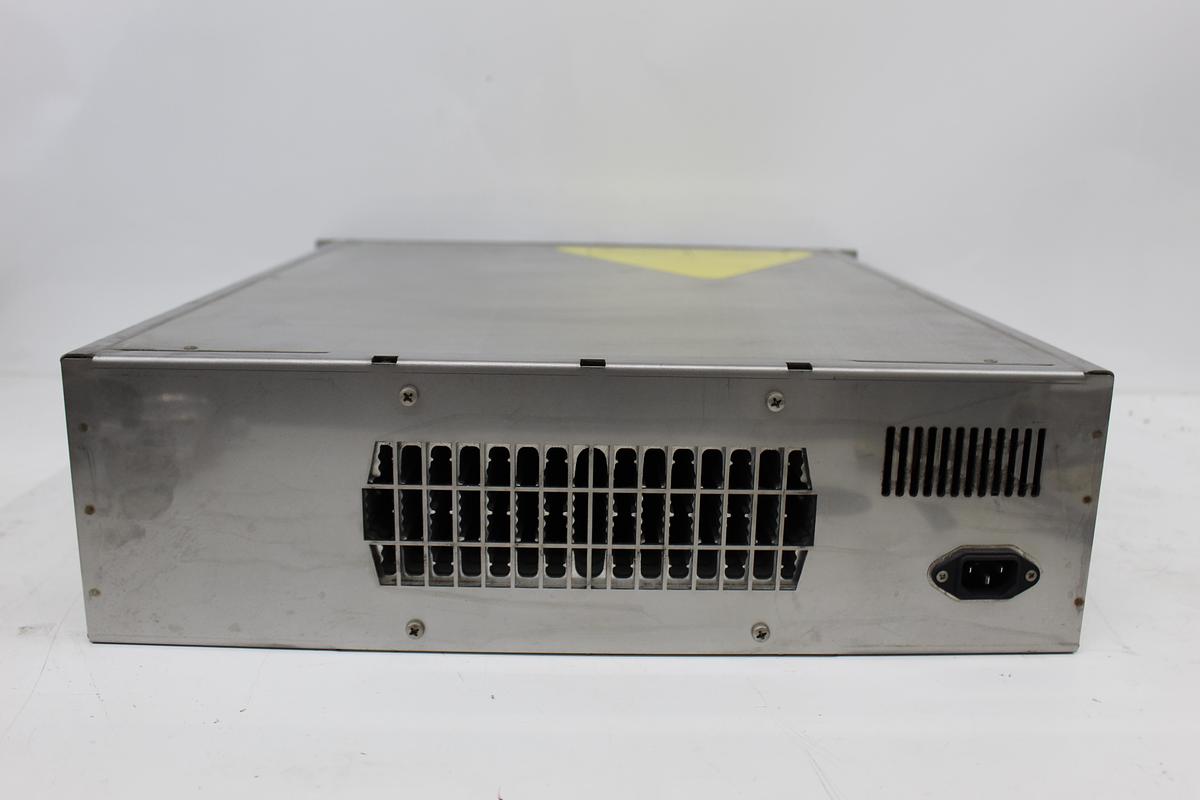

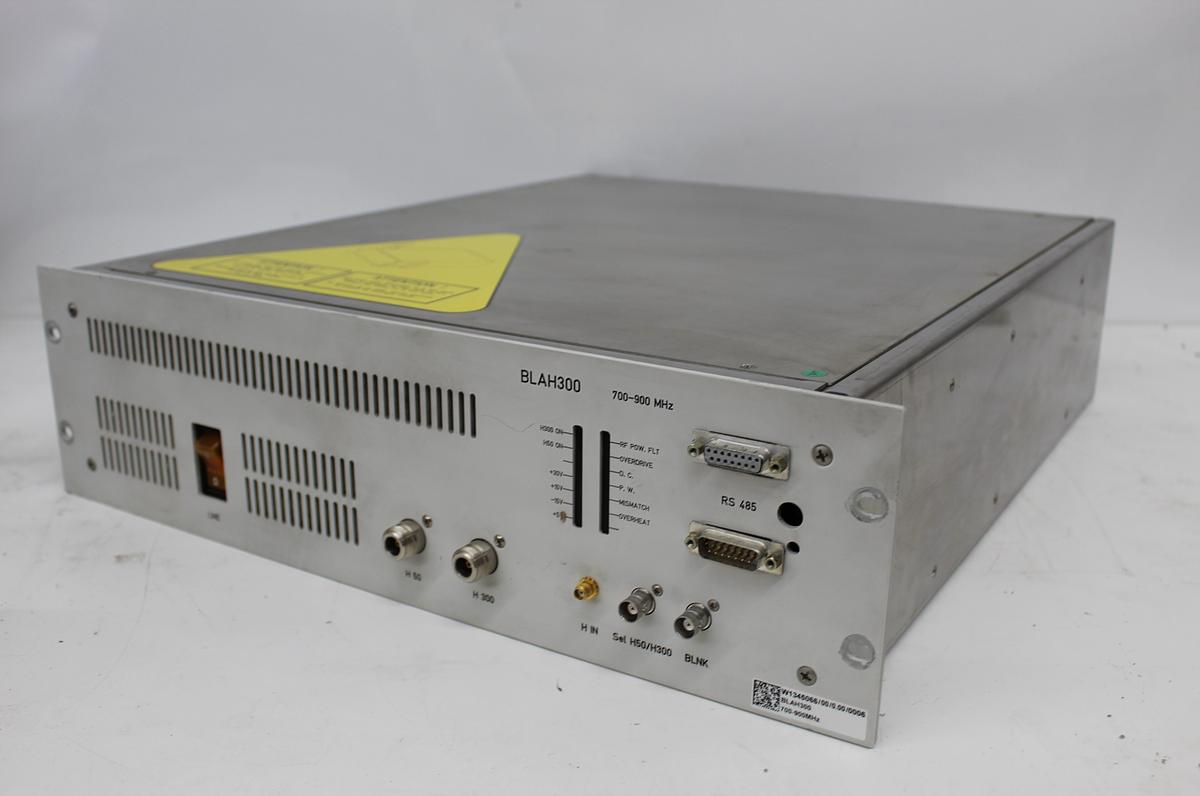

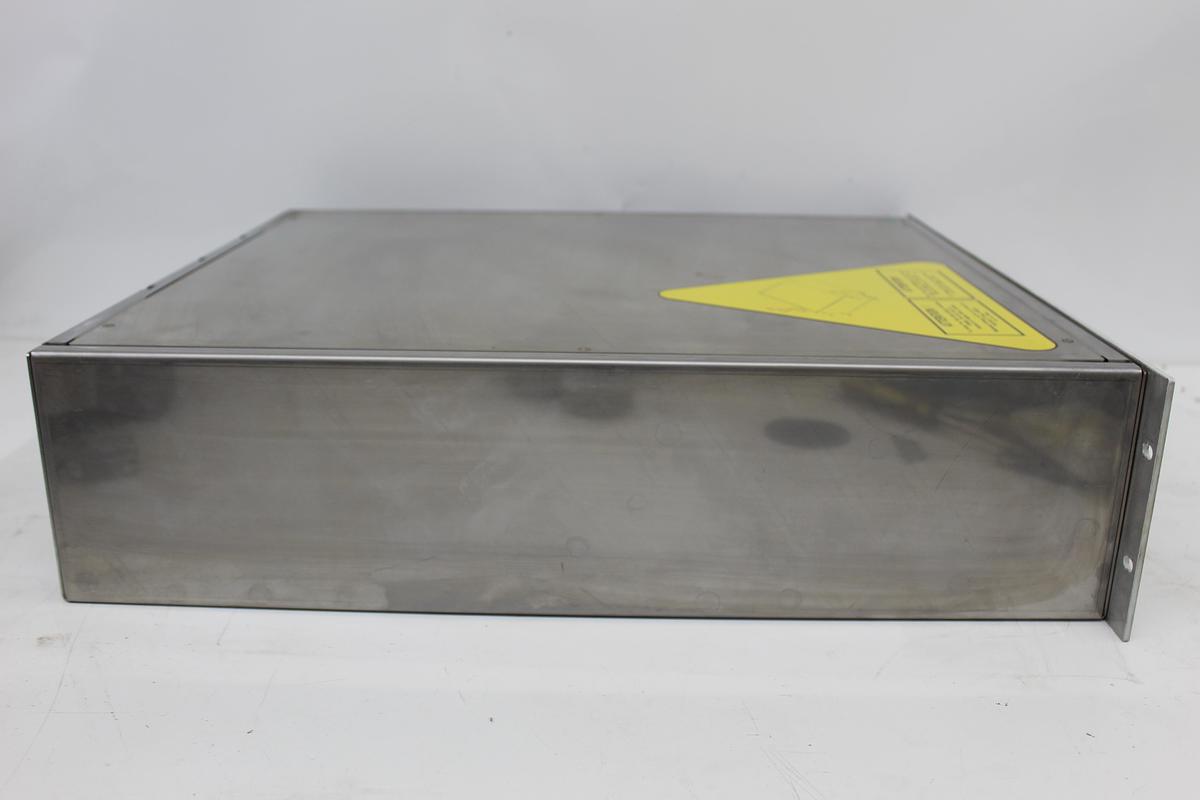

Unit is used, in great condition, pulled from a working decommissioned Bruker NMR Spectrometer. See photos, item comes as shown.

[Info on Unit]

Manufacturer: Bruker BioSpin

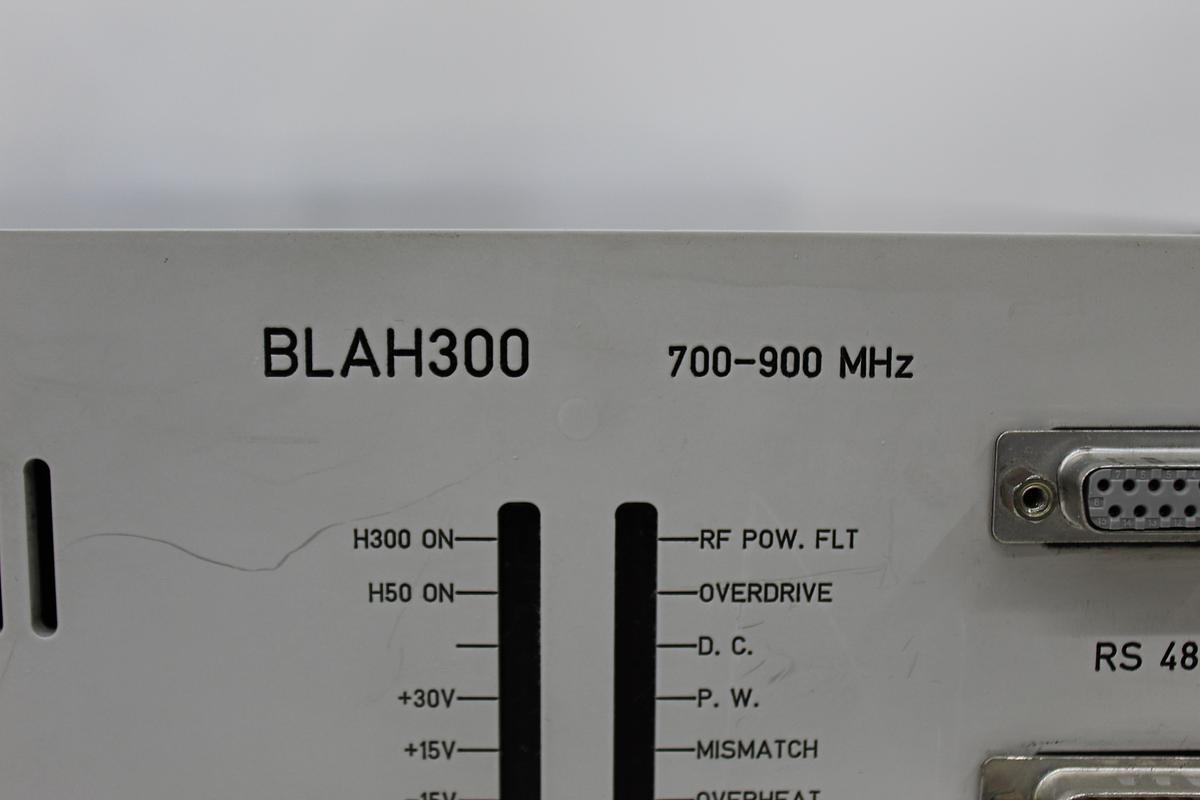

Model: BLAH300

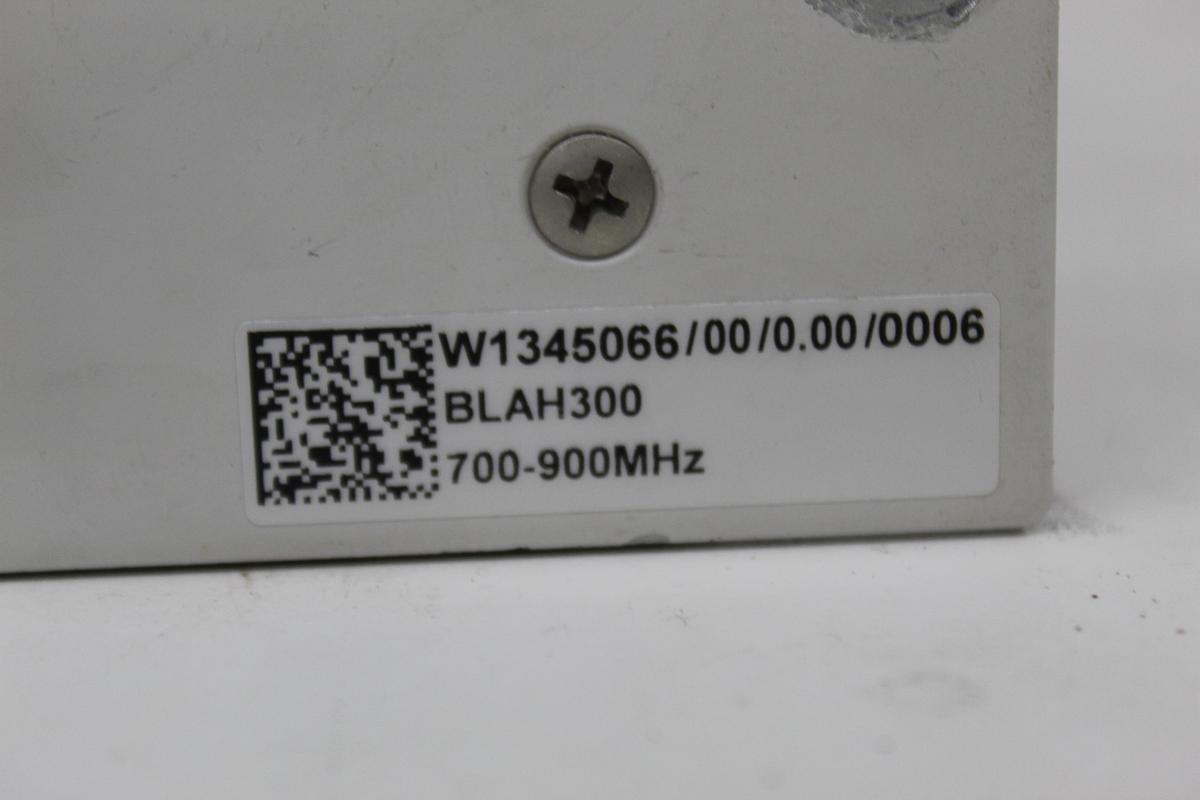

Part Number: W1345066/00/0.00/0006

Type: Broadband Linear RF Pulse Power Amplifier

Application: High-Field Nuclear Magnetic Resonance (NMR) Spectroscopy

Nominal Frequency Range: 700–900 MHz

Specified RF Operating Range: 650–900 MHz

High-Power Output: 300 W Peak (H300)

Low-Power Output: 50 W Peak (H50)

Continuous RF Output: 30 W H300 / 10 W H50

Amplifier Class: Class AB

RF Amplifier Technology: N-Channel Power MOSFET

Maximum Pulse Width: 100 ms at Full Power

Maximum Duty Cycle: 10% at Full Power

AC Input Voltage: 188–264 VAC

Nominal Voltage: 230 VAC

AC Frequency: 50/60 Hz

Communication Interface: RS485 Serial

[Description]

The Bruker BioSpin BLAH300 is a high-power broadband linear RF amplifier designed for high-field nuclear magnetic resonance (NMR) spectroscopy systems. Operating across a specified frequency range of 650–900 MHz, the amplifier provides two selectable RF power outputs: a 300-watt peak output for solid-state NMR applications and a 50-watt peak output for high-resolution spectroscopy. Its Class AB architecture utilizes N-channel RF power MOSFET technology to deliver controlled radio-frequency pulses with a maximum full-power pulse width of 100 milliseconds and a 10% duty cycle. The amplifier incorporates protection against excessive output power, reflected RF power, overheating, and pulse timing limits. Additional features include RS485 serial communication, TTL-controlled RF blanking, an integrated power supply, and a 19-inch 3U rackmount enclosure for integration into compatible Bruker NMR spectrometer systems.

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
