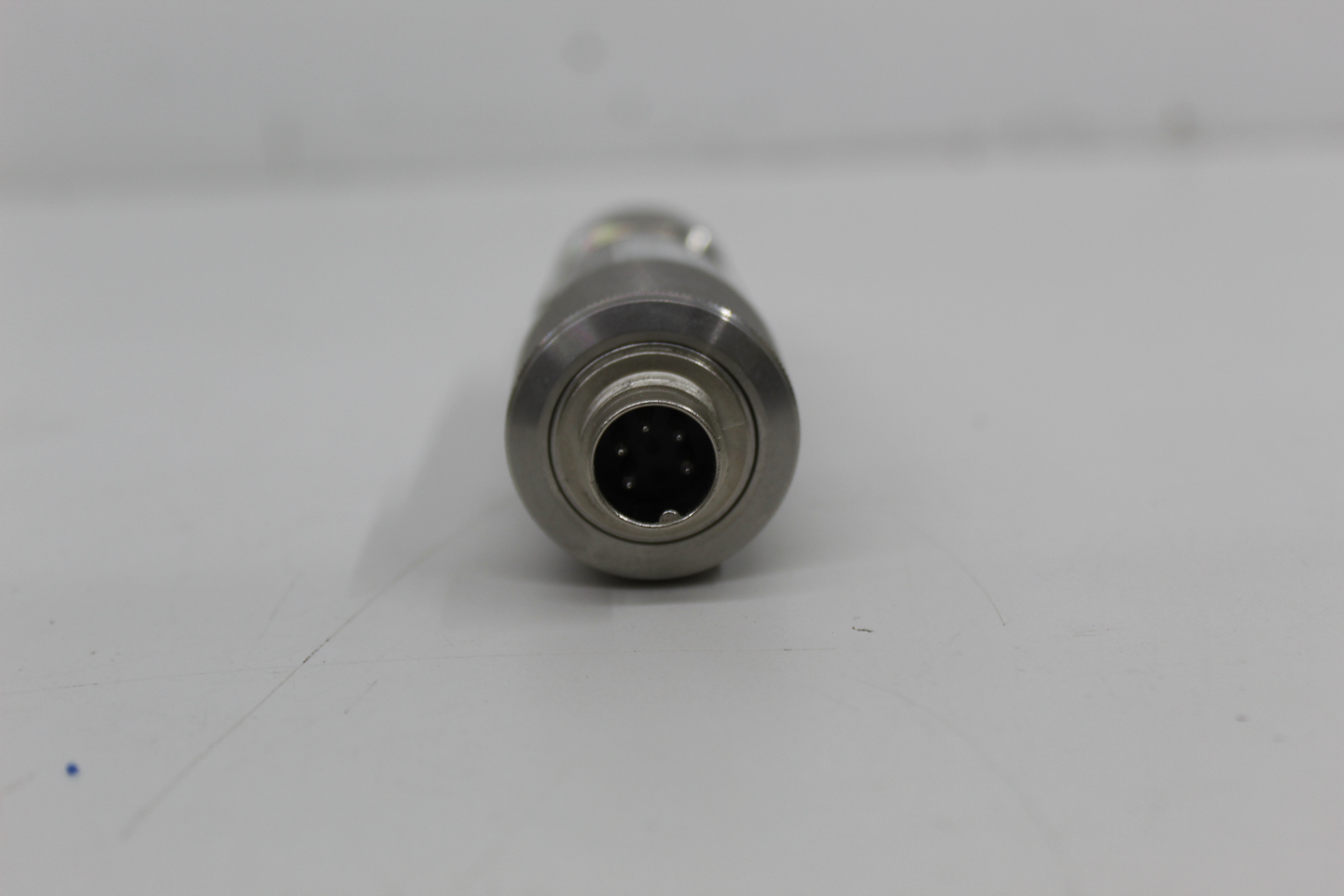

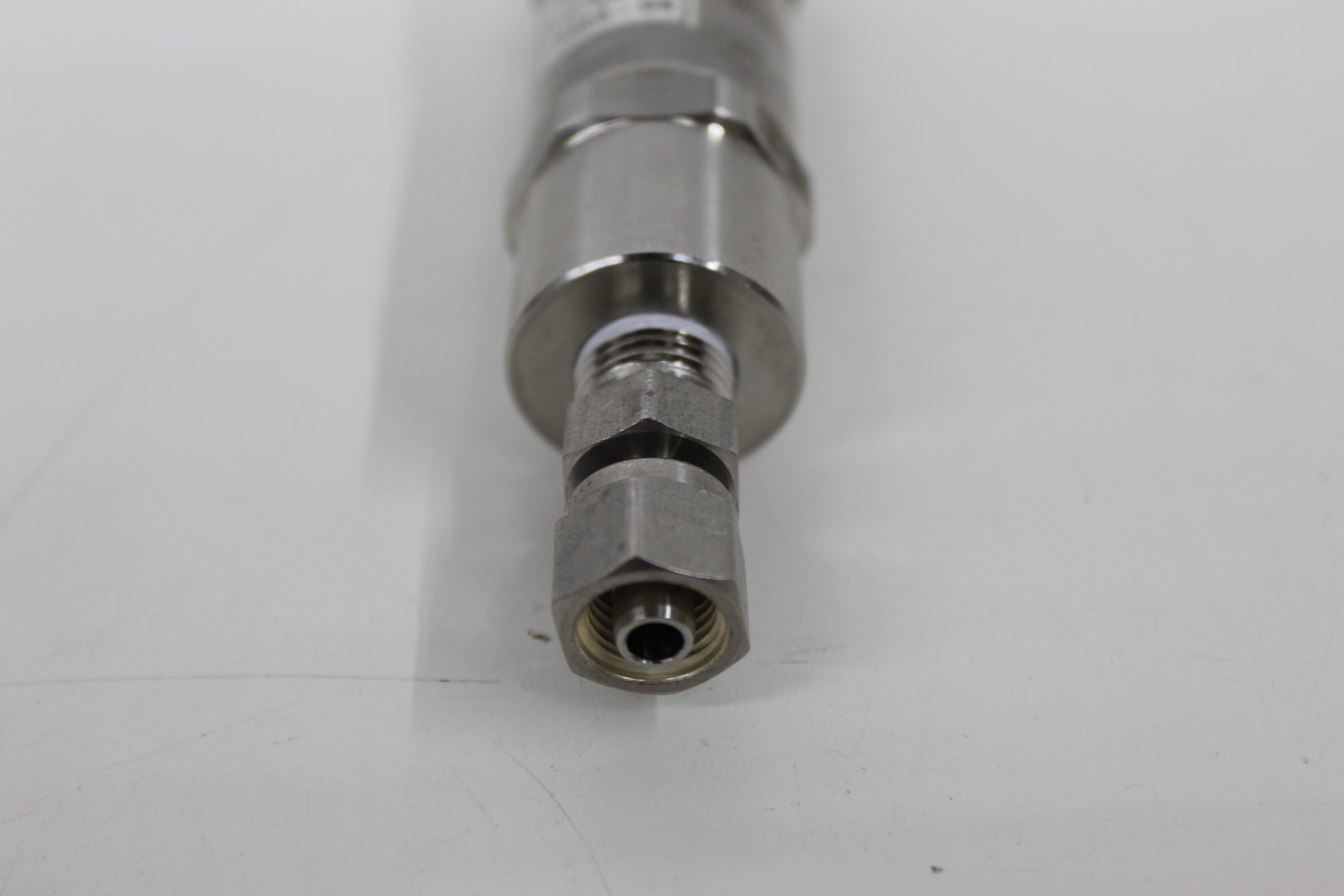

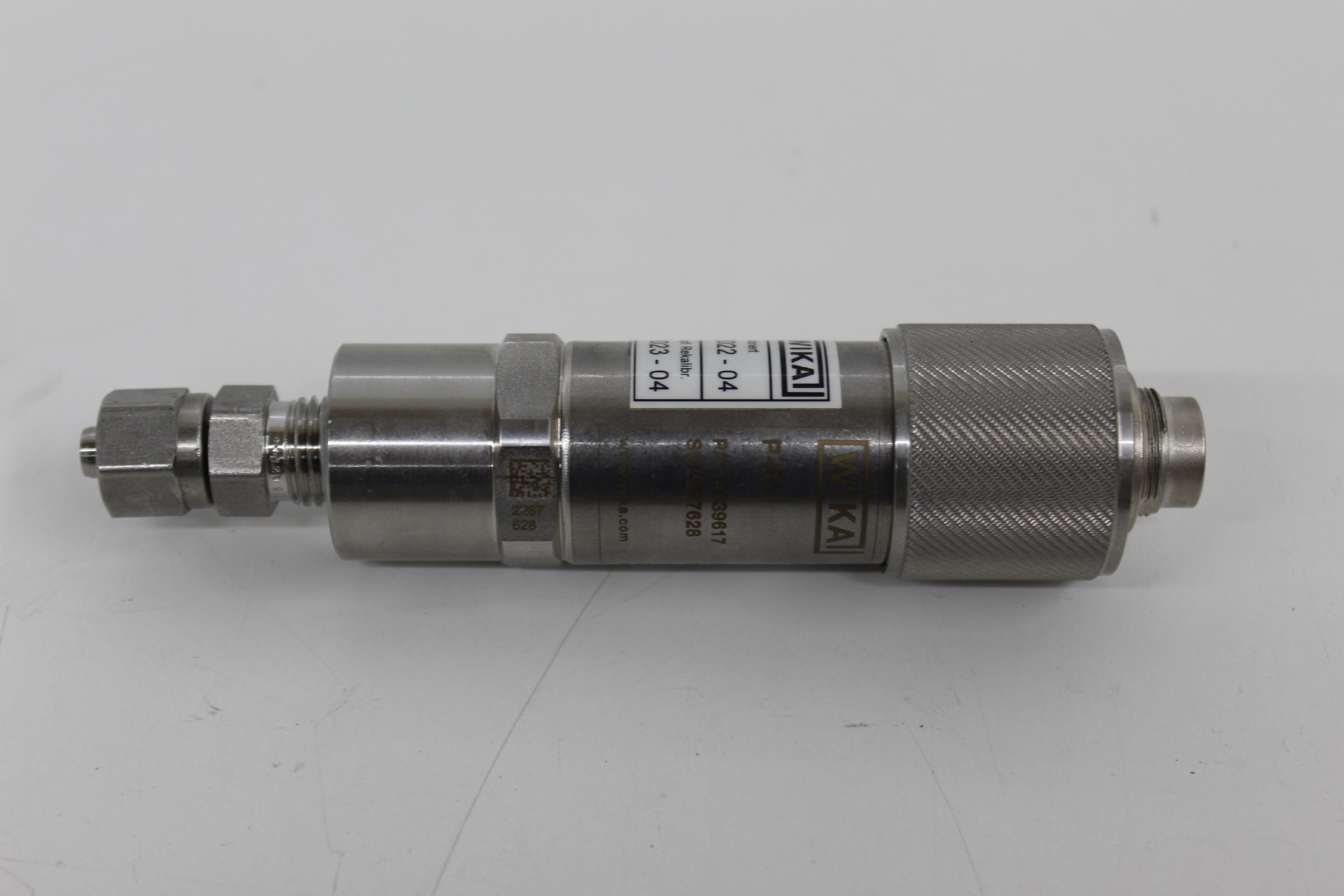

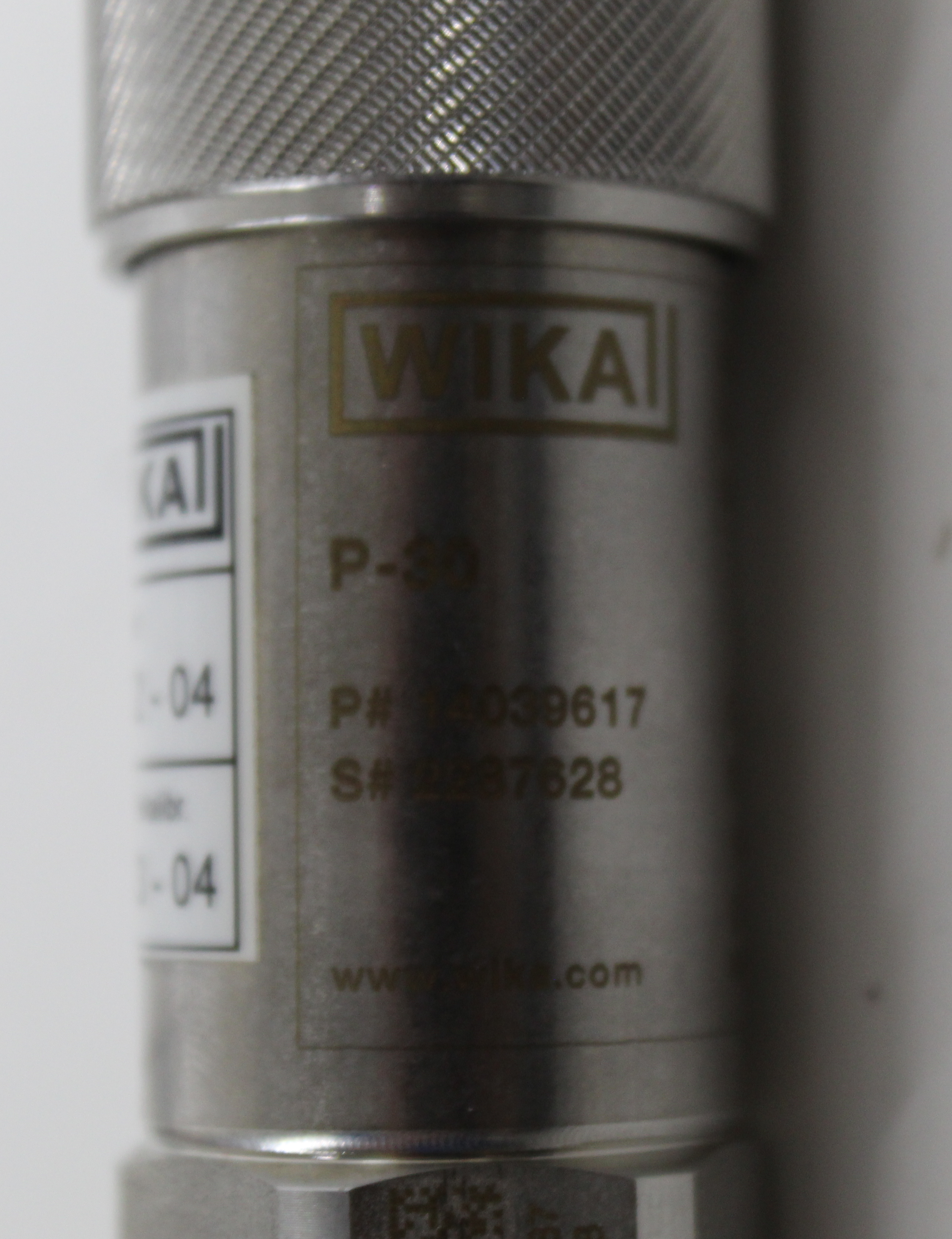

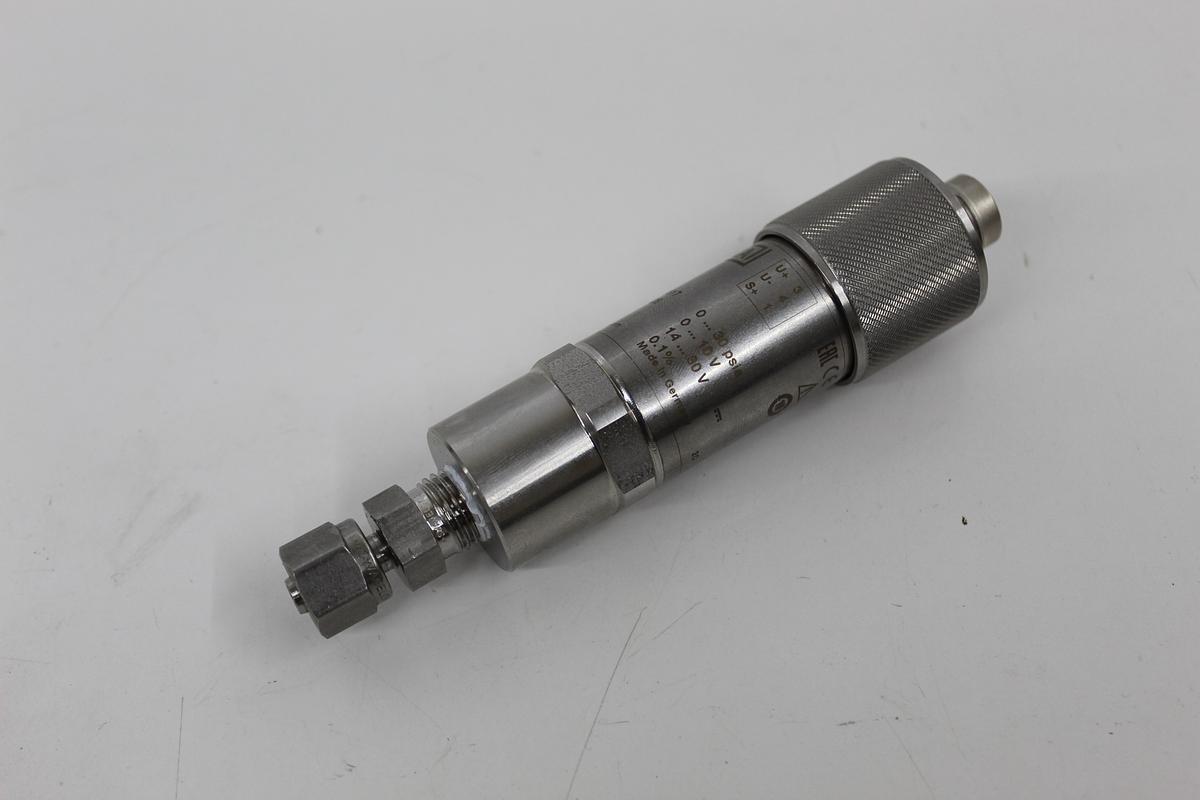

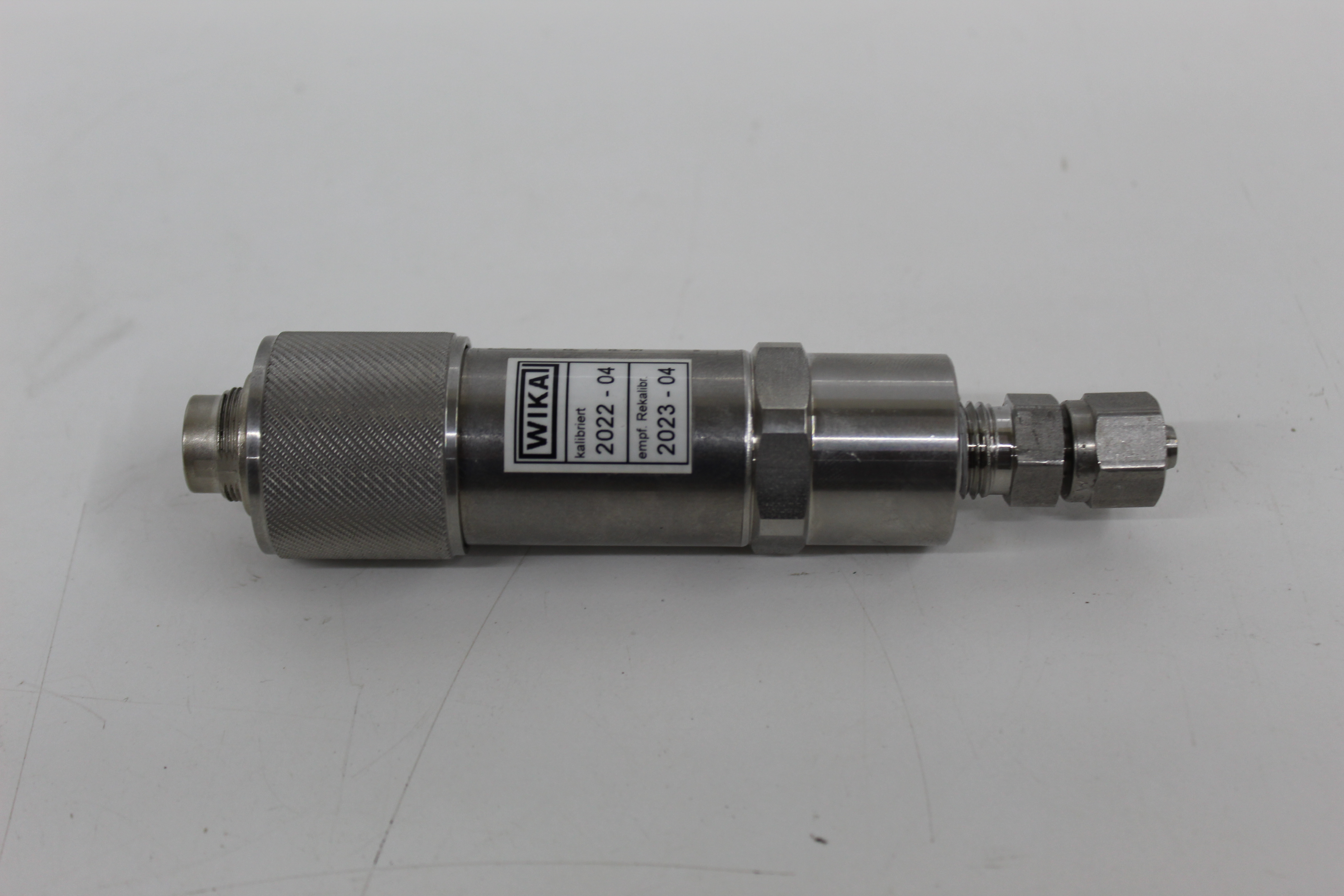

WIKA P-30 14039617 Precision Absolute Pressure Transducer 0-30 PSIA 0-10V

WIKA P-30 14039617 Precision Absolute Pressure Transducer 0-30 PSIA 0-10V

[Condition]

Unit is used, in great condition, pulled from a working decomissioned system. See photos, item comes as shown.

[Info on Unit]

Manufacturer: WIKA

Model: P-30

Part Number: 14039617

Serial Number: 2387628

Type: Precision Absolute Pressure Transducer

Pressure Range: 0–30 PSIA

Pressure Reference: Absolute

Output Signal: 0–10 VDC

Supply Voltage: 14–30 VDC

Accuracy: ±0.1% of Span

Measurement Rate: Up to 1 kHz

Output Configuration: 3-Wire Voltage

Power Positive (U+): Pin 3

Power Negative (U-): Pin 4

Signal Positive (S+): Pin 1

Maximum Current Consumption: 10 mA

Non-Linearity: ≤ ±0.04% of Span BFSL

Temperature Compensation: Active

Temperature Range Without Additional Error: 10°C to 60°C

Housing Material: Stainless Steel

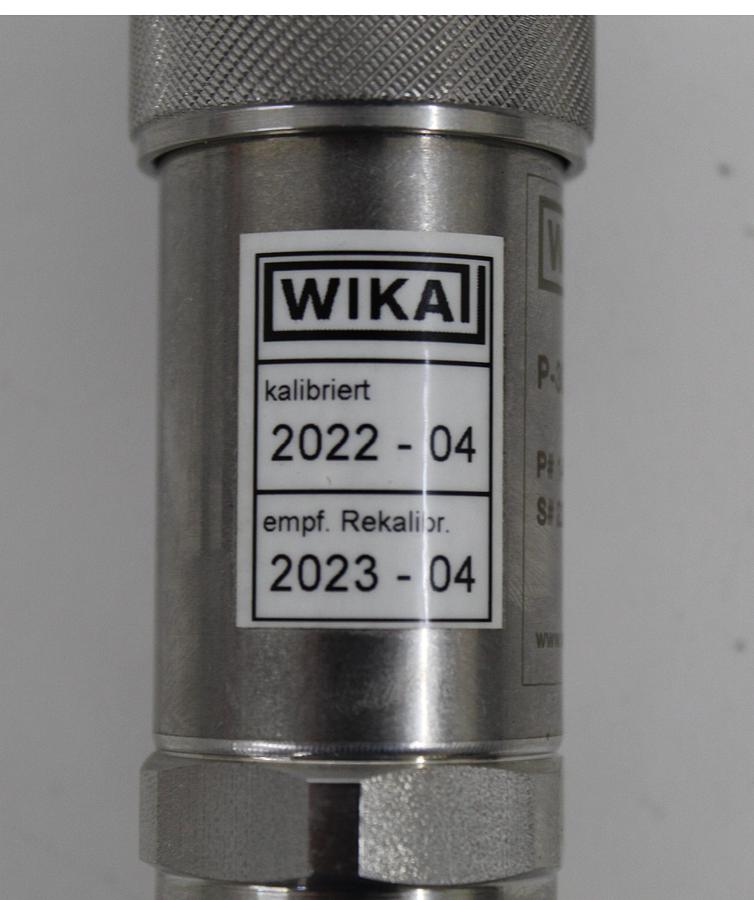

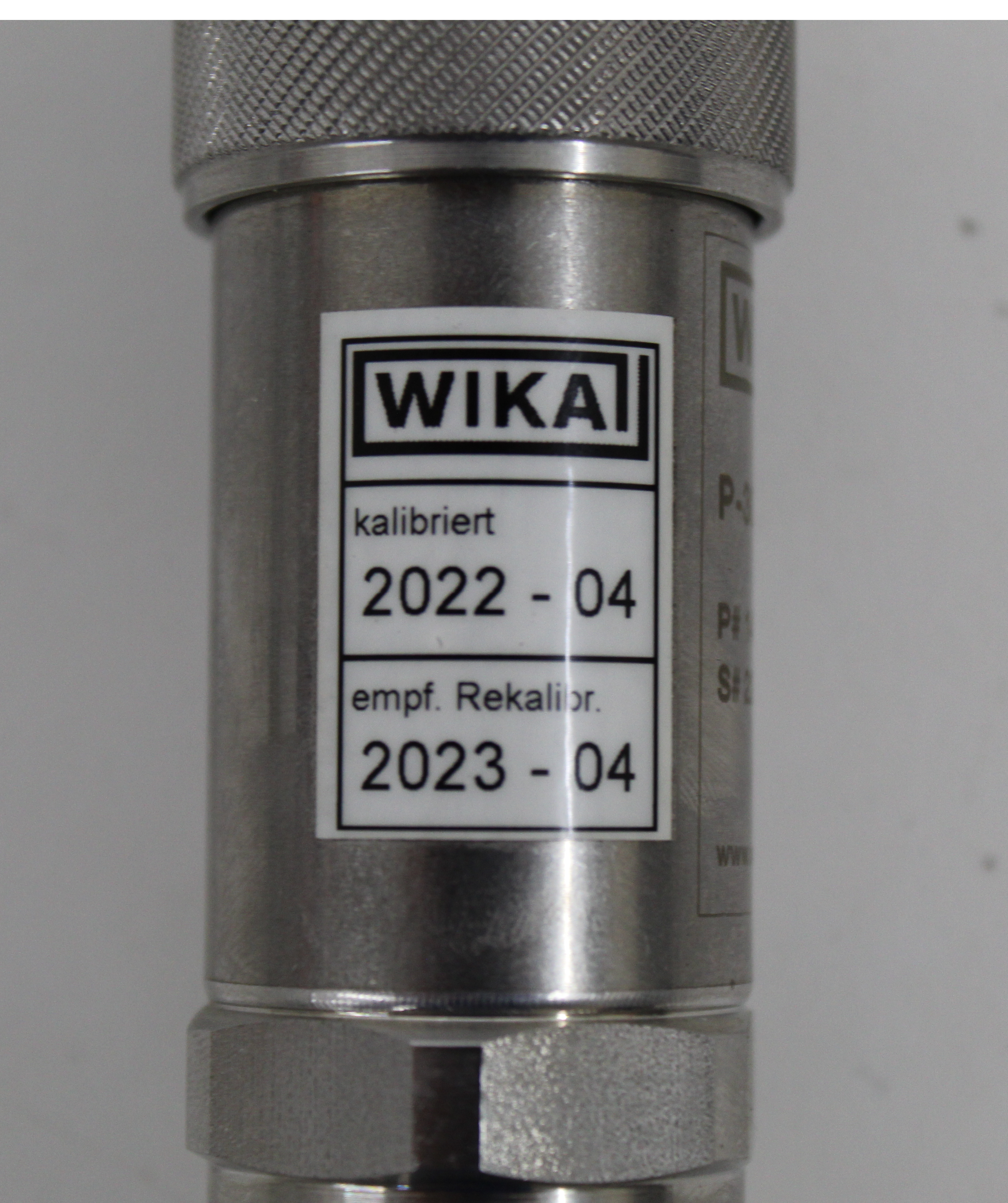

Calibration Date: April 2022

[Description]

The WIKA P-30 is a high-precision industrial absolute pressure transducer designed for accurate pressure measurement in laboratory, calibration, industrial automation, and process monitoring applications. This unit, part number 14039617, features a 0–30 PSIA measurement range, 0–10 VDC analog output, and a 14–30 VDC power supply requirement. With an accuracy rating of ±0.1% of span, the P-30 is suitable for precision pressure measurement applications where stable and repeatable readings are essential. Its stainless steel construction and electronically compensated measurement system support use in demanding industrial environments.
