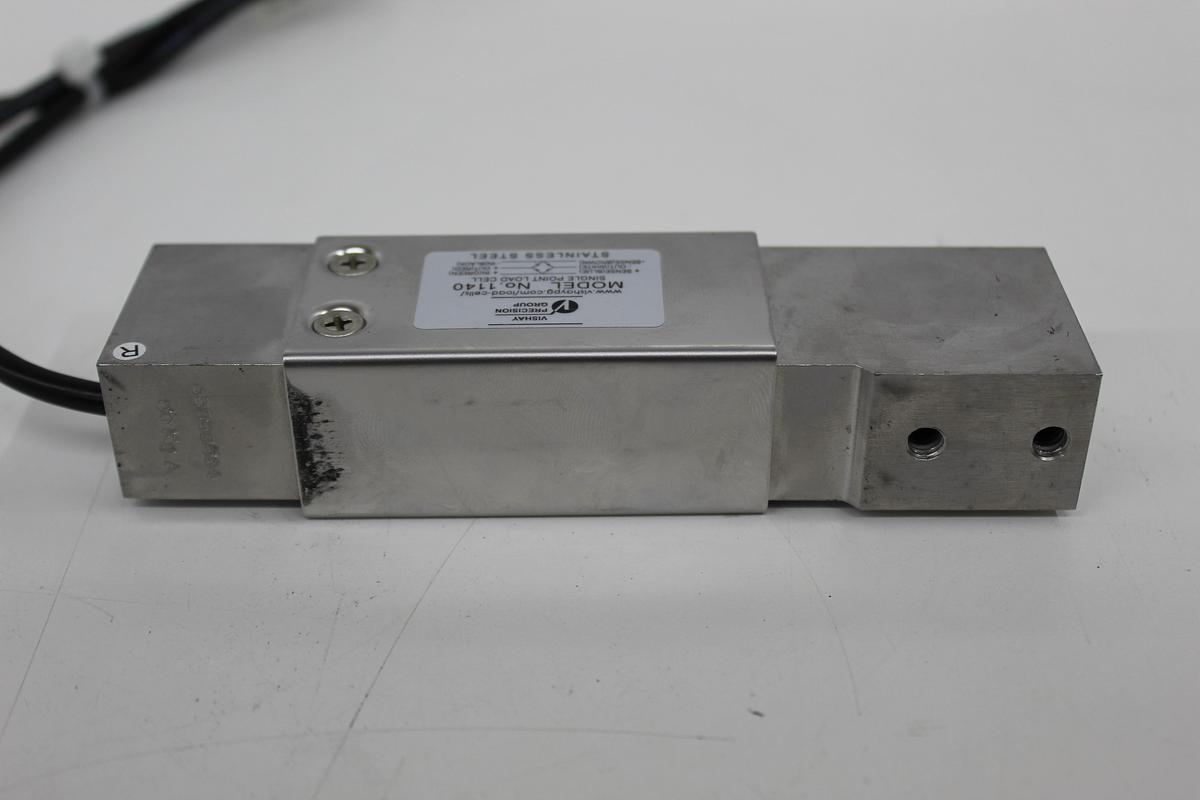

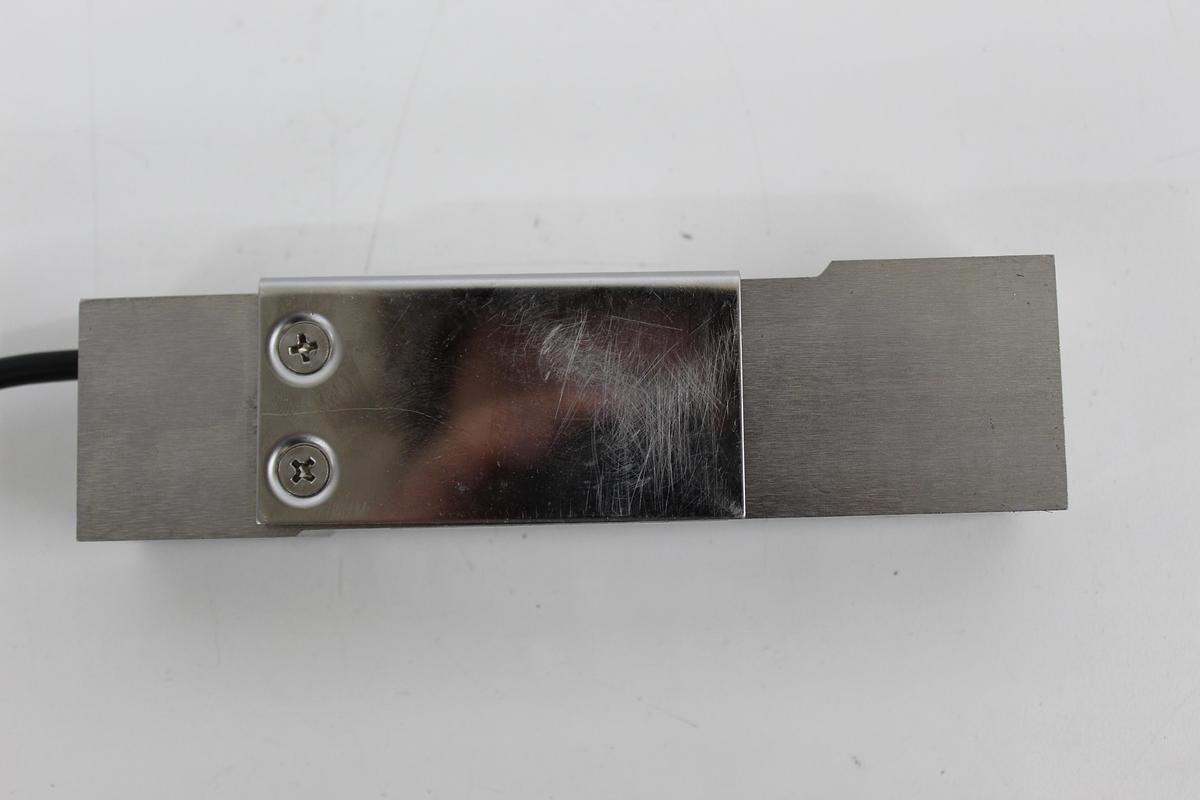

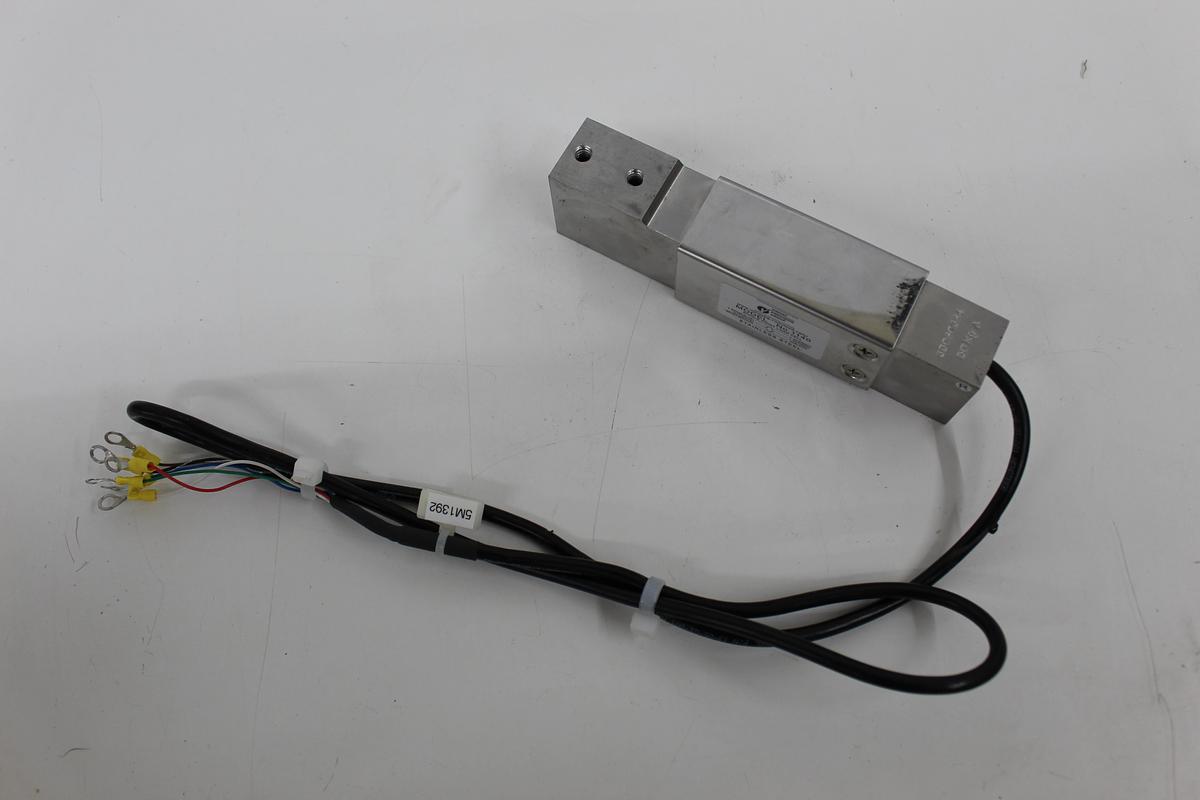

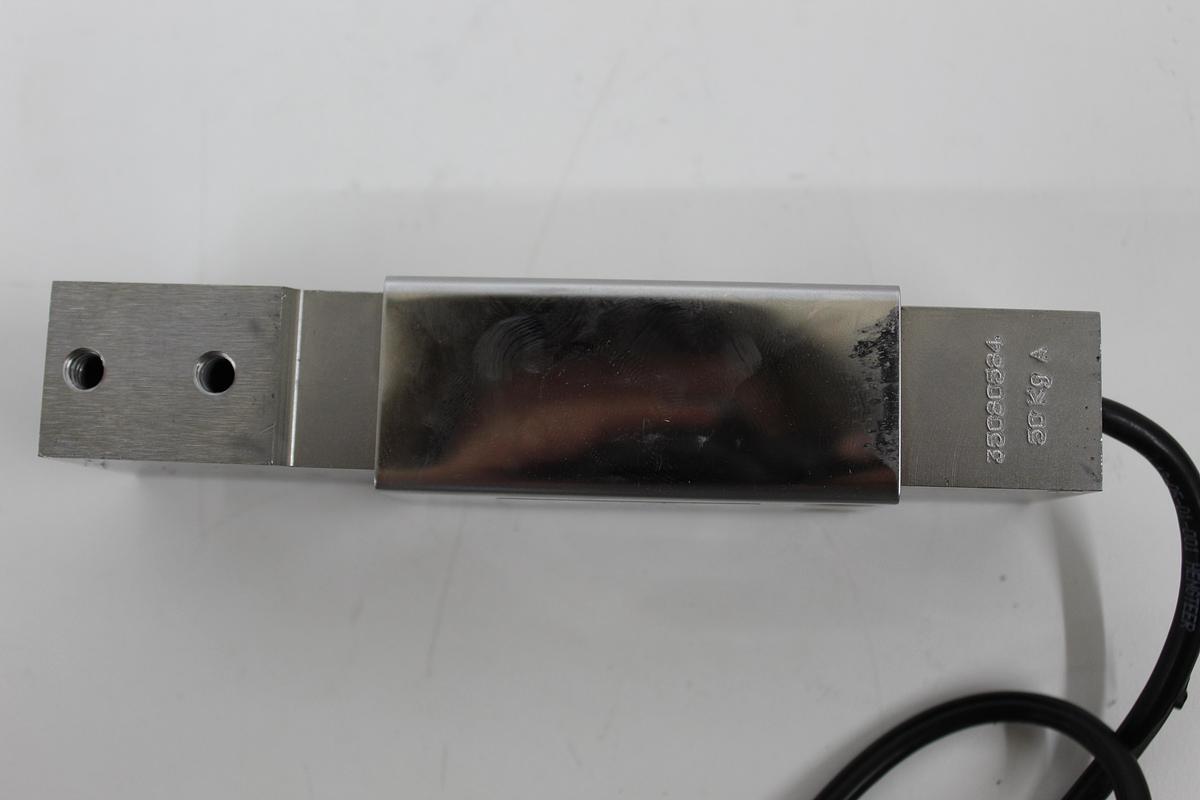

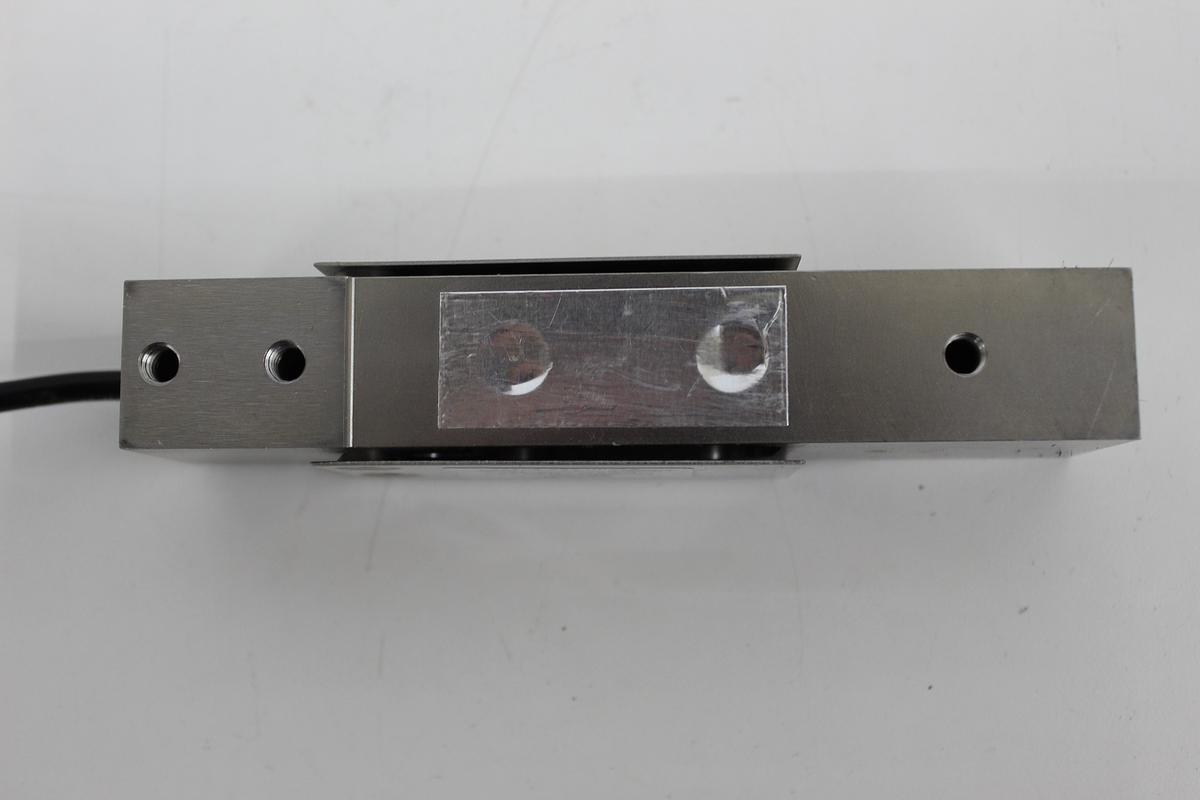

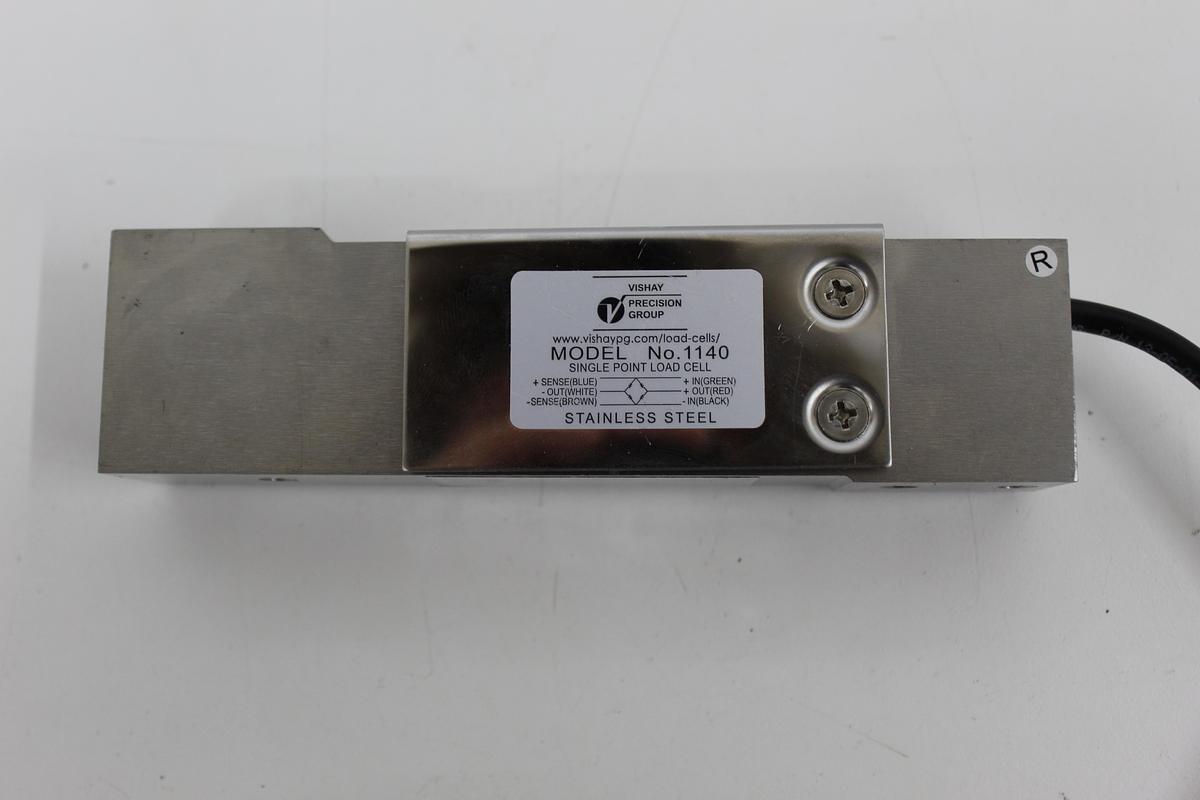

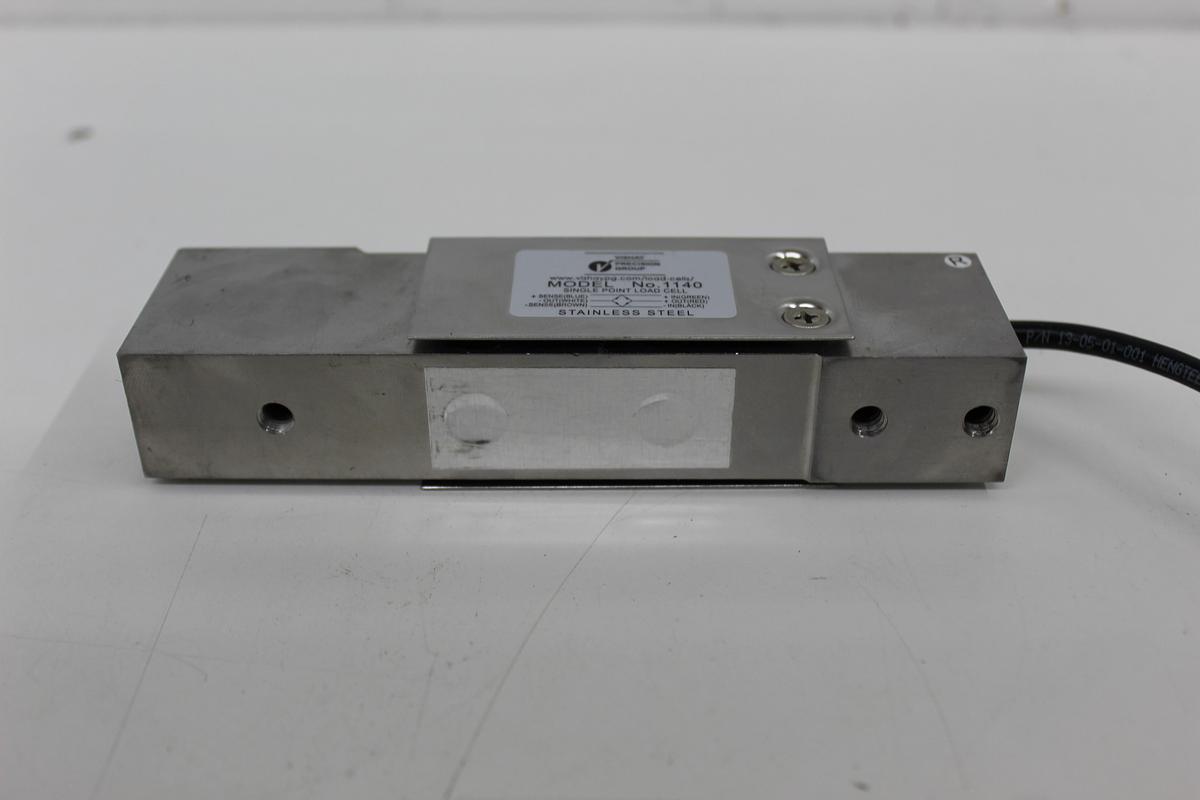

Vishay Precision Group 1140 Single Point Load Cell

Vishay Precision Group 1140 Single Point Load Cell

[Condition]

Unit is used, in great condition, pulled from a working decommissioned system. See photos, item comes as shown.

[Info on Unit]

Manufacturer: Vishay Precision Group (VPG)

Model: 1140

Type: Single Point Load Cell

Sensor Technology: Strain Gauge

Measurement Type: Force / Weight

Construction Material: Stainless Steel

Output Type: Analog Strain Gauge Bridge Signal

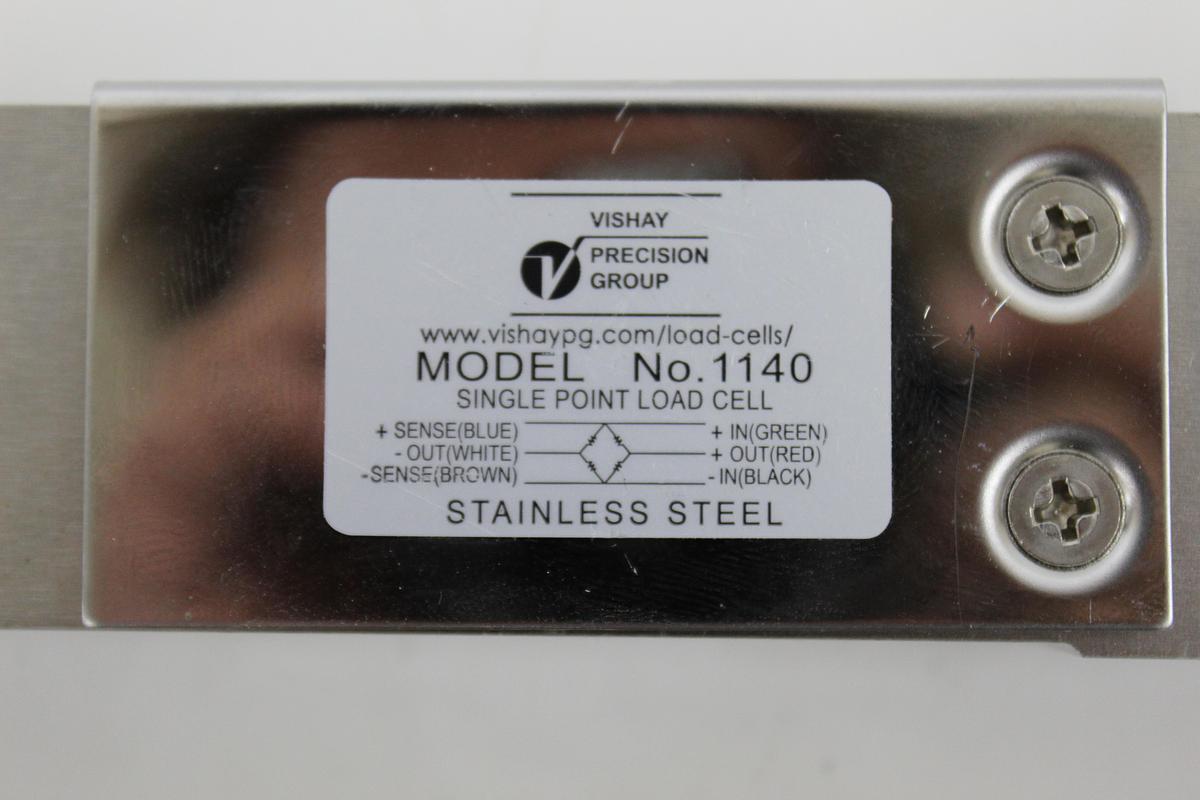

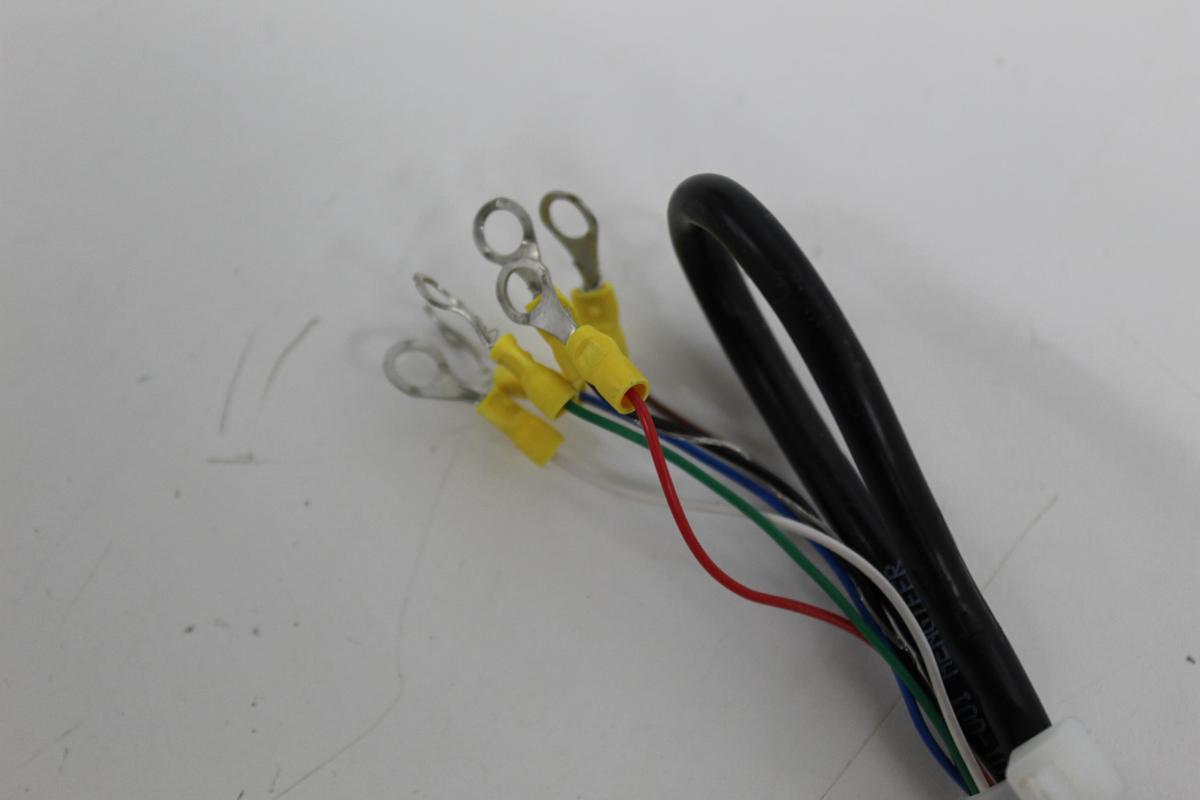

Excitation Positive (+): Blue Wire (as labeled)

Excitation Negative (-): Brown Wire (as labeled)

Signal Positive (+): Green Wire (as labeled)

Signal Negative (-): White Wire (as labeled)

Mounting Configuration: Single Point

[Description]

The Vishay Precision Group Model 1140 is a stainless steel single-point strain gauge load cell designed for precision weight measurement in industrial scales, bench weighing systems, counting scales, and checkweighing equipment. Its low-profile construction supports weighing platforms up to 400 × 400 mm, with available rated capacities ranging from 15 to 150 kg. The load cell incorporates a Wheatstone bridge measurement circuit with a nominal output of 2.0 mV/V and a recommended excitation voltage of 10 V. A six-wire connection provides separate excitation, signal, and sense circuits for compensation of cable resistance changes. Stainless steel construction and optional environmental sealing support operation in industrial weighing applications.

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
