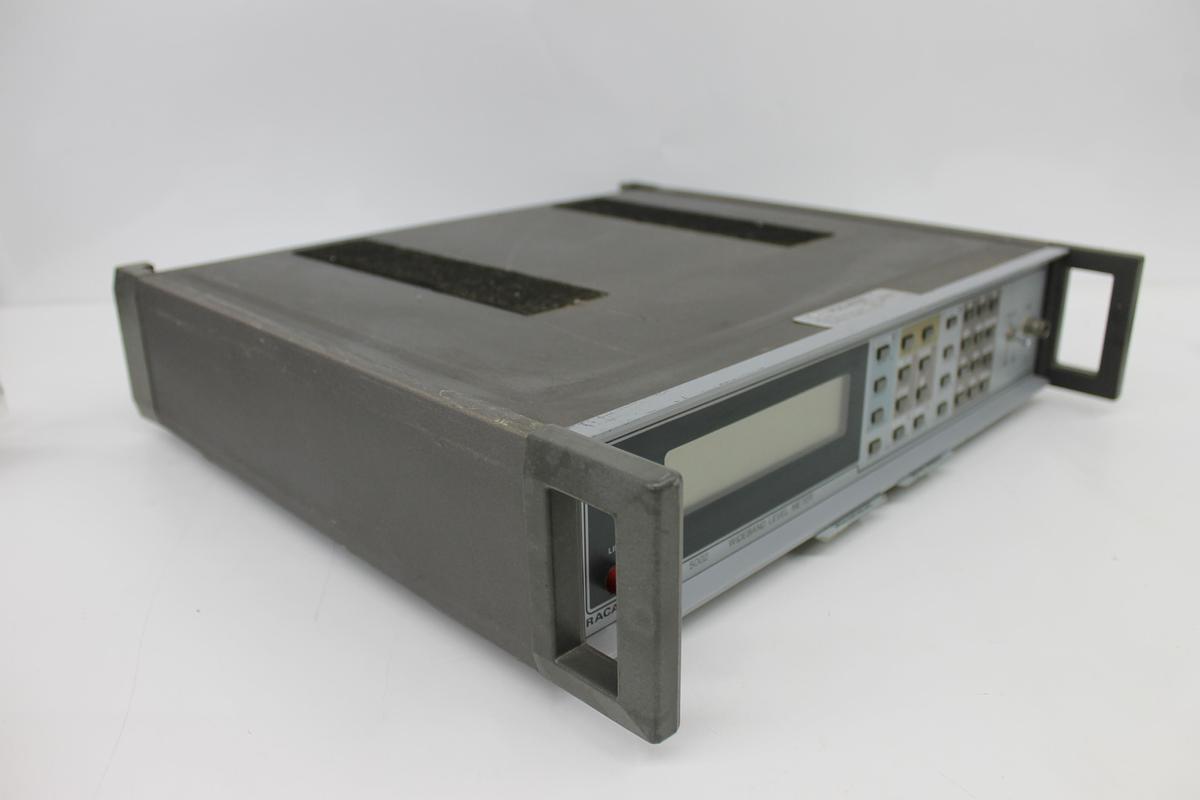

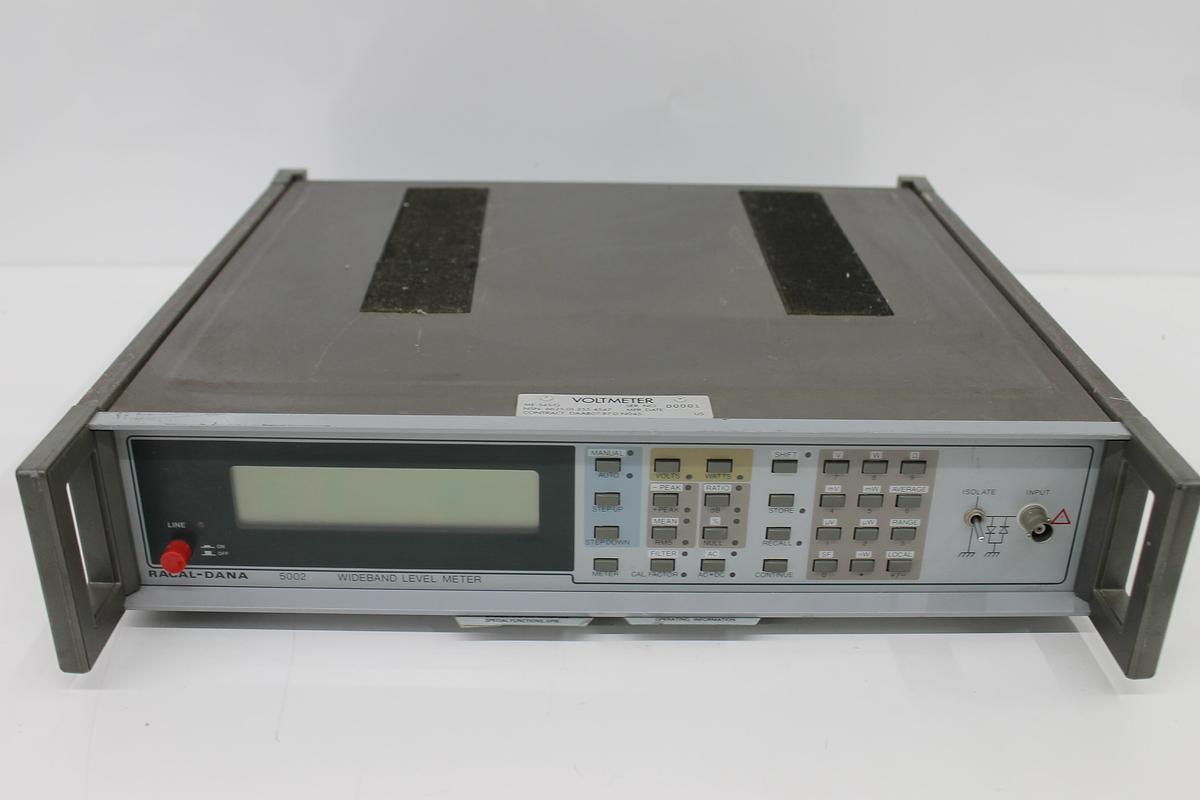

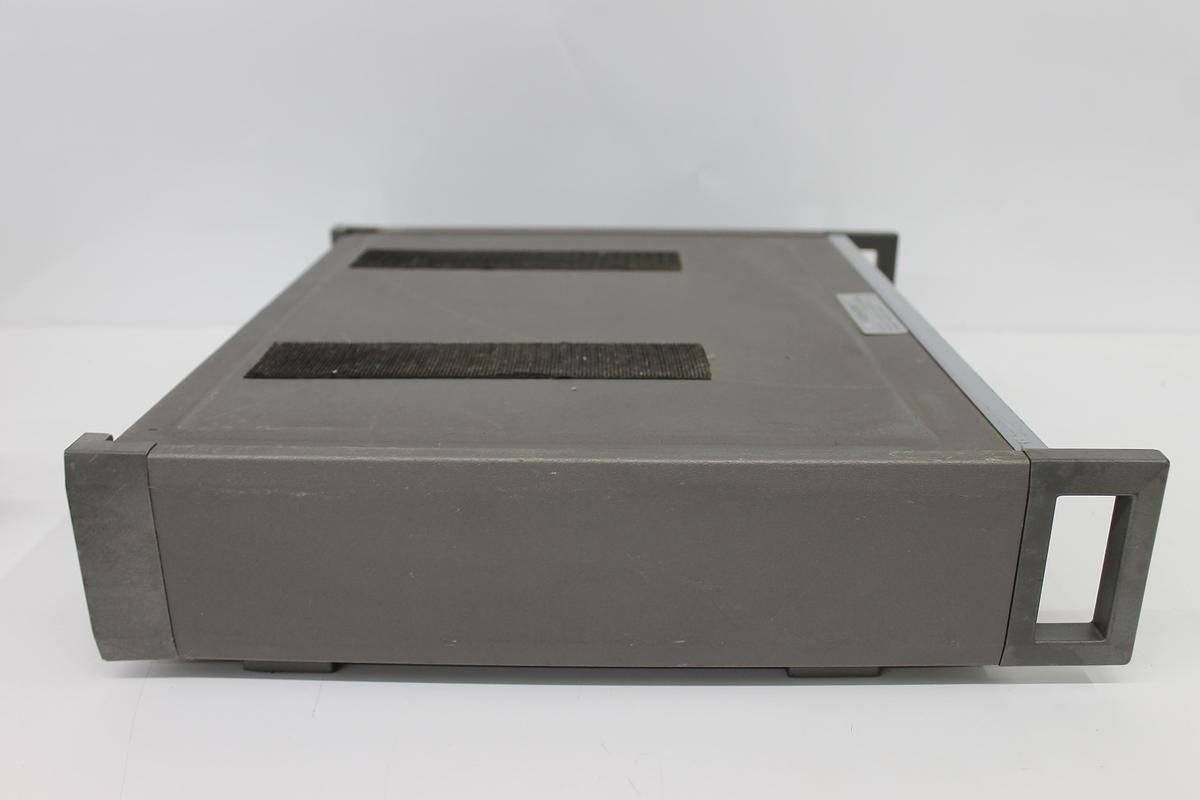

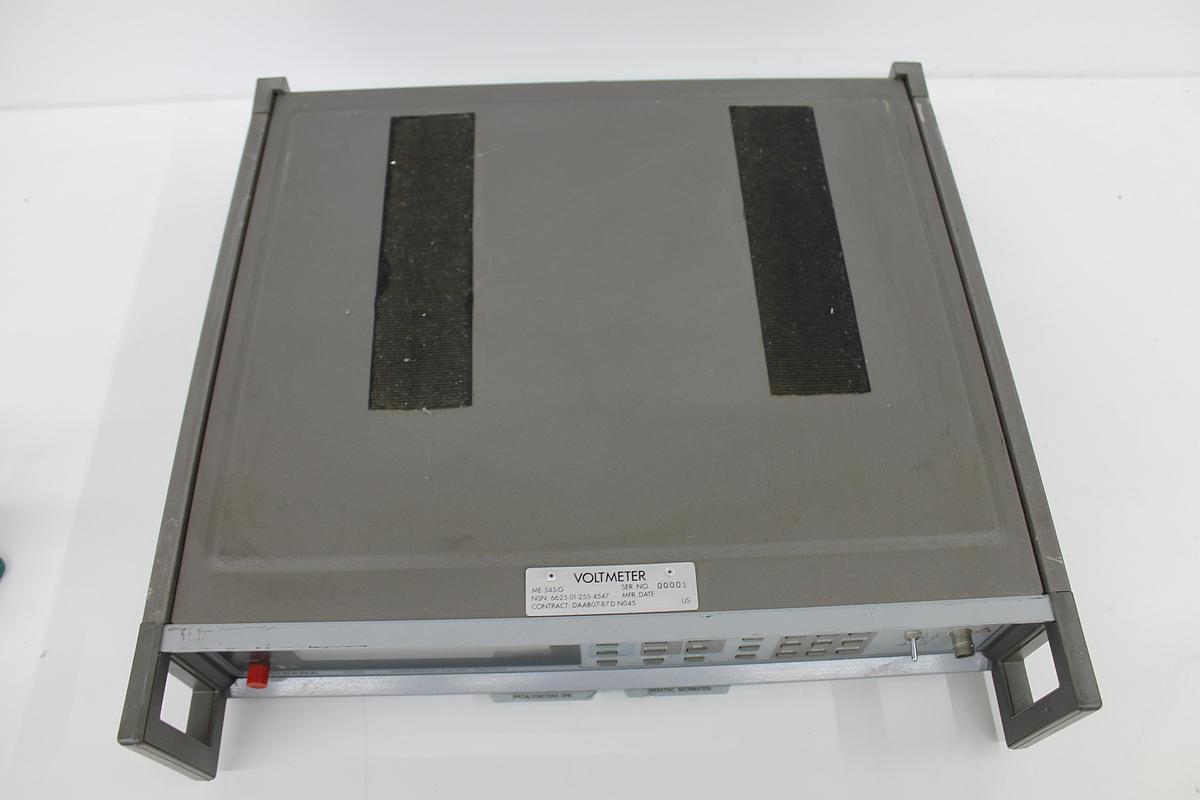

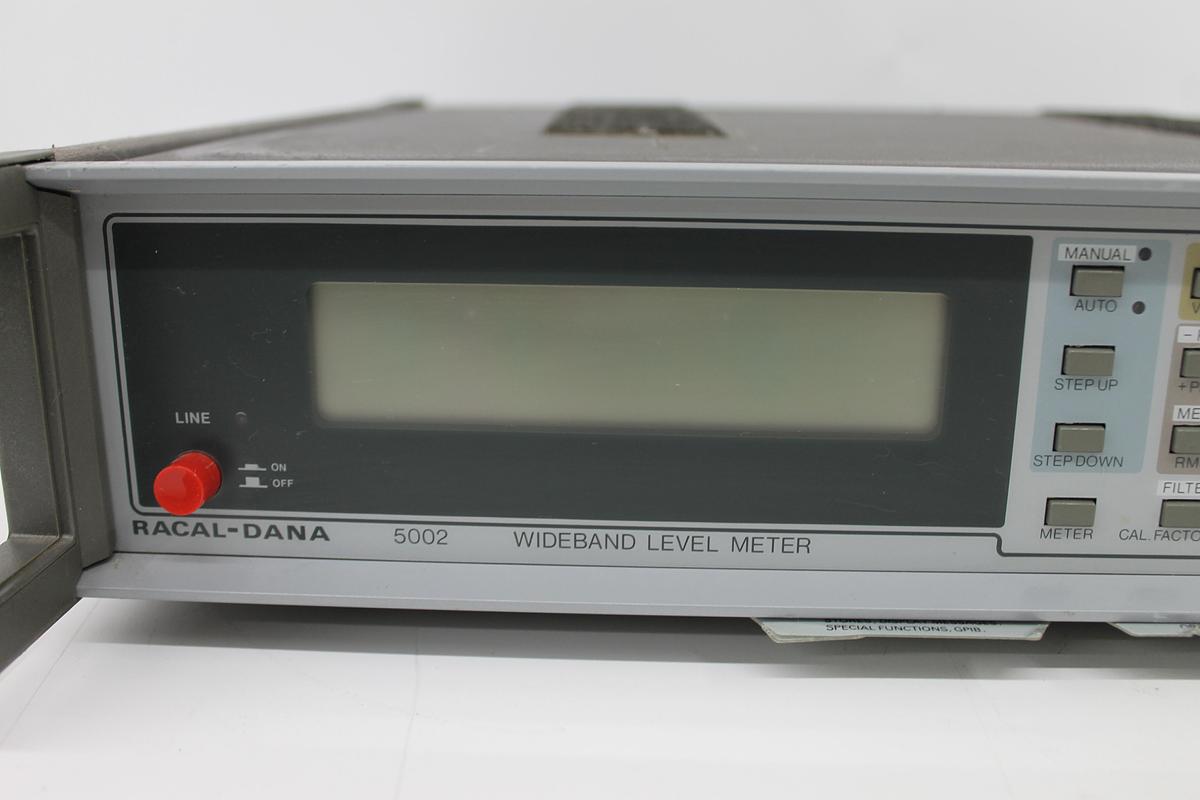

Racal-Dana 5002 Wideband Level Meter

Racal-Dana 5002 Wideband Level Meter

[Condition]

Unit is used, tested working. May have some scratches and scuffs that do not affect functionality, See photos, item comes as shown. Does not include accessories, unit only.

[Info on Unit]

> Racal-Dana

> 5002

> Wideband Level Meter

[Description]

The Dana 5002 Wideband Level Meter provides wideband AC performance, power measurement and digital voltmeter capabilities. It is able to measure true rms, average, peak, peak-to-peak and DC providing full characterisation of all AC waveshapes. The high sensitivity and frequency range, specified from DC to 20 MHz and extending to 40 MHz, makes the 5002 ideal for wideband gain and frequency response measurements, insertion loss measurements, switched mode power supply testing, receiver testing, audio analysis and pulse power measurement. For gain and frequency response measurements, the ability of the 5002 to display readings directly in dB or percentage is invaluable. It is equipped with an auto-ranging capability to cater for large changes in input level which is particularly useful when the instrument is used in dB mode. Switched mode power supplies (SMPS) are notorious for the large, short duration spikes, present on the output DC, caused by the switching action. The measurement of such spikes is of major importance to the SMPS manufacturer and user. The 5002 is unique in being able to measure these spikes in addition to the rms or mean ripple, and the DC output itself. Thus one instrument is able to measure three different but related parameters.

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
