AA Opto-Electronic MOD6C-B4DB2510k410k-3070SA-VIS AA.AOTF.nC-TN Modulator

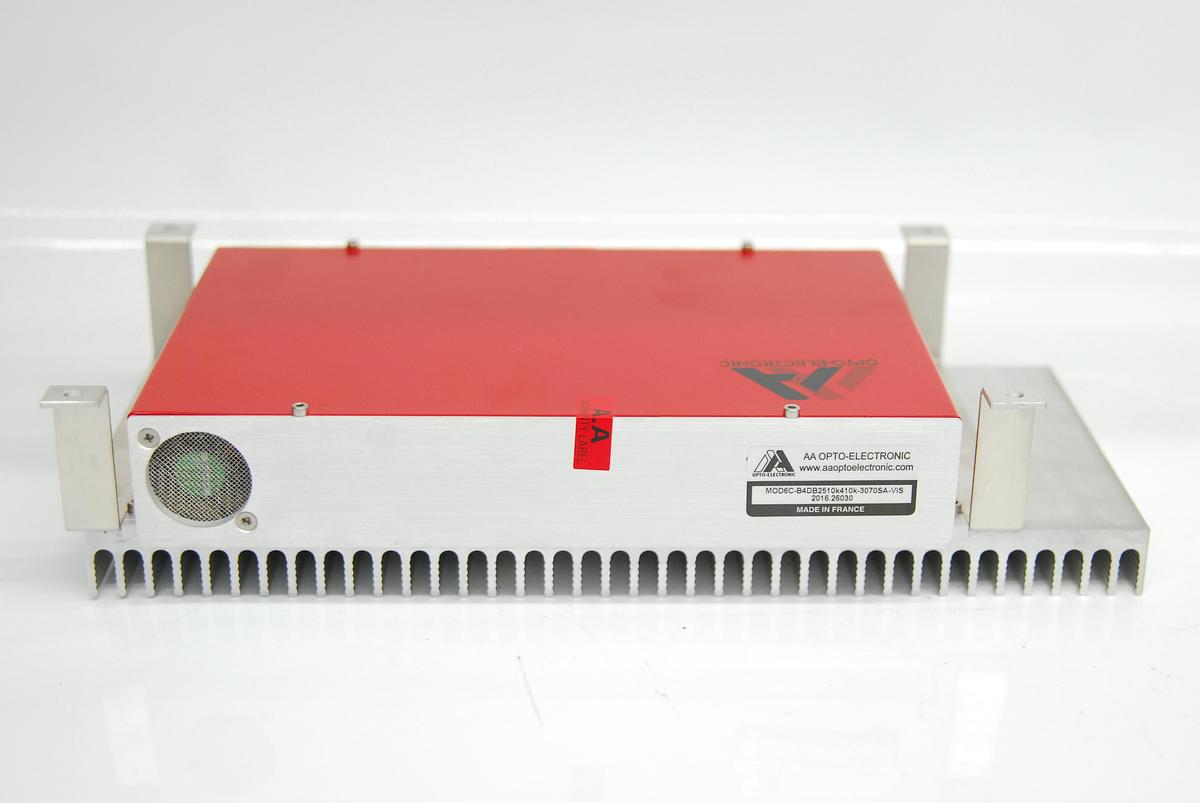

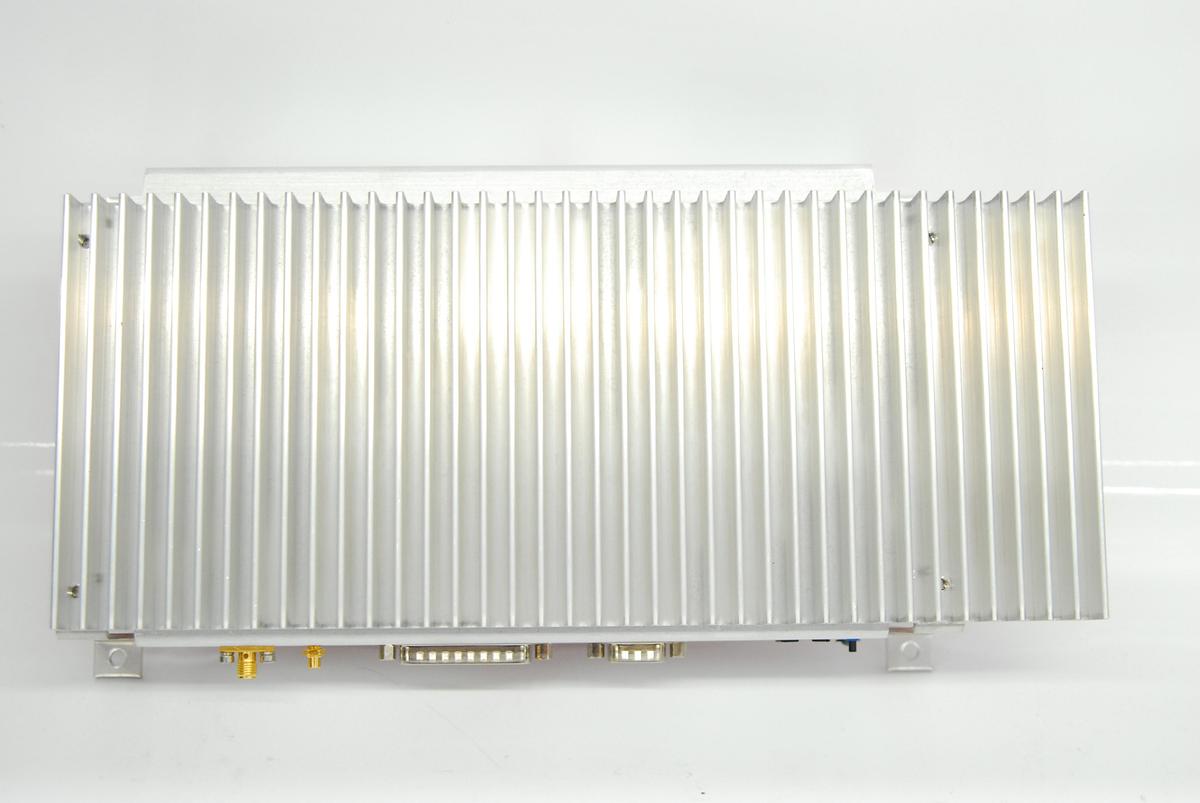

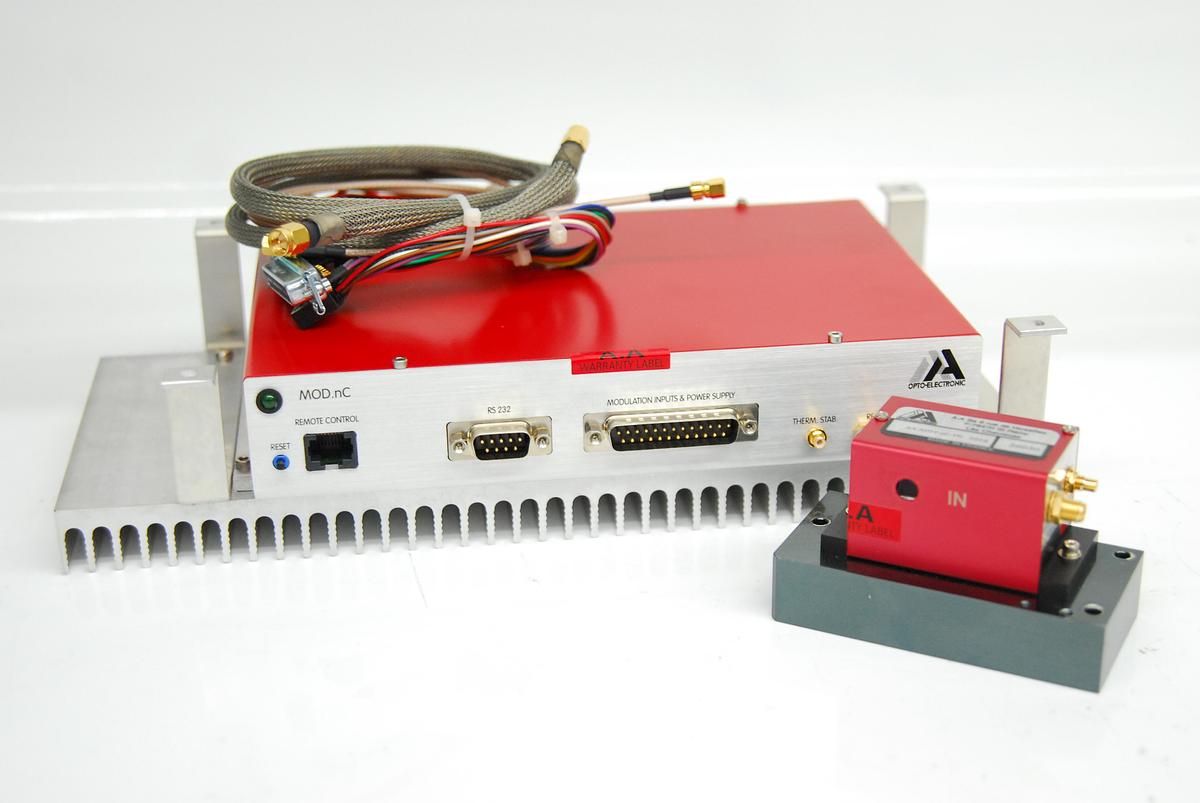

AA Opto-Electronic MOD6C-B4DB2510k410k-3070SA-VIS Driver and AA.AOTF.nC-TN Filter Unit. Unit is used in good condition. See pictures, comes as shown. Removed working from a decommissioned Nikon D-Eclipse C1 (C1-LU4) confocal microscope laser table.

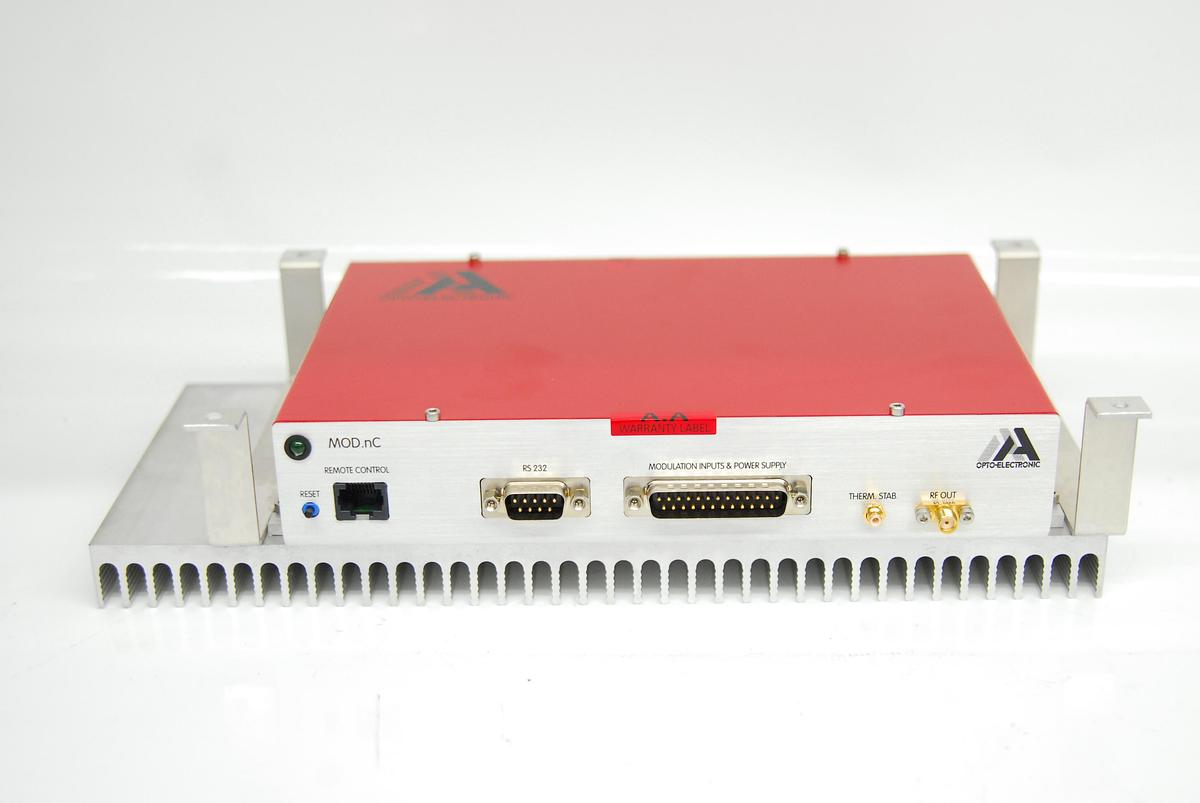

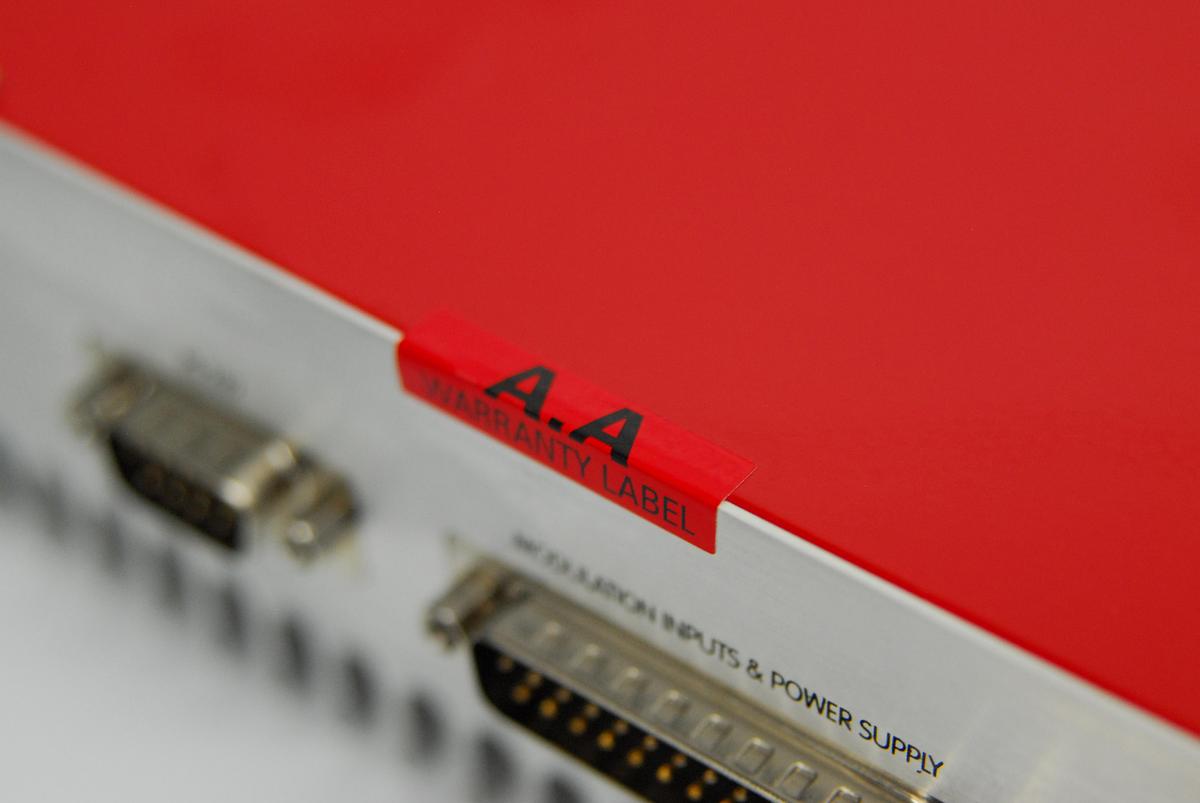

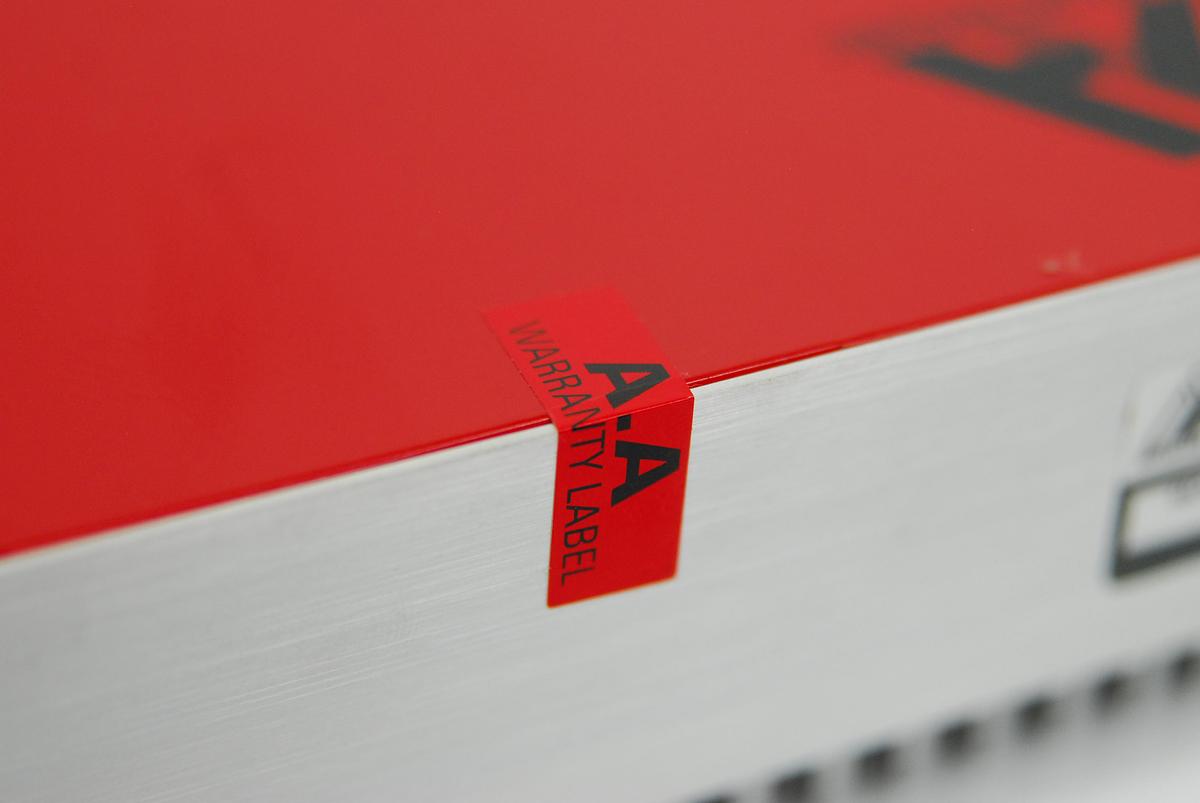

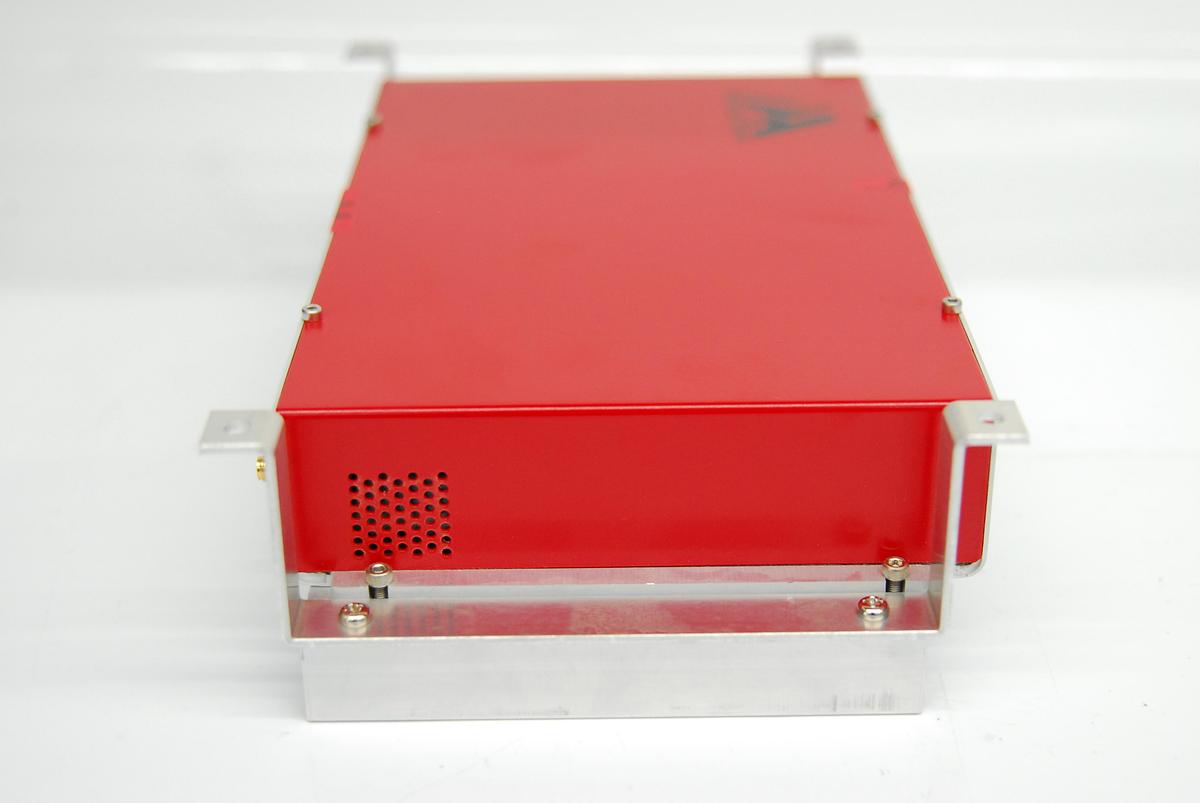

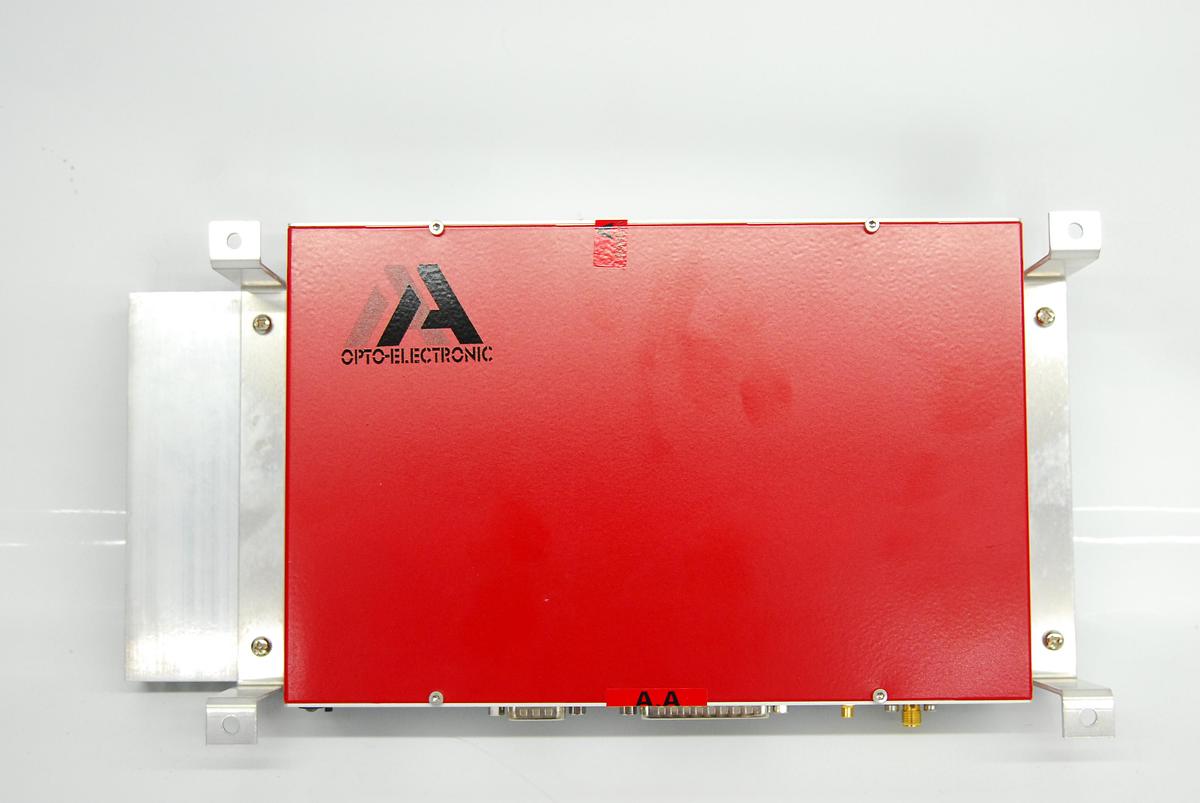

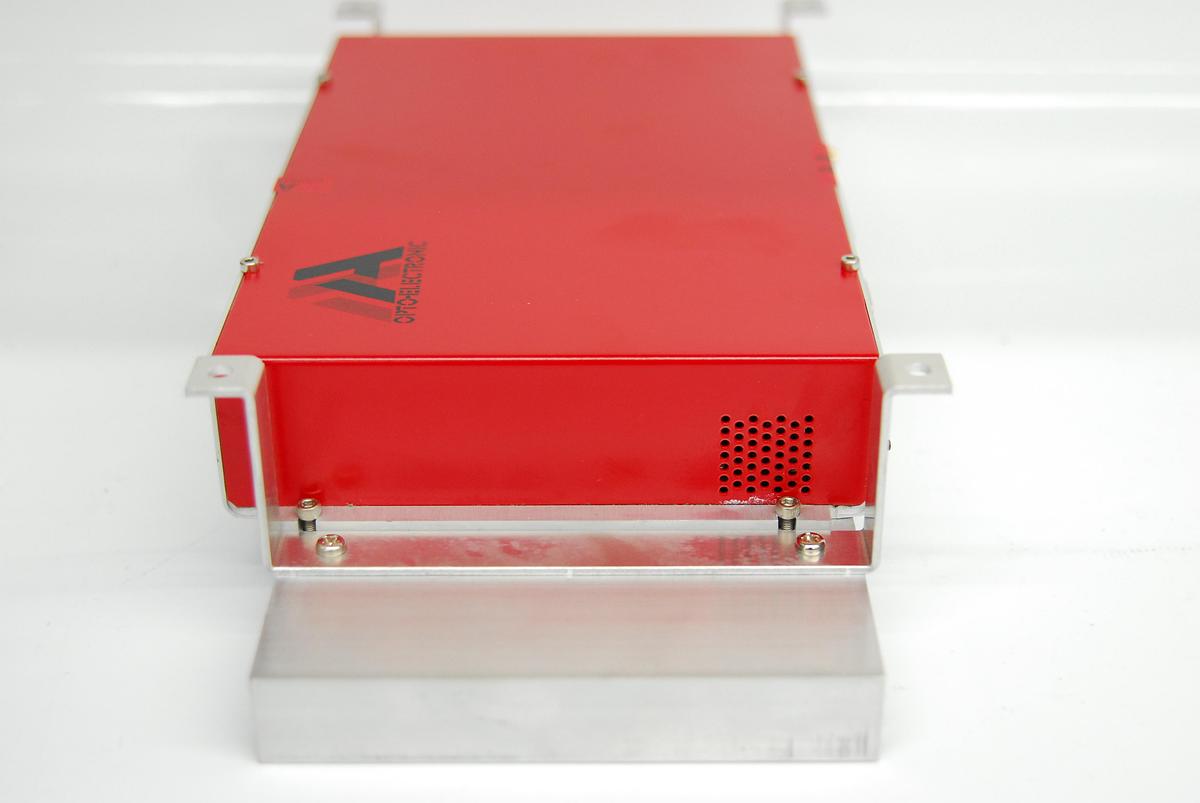

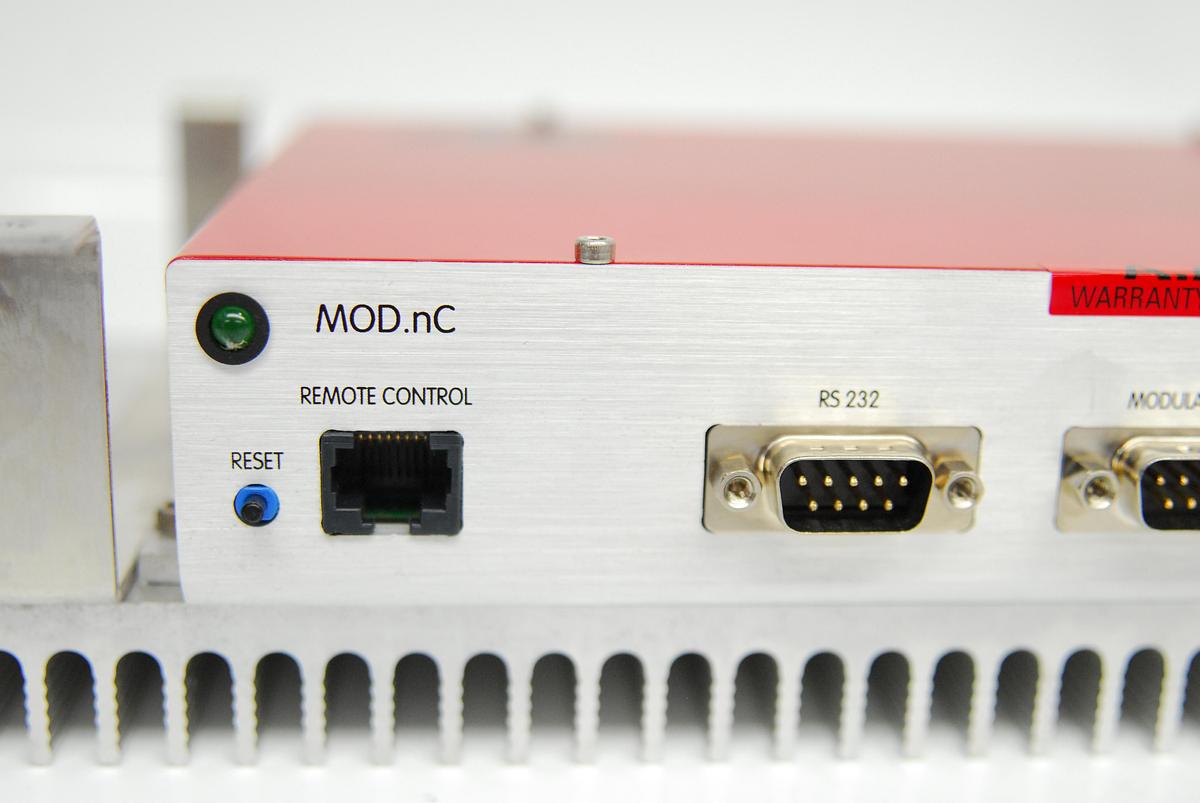

Info on driver:

• AA Opto-Electronic

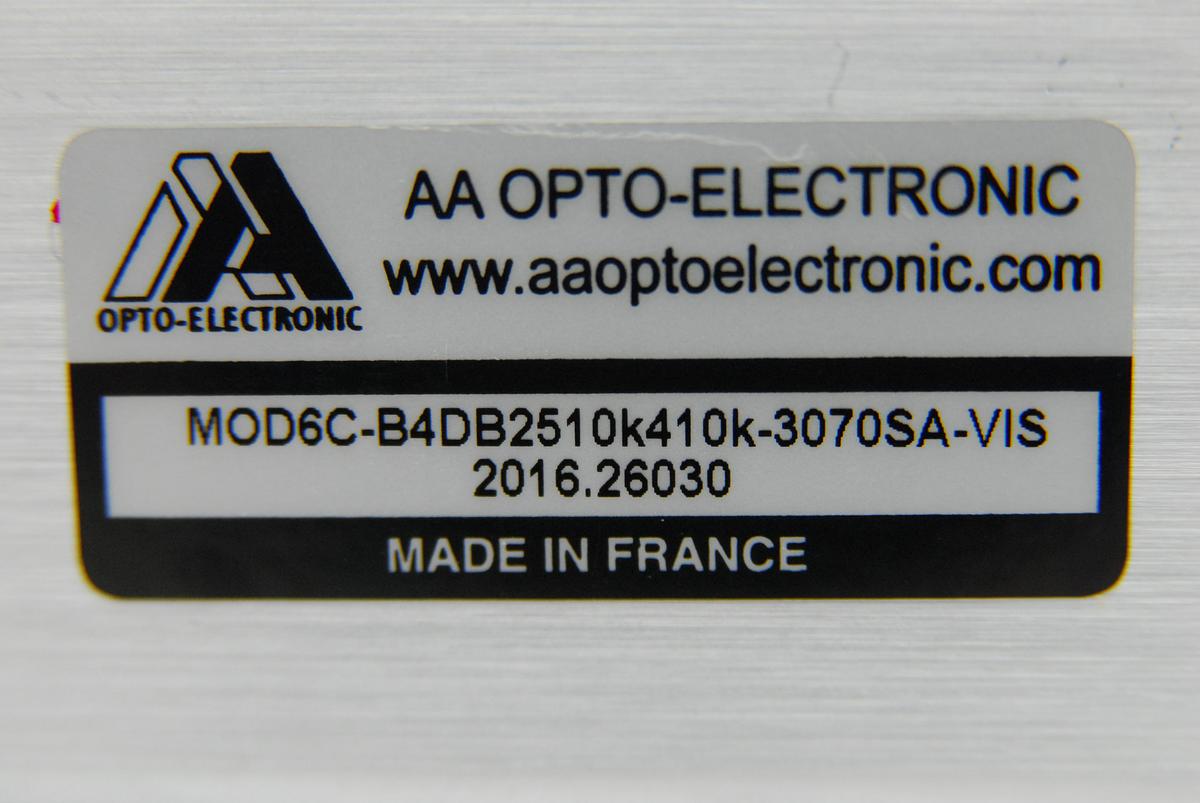

• Driver Model: MOD6C-B4DB2510k410k-3070SA-VIS
• 2016.26030
• Active Channels: 4 independent active channels.
• Base Platform Capacity: 6-channel max hardware architecture (MOD6C platform)

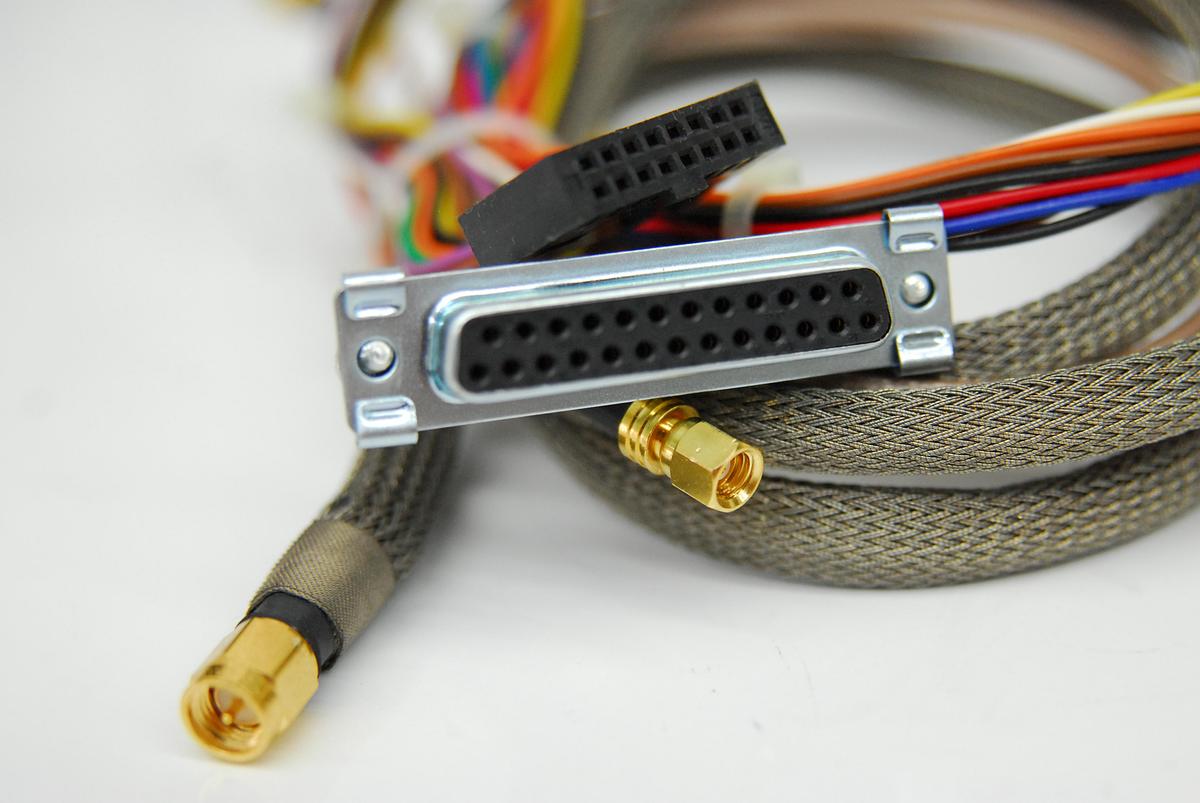

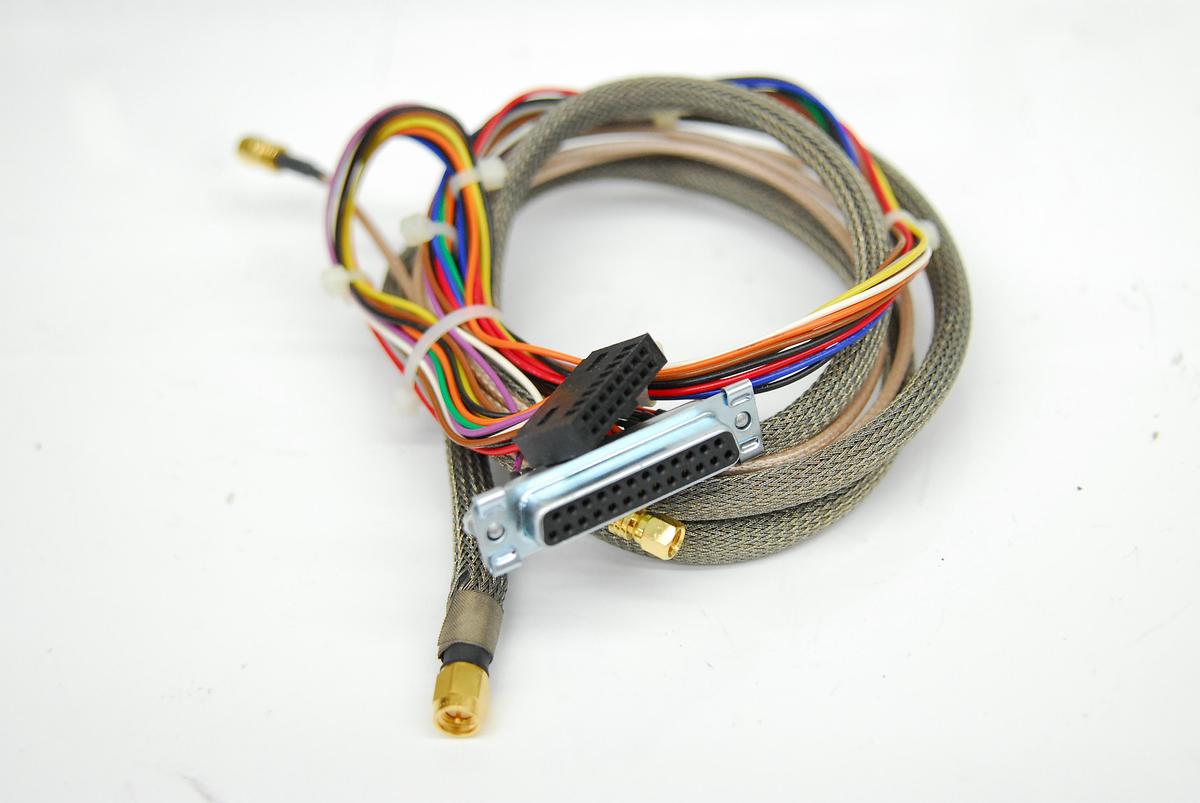

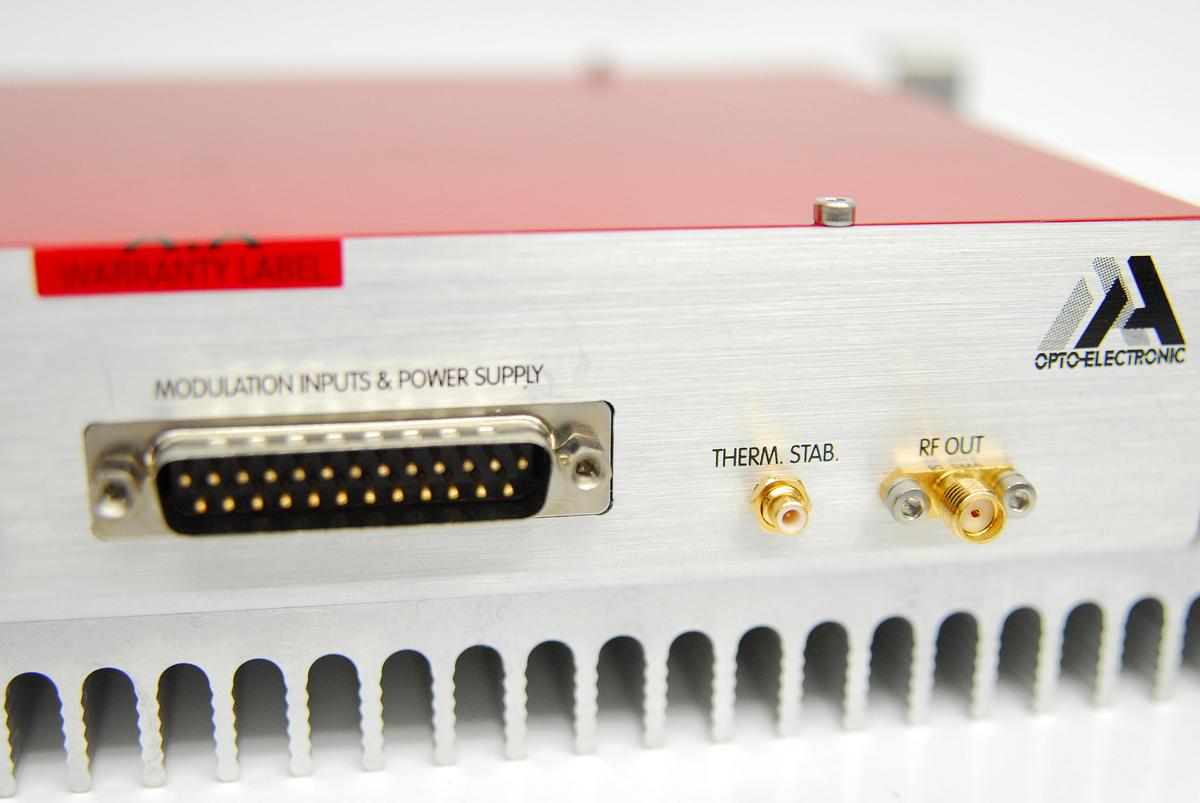

• Control Interface: 1x standard 25-pin DB25 D-sub input connector
• Analog Modulation Voltage: 0 to 5 V dynamic input range
• Digital Modulation Control: Standard TTL logic interface
• Input Impedance: 1 kΩ (stated compatible with 50 Ω function generators)
• Output Impedance: 50 Ω RF matched line
• Wavelength Spectrum Optimization: 400 to 700 nm

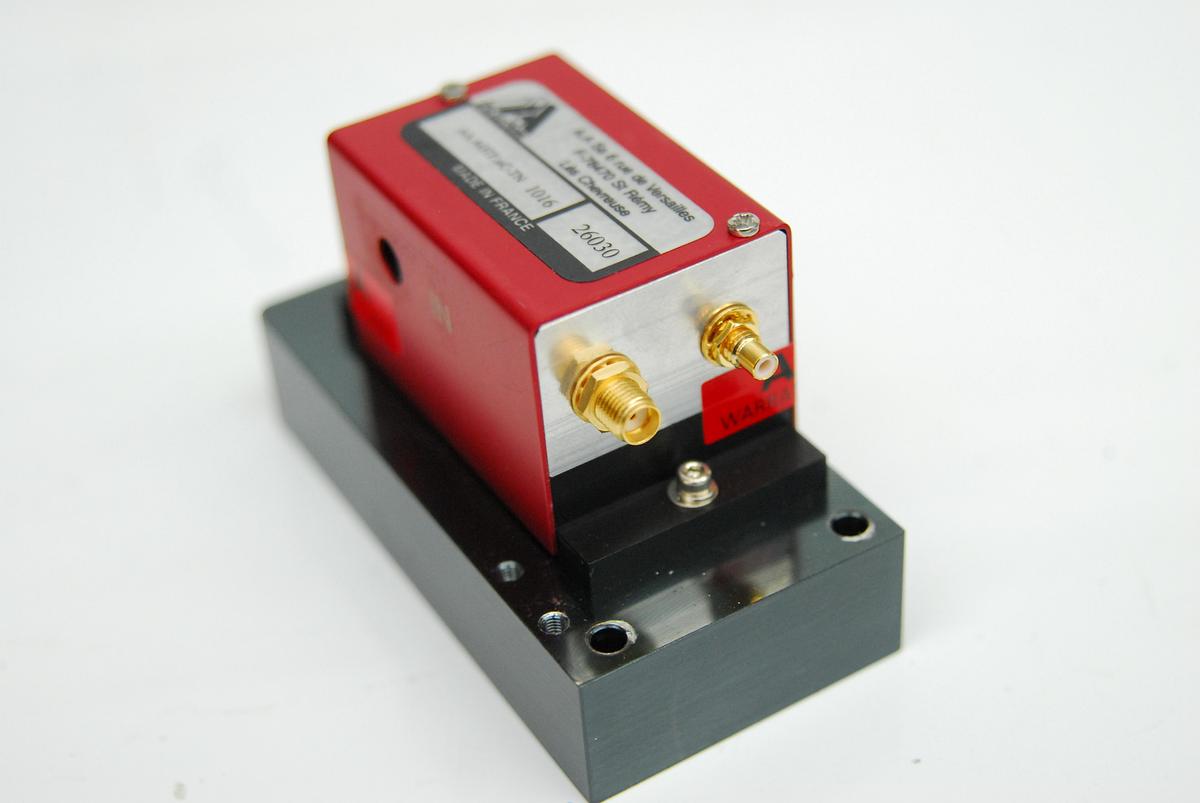

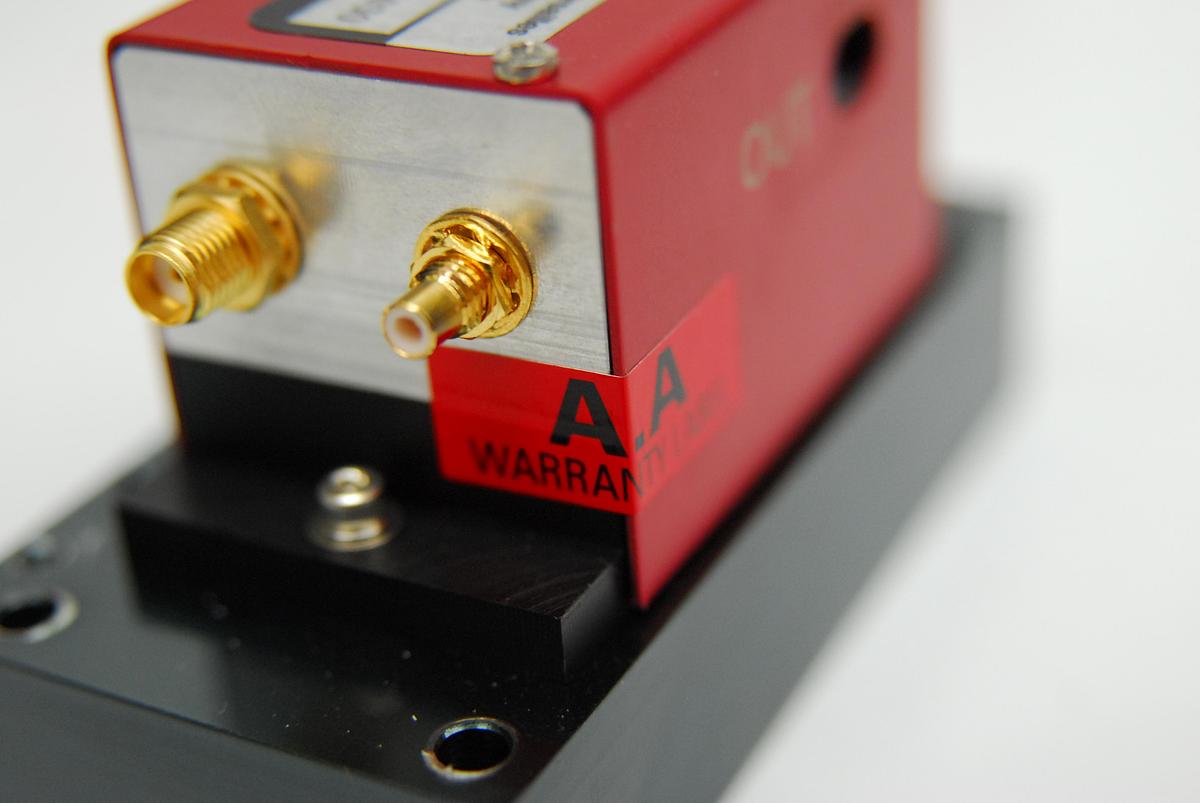

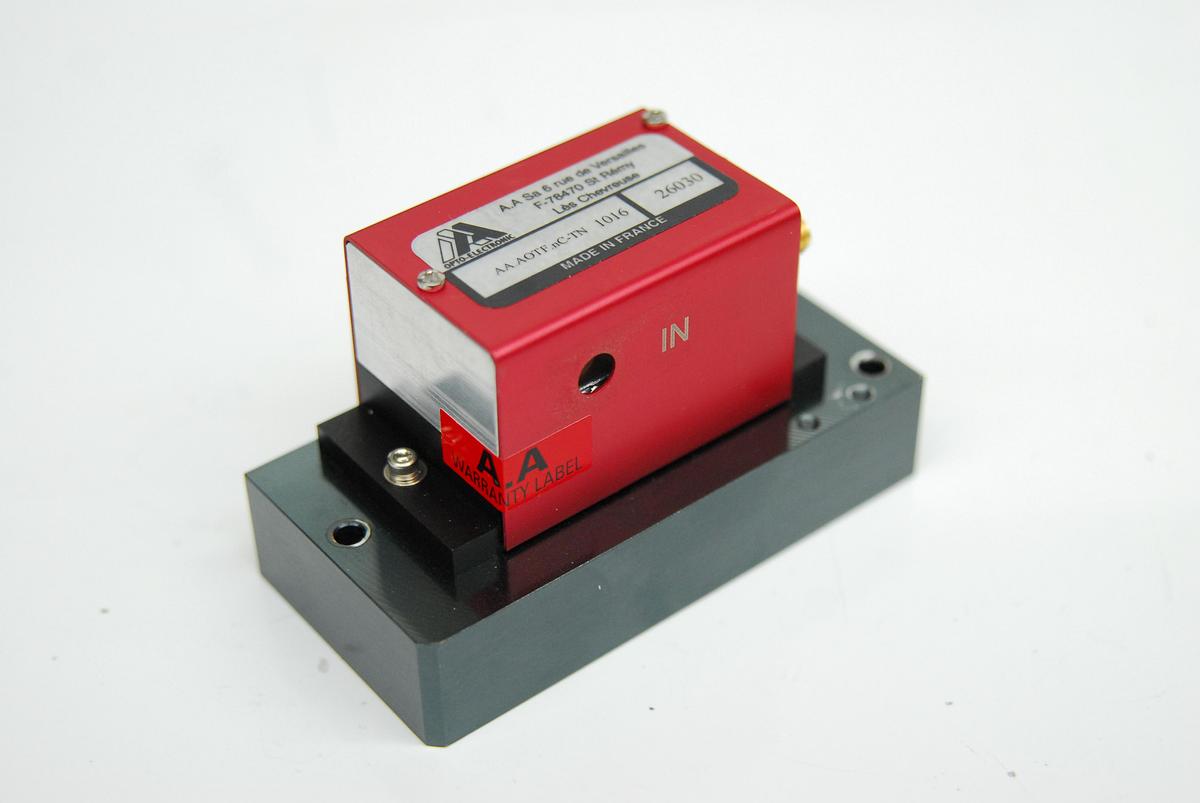

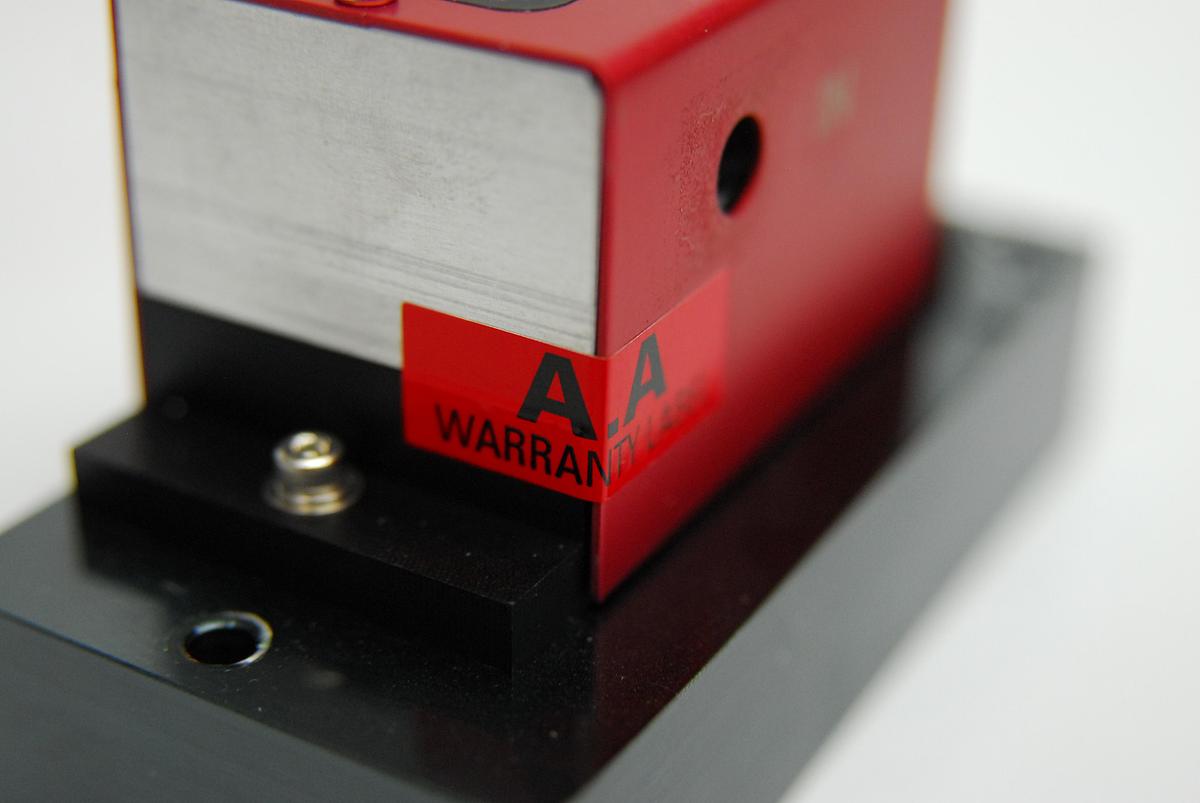

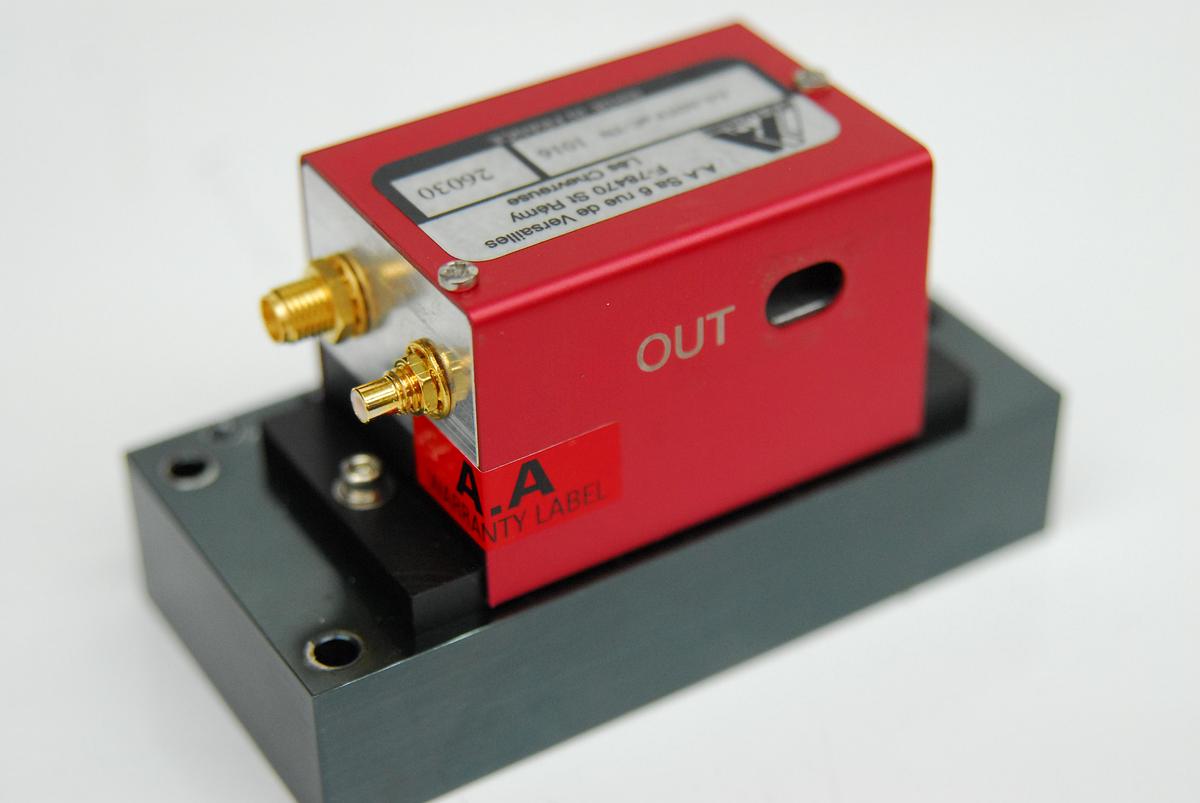

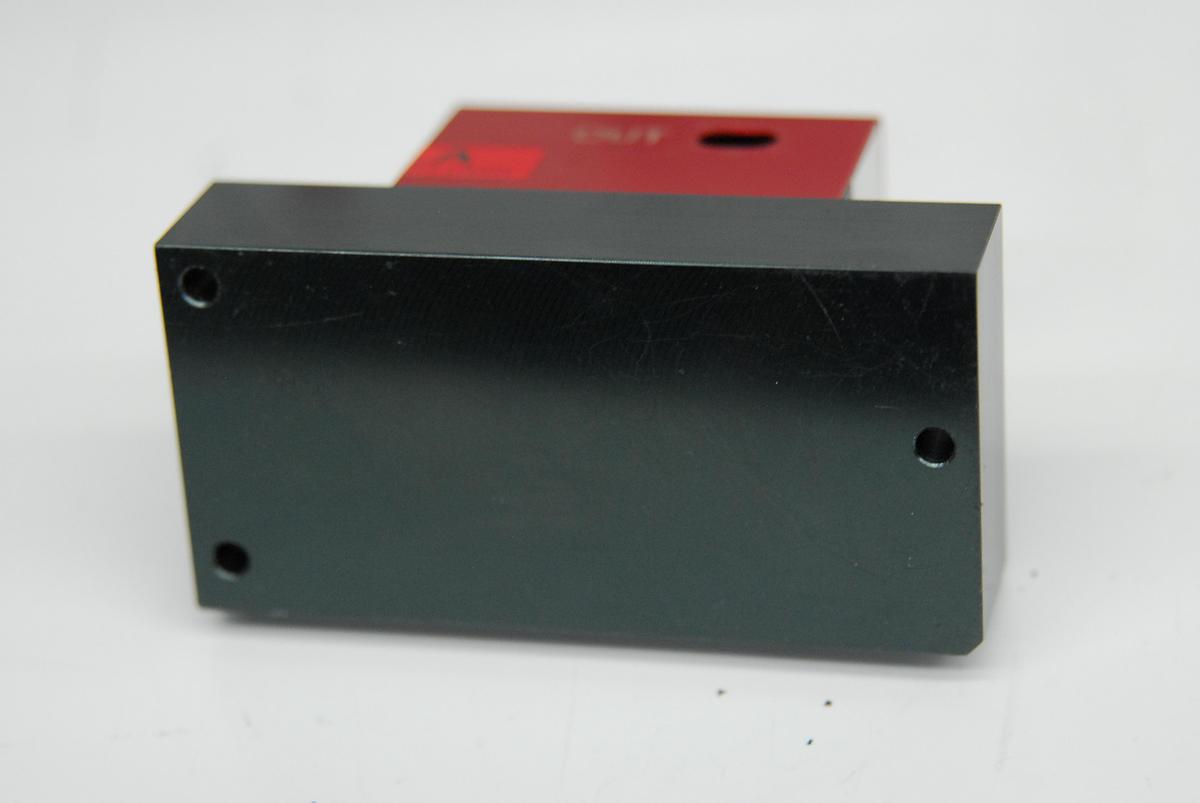

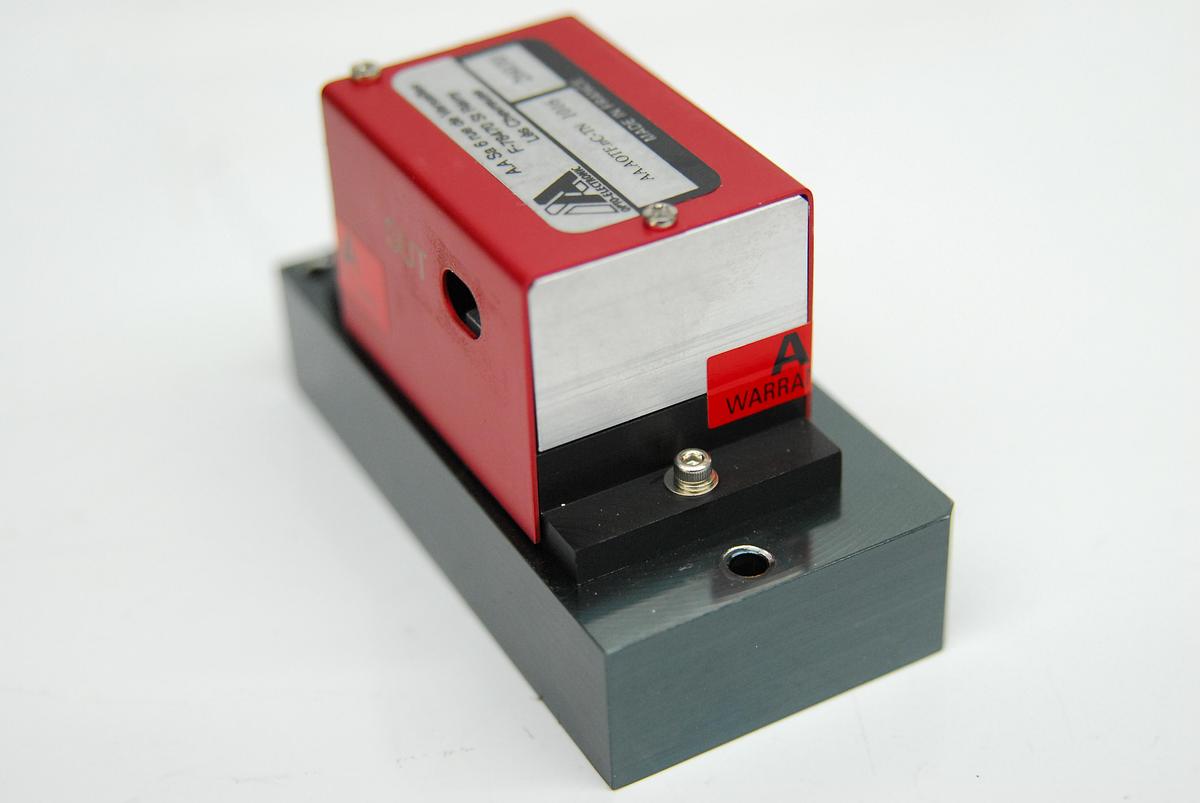

Info on filter:

• AA Opto-Electronic

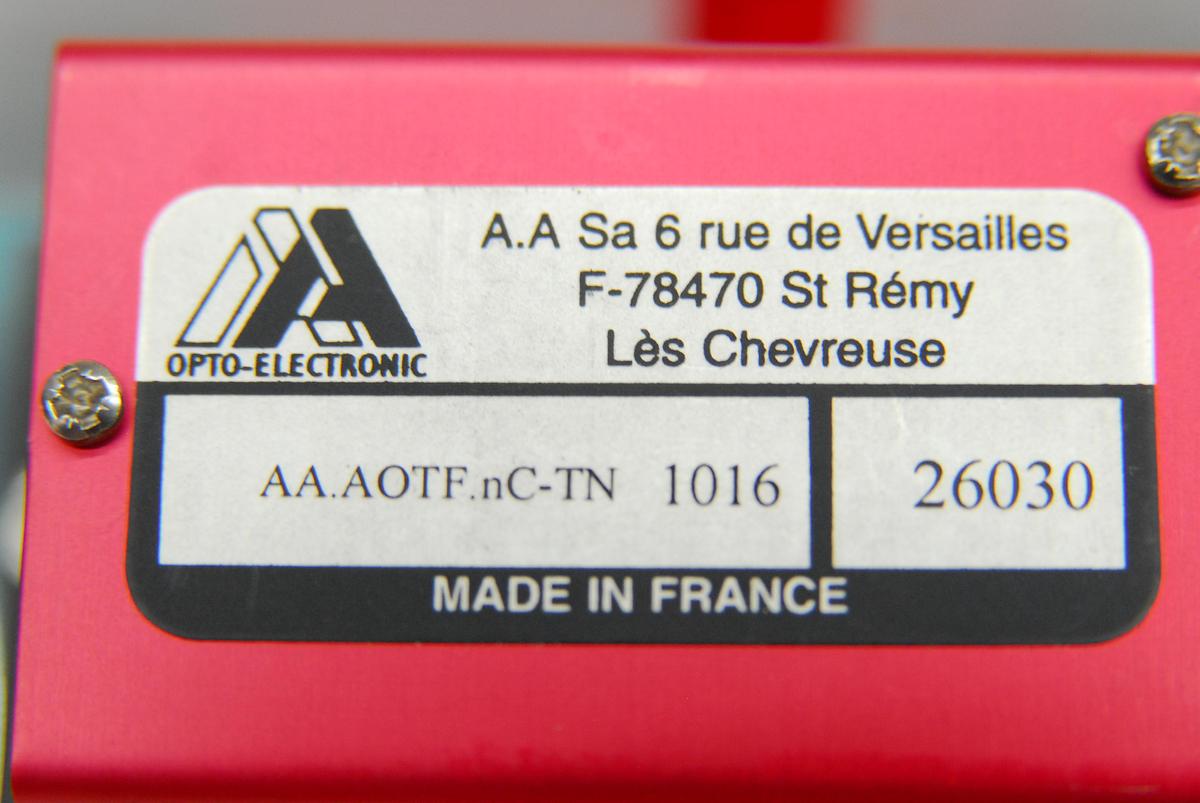

• Filter Model: AA.AOTF.nC-TN 1016
• 26030

• Acoustic Velocity: 650 m/s
• Acoustic Interaction Mode: Slow Shear Wave propagation
• Active Optical Aperture: 3 mm x 3 mm
• Simultaneous Channels: Up to 8 independent laser lines managed simultaneously
• Diffraction Efficiency: > 90%
• Maximum RF Drive Power: < 0.1 W to 0.15 W
• Input Electrical Impedance: 50 Ohms
• Rise / Fall Switching Speed: 1 µs per mm
