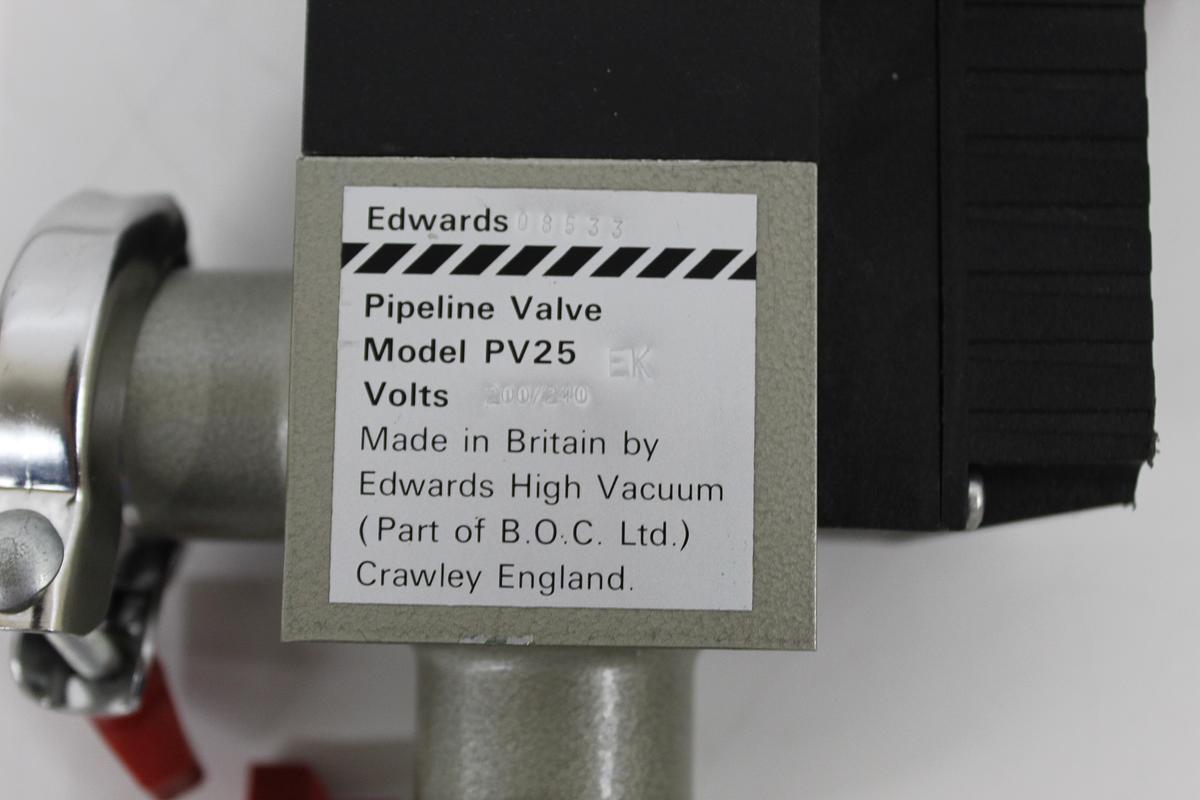

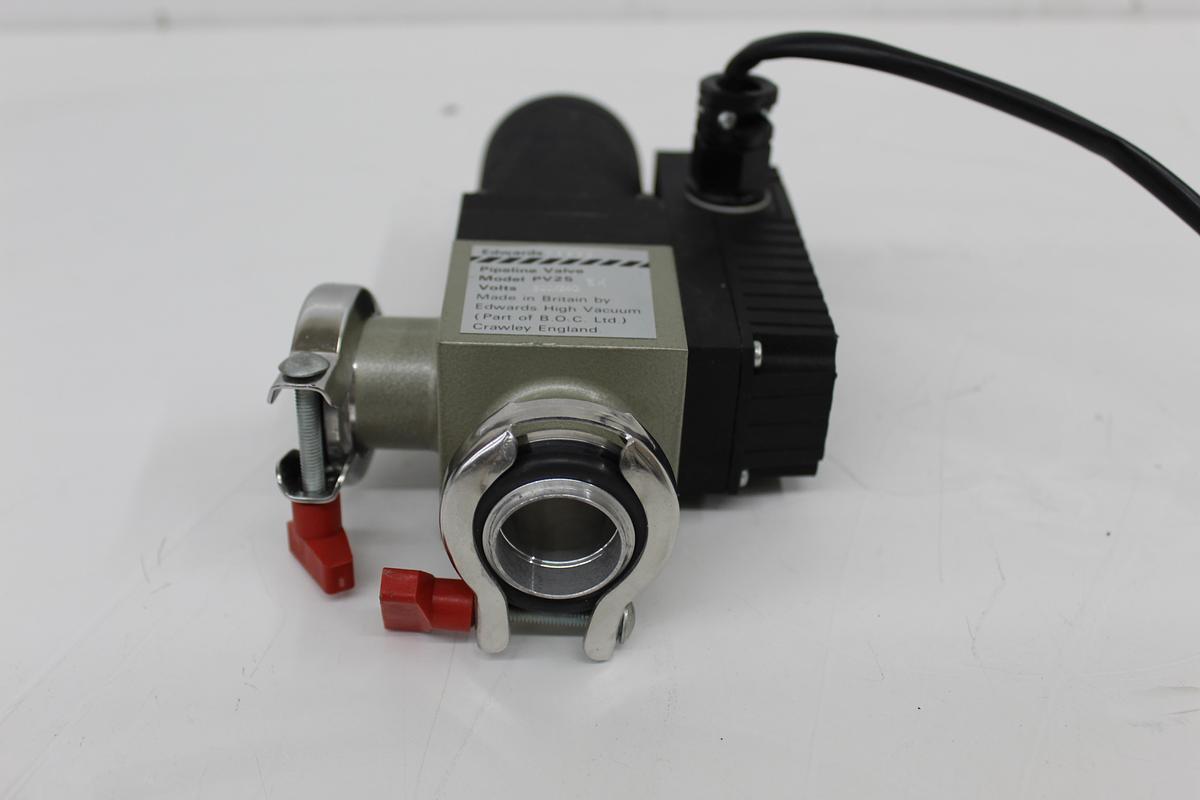

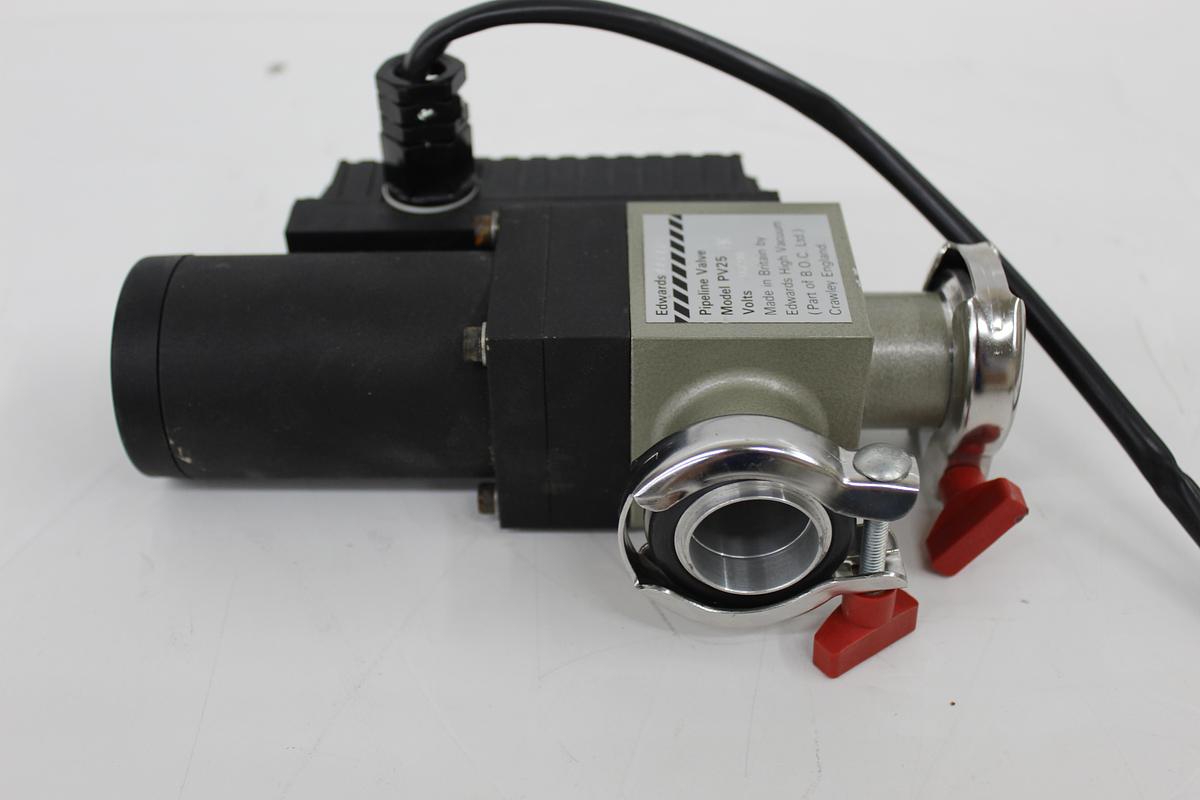

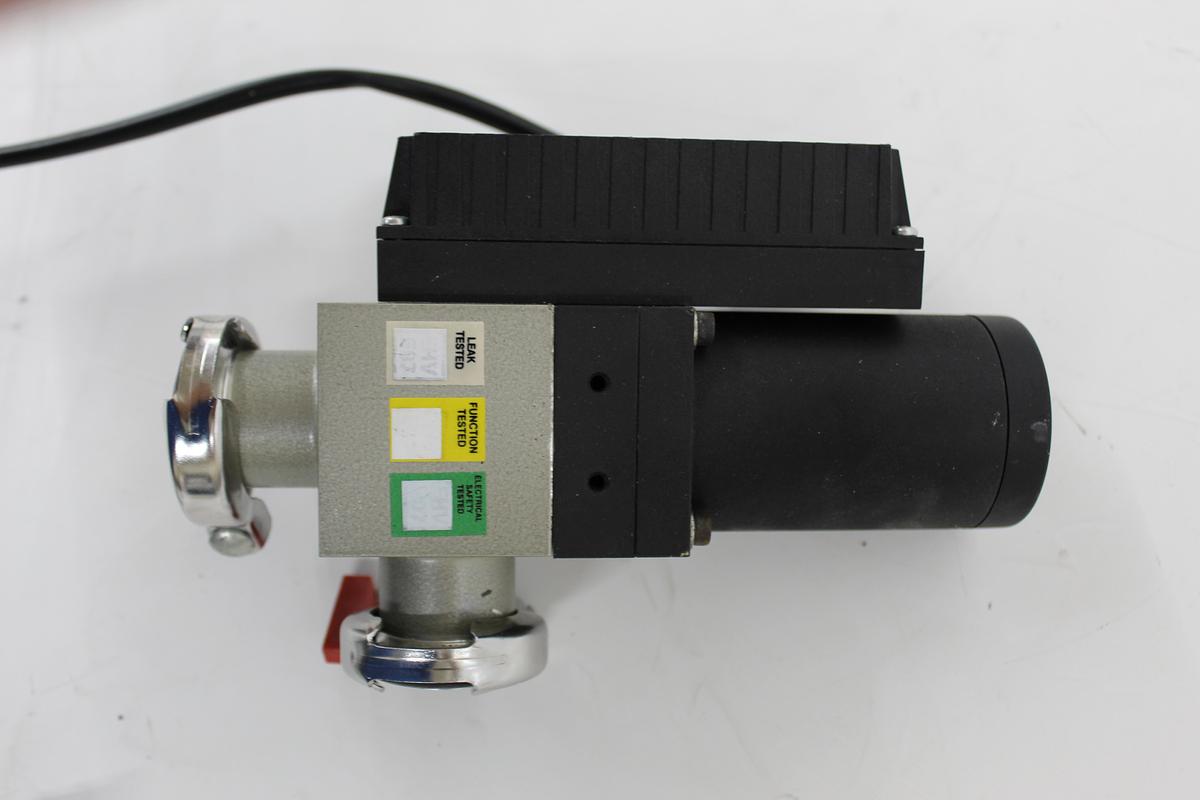

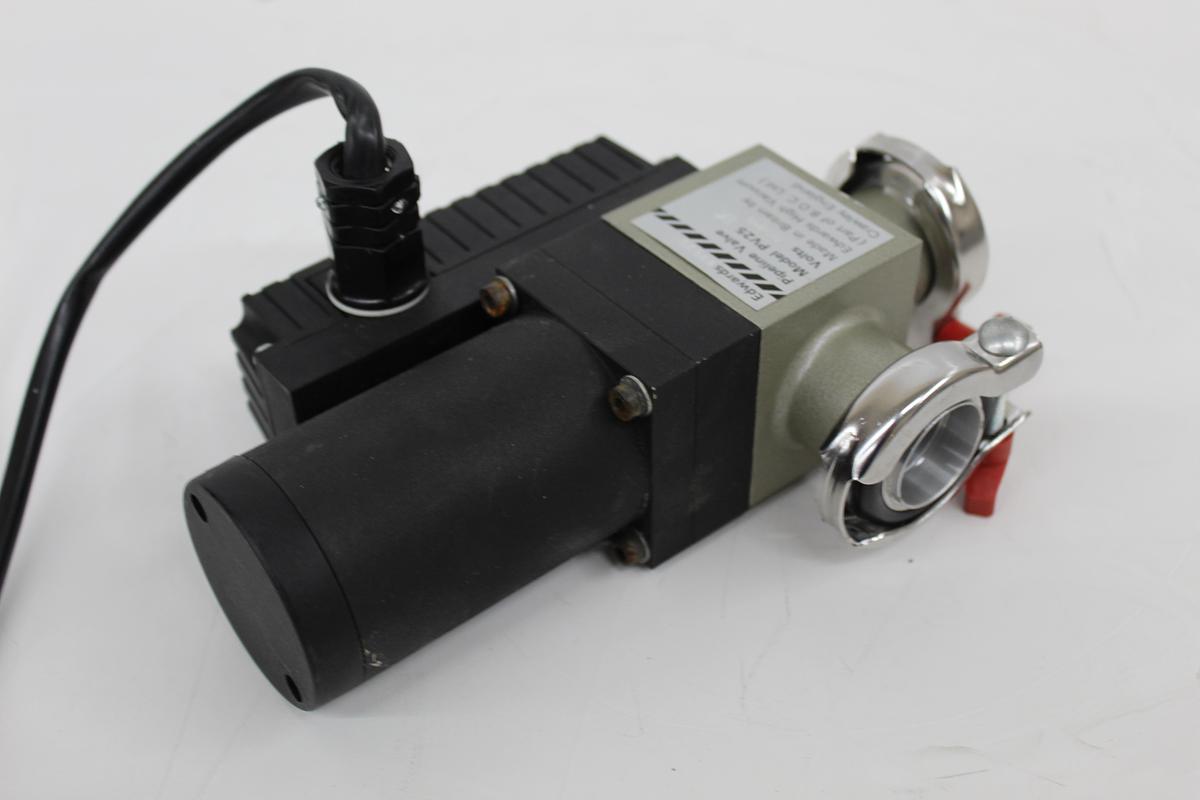

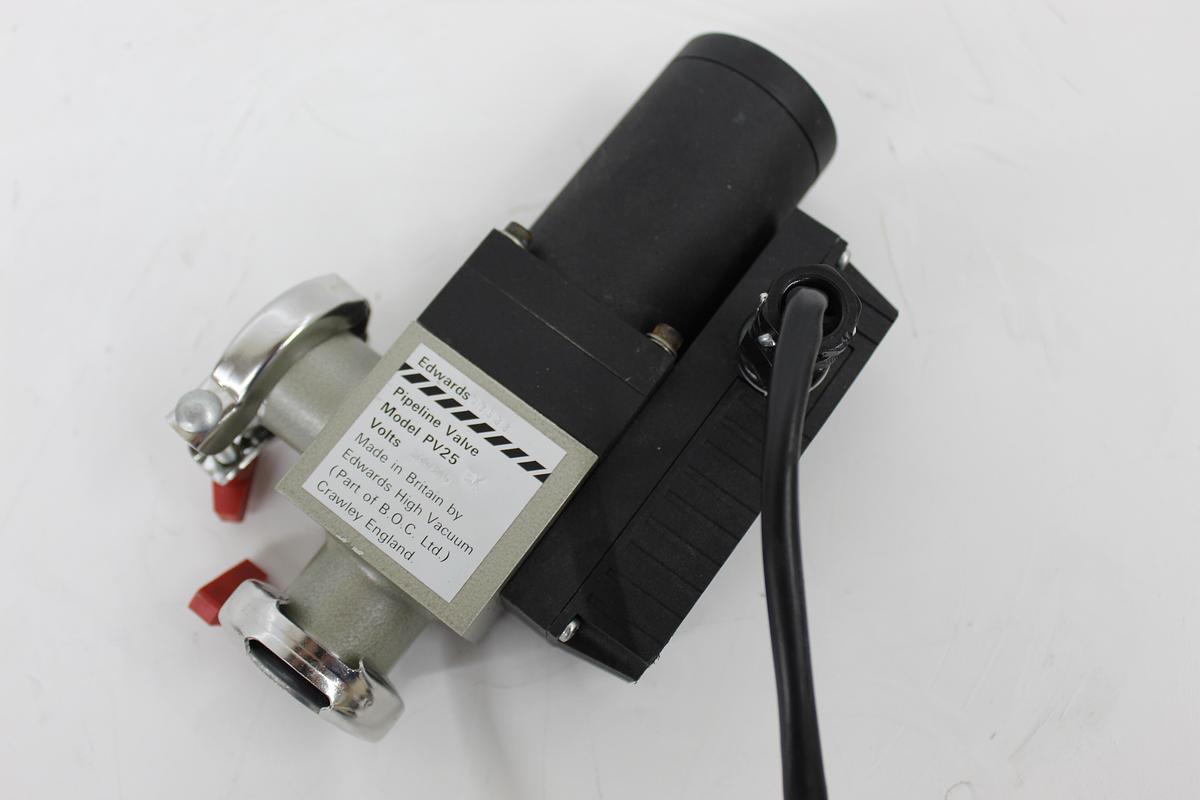

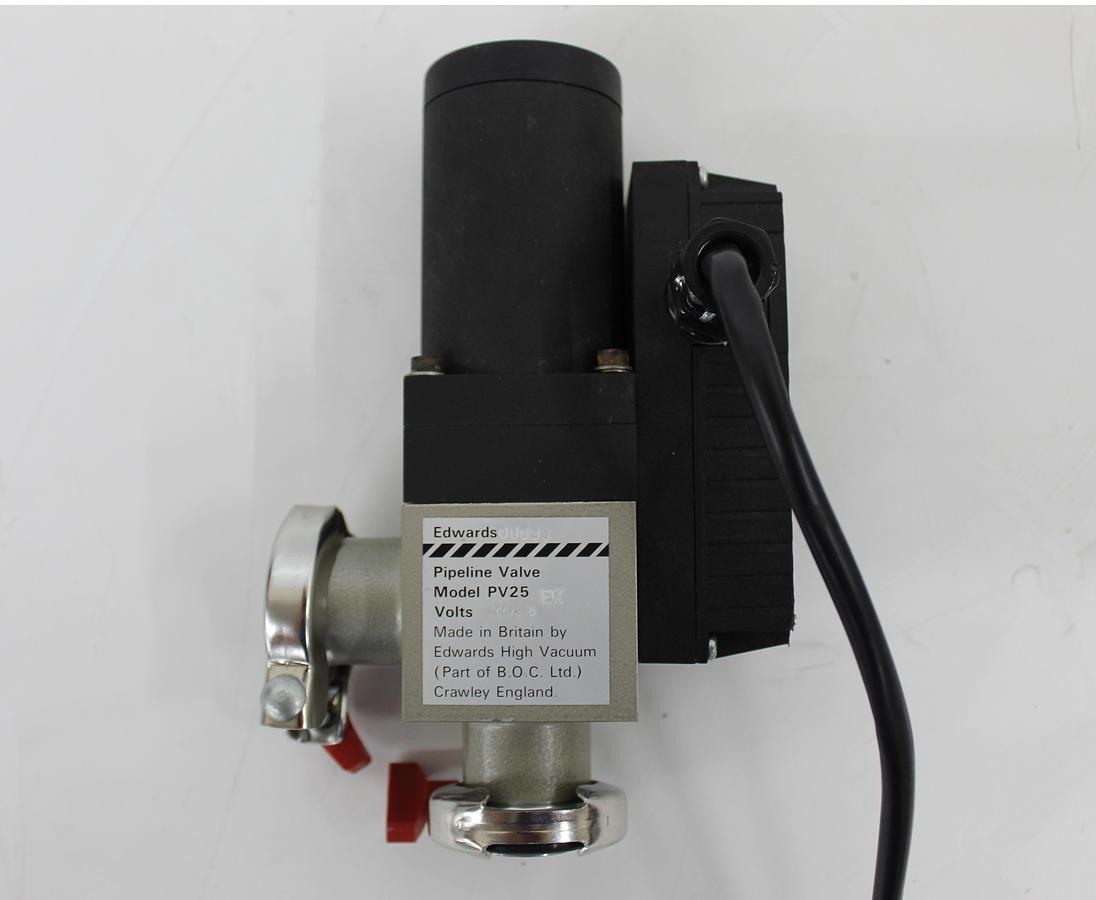

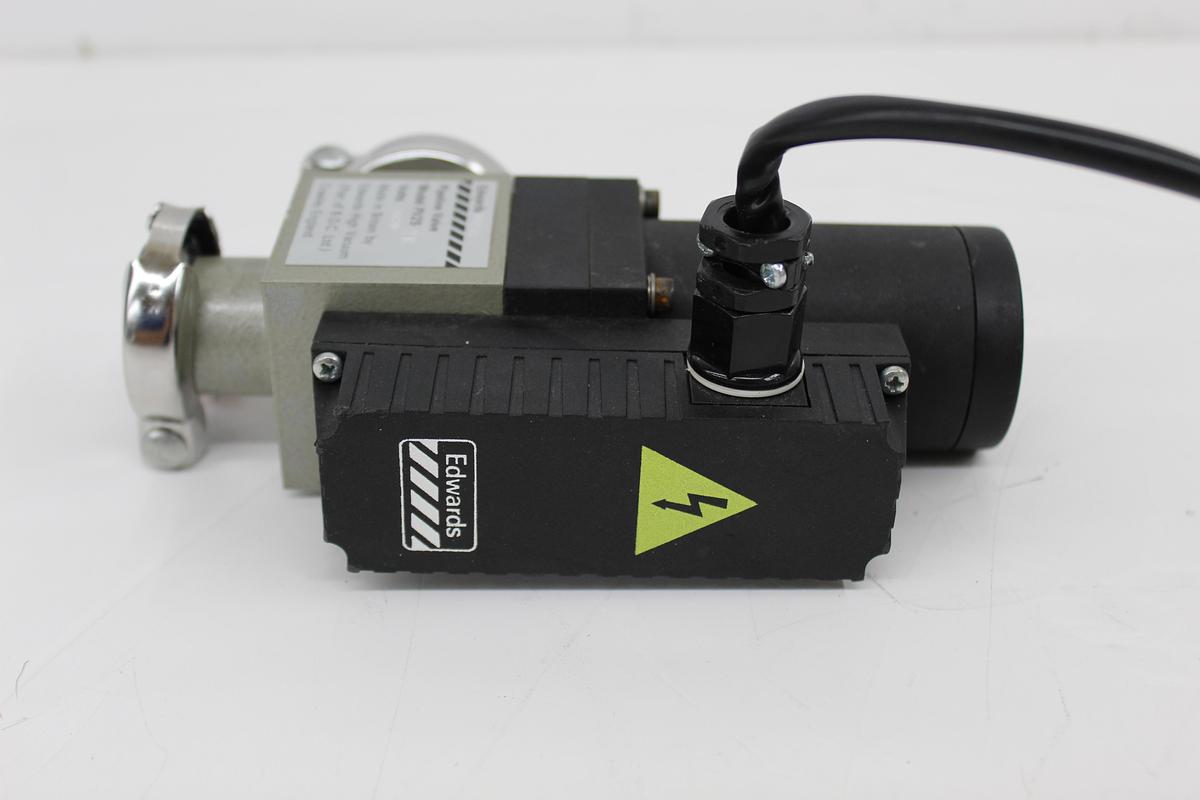

Edwards PV25EK Solenoid Vacuum Pipeline Isolation Valve NW25 KF25

Edwards PV25EK Solenoid Vacuum Pipeline Isolation Valve NW25 KF25

[Condition]

Unit is used, in great condition, pulled from a working decommissioned system. See photos, item comes as shown.

[Info on Unit]

Manufacturer: Edwards Vacuum

Model: PV25EK

Equipment Type: Electromagnetic Vacuum Pipeline Isolation Valve

Valve Style: Right-Angle, Bellows-Sealed

Actuation: Solenoid-Operated, Spring-Closed

Vacuum Flange Size: NW25 / KF25

Electrical Supply: 220–240 VAC

Frequency: 50/60 Hz

Continuous Power Consumption: 8.2 W at 240 V

Valve Enclosure Rating: IP55

Operating Temperature: 5°C to 50°C

Maximum Operating Pressure: 2,000 mbar absolute

Vacuum Capability: Down to 1 × 10⁻⁹ mbar

Maximum Pressure Differential: 1,000 mbar

[Description]

The Edwards PV25EK is an electromagnetic vacuum pipeline isolation valve designed for automated vacuum-system control and pump inlet isolation. The valve features NW25/KF25 vacuum flange connections, a solenoid-operated, spring-closed mechanism, and a stainless steel bellows assembly that separates the actuation mechanism from the vacuum system. Its electronically controlled dual-winding solenoid provides increased opening force followed by reduced power consumption during continuous operation. The PV25EK series supports vacuum applications down to 1 × 10⁻⁹ mbar and incorporates fluoroelastomer valve sealing with an IP55-rated enclosure.
