Microscan MS-3 Laser Barcode Scanner Fixed Mount 5VDC

Microscan MS-3 Laser Barcode Scanner 1D Fixed Mount 1000 Scans/Sec 5VDC

[Condition]

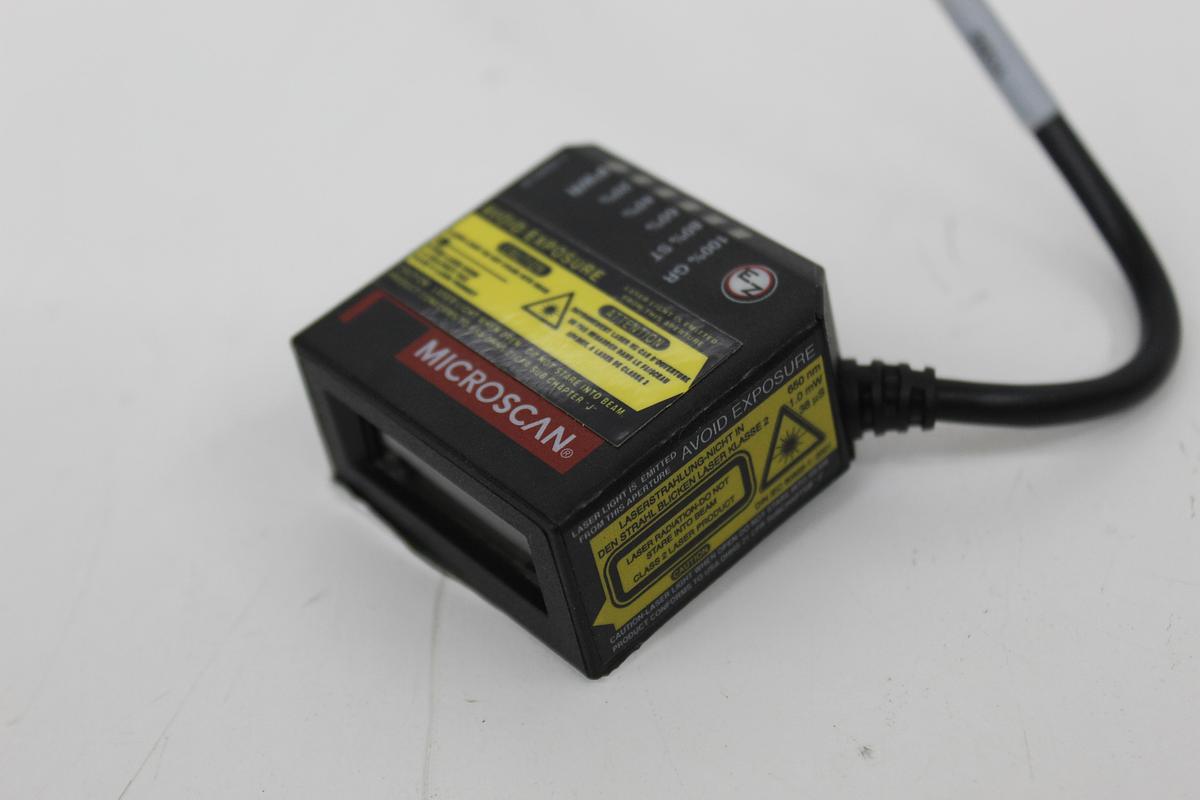

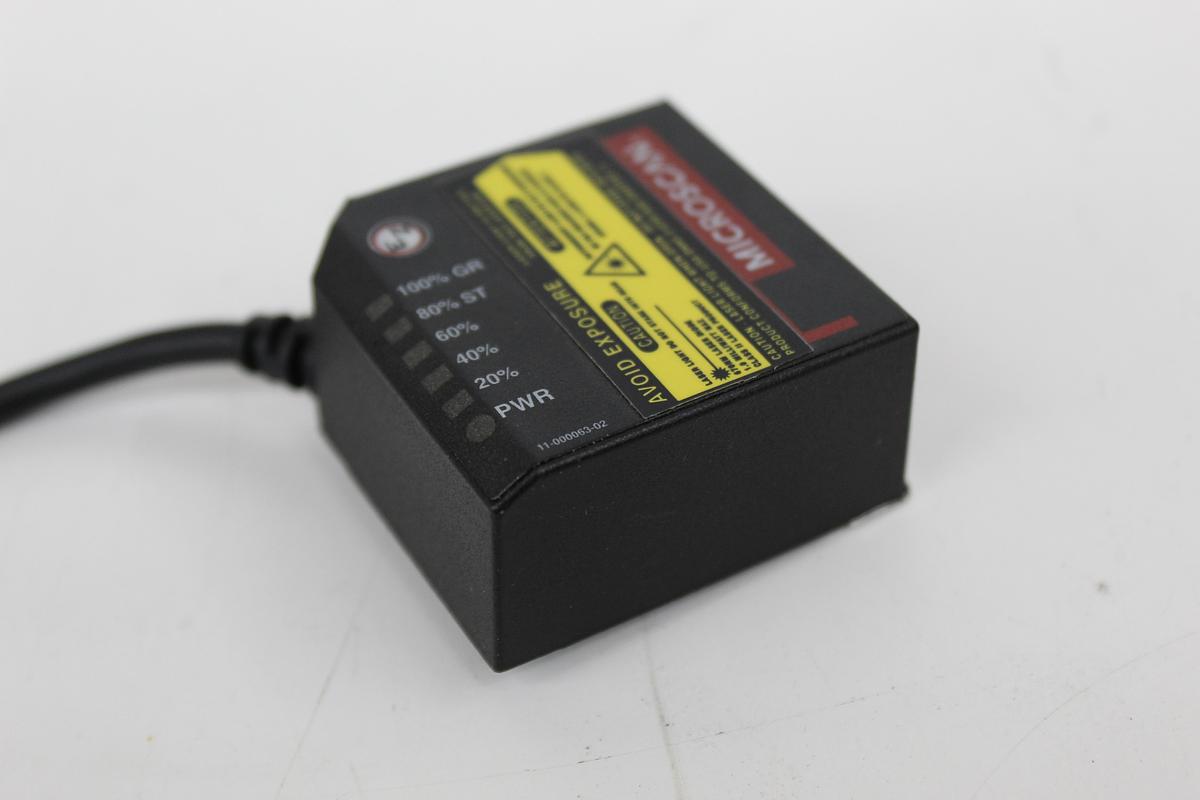

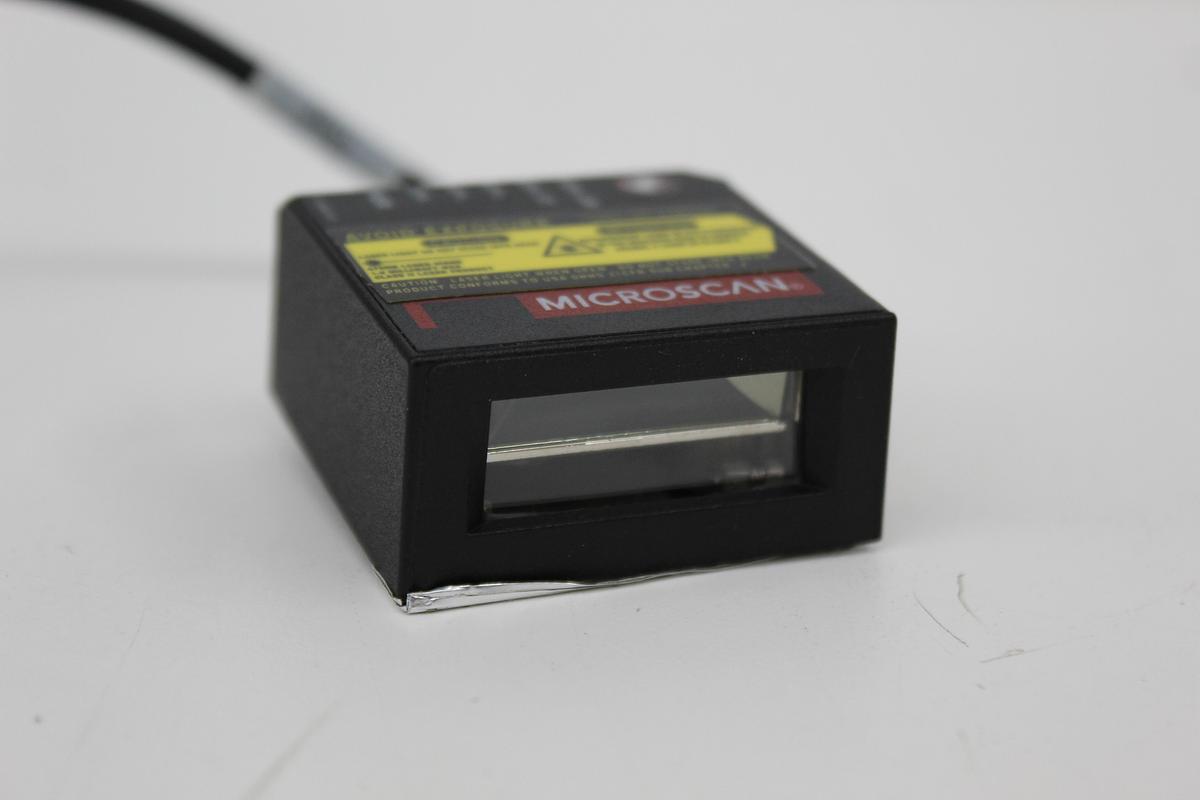

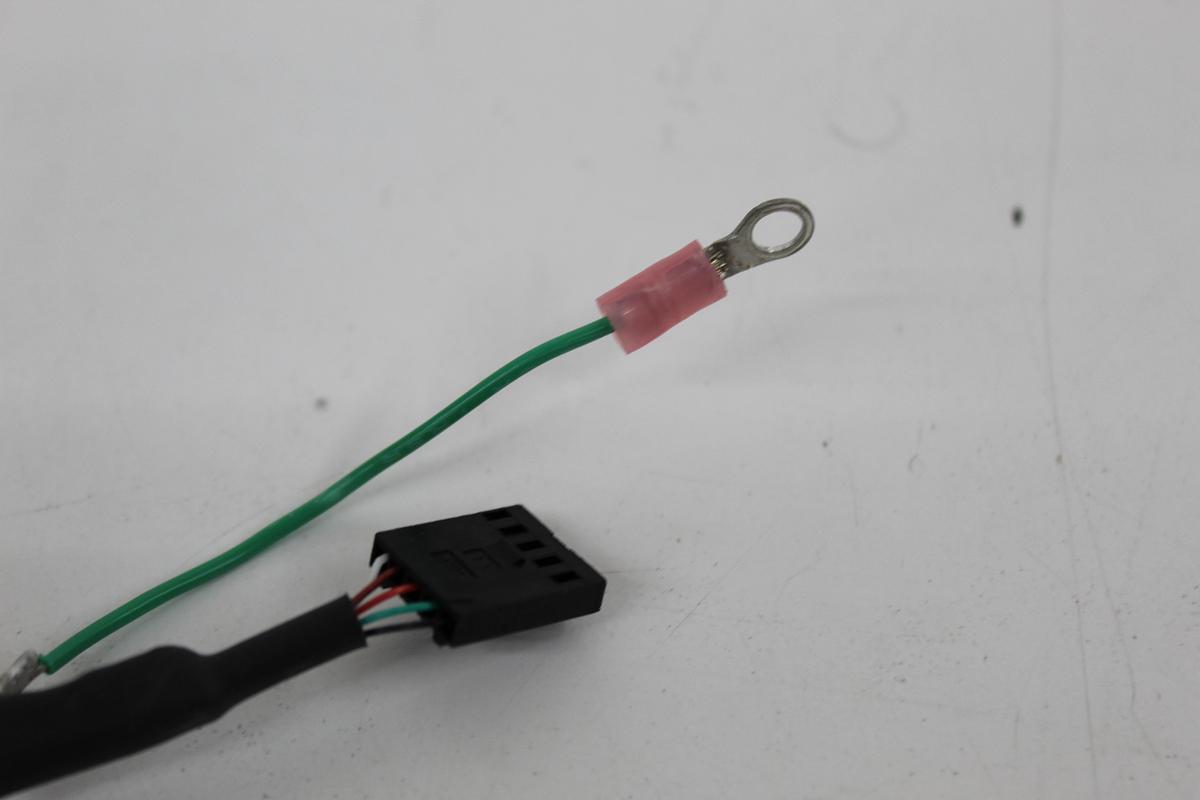

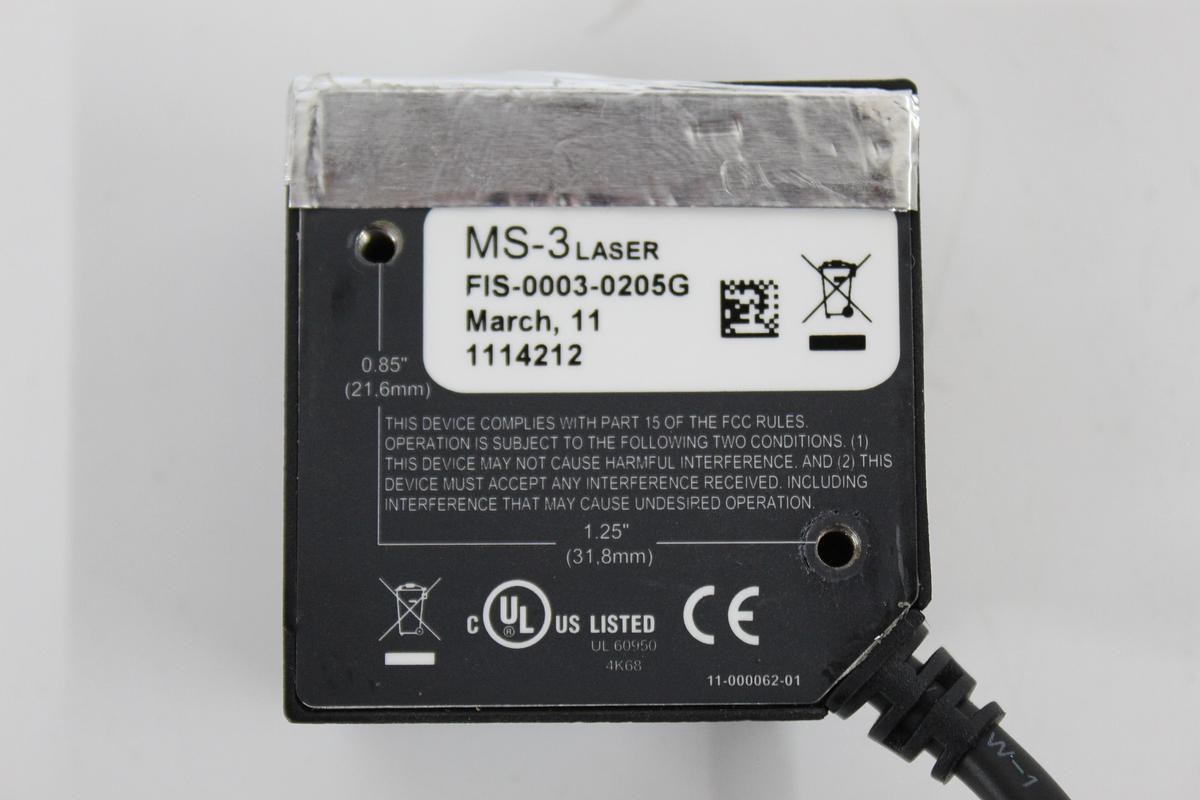

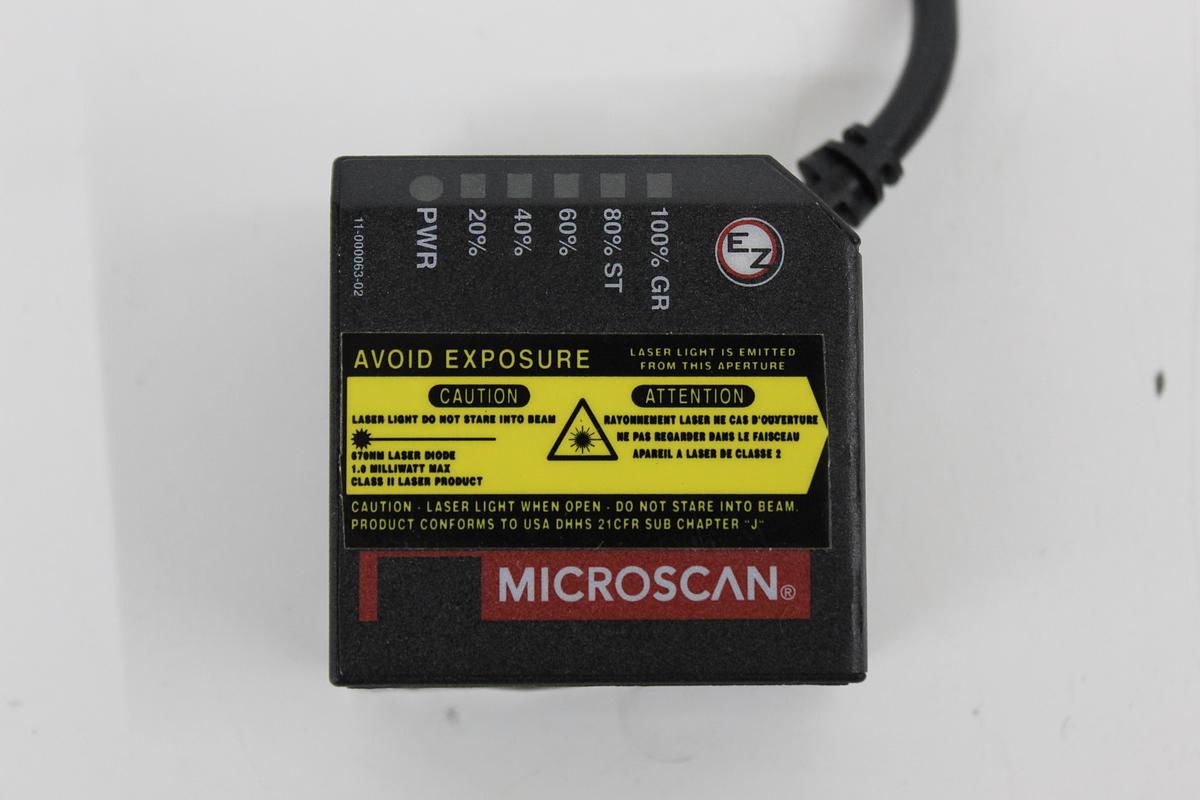

Unit is used, in great condition, pulled from a working system. See photos, item comes as shown.

[Info on Unit]

Manufacturer: Microscan Systems

Model: MS-3

Equipment Type: Fixed-Mount Laser Barcode Scanner

Barcode Type: 1D Linear

Scan Rate: 300–1,000 scans/second

Default Scan Rate: 500 scans/second

Reading Range: 2–10 inches (51–254 mm), depending on barcode density

Laser Wavelength: 650 nm

Laser Classification: Class II

Operating Voltage: 5 VDC ±5%

Typical Current Consumption: 260 mA

Scan Angle: Greater than 70°

Pitch Tolerance: ±50°

Skew Tolerance: ±40°

Minimum Symbol Contrast: 25%

Communication Interfaces: RS-232, RS-422/485, USB (configuration-dependent)

Barcode Formats: Code 39, Code 128, Code 93, Codabar, Interleaved 2 of 5, UPC/EAN, Pharmacode

[Description]

The Microscan MS-3 is a compact fixed-mount laser barcode scanner designed for automated identification, industrial equipment integration, and OEM applications. It provides adjustable scanning speeds of 300 to 1,000 scans per second and supports common 1D barcode symbologies, including Code 39, Code 128, UPC/EAN, and Interleaved 2 of 5. The scanner utilizes a 650 nm visible laser with a scan angle exceeding 70 degrees for high-speed barcode acquisition. Its IP54-rated enclosure provides protection against dust and splashing water, while integrated status indicators support operational monitoring. The MS-3 series is suitable for automated production equipment, laboratory instruments, and industrial barcode reading systems.
