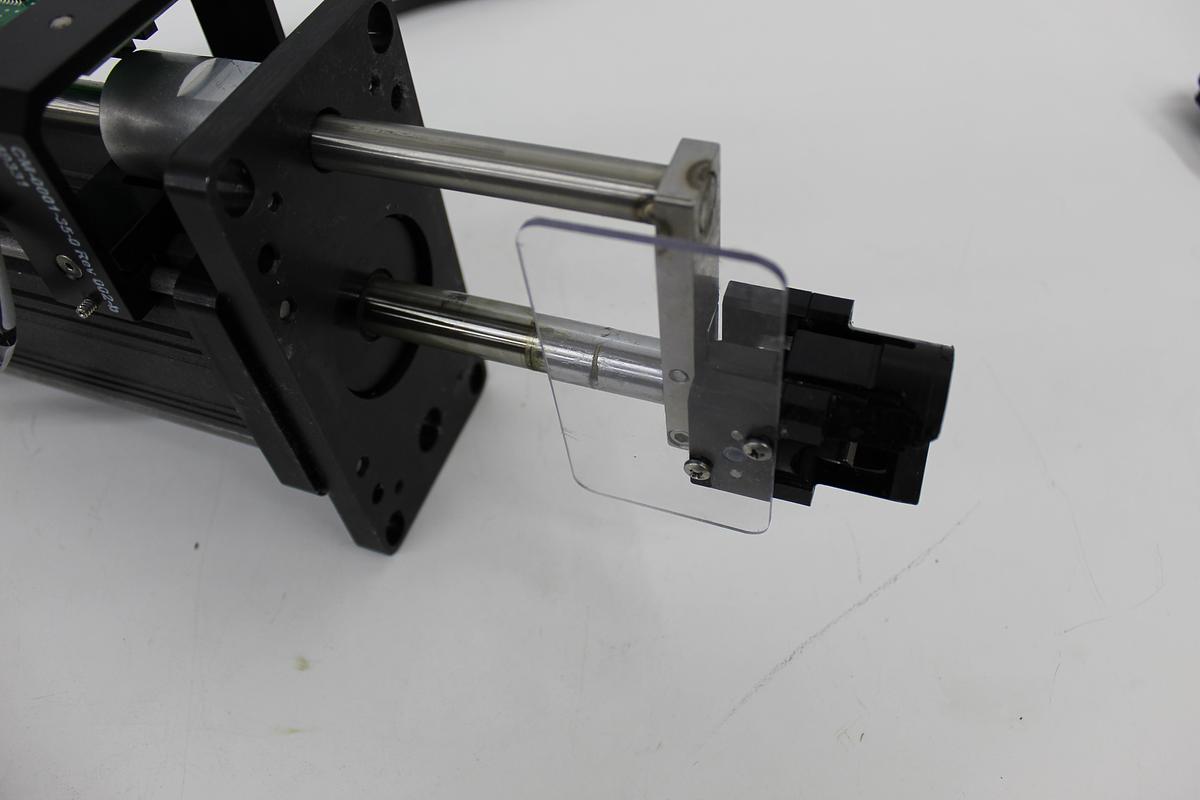

Exlar SR31-0602-XFX-EM2-238-45-AR-XT Electric Linear Servo Actuator 230V

Exlar SR31-0602-XFX-EM2-238-45-AR-XT Electric Linear Servo Actuator 230V

[Condition]

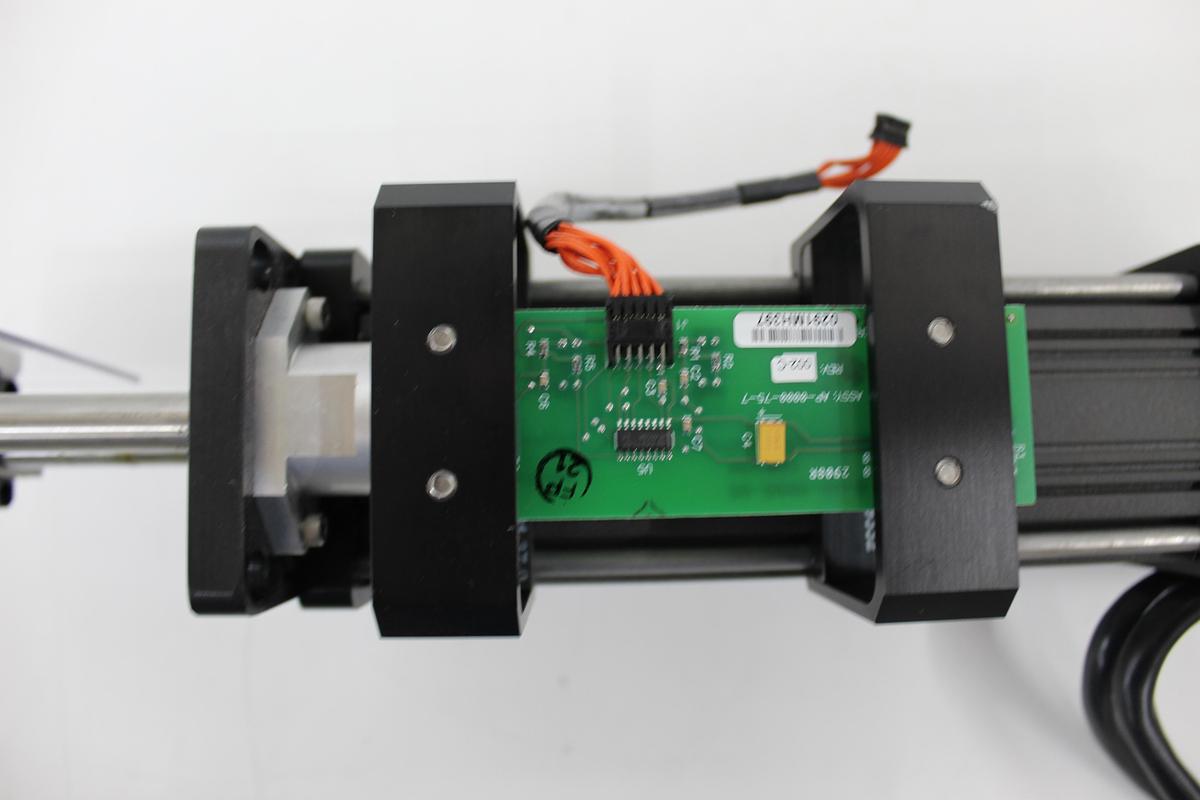

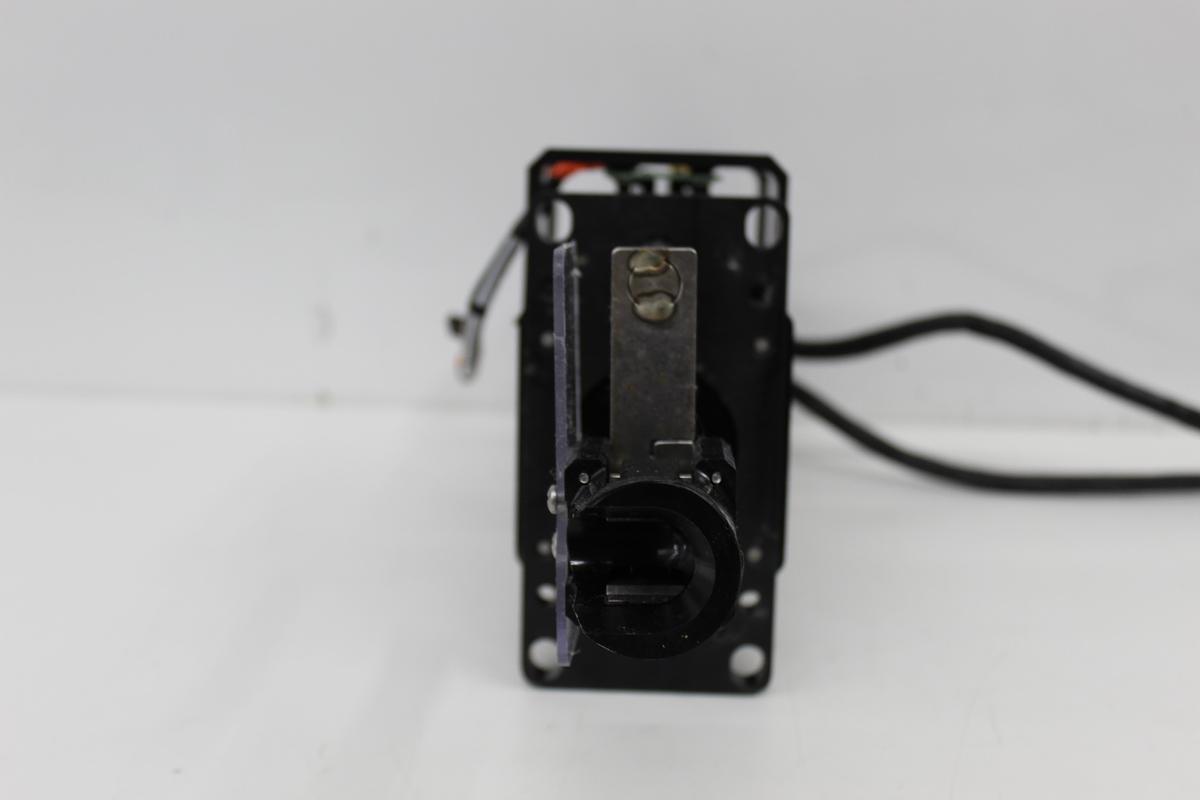

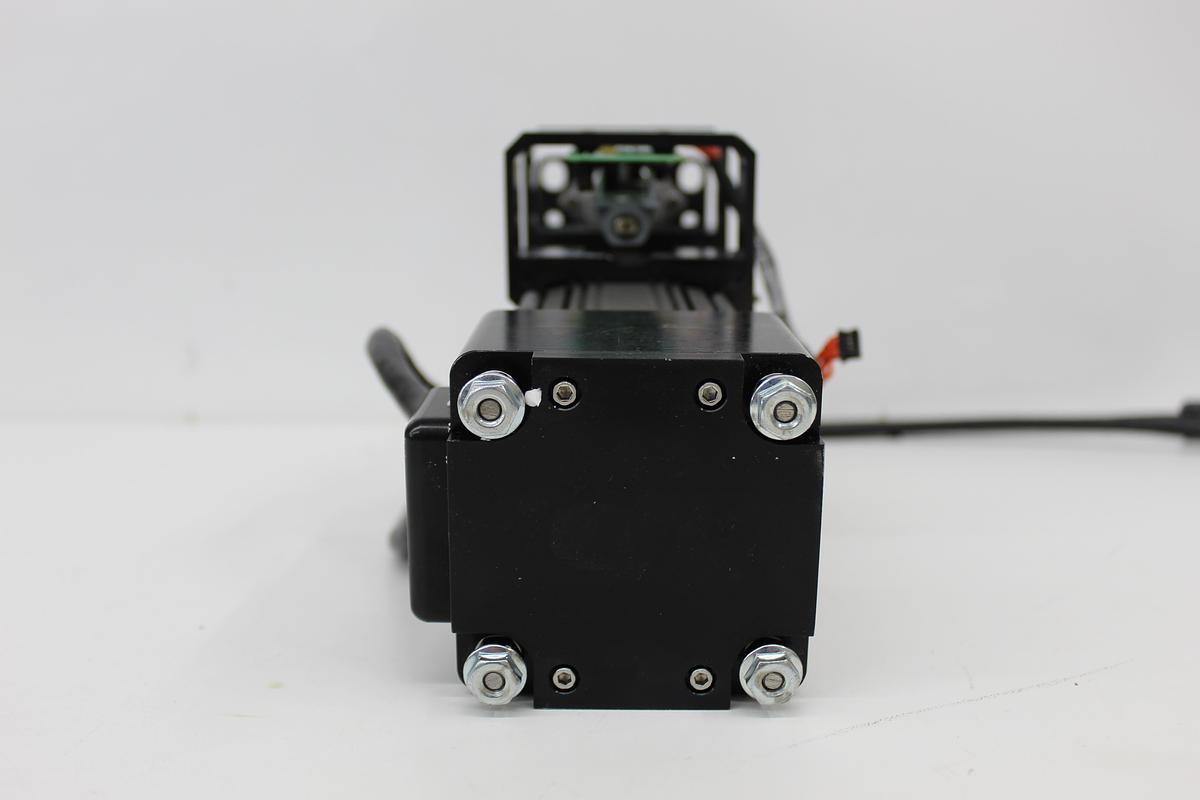

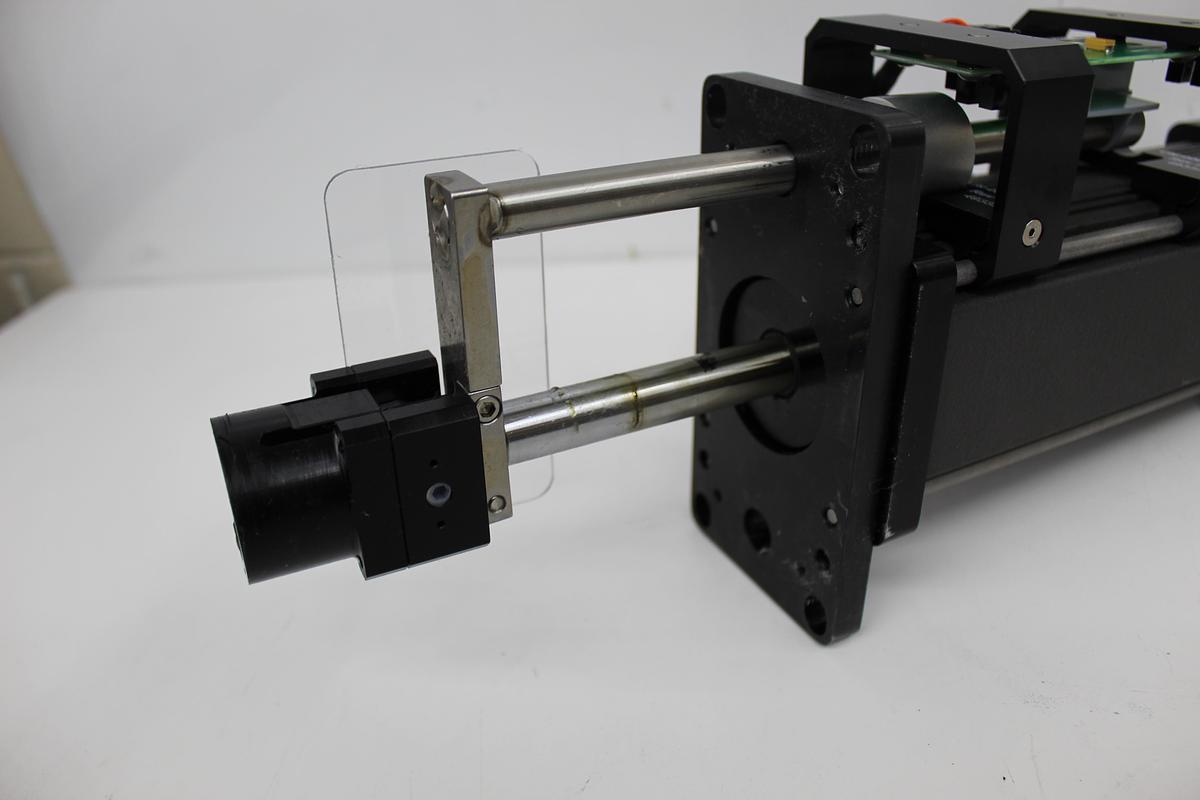

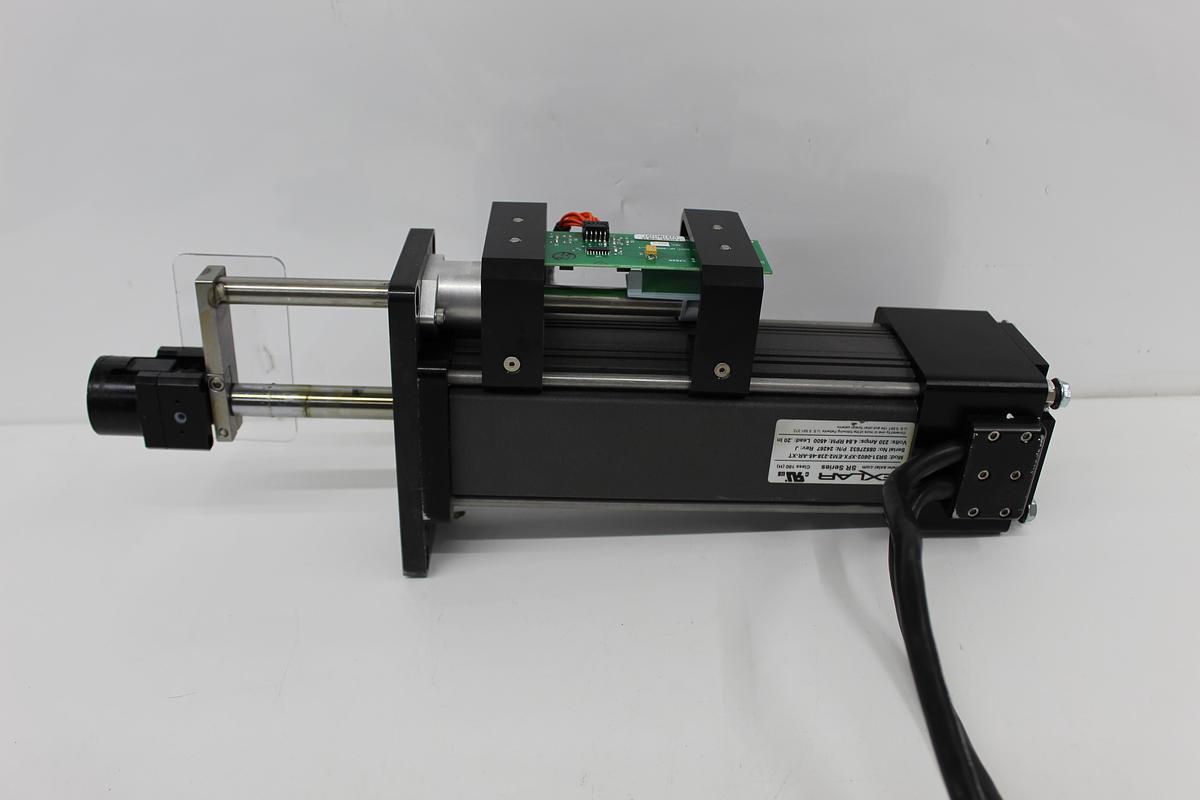

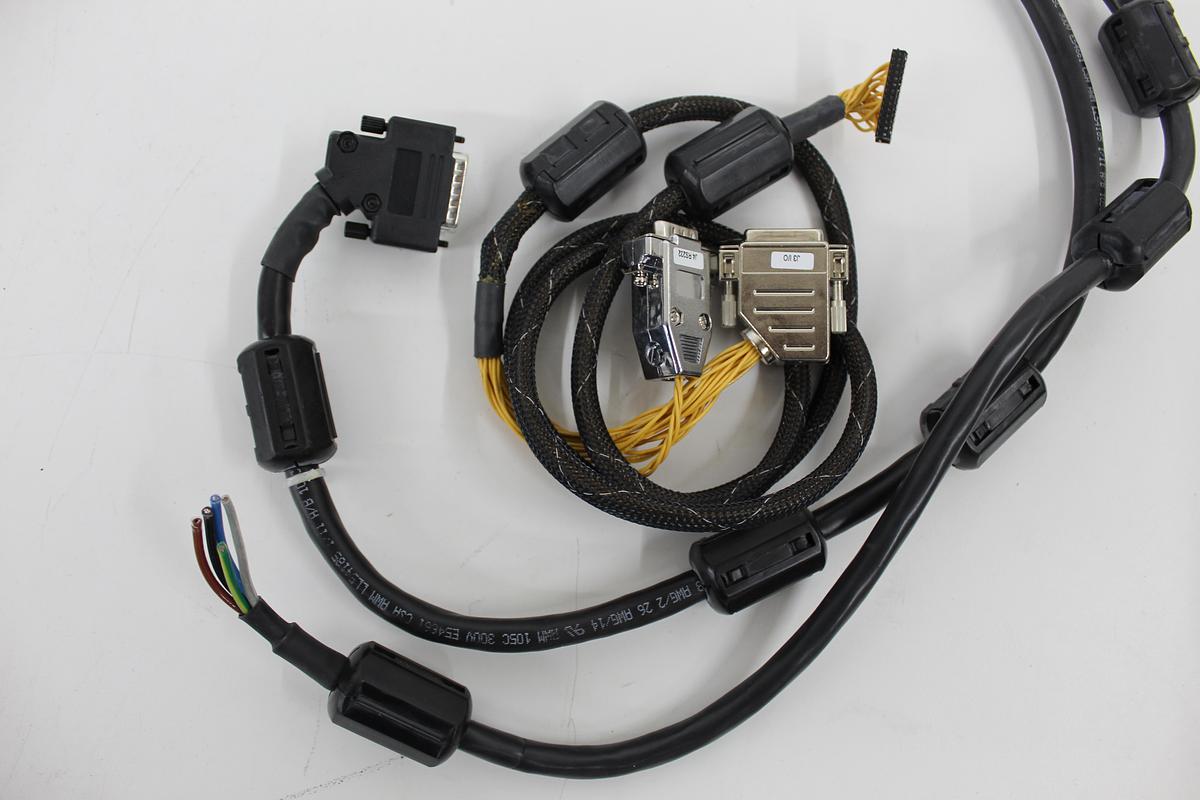

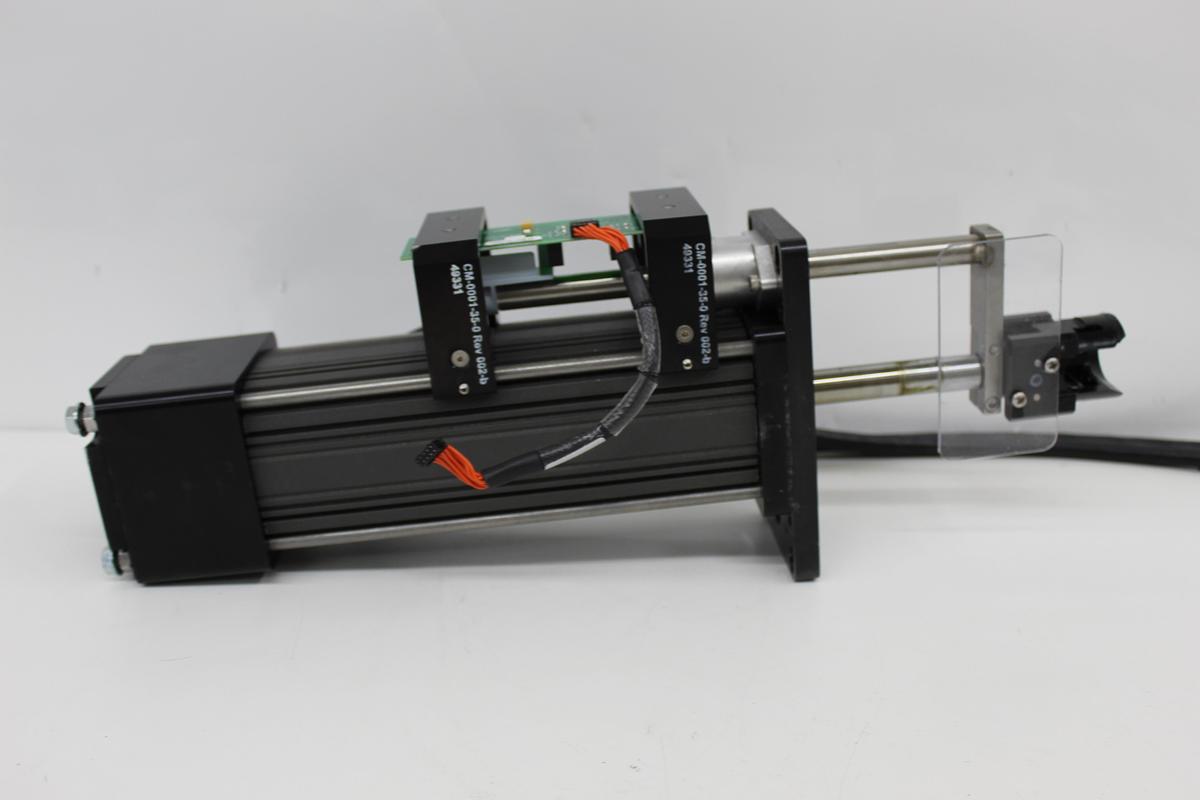

Unit is used, in great condition, pulled from a working decomissioned system. Unit includes cables shown in photos. See photos, item comes as shown.

Check our store for the matching drive, Control Techniques Ei-205.

[Info on Unit]

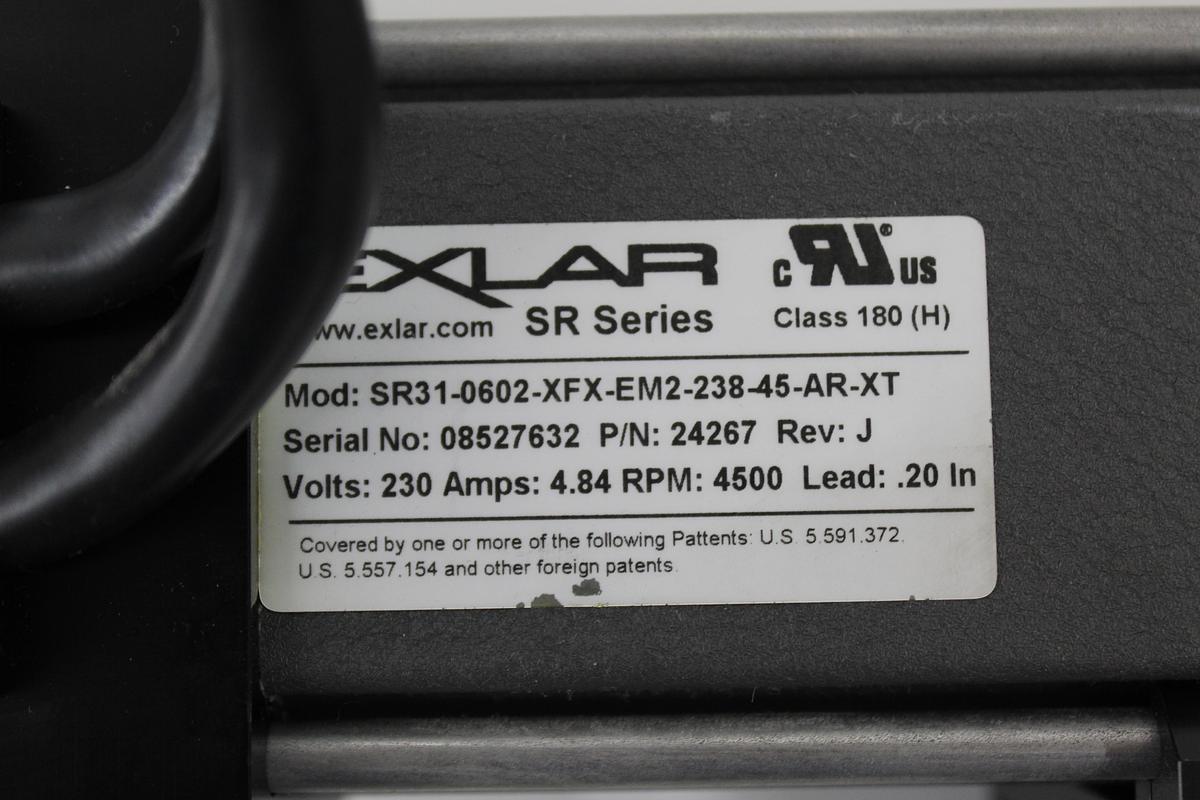

Manufacturer: Exlar

Model: SR31-0602-XFX-EM2-238-45-AR-XT

Series: SR31

Actuator Type: Electric Linear Actuator

Drive Mechanism: Planetary Roller Screw

Motor Type: Integrated Brushless Servo Motor

Motor Stator Code: 238

Motor Bus Voltage: 230 VDC

Rated Motor Speed: 3,000 RPM

Stroke Length: 5.9 in (150 mm)

Screw Lead: 0.20 in (5.08 mm)

Maximum Linear Velocity: 10 in/sec (254 mm/sec)

Continuous Thrust Rating: 674 lbf (2,998 N)

Maximum Static Load: 1,620 lbf (7,206 N)

Motor Continuous Torque: 25.6 lbf-in (2.89 Nm)

Motor Continuous Current: 4.2 A

Motor Peak Current: 8.4 A

[Description]

The Exlar SR31-0602-XFX-EM2-238-45-AR-XT is an integrated electric linear actuator combining a brushless servo motor with a planetary roller screw drive mechanism. The actuator features a 150 mm stroke, 5.08 mm screw lead, and a 230 VDC motor bus configuration with a nominal operating speed of 3,000 RPM. Its double-stack motor configuration provides a published continuous thrust rating of 674 lbf and a maximum static load capacity of 1,620 lbf. The SR31 design provides controlled linear positioning for industrial automation, manufacturing machinery, and electromechanical motion-control systems. Its integrated construction eliminates the need for an external rotary-to-linear conversion assembly.

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
