Pfeiffer TMH 071 P Turbomolecular Pump w/ TC600 Drive, TPS 100 Power Supply

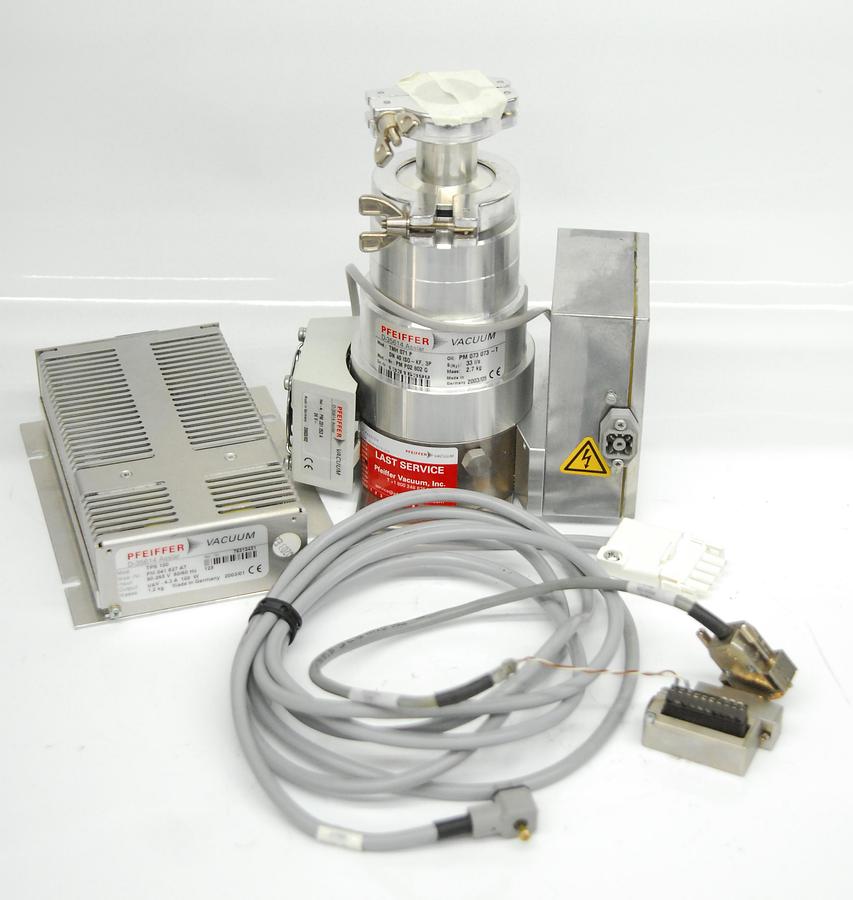

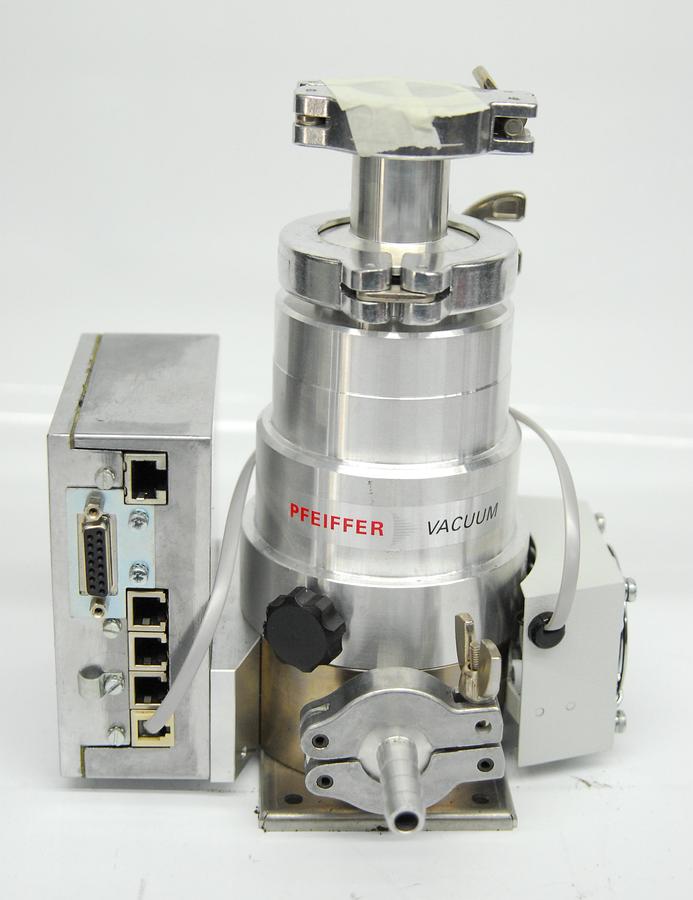

Pfeiffer TMH 071 P Turbomolecular Pump with attached TC600 Electronic Drive Unit (Pump Controller), PM Z01 253 A External Air Cooling Fan, and TPS 100 Power Supply, and shown cables. System is used. Removed working from a decommissioned Bruker CRYO Platform Z70377. See pictures, comes as shown.

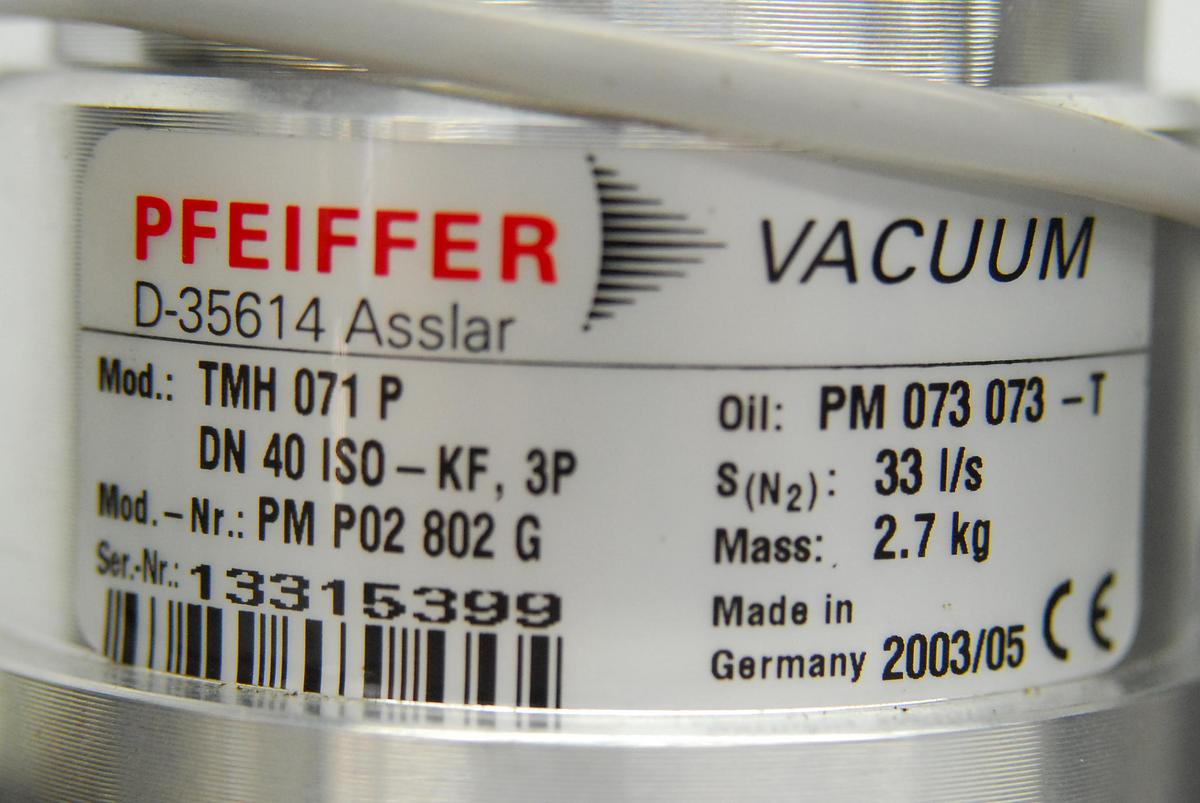

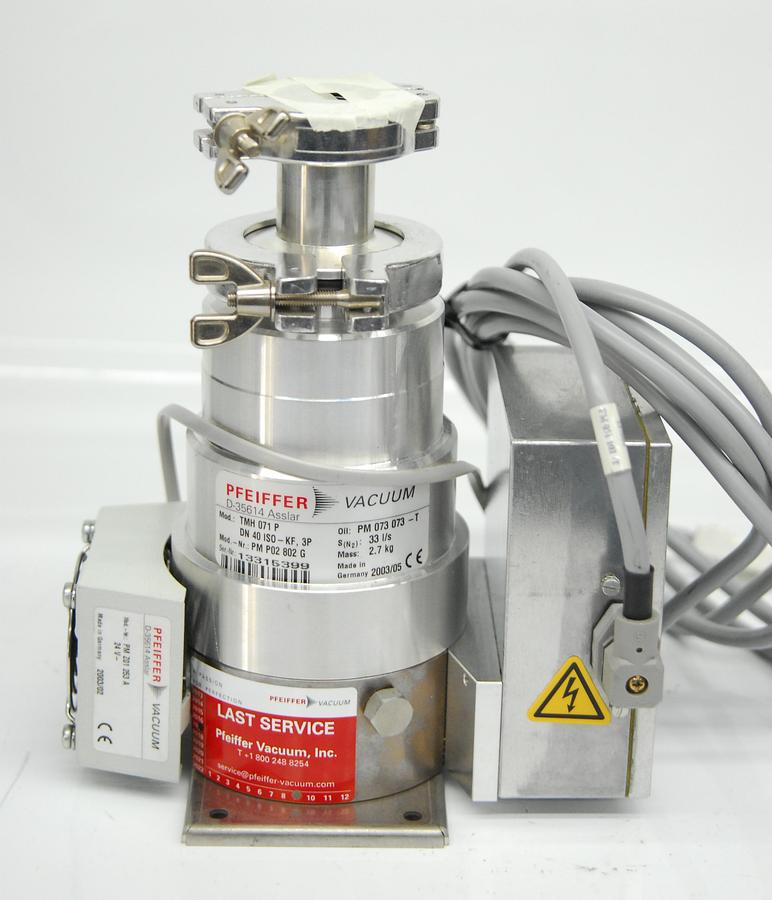

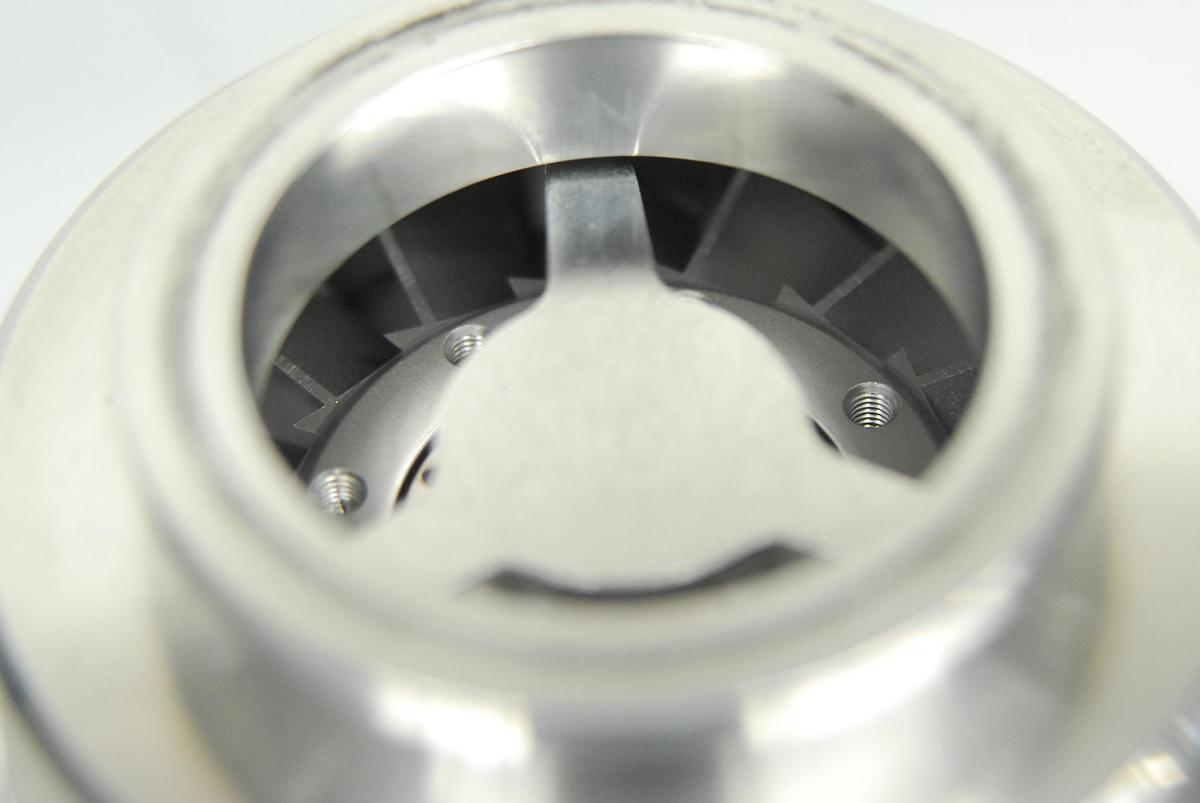

Info on Turbomolecular Pump:

• Pump Model Name: TMH 071 P
• Pump Part Number (MPN): PM P02 802 G

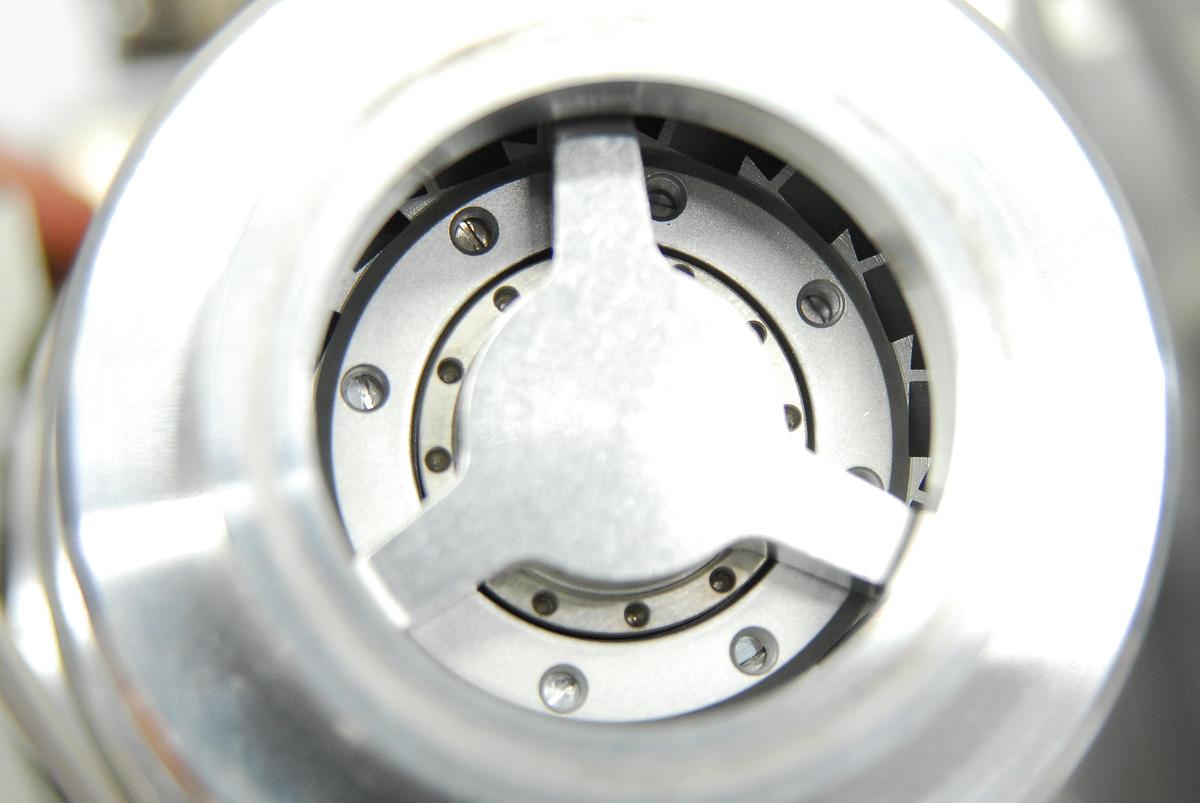

• Inlet Flange: DN 40 ISO-KF (3P)
• Exhaust Flange: DN 16 ISO-KF
• Nominal Rotational Speed: 90,000 RPM (1500 Hz drive frequency)
• Standby Rotational Speed: 60,000 RPM (1000 Hz drive frequency)
• Maximum Permissible Foreline Pressure: 10 mbar
• Maximum Permissible Rotor Temperature: 90 degrees C

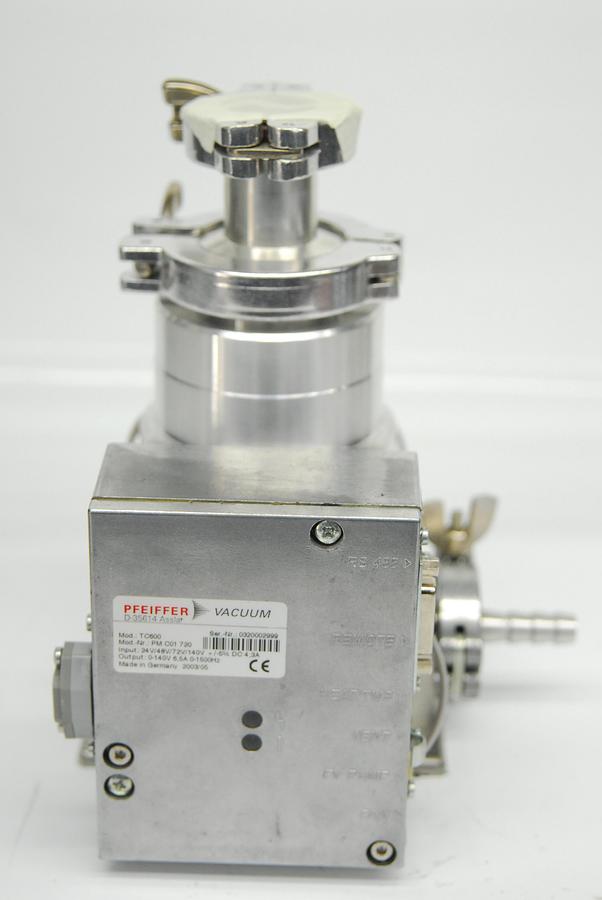

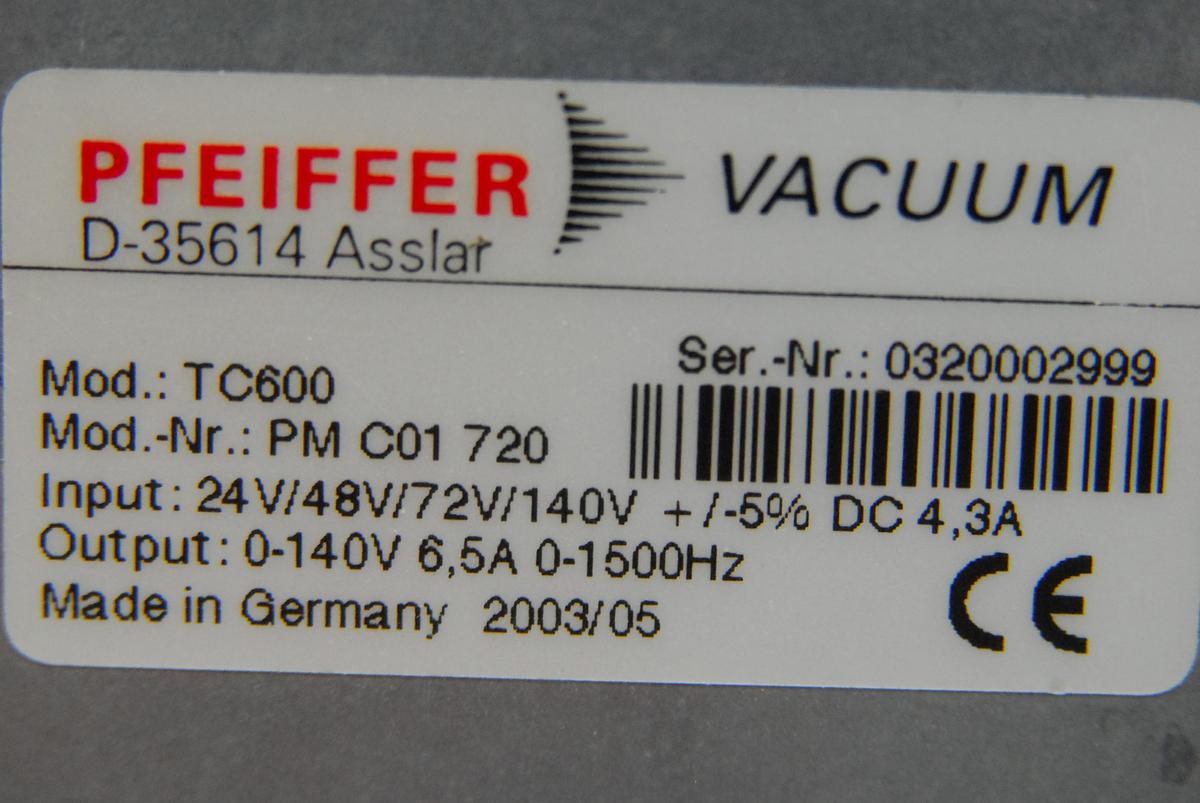

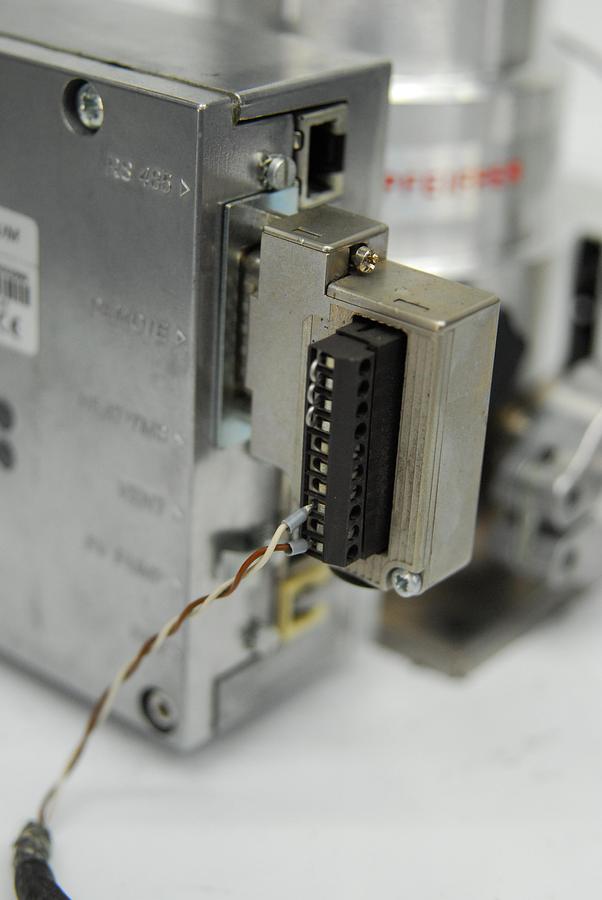

Info on Drive Unit:

• Controller Model Name: TC 600
• Controller Part Number: PM C01 720
• Controller Connection for Pump: Integrated direct-mount terminal block
• Controller Input Drive Voltage: 24V/48V/72V/140V DC, 4.3A
• Controller Output Voltage: 0-140V
• Controller Maximum Current Input: 6.5 Amperes
• Controller Output Frequency Range: 0-1500 Hz

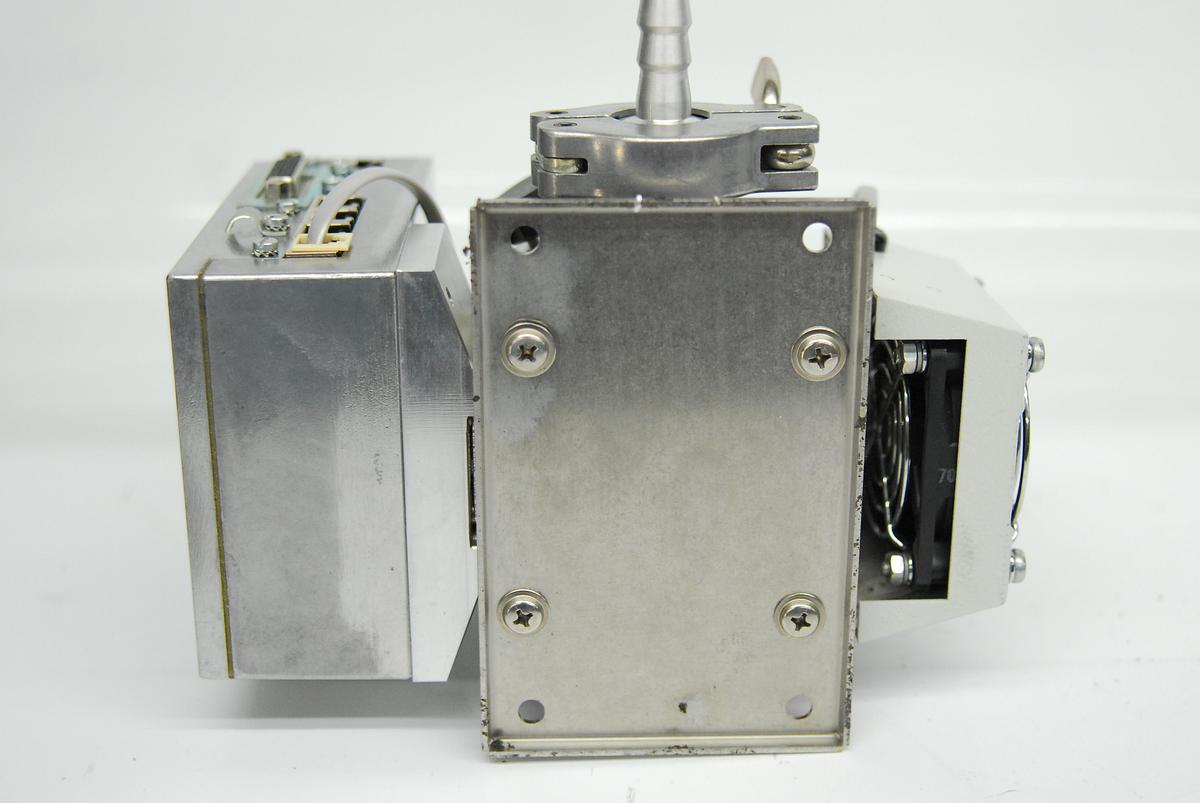

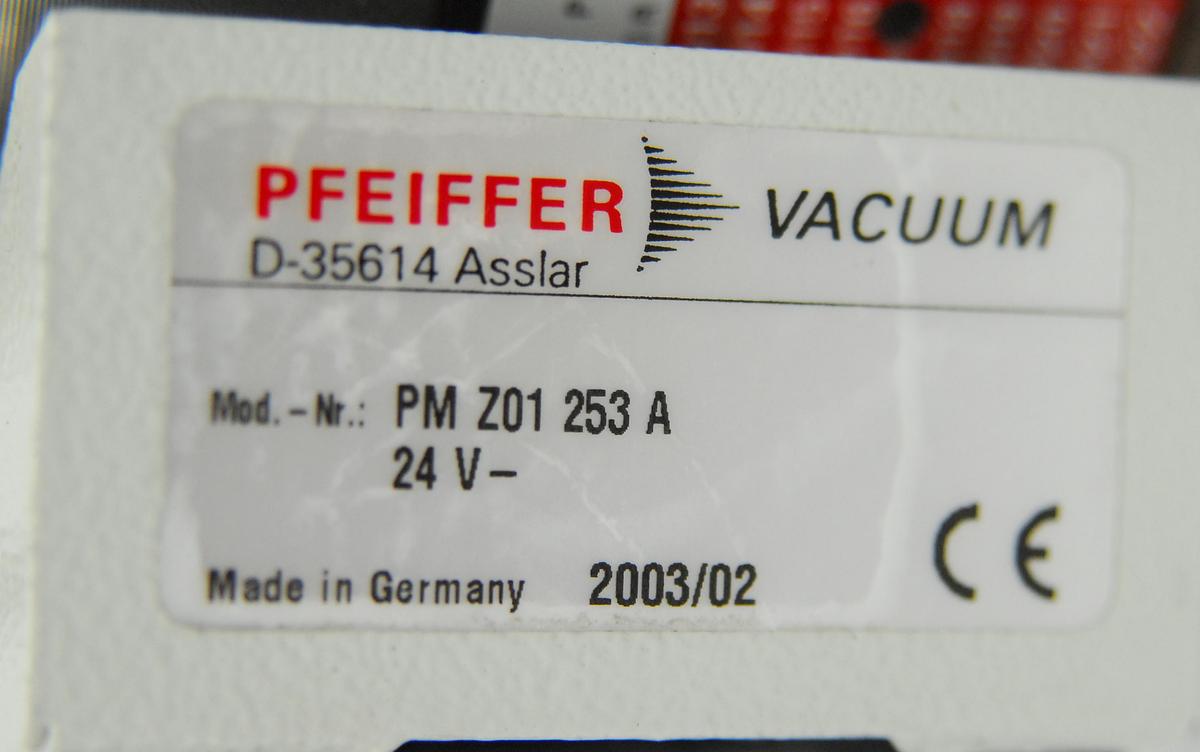

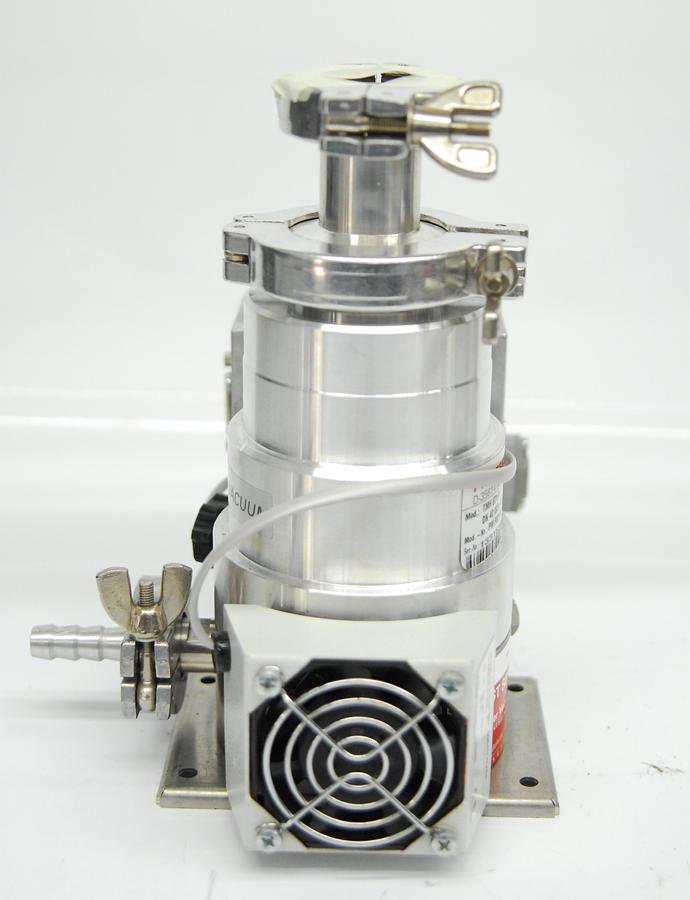

Info on Fan:

• Fan Model Number: PM Z01 253 A
• Fan Operating Voltage: 24 VDC

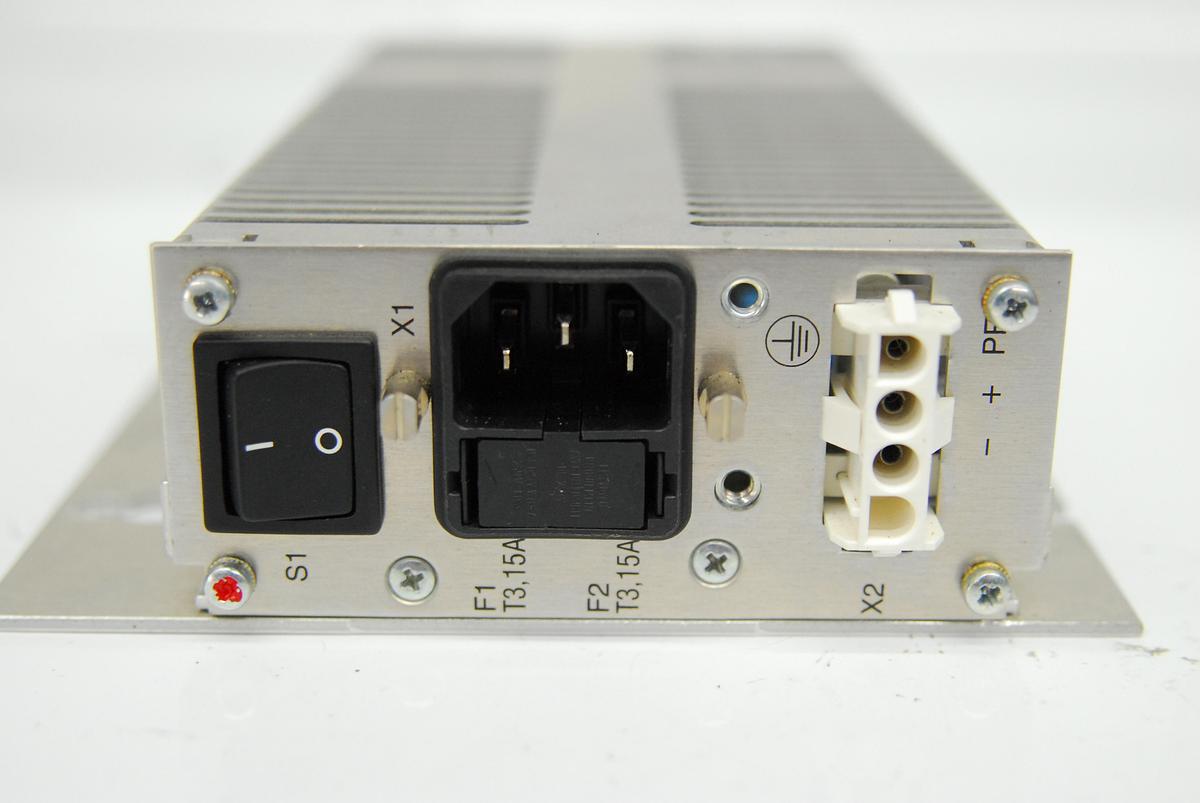

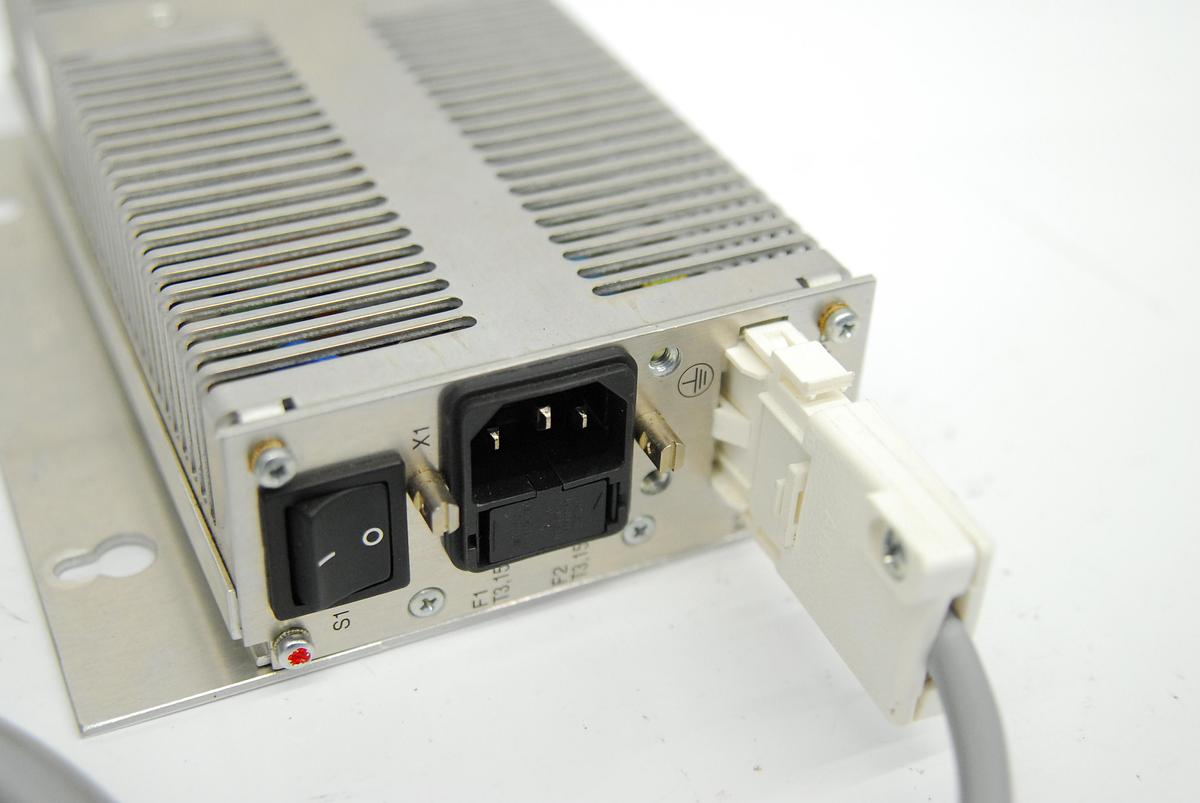

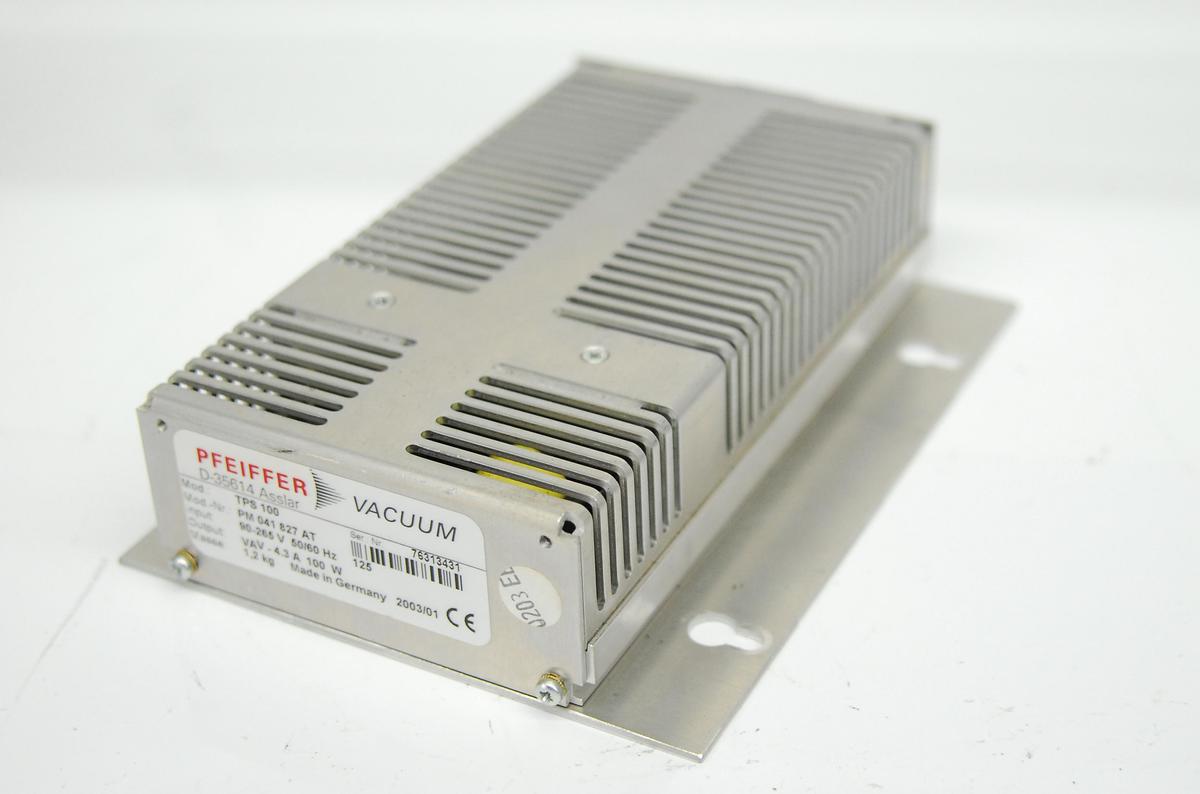

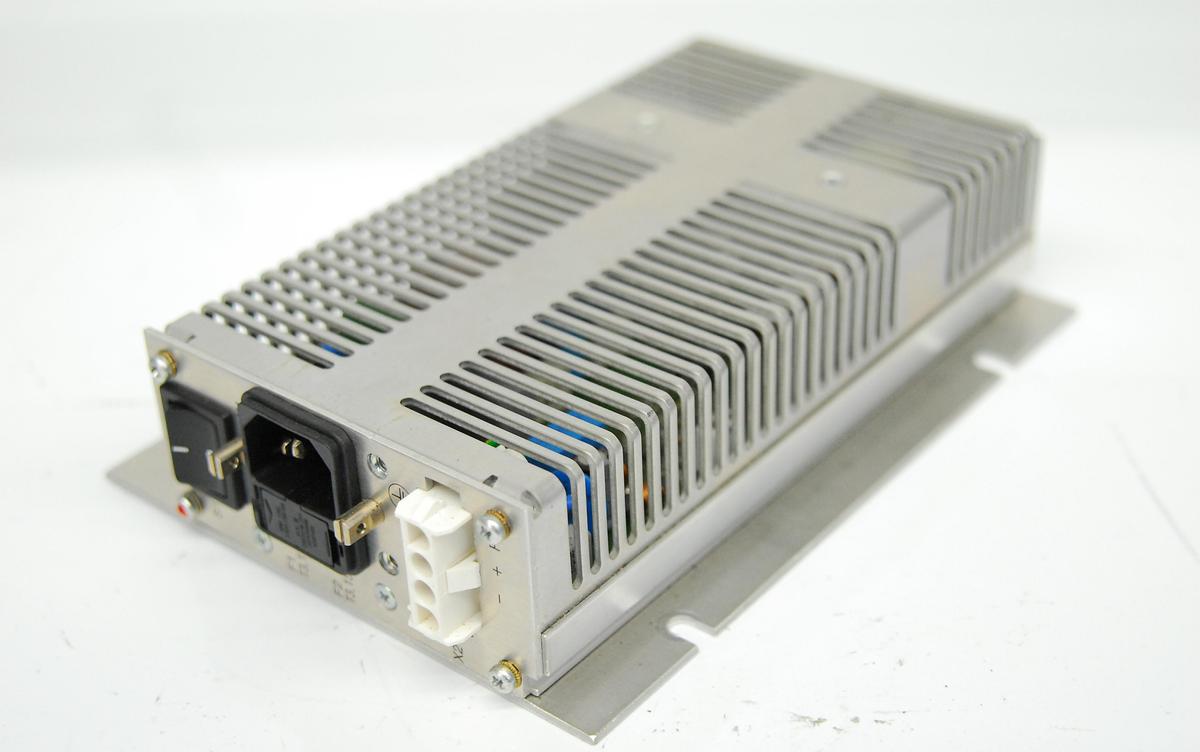

Info on Power Supply:

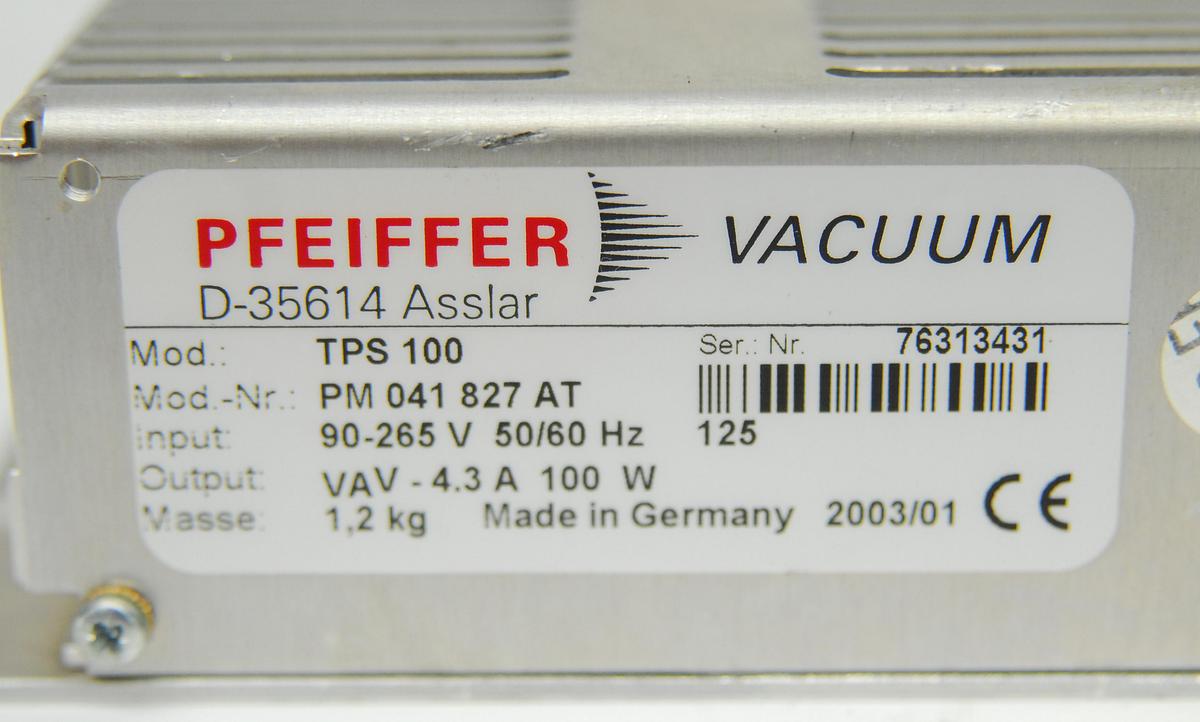

• Power Supply Model Number: TPS 100
• Power Supply Part Number (MPN): PM 041 827 AT
• Power Supply Input: 90-256 V, 50/60 Hz
• Power Supply Output: VAV (Variable Output Voltage) , 4.3A 100W

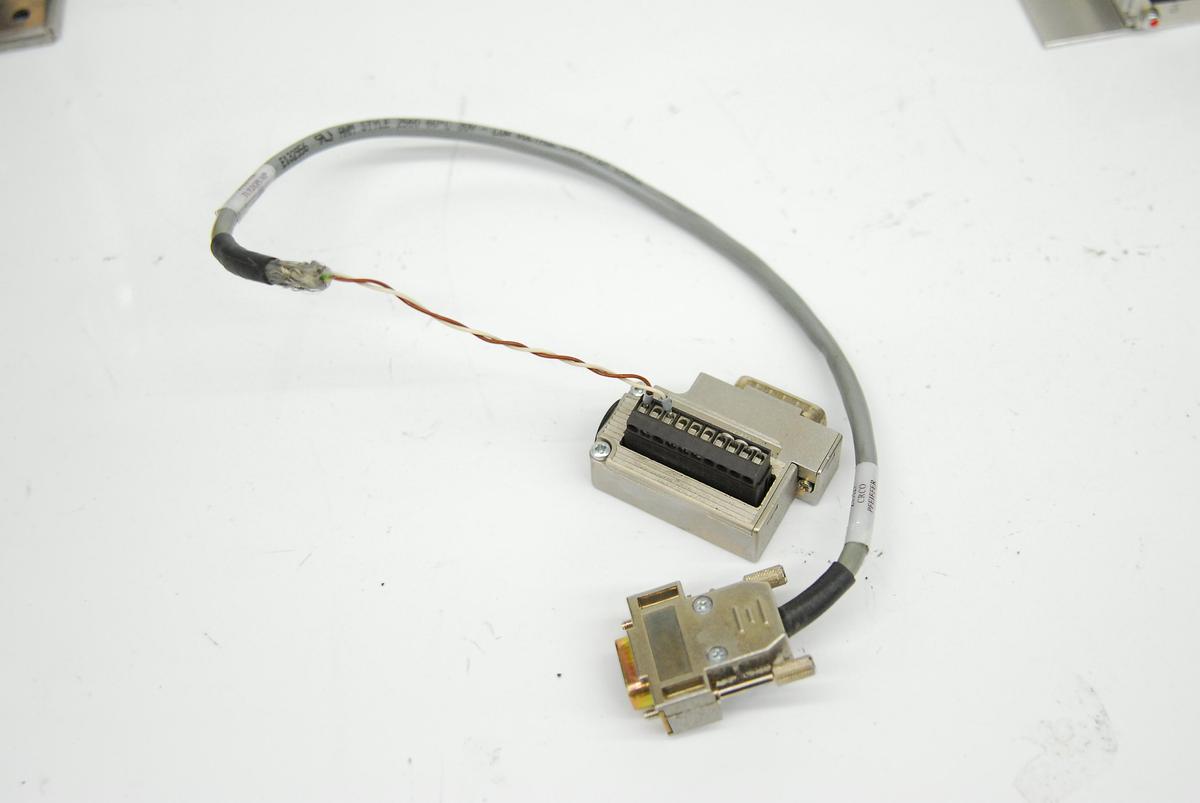

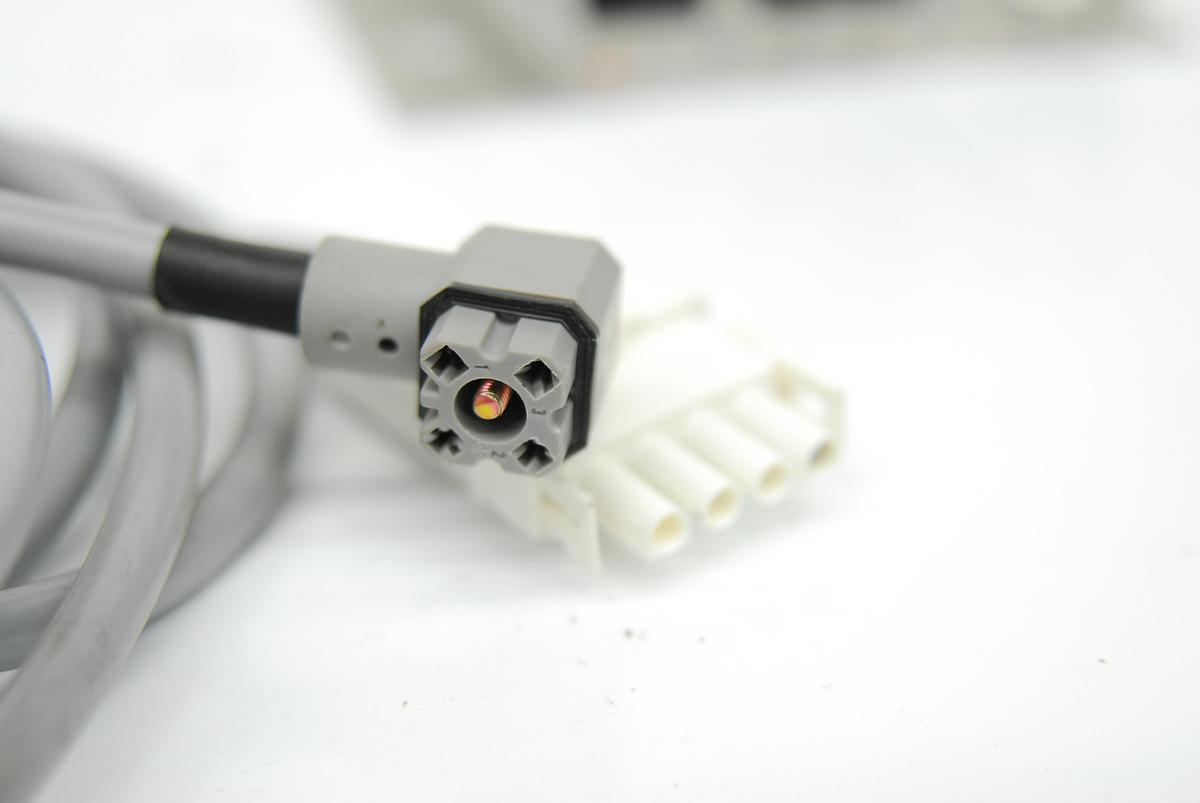

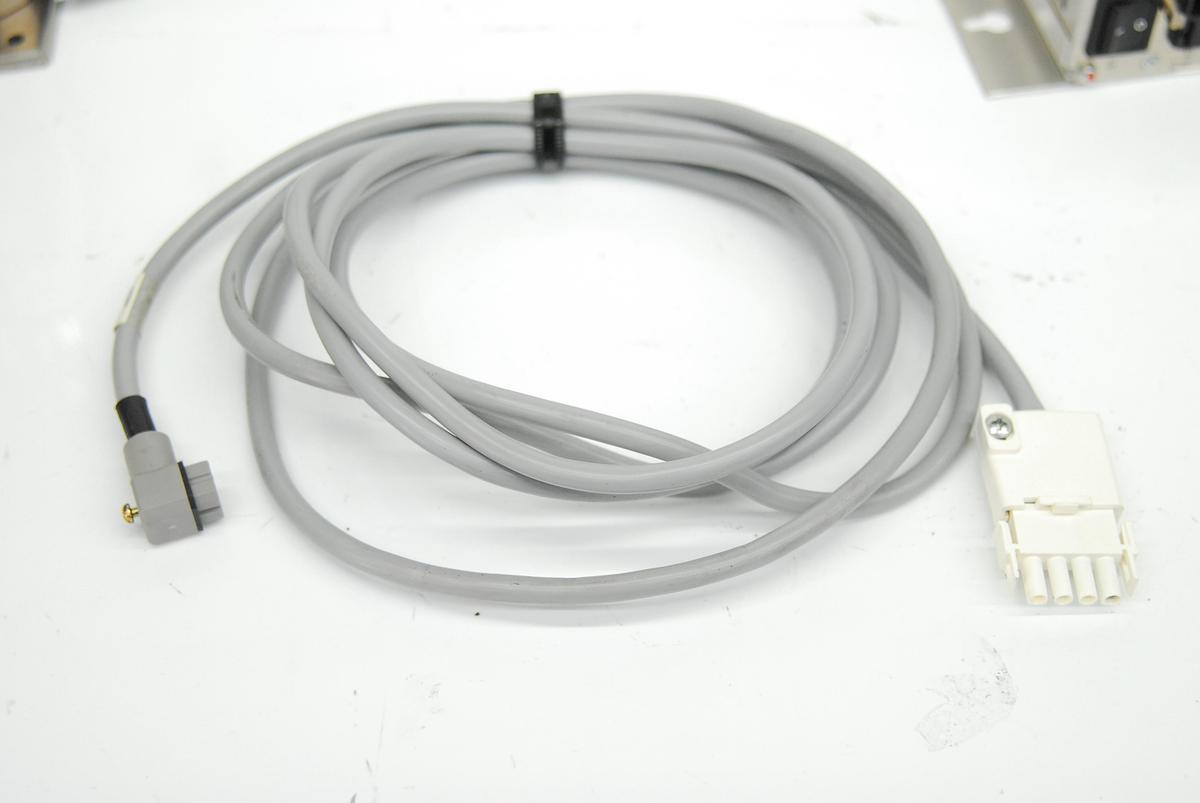

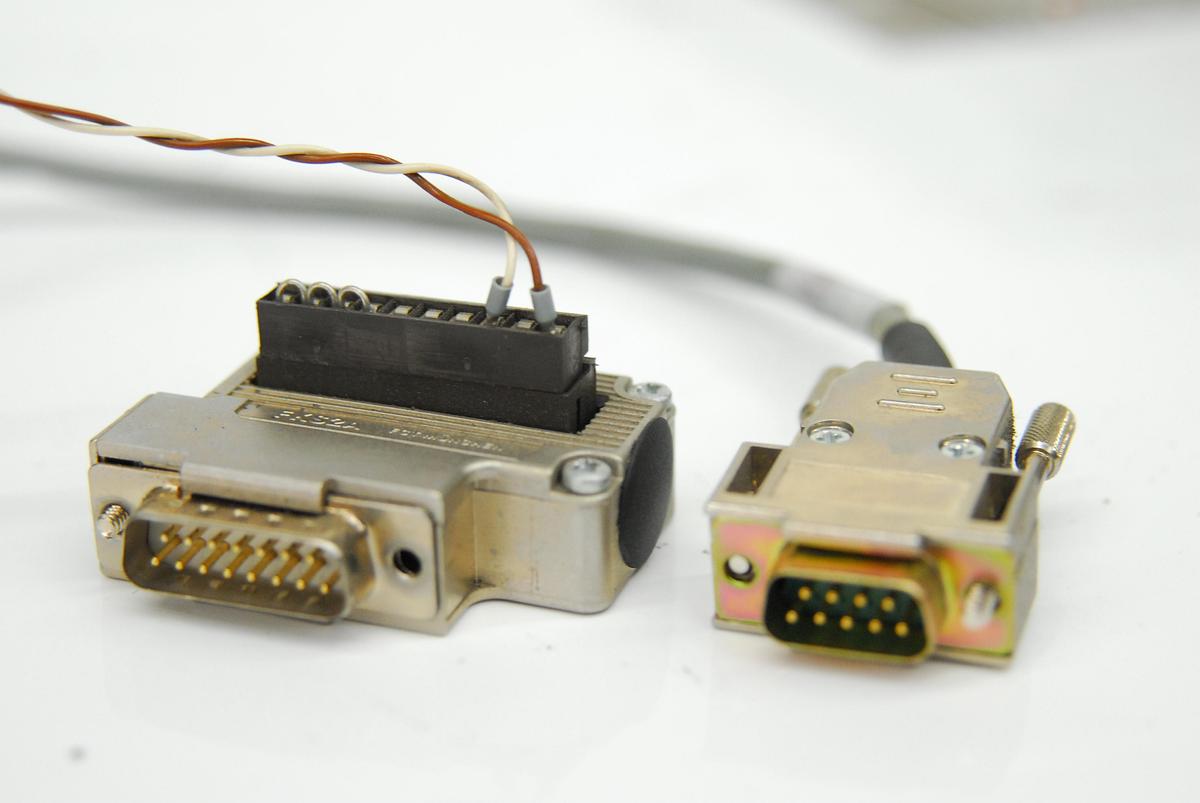

Cables:

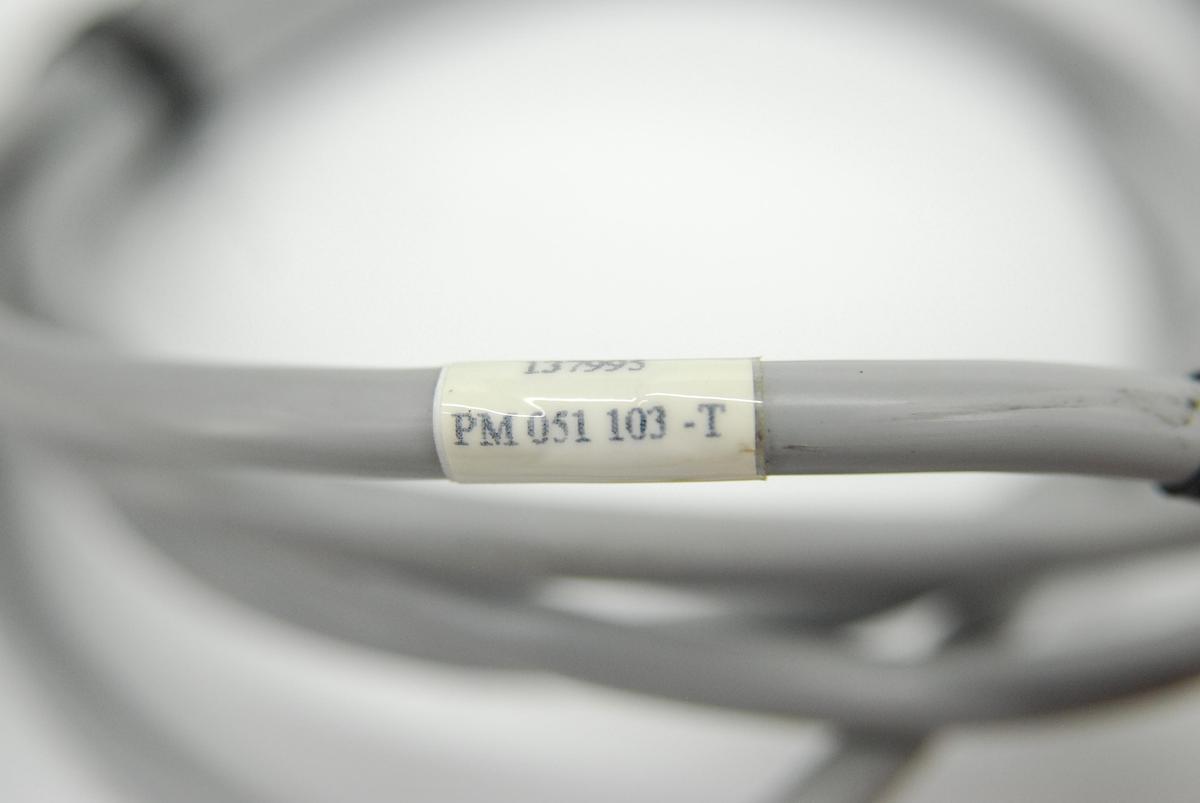

• 137995 | PM 051 103-T

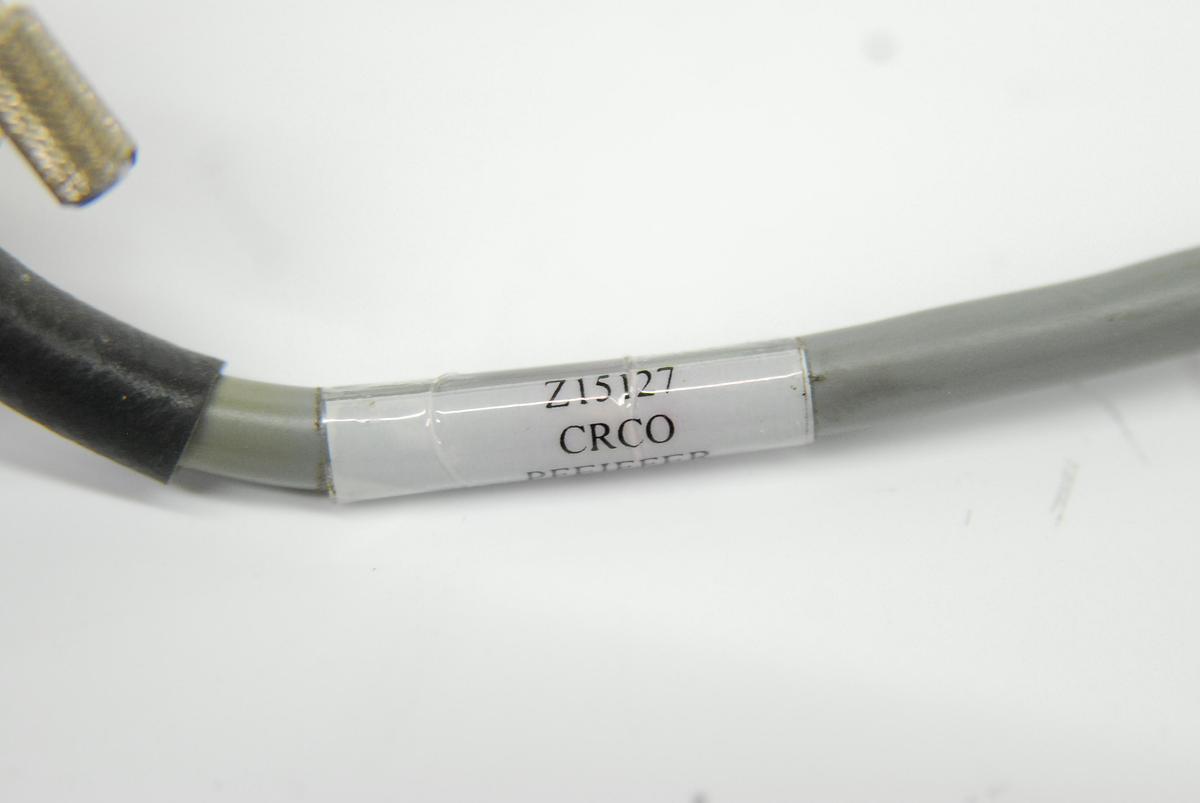

• Z15127 | CRCO | Pfeiffer | Sw. 3
