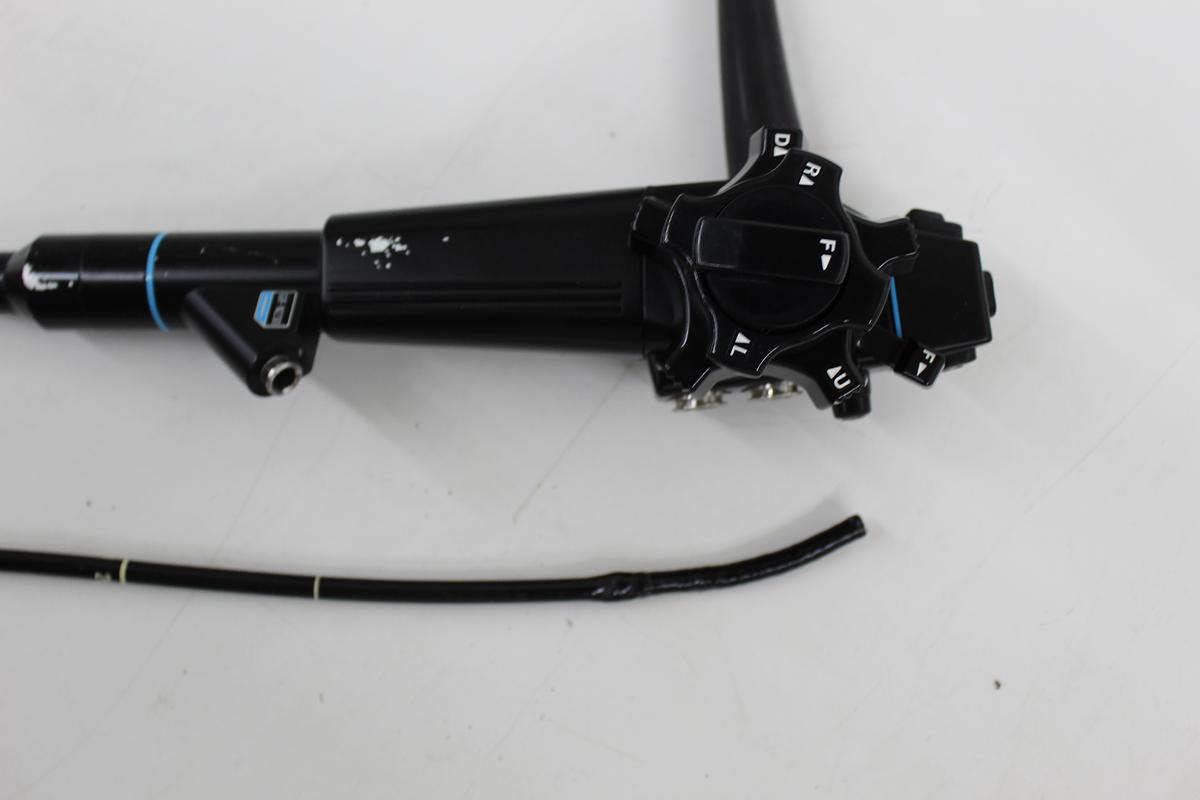

Olympus EVIS GIF-N230 Ultra Slim Video Gastroscope

Olympus EVIS GIF-N230 Ultra Slim Video Gastroscope

[Condition]

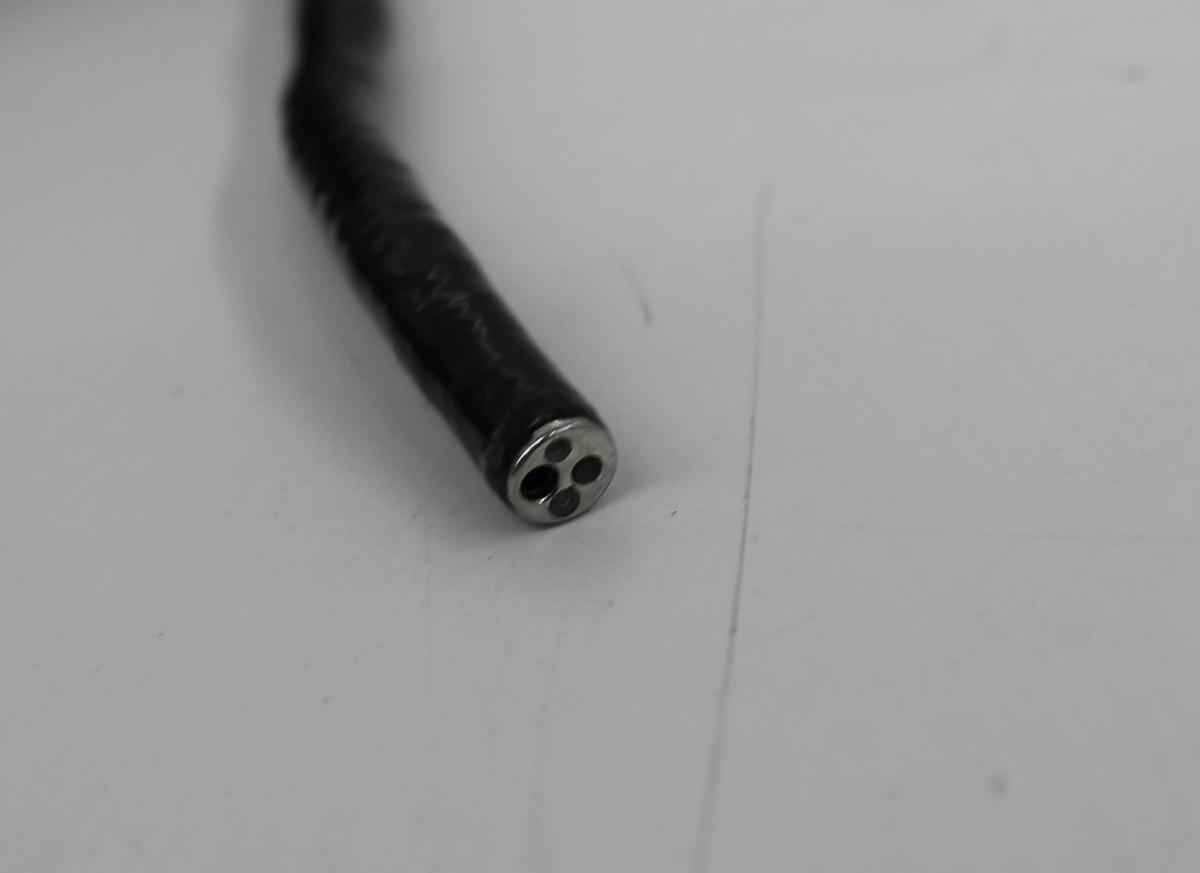

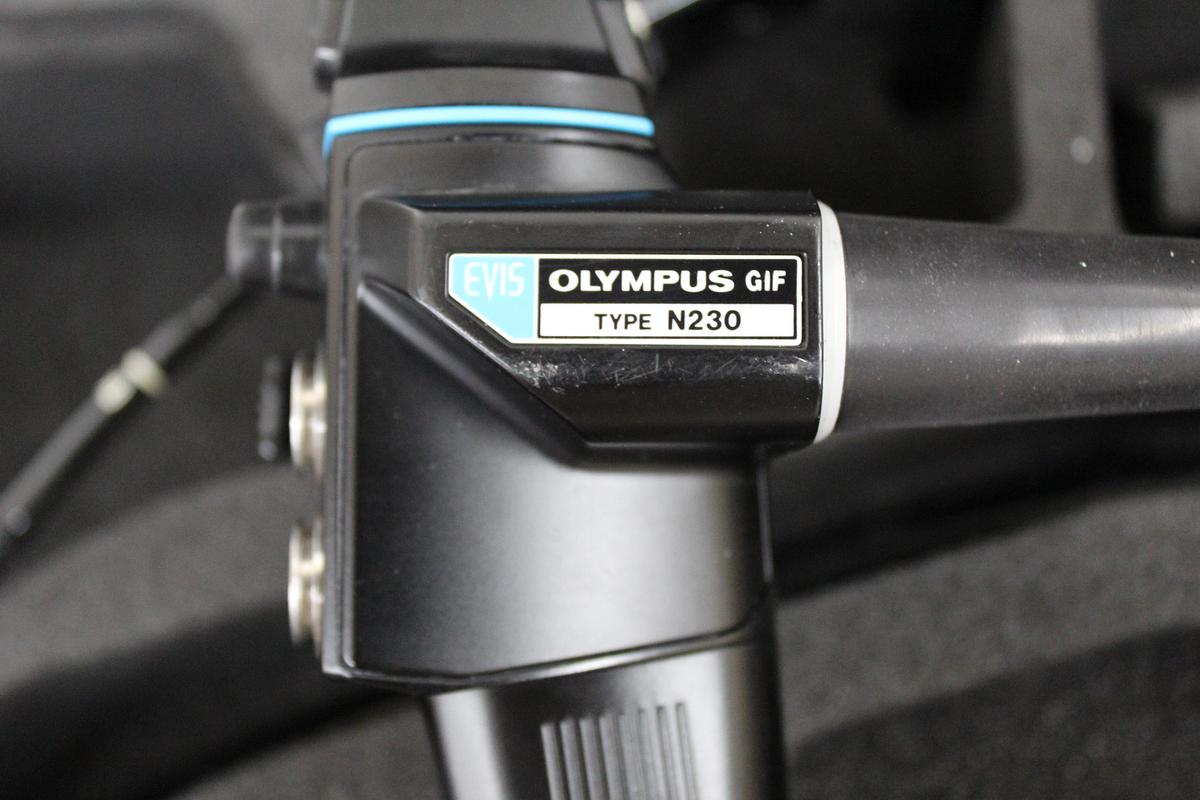

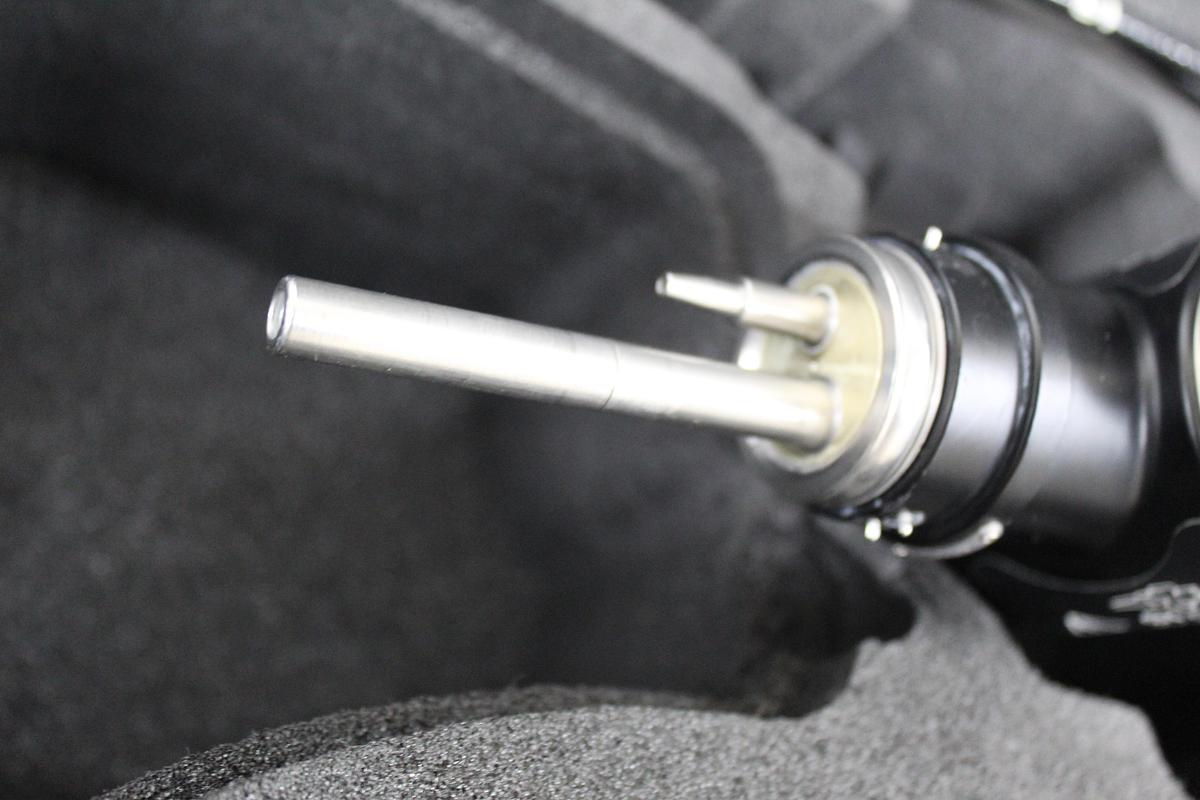

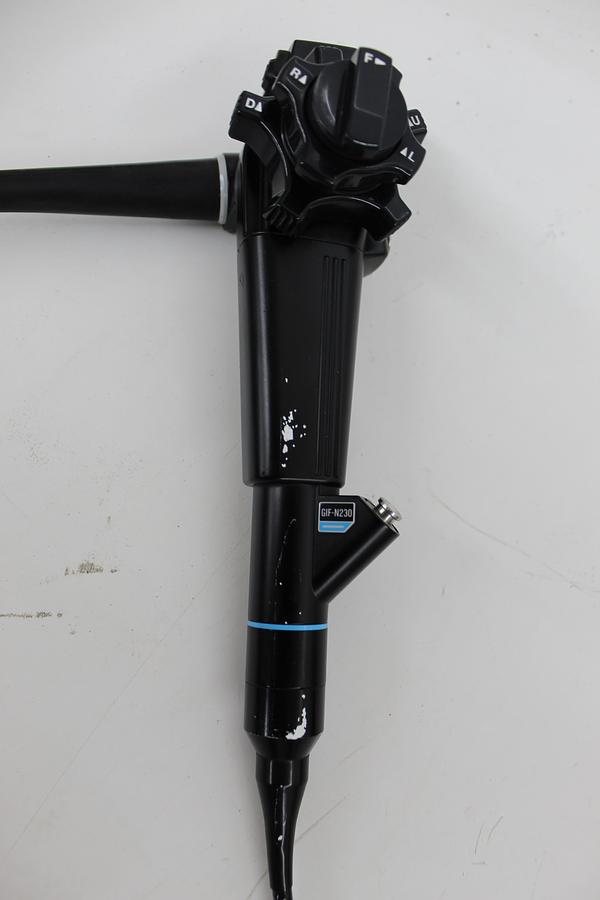

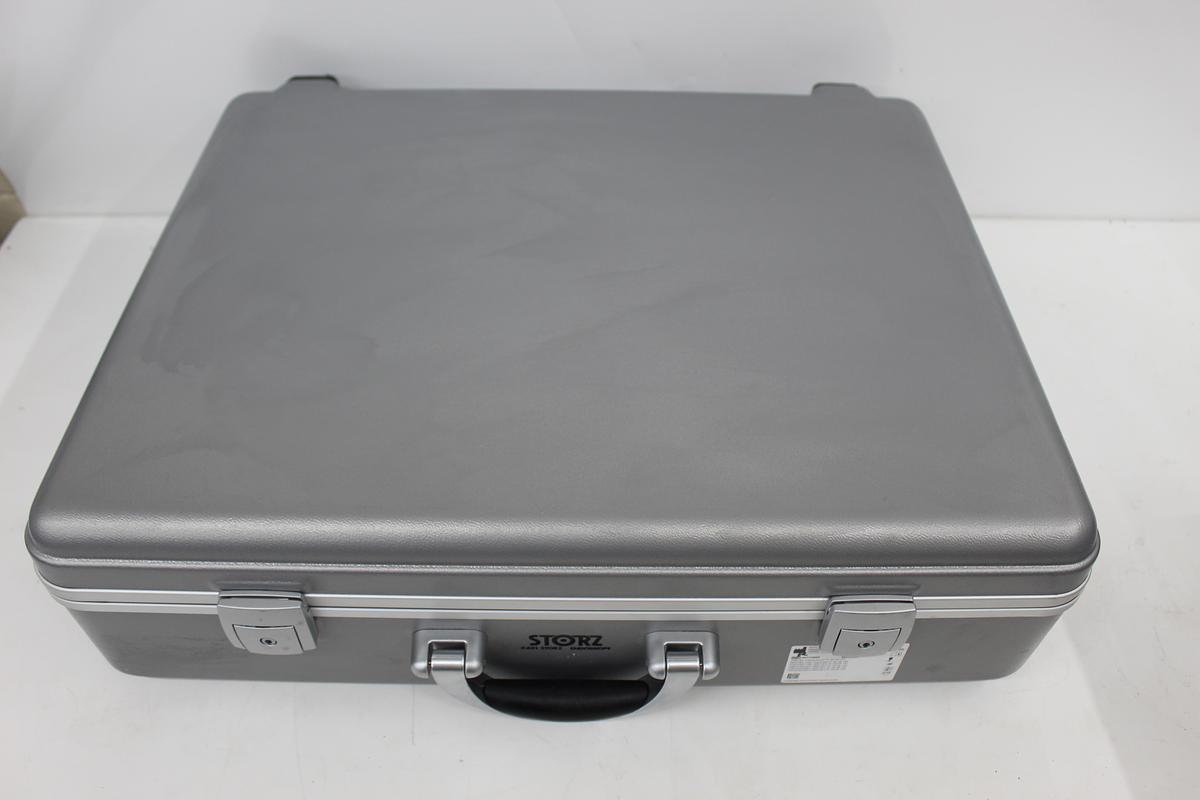

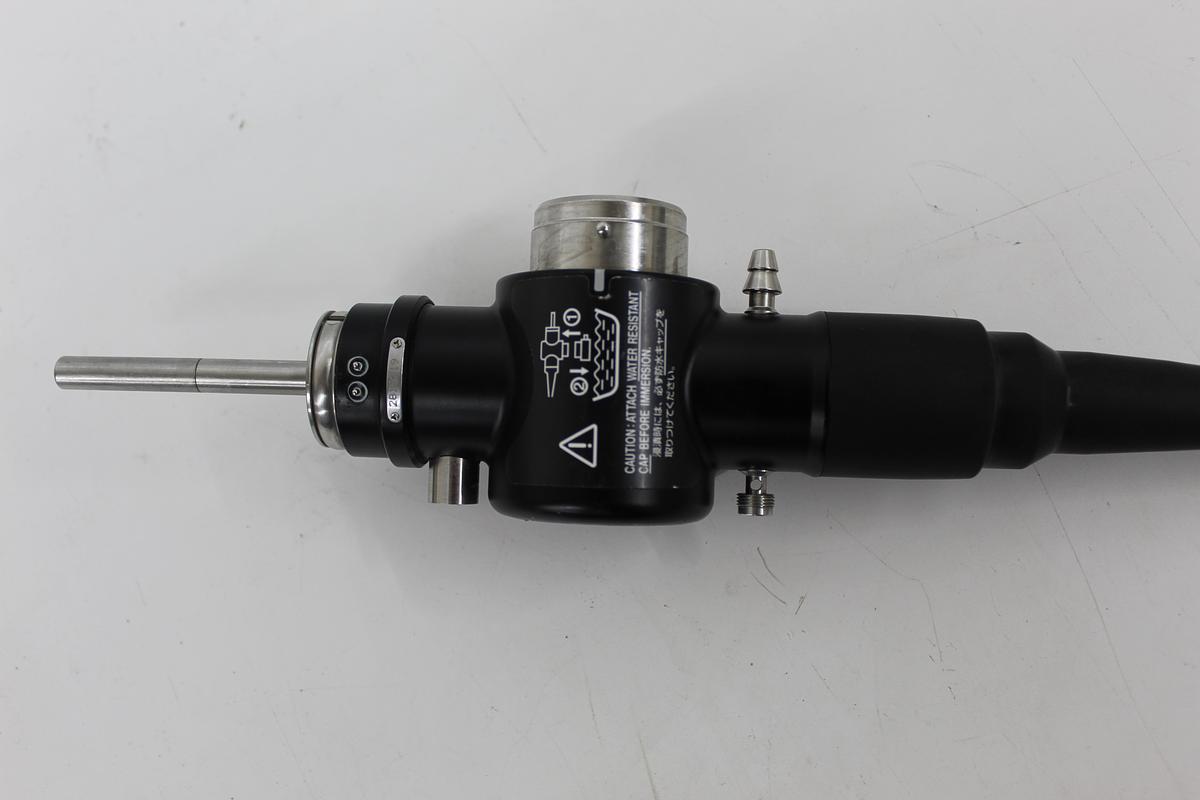

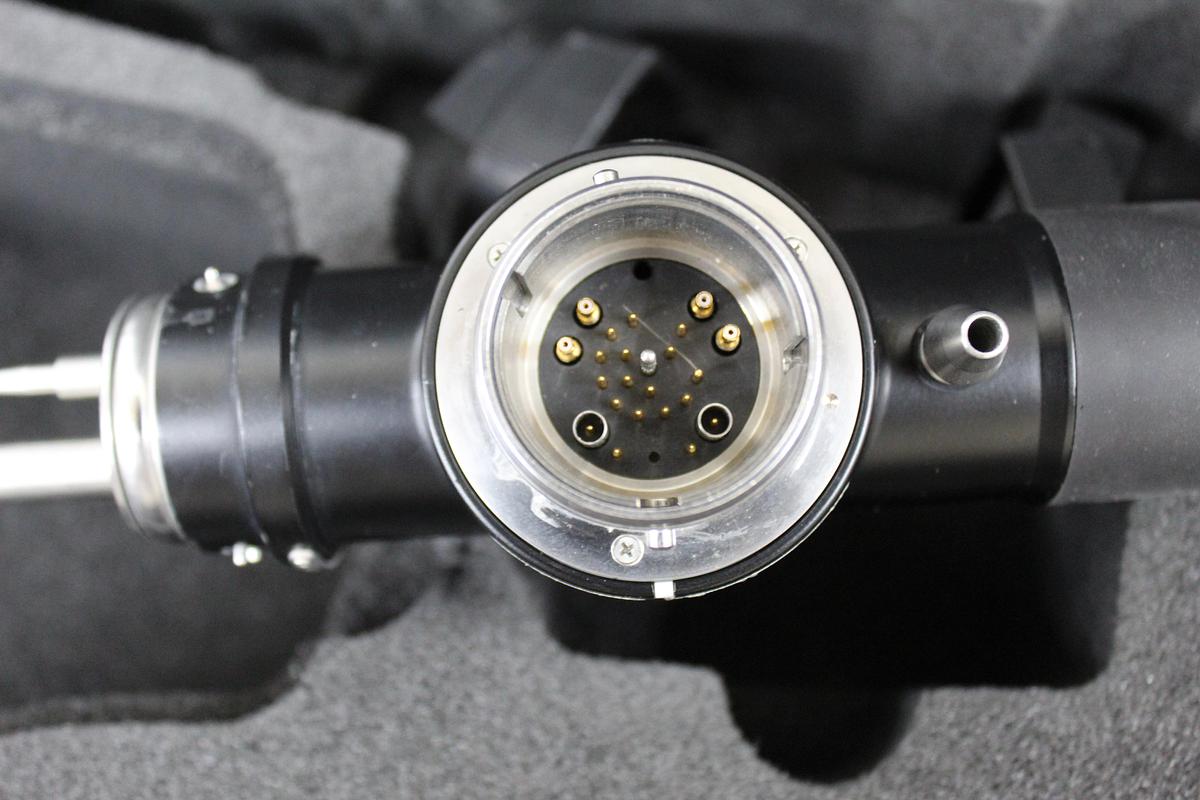

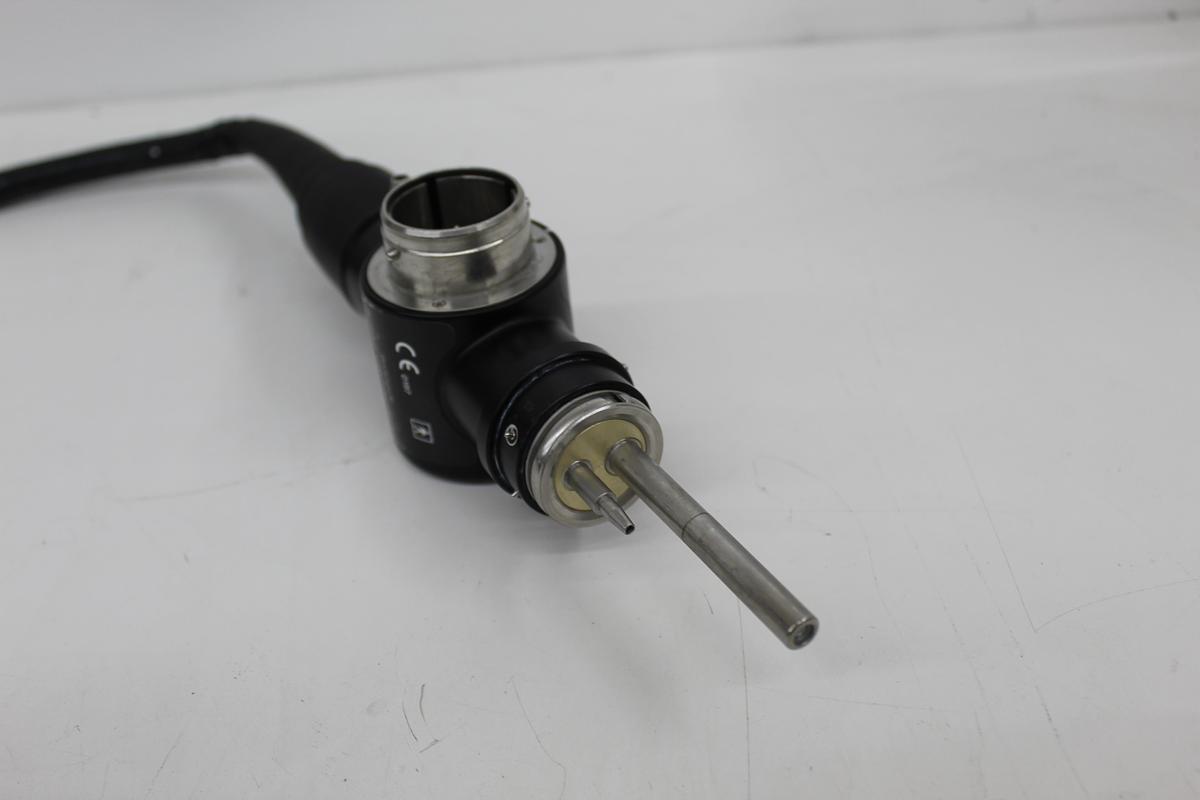

Unit is used, in good condition, pulled from a working enviorment. Unit includes video endoscope only. Unit comes in a Karl Storz Endoscope case. See photos, item comes as shown.

The Olympus EVIS GIF-N230 requires a compatible Olympus video processor and monitor, such as the Olympus CV-200, to operate and display an image. A compatible Olympus light source, such as the Olympus CLV-U20 or CLV-U40, and the appropriate connection cables are also required for a complete endoscopy setup.

[Info on Unit]

Manufacturer: Olympus

Model: GIF-N230

Series: EVIS

Type: Ultra-Slim Flexible Video Gastroscope

Endoscope Configuration: Flexible Video Endoscope

Insertion Tube Outer Diameter: 6.0 mm

Instrument Channel Diameter: 2.0 mm

Field of View: 120°

Viewing Direction: Forward Viewing

Angulation Up: 180°

Angulation Down: 180°

Angulation Right: 160°

Angulation Left: 160°

Imaging System: Electronic Video Imaging

Application: Upper Gastrointestinal Endoscopy

Examination Type: Transnasal and Transoral Gastroscopy

Compatible Video Processor: Olympus CV-200

Compatible Light Source: Olympus EVIS Light Source

[Description]

The Olympus EVIS GIF-N230 is an ultra-slim flexible video gastroscope designed for diagnostic examination of the upper gastrointestinal tract. Featuring a narrow 6.0 mm insertion diameter, the instrument is suitable for transnasal and transoral endoscopic procedures where a smaller-diameter endoscope is beneficial. Its electronic video imaging system provides forward-viewing visualization with a 120-degree field of view, while the integrated 2.0 mm instrument channel accommodates compatible endoscopic accessories for tissue sampling and other diagnostic procedures. The insertion section features four-way tip articulation with 180-degree upward and downward movement and 160-degree right and left movement for controlled navigation and observation. The GIF-N230 is part of the Olympus EVIS endoscopy platform and is designed for use with compatible Olympus video processing and illumination equipment.

ALL QUESTIONS AND OFFERS WELCOME

Buy with confidence, we have a 100% satisfaction guarantee.
